Jenn-Air
Gas Cooktop

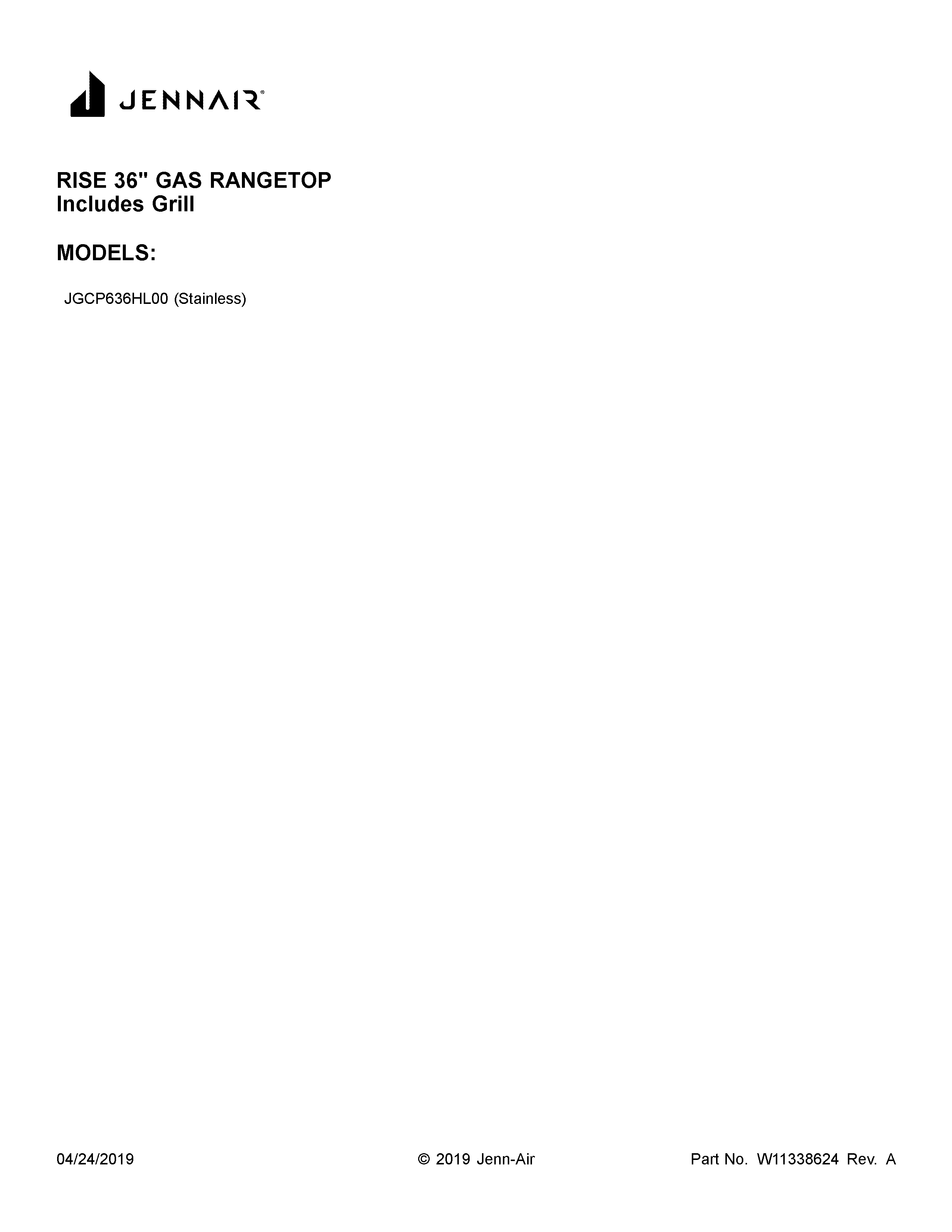

Model # JGCP636HL00 Official Jenn-Air gas counter unit

Here are the diagrams and repair parts for Official Jenn-Air JGCP636HL00 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Range Broil Pan Assembly W10123240
#NI

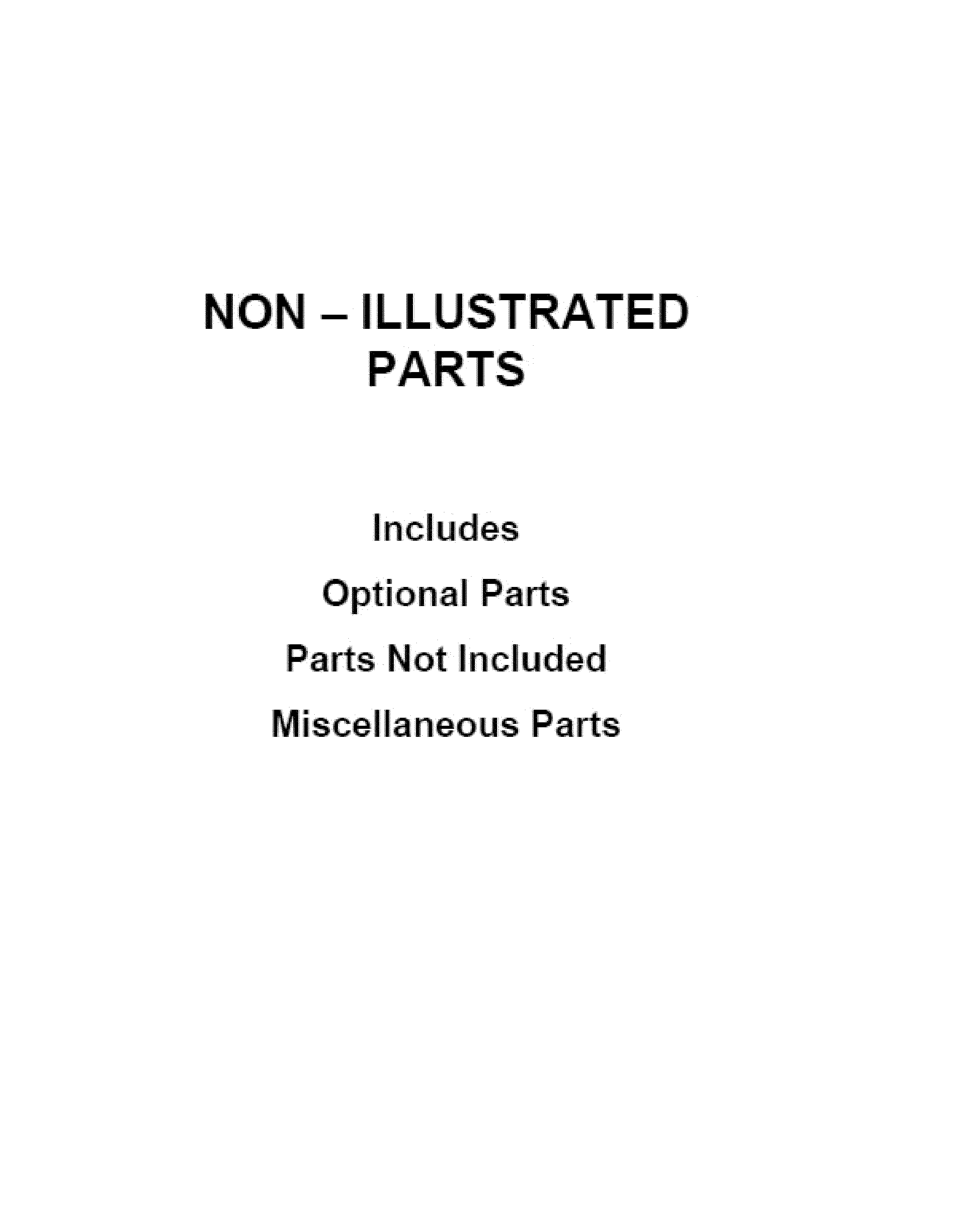

Optional parts (not included) diagram

Range broil pan assembly

Part #W10123240

$62.06 |
13% OFF MSRP : $71.00
In Stock
Assembly, Grate (black (set Of 2)) W11179862
#5

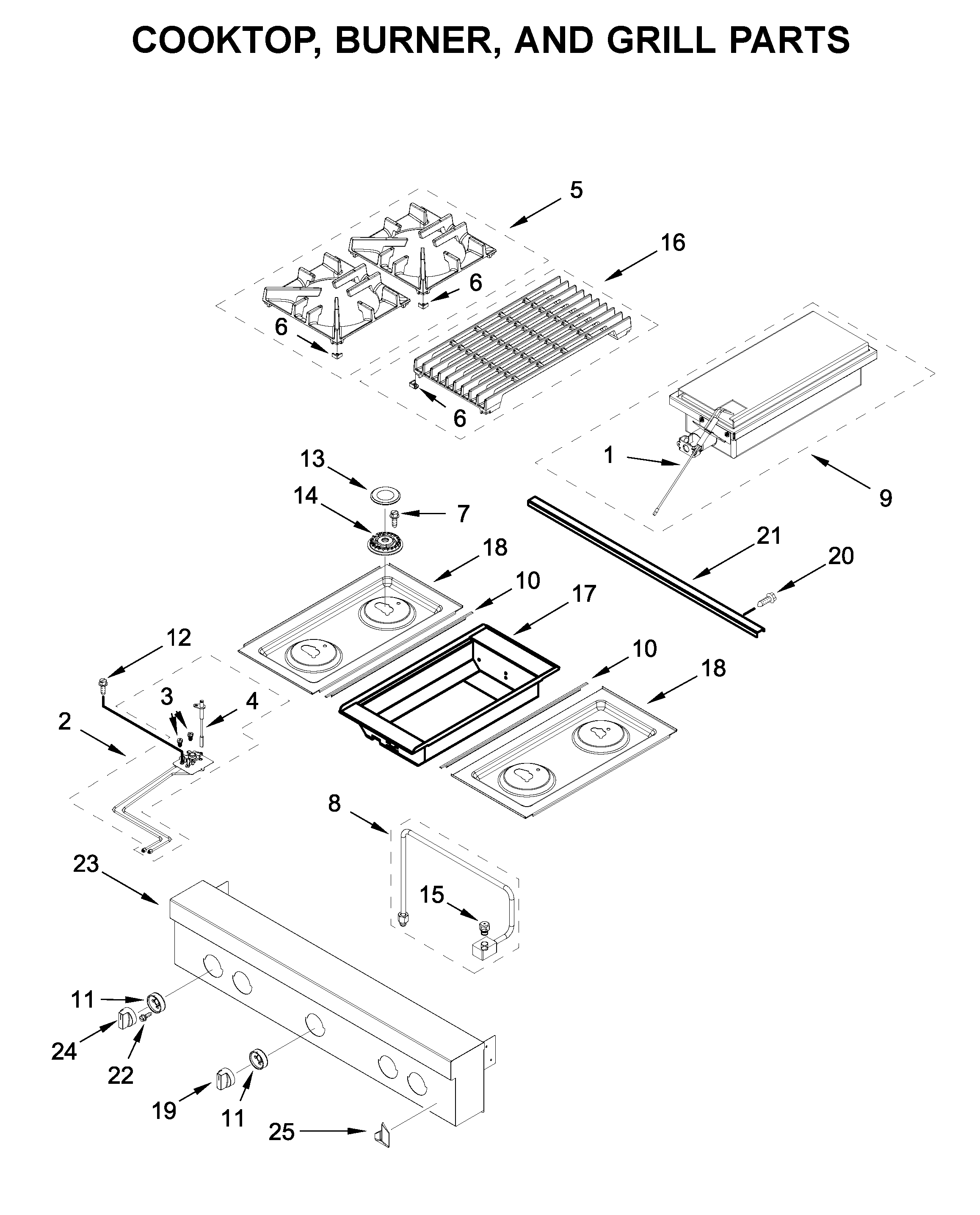

Cooktop, burner, and grill parts diagram

Assembly, grate (black (set of 2))

Part #W11179862

Replaced by #W11515370

?
Manufacturer substitution
This part replaces W11179862. Substitute parts can look different from the original.
$202.50 |
5% OFF Phone Price : $212.50
In Stock
Plug-supply W10892063
#18

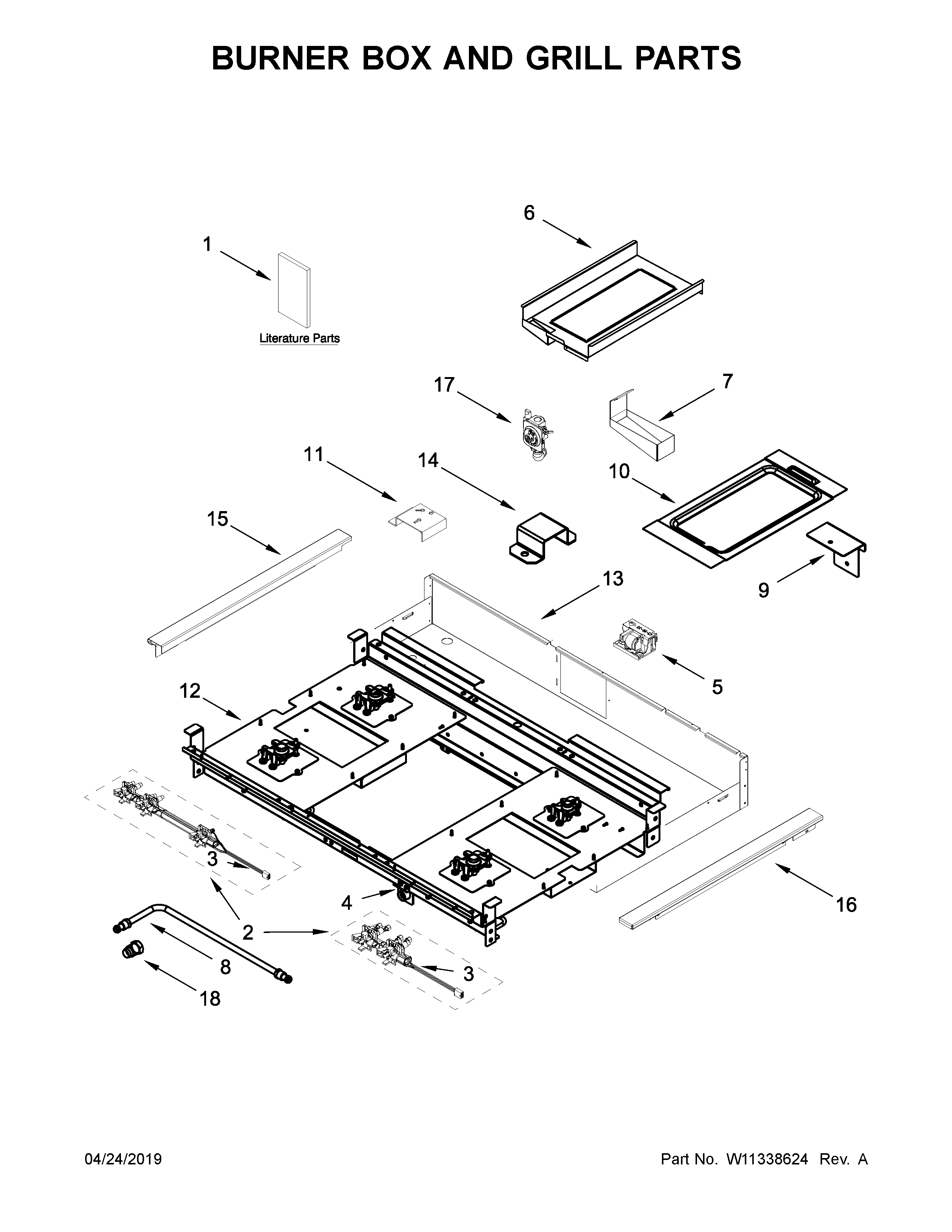

Burner box and grill parts diagram

Plug-supply

Part #W10892063

$27.51
In Stock
Bracket-ir, W11285353
#9

Burner box and grill parts diagram

Bracket-ir,

Part #W11285353

$44.87
In Stock
Range Surface Burner Cap Set (brass) W11323014
#NI

Optional parts (not included) diagram

Range surface burner cap set (brass)

Part #W11323014

$371.73 |
$10.00 OFF Phone Price : $381.73
In Stock
Trim, Island W11355760
#21

Cooktop, burner, and grill parts diagram

Trim, island

Part #W11355760

$101.56
In Stock
Harn Switch, W11106304
#3

Burner box and grill parts diagram

Harn switch,

Part #W11106304

$192.80
In Stock
Harn Jumper, W11038934
#NI

Burner box and grill parts diagram

Harn jumper,

Part #W11038934

$76.89
In Stock
Orifice-18.0 W10892423
#15

Cooktop, burner, and grill parts diagram

Orifice-18.0

Part #W10892423

$36.67
In Stock
Trim W10291193
#10

Cooktop, burner, and grill parts diagram

Trim

Part #W10291193

$65.82
In Stock
