Maytag
Electric Cooktop

Model #CSE9000BDE Maytag electric counter unit cooktop

Here are the diagrams and repair parts for Maytag CSE9000BDE electric counter unit cooktop, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 47 parts

Screw

#19B

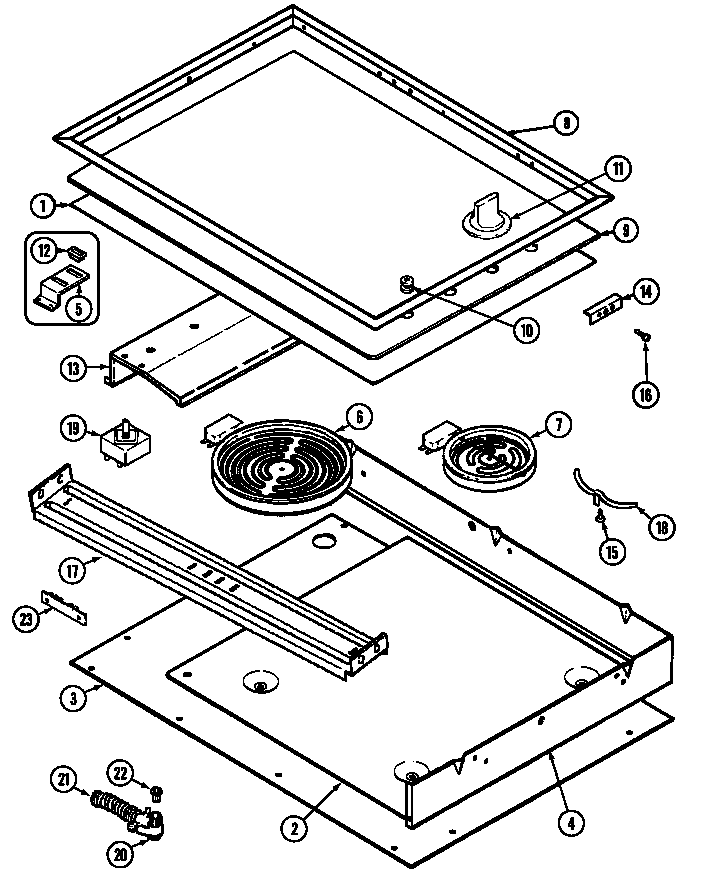

Top assembly Diagram

Screw

Part #WP7101P309-60
?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This part replaces 7101P309-60
This item is not returnable
$2.49 |
24% OFF MSRP:$3.29

In Stock

Range Radiant Surface Element, 6-in

#7

Top assembly Diagram

Range radiant surface element, 6-in

Part #W10823704
?
Manufacturer substitution
This part replaces 7406P074-60. Substitute parts can look different from the original.
This part replaces 7406P074-60
$114.26 |
24% OFF MSRP:$150.00

In Stock

Range Radiant Surface Element, 6-in

#7A

Top assembly Diagram

Range radiant surface element, 6-in

Part #W10823704
?
Manufacturer substitution
This part replaces 74001011. Substitute parts can look different from the original.
This part replaces 74001011
$114.26 |
24% OFF MSRP:$150.00

In Stock

Range Surface Element Control Switch

#19A

Top assembly Diagram

Range surface element control switch

Part #WPR0702021
?
Manufacturer substitution
This part replaces 7403P322-60. Substitute parts can look different from the original.
This part replaces 7403P322-60
$71.23 |
23% OFF MSRP:$93.00

In Stock

Affresh Cooktop Cleaner

#23C

Top assembly Diagram

Affresh cooktop cleaner

Part #W10355051
?
Manufacturer substitution
This part replaces 8308P002-60. Substitute parts can look different from the original.
This part replaces 8308P002-60
This item is not returnable
$6.64 |
19% OFF MSRP:$8.19

Back Order

Range Screw

#16

Top assembly Diagram

Range screw

Part #WP7101P126-60
?
Manufacturer substitution
This part replaces 7101P058-60. Substitute parts can look different from the original.
This part replaces 7101P058-60
This item is not returnable
$4.34

In Stock

Range Radiant Surface Element, 8-in

#6

Top assembly Diagram

Range radiant surface element, 8-in

Part #W10823707
?
Manufacturer substitution
This part replaces 7406P073-60. Substitute parts can look different from the original.
This part replaces 7406P073-60
$119.87 |
8% OFF MSRP:$130.00

In Stock

Range Screw

#15

Top assembly Diagram

Range screw

Part #WP74004005
?
Manufacturer substitution
This part replaces 7101P349-60. Substitute parts can look different from the original.
This part replaces 7101P349-60
This item is not returnable
$3.29

In Stock

Range Radiant Surface Element, 8-in

#6A

Top assembly Diagram

Range radiant surface element, 8-in

Part #W10823707
?
Manufacturer substitution
This part replaces 74001012. Substitute parts can look different from the original.
This part replaces 74001012
$119.87 |
8% OFF MSRP:$130.00

In Stock

Terminal Block

#23

Top assembly Diagram

Terminal block

Part #7401P003-60

The manufacturer no longer makes this part, and there's no substitute part
