Model # 83306 Official Kenmore air cleaner

Here are the diagrams and repair parts for Official Kenmore 83306 air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Crnr Ft Tube RGA0057
#17

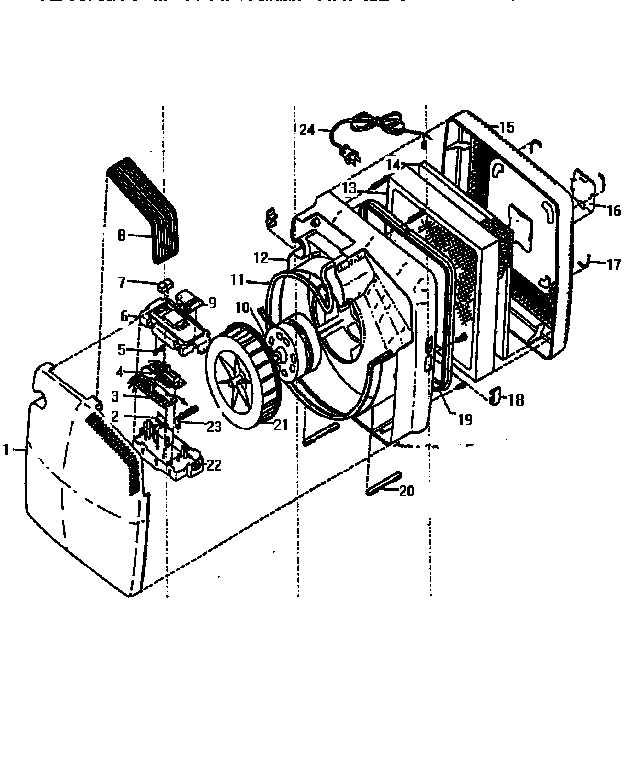

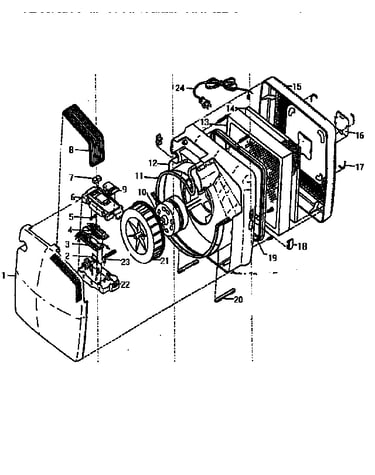

Unit parts diagram

Crnr ft tube

Part #RGA0057

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch ESX0005
#2

Unit parts diagram

Micro-switch

Part #ESX0005

The manufacturer no longer makes this part, and there's no substitute part

Display Assembly BPA0034
#4

Unit parts diagram

Display assembly

Part #BPA0034

The manufacturer no longer makes this part, and there's no substitute part

Interlck Pin PCC0233-K
#23

Unit parts diagram

Interlck pin

Part #PCC0233-K

The manufacturer no longer makes this part, and there's no substitute part

Hook Plug PCC0206-K
#18

Unit parts diagram

Hook plug

Part #PCC0206-K

The manufacturer no longer makes this part, and there's no substitute part

Outlet Grille PCC0195-K
#8

Unit parts diagram

Outlet grille

Part #PCC0195-K

The manufacturer no longer makes this part, and there's no substitute part

Foot RGA0055
#20

Unit parts diagram

Foot

Part #RGA0055

The manufacturer no longer makes this part, and there's no substitute part

Fr Hsg Print PCC0188-K1
#1

Unit parts diagram

Fr hsg print

Part #PCC0188-K1

The manufacturer no longer makes this part, and there's no substitute part

Push Button PCC0192-K
#7

Unit parts diagram

Push button

Part #PCC0192-K

The manufacturer no longer makes this part, and there's no substitute part

Base PCC0186-K
#15

Unit parts diagram

Base

Part #PCC0186-K

The manufacturer no longer makes this part, and there's no substitute part
