GE
Chest Freezer

Model # CB25DCC Official GE freezer

Here are the diagrams and repair parts for Official GE CB25DCC freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Hose Adapter WR1X1538
#30B

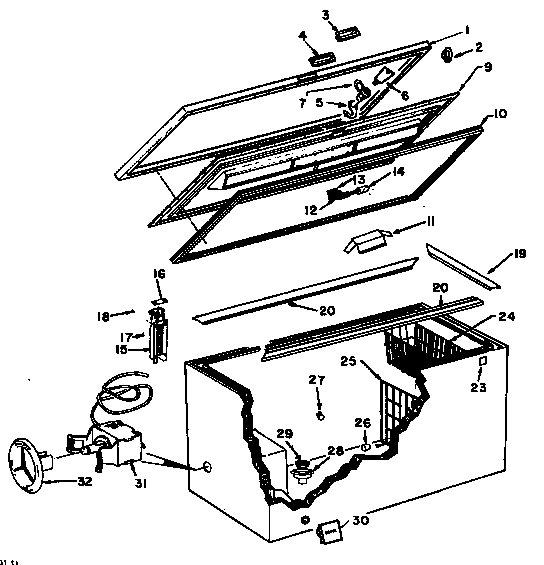

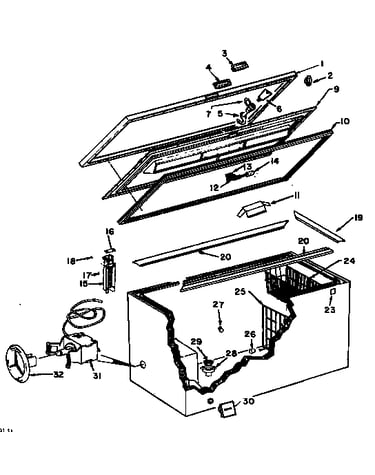

Freezer assembly diagram

Hose adapter

Part #WR1X1538

$27.99 |
15% OFF Phone Price : $32.99
In Stock
Freezer Liner Button Plug WR2X3139
#27B

Freezer assembly diagram

Freezer liner button plug

Part #WR2X3139

This item is not returnable
$5.00
In Stock
Refrigerator Use And Care Guide 49-6316
#58B

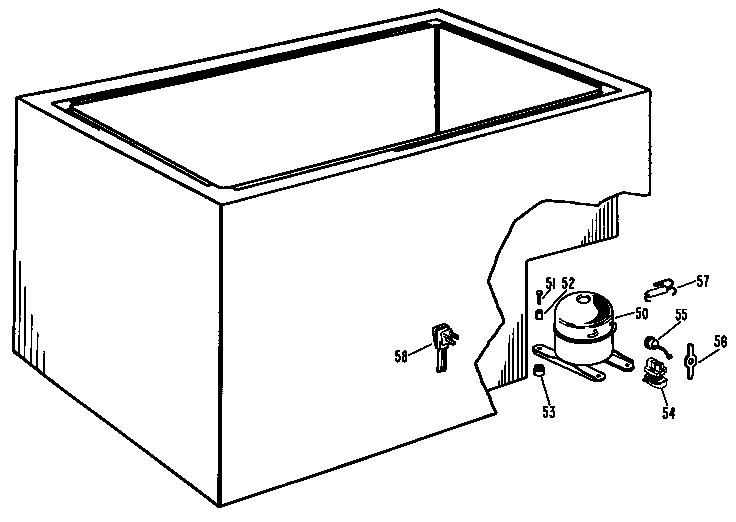

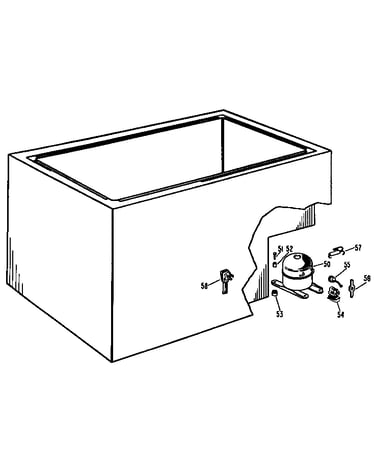

Unit diagram

Refrigerator use and care guide

Part #49-6316

Replaced by #49-6316-2

?
Manufacturer substitution
This part replaces 49-6316. Substitute parts can look different from the original.
$8.49
In Stock
Power Cord WR23X108
#58A

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
18% OFF Phone Price : $27.68
In Stock
Tubular Fastener WR2X3757
#23B

Freezer assembly diagram

Tubular fastener

Part #WR2X3757

The manufacturer no longer makes this part, and there's no substitute part

Lock WR5X5033
#5

Freezer assembly diagram

Lock

Part #WR5X5033

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug WR2X4649
#30A

Freezer assembly diagram

Drain plug

Part #WR2X4649

The manufacturer no longer makes this part, and there's no substitute part

Relay WR7X5066
#54

Unit diagram

Relay

Part #WR7X5066

The manufacturer no longer makes this part, and there's no substitute part

Tip Divider WR1X1526
#26

Freezer assembly diagram

Tip divider

Part #WR1X1526

The manufacturer no longer makes this part, and there's no substitute part

Screw Catch To Breaker WR1X5484
#20D

Freezer assembly diagram

Screw catch to breaker

Part #WR1X5484

The manufacturer no longer makes this part, and there's no substitute part
