Model # NHT915 Official Bosch gas cooktop

Here are the diagrams and repair parts for Official Bosch NHT915 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Ring Base 820006
#3

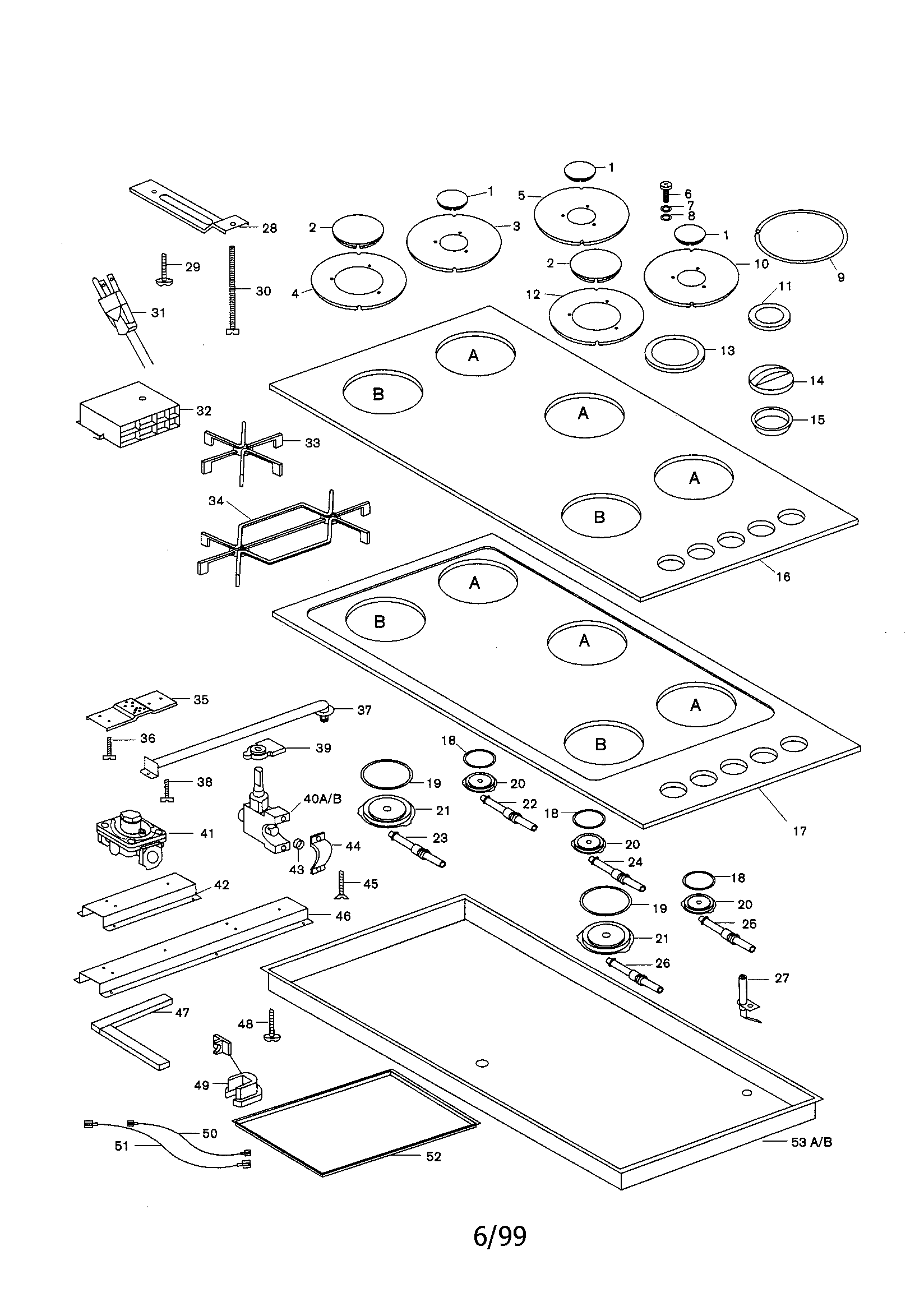

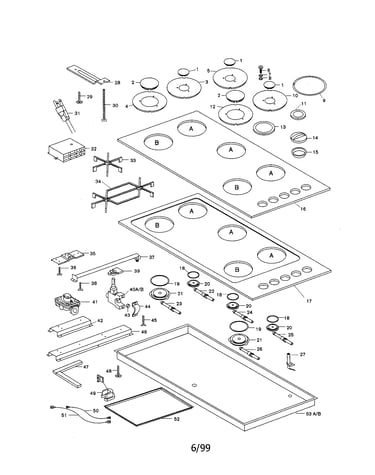

Replacement parts diagram

Ring base

Part #820006

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 820061
#40B

Replacement parts diagram

Gas valve

Part #820061

The manufacturer no longer makes this part, and there's no substitute part

Pipe 820031
#23

Replacement parts diagram

Pipe

Part #820031

The manufacturer no longer makes this part, and there's no substitute part

Bracket 820005
#35

Replacement parts diagram

Bracket

Part #820005

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 820057
#31

Replacement parts diagram

Power cord

Part #820057

The manufacturer no longer makes this part, and there's no substitute part

Igniter 820096
#27

Replacement parts diagram

Igniter

Part #820096

The manufacturer no longer makes this part, and there's no substitute part

Cable 820055
#50

Replacement parts diagram

Cable

Part #820055

The manufacturer no longer makes this part, and there's no substitute part

Burner Ring 820008
#13

Replacement parts diagram

Burner ring

Part #820008

The manufacturer no longer makes this part, and there's no substitute part

Shield 820081
#52

Replacement parts diagram

Shield

Part #820081

The manufacturer no longer makes this part, and there's no substitute part

Screw 820026
Screw

Part #820026

The manufacturer no longer makes this part, and there's no substitute part
