Frigidaire
Microwave/Hood Combo

Model # FFMV1846VSA Official Frigidaire microwave/hood combo

Here are the diagrams and repair parts for Official Frigidaire FFMV1846VSA microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

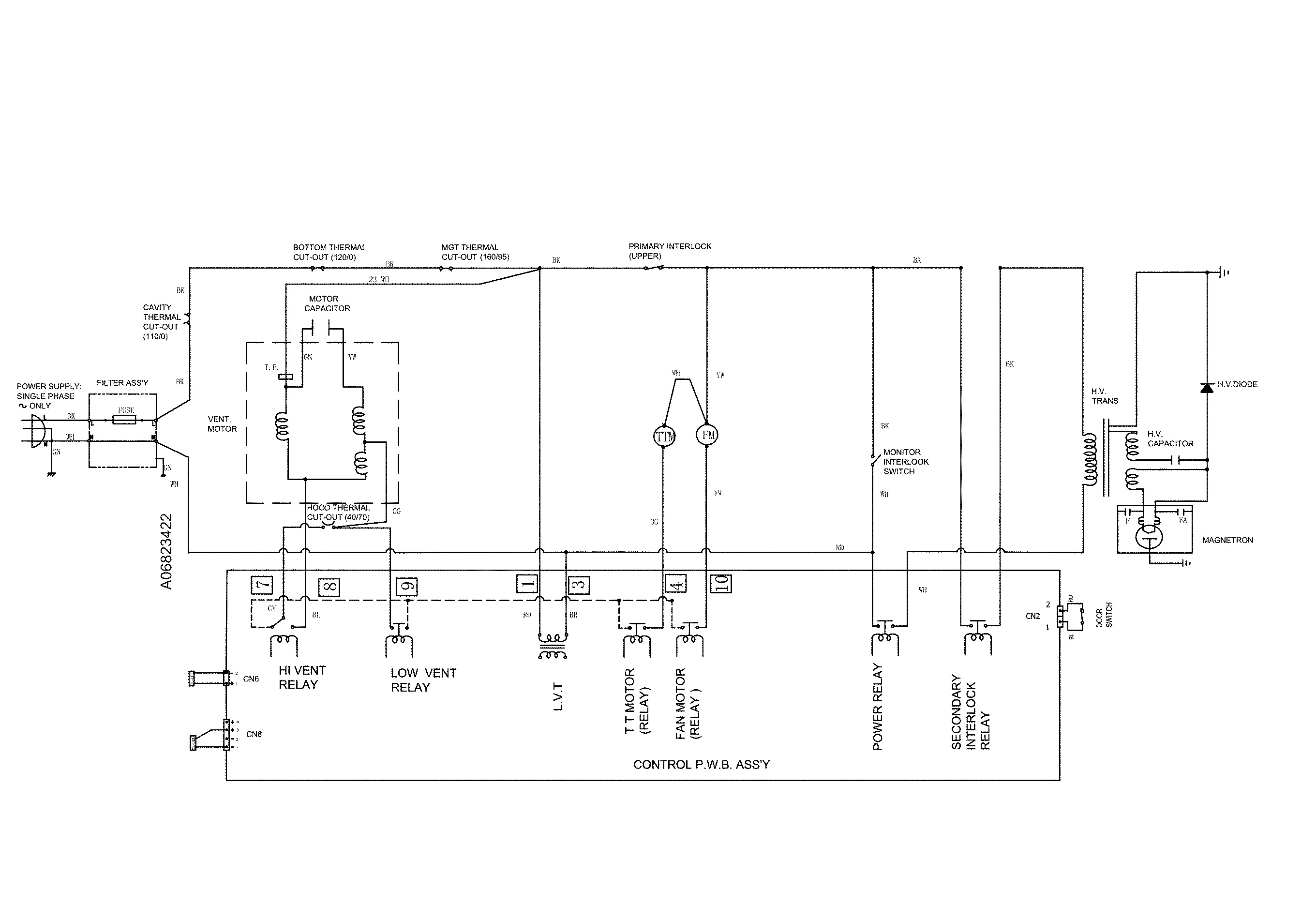

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Microwave Door Interlock Switch (replaces 5304464099, 5304520020) 5304509460
Microwave door interlock switch (replaces 5304464099, 5304520020)

Part #5304509460

BEST SELLER
$34.70
17% OFF MSRP : $42.00
In Stock
Switch 5304520020
#70

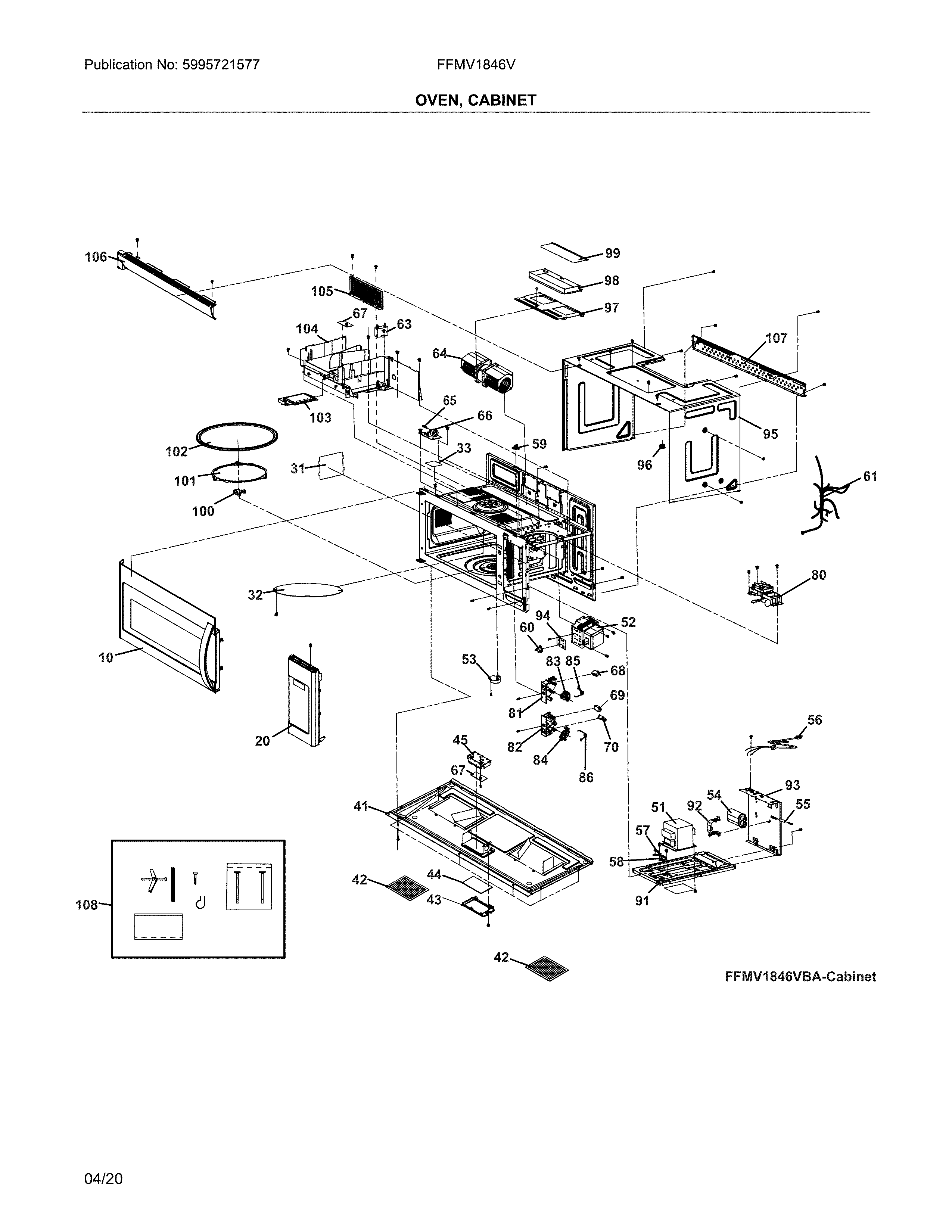

Oven, cabinet diagram

Switch

Part #5304520020

Replaced by #5304509460

?
Manufacturer substitution
This part replaces 5304520020. Substitute parts can look different from the original.
BEST SELLER
$34.70
17% OFF MSRP : $42.00
In Stock
Microwave Turntable Tray Support (replaces 5304464115) 5304509438
#101

Oven, cabinet diagram

Microwave turntable tray support (replaces 5304464115)

Part #5304509438

BEST SELLER
$42.69
10% OFF Phone Price : $47.69
In Stock
Microwave Vent Damper (replaces 5304464120) 5304509485
#98

Oven, cabinet diagram

Microwave vent damper (replaces 5304464120)

Part #5304509485

This item is not returnable
$23.86
17% OFF Phone Price : $28.86
In Stock
Microwave Magnetron 5304509470
#52

Oven, cabinet diagram

Microwave magnetron

Part #5304509470

$257.97
$10.00 OFF Phone Price : $267.97
In Stock
Microwave Mounting Plate, Rear 5304509487
#107

Oven, cabinet diagram

Microwave mounting plate, rear

Part #5304509487

$49.90
9% OFF Phone Price : $54.90
In Stock
Microwave High-voltage Capacitor 5304509478
#54

Oven, cabinet diagram

Microwave high-voltage capacitor

Part #5304509478

$82.51
6% OFF Phone Price : $87.51
In Stock
Microwave Vent Motor Capacitor 5304509453
#63

Oven, cabinet diagram

Microwave vent motor capacitor

Part #5304509453

In Stock
Microwave Turntable Motor Coupler (replaces 5304499600) 5304513472
#100

Oven, cabinet diagram

Microwave turntable motor coupler (replaces 5304499600)

Part #5304513472

$19.99
9% OFF Phone Price : $21.99
In Stock
Microwave Door Handle (black) 5304509581
#15

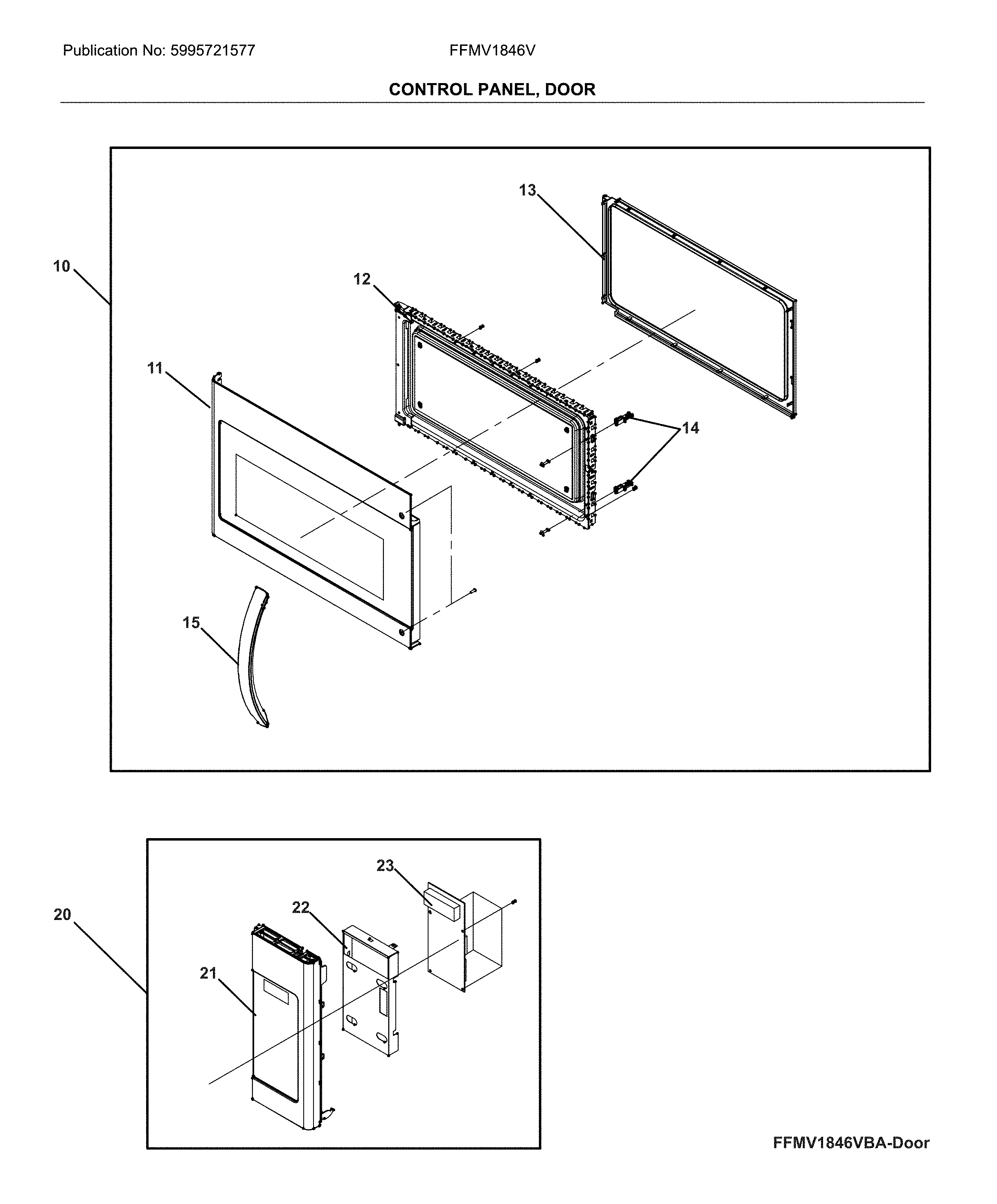

Control panel, door diagram

Microwave door handle (black)

Part #5304509581

$88.52
5% OFF Phone Price : $93.52
In Stock
