Model # 875188800 Official Craftsman high-speed cutter

Here are the diagrams and repair parts for Official Craftsman 875188800 high-speed cutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Power Tool Roll Pin 111230
#22

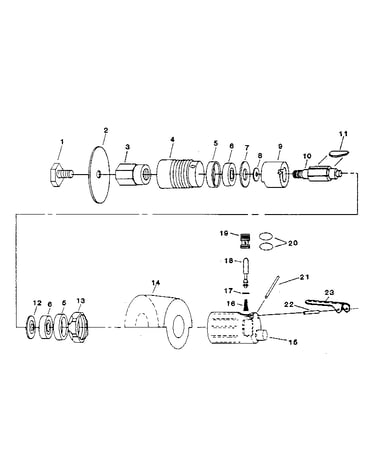

Unit parts diagram

Power tool roll pin

Part #111230

The manufacturer no longer makes this part, and there's no substitute part

Trigger Valve Body 120120
#19

Unit parts diagram

Trigger valve body

Part #120120

The manufacturer no longer makes this part, and there's no substitute part

Barrel 101010
#4

Unit parts diagram

Barrel

Part #101010

The manufacturer no longer makes this part, and there's no substitute part

Arbor 107200
#3

Unit parts diagram

Arbor

Part #107200

The manufacturer no longer makes this part, and there's no substitute part

Handle 264068
#15

Unit parts diagram

Handle

Part #264068

The manufacturer no longer makes this part, and there's no substitute part

Rotor 116040
#10

Unit parts diagram

Rotor

Part #116040

The manufacturer no longer makes this part, and there's no substitute part

Shield 122090
#14

Unit parts diagram

Shield

Part #122090

The manufacturer no longer makes this part, and there's no substitute part

End Plate 113120
#12

Unit parts diagram

End plate

Part #113120

The manufacturer no longer makes this part, and there's no substitute part

Vane 116210
#11

Unit parts diagram

Vane

Part #116210

The manufacturer no longer makes this part, and there's no substitute part

Cut-off Saw Bolt 117330
#1

Unit parts diagram

Cut-off saw bolt

Part #117330

The manufacturer no longer makes this part, and there's no substitute part
