GE
Countertop Microwave

Model # JEM32H03 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JEM32H03 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

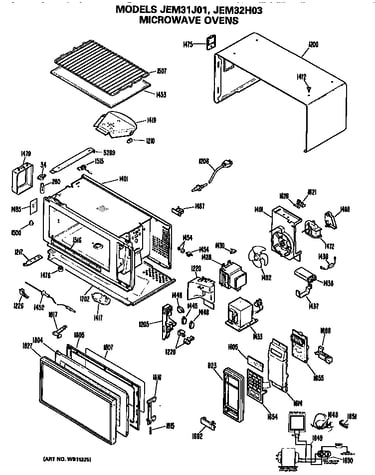

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Diode WB27X503

#1439

All parts diagram

Diode

Part #WB27X503

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X503. Substitute parts can look different from the original.
BEST SELLER
$84.28
6% OFF Phone Price : $89.28
In Stock
Fuse WB27X225

#1626

All parts diagram

Fuse

Part #WB27X225

Replaced by #WB27X7

?
Manufacturer substitution
This part replaces WB27X225. Substitute parts can look different from the original.
$7.83
11% OFF Phone Price : $8.83
In Stock
Use & Care/i 49-4977

#LITR

All parts diagram

Use & care/i

Part #49-4977

In Stock
Use & Care/i 49-4976

#LITR

All parts diagram

Use & care/i

Part #49-4976

In Stock
Outer Case WB56X1987

#1200

All parts diagram

Outer case

Part #WB56X1987

In Stock
Cookbook Jem 49-4930

#LITR

All parts diagram

Cookbook jem

Part #49-4930

Replaced by #49-4860

?
Manufacturer substitution
This part replaces 49-4930. Substitute parts can look different from the original.
In Stock
Capacitor WB27X254

#578

All parts diagram

Capacitor

Part #WB27X254

Replaced by #WB27X10073

?
Manufacturer substitution
This part replaces WB27X254. Substitute parts can look different from the original.
$70.75
7% OFF Phone Price : $75.75
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Door Button WB3X846

#1692

All parts diagram

Door button

Part #WB3X846

The manufacturer no longer makes this part, and there's no substitute part

Transformer WB27X501

#1433

All parts diagram

Transformer

Part #WB27X501

The manufacturer no longer makes this part, and there's no substitute part
