Frigidaire
Chest Freezer

Model # FFC15C2CW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFC15C2CW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Filter Drier 216634500
#4

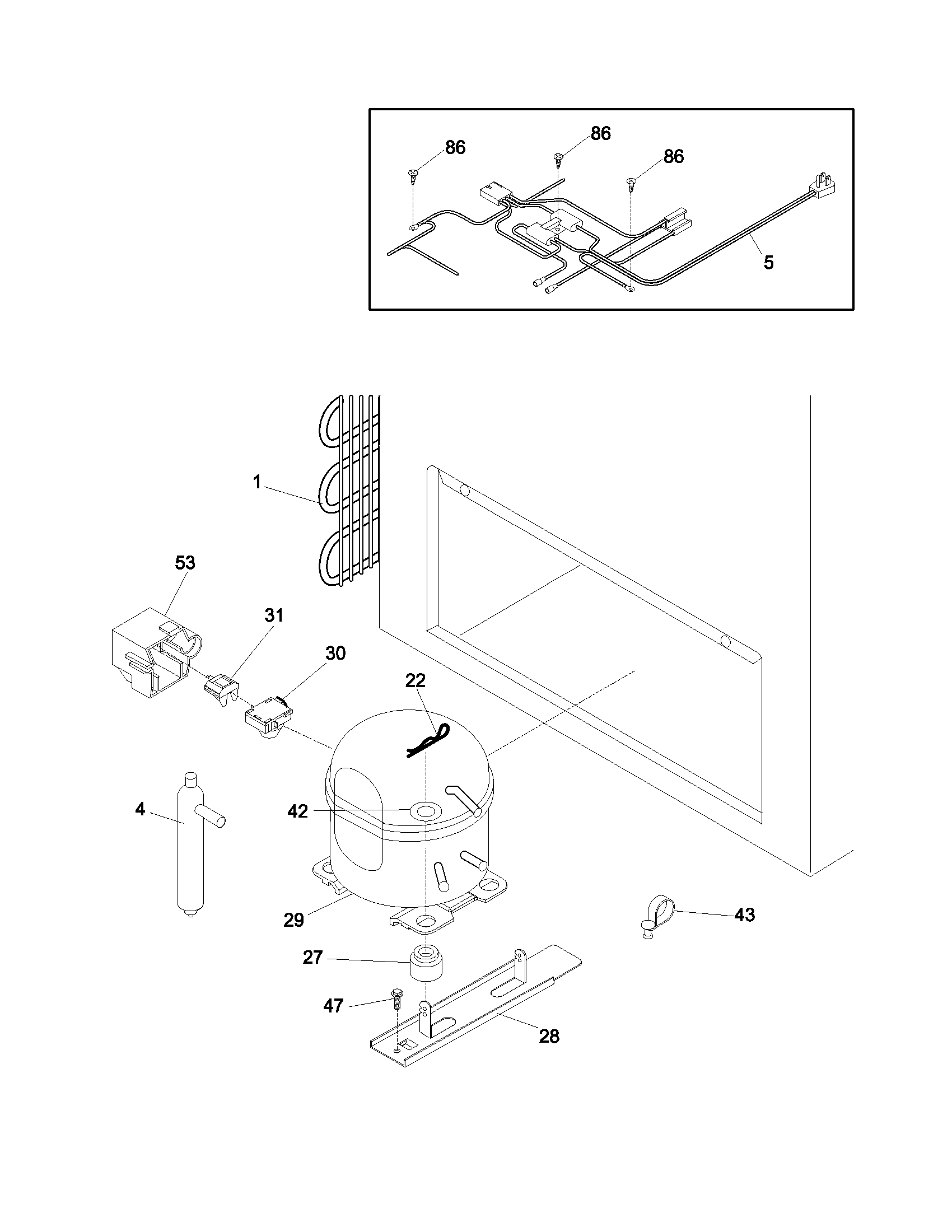

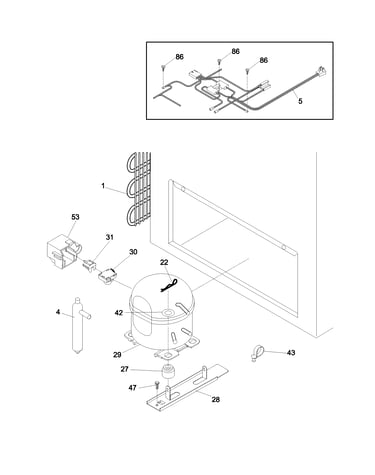

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

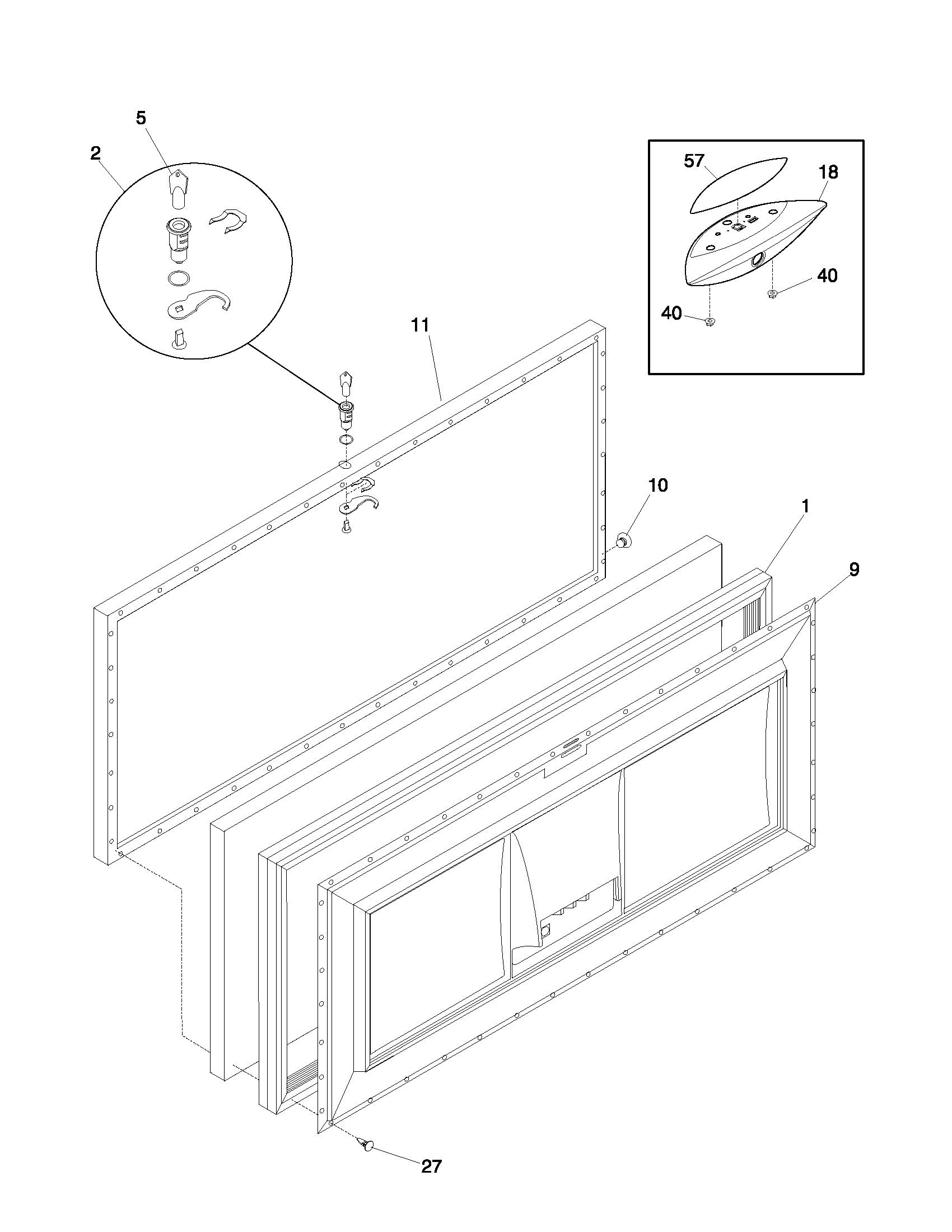

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.54
12% OFF Phone Price : $10.84
In Stock
Compressor 216888100
#29

System diagram

Compressor

Part #216888100

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 216888100. Substitute parts can look different from the original.
BEST SELLER
$449.52
$12.00 OFF Phone Price : $461.52
In Stock
Freezer Lid Gasket 216481201
#1

Door diagram

Freezer lid gasket

Part #216481201

Replaced by #216481211

?
Manufacturer substitution
This part replaces 216481201. Substitute parts can look different from the original.
BEST SELLER
$136.60
8% OFF Phone Price : $148.60
In Stock
Touch Paint 5303305324
#NI

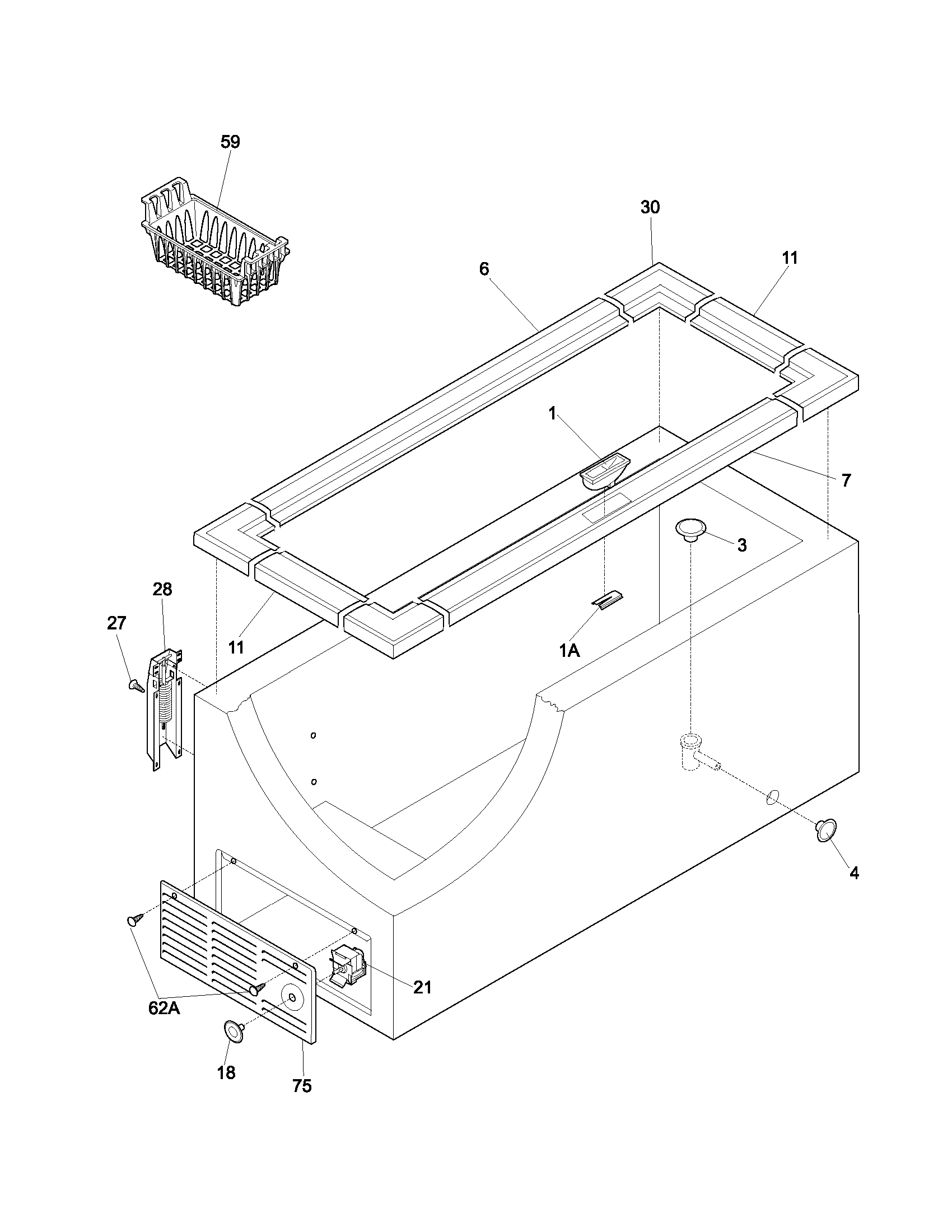

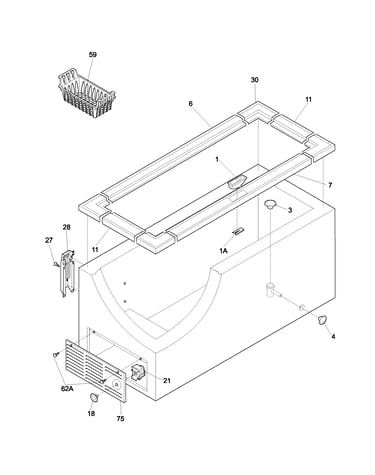

Cabinet diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09
12% OFF Phone Price : $17.09
In Stock
Ptc Starter 216596800
#30

System diagram

Ptc starter

Part #216596800

Replaced by #5304493950

?
Manufacturer substitution
This part replaces 216596800. Substitute parts can look different from the original.
$84.79
7% OFF Phone Price : $90.79
In Stock
Hinge (white) 216035200
#28

Cabinet diagram

Hinge (white)

Part #216035200

Replaced by #297321900

?
Manufacturer substitution
This part replaces 216035200. Substitute parts can look different from the original.
$68.89
8% OFF Phone Price : $74.89
In Stock
Hinge Screw 216629600
Hinge screw

Part #216629600

Replaced by #216629601

?
Manufacturer substitution
This part replaces 216629600. Substitute parts can look different from the original.
This item is not returnable
$10.92
15% OFF Phone Price : $12.92
In Stock
Clip 5309948647
#40

Door diagram

Clip

Part #5309948647

Replaced by #216922700

?
Manufacturer substitution
This part replaces 5309948647. Substitute parts can look different from the original.
This item is not returnable
$13.31
13% OFF Phone Price : $15.31
In Stock
Freezer Temperature Control Thermostat 216714601
#21

Cabinet diagram

Freezer temperature control thermostat

Part #216714601

$90.23
6% OFF Phone Price : $96.23
In Stock

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Repair guides for chest freezers

How to replace a freezer compressor start relay

How to replace a freezer compressor start relay

The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defect…

Repair difficulty
Time required
 15 minutes or less
How to replace a freezer temperature control thermostat

How to replace a freezer temperature control thermostat

The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compr…

Repair difficulty
Time required
 15 minutes or less
How to replace a freezer lid gasket

How to replace a freezer lid gasket

The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace…

Repair difficulty
Time required
 30 minutes or less
