Kelvinator UFS160FM3W upright freezer - lk30890080 Parts
Here are the diagrams and repair parts for Kelvinator UFS160FM3W upright freezer - lk30890080, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for UFS160FM3W Freestanding Freezers

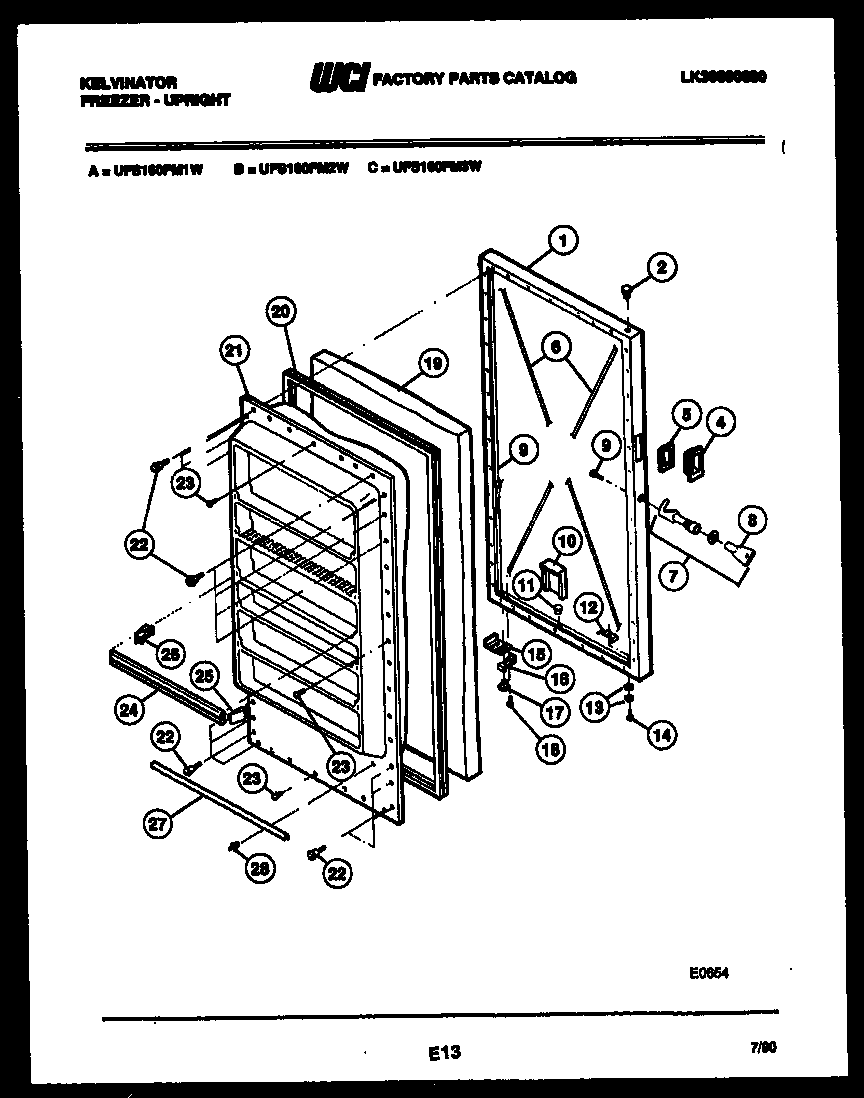

Door parts diagram
Fkl Clip
Part #F114681Replaced by #5304406520
Manufacturer substitutionThis part replaces F114681. Substitute parts can look different from the original.In Stock$74.607% OFF Phone Price : $80.60
Qty
Door parts diagram
Air Duct
Part #F128421Replaced by #5303212700
Manufacturer substitutionThis part replaces F128421. Substitute parts can look different from the original.In Stock$40.38QtyDoor parts diagram
Screw
Part #F124860Replaced by #216022800

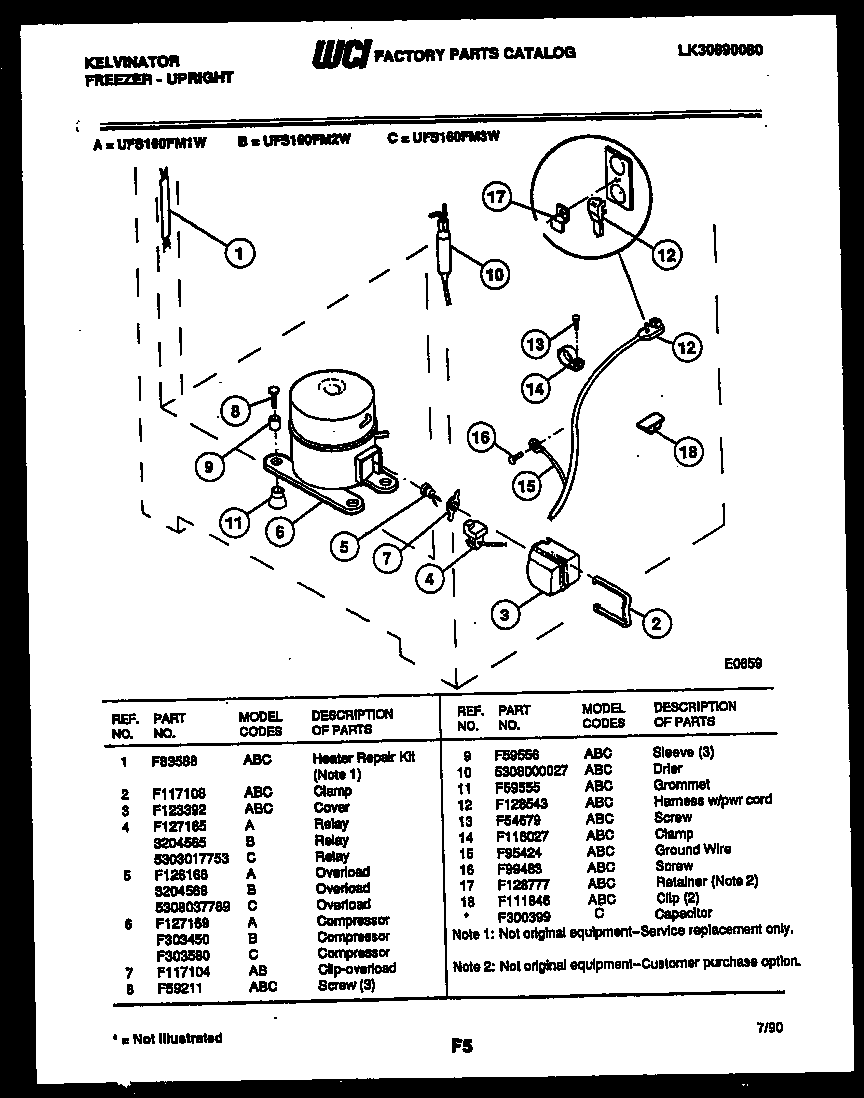

Manufacturer substitutionThis part replaces F124860. Substitute parts can look different from the original.In Stock$28.55QtySystem and electrical parts diagram
Grommet
Part #F59555Replaced by #216498900

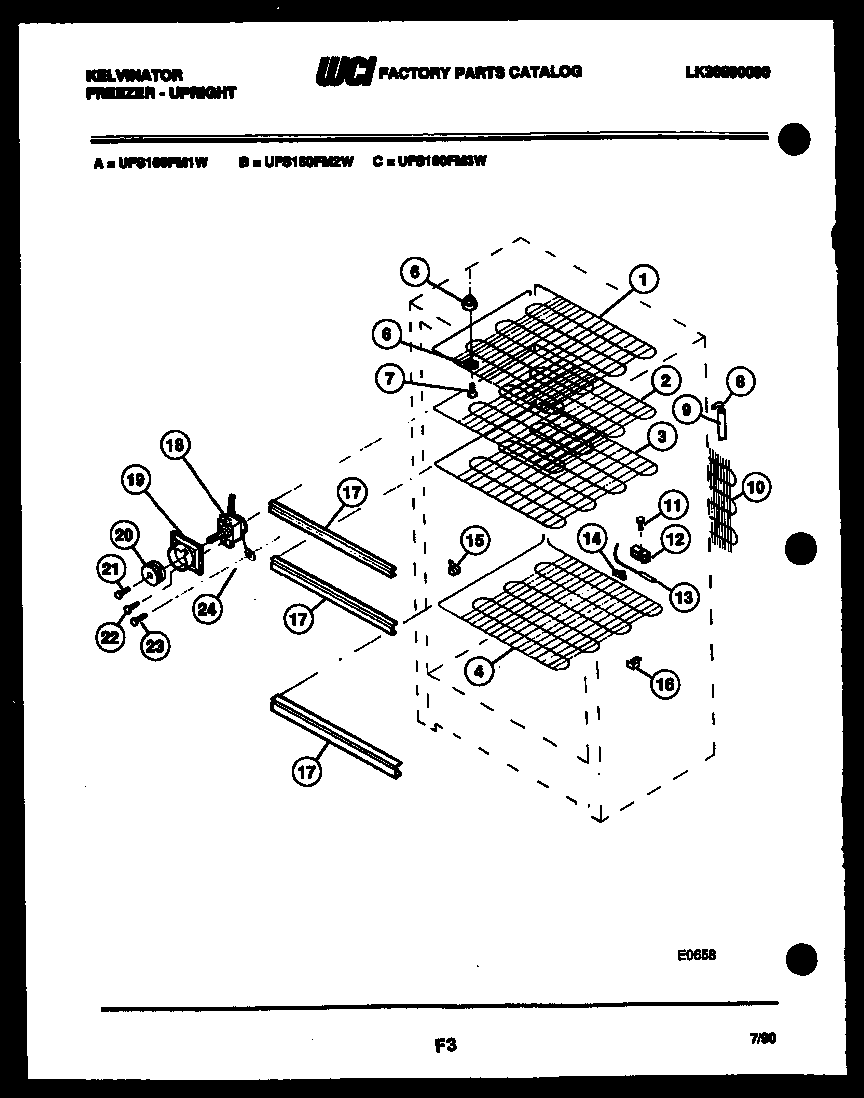

Manufacturer substitutionThis part replaces F59555. Substitute parts can look different from the original.This item is not returnableIn Stock$14.7112% OFF Phone Price : $16.71QtyShelves and supports diagram
Housing
Part #F128633Replaced by #08016370
Manufacturer substitutionThis part replaces F128633. Substitute parts can look different from the original.In Stock$29.15QtyDoor parts diagram
Door Stop
Part #F84896Replaced by #8016354

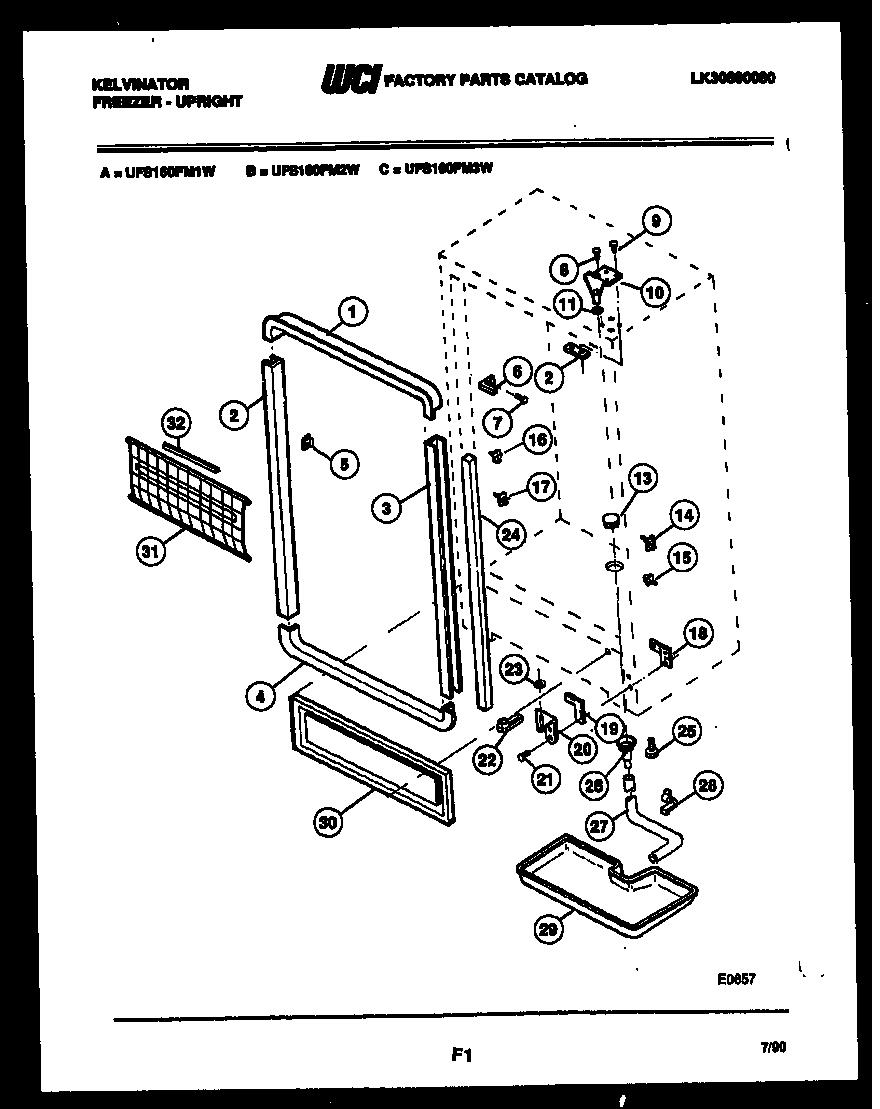

Manufacturer substitutionThis part replaces F84896. Substitute parts can look different from the original.In Stock$45.67QtyCabinet parts diagram
Plate
Part #F93207Replaced by #06593894
Manufacturer substitutionThis part replaces F93207. Substitute parts can look different from the original.In Stock$51.30QtyCabinet parts diagram
Hinge Screw
Part #F85863Replaced by #154518001
Manufacturer substitutionThis part replaces F85863. Substitute parts can look different from the original.In Stock$34.03QtyDoor parts diagram
Wire-door Ad
Part #F129667Replaced by #08037953
Manufacturer substitutionThis part replaces F129667. Substitute parts can look different from the original.In Stock$26.86QtyCabinet parts diagram
Insulation
Part #F86843-50Replaced by #5303925098
Manufacturer substitutionThis part replaces F86843-50. Substitute parts can look different from the original.In Stock$70.4342% OFF Was : $120.52Qty
