Model # WLEX13821 Official Weslo pursuit e20 exercise cycle

Here are the diagrams and repair parts for Official Weslo WLEX13821 pursuit e20 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Exercise Cycle Hand Crank Bearing Assembly 110465
#9

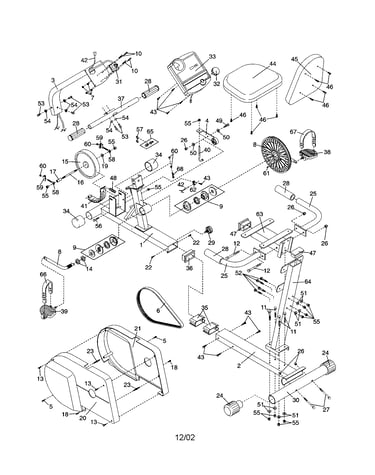

Cycle diagram

Exercise cycle hand crank bearing assembly

Part #110465

Replaced by #295560

?
Manufacturer substitution
This part replaces 110465. Substitute parts can look different from the original.
BEST SELLER
$35.69
12% OFF Phone Price : $40.69
In Stock
Sealed Bearing 113834
#15A

Cycle diagram

Sealed bearing

Part #113834

Replaced by #177035

?
Manufacturer substitution
This part replaces 113834. Substitute parts can look different from the original.
This item is not returnable
$15.39
12% OFF Phone Price : $17.39
In Stock
Exercise Equipment Screw 013576
#5

Cycle diagram

Exercise equipment screw

Part #013576

This item is not returnable
In Stock
Exercise Equipment Retainer Clip 131090
#62

Cycle diagram

Exercise equipment retainer clip

Part #131090

This item is not returnable
In Stock
Exercise Cycle Pedal, Left 180949
#39

Cycle diagram

Exercise cycle pedal, left

Part #180949

This item is not returnable
$17.99
10% OFF Phone Price : $19.99
In Stock
Uprt,seat Ba 187938
#64

Cycle diagram

Uprt,seat ba

Part #187938

In Stock
Screw,phslot 144519
#10

Cycle diagram

Screw,phslot

Part #144519

This item is not returnable
In Stock
Axle,.392x4. 192242
#16

Cycle diagram

Axle,.392x4.

Part #192242

This item is not returnable
In Stock
Base,extnsn, 187936
#2

Cycle diagram

Base,extnsn,

Part #187936

In Stock
Hb,w/bkt,dng 188316
#37

Cycle diagram

Hb,w/bkt,dng

Part #188316

In Stock
