Water Pump

Model # 3902591 Official Sears jet pump

Here are the diagrams and repair parts for Official Sears 3902591 jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

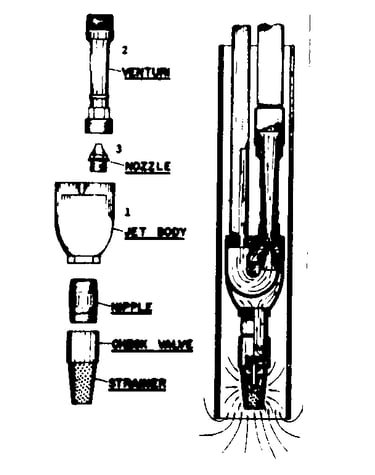

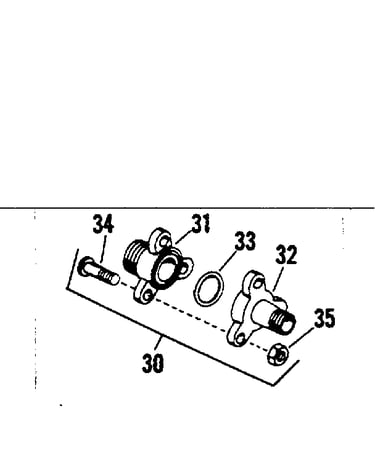

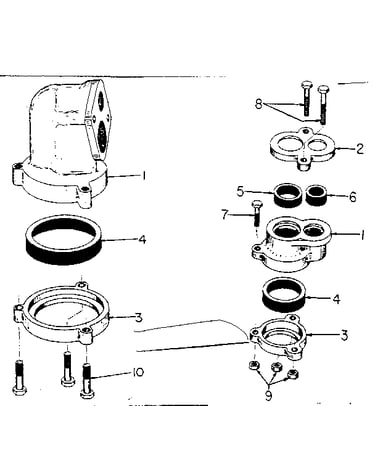

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Rotary Seal U9-6
#5

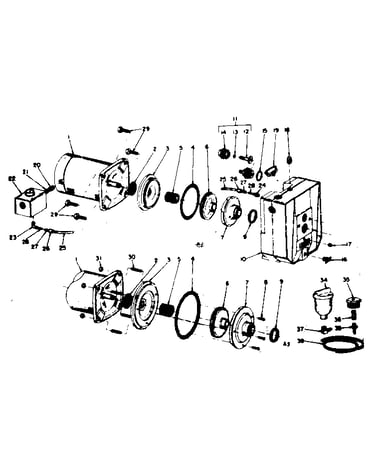

'110' jet pumps diagram

Rotary seal

Part #U9-6

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U9-6. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
In Stock
Complete Valve N212-10P
#4A

Shallow well jets diagram

Complete valve

Part #N212-10P

Replaced by #N212-12P

?
Manufacturer substitution
This part replaces N212-10P. Substitute parts can look different from the original.
$118.69 |
9% OFF Phone Price : $130.69
In Stock
Pump Jet Body Leather Seal, 2-in J57-1
#4C

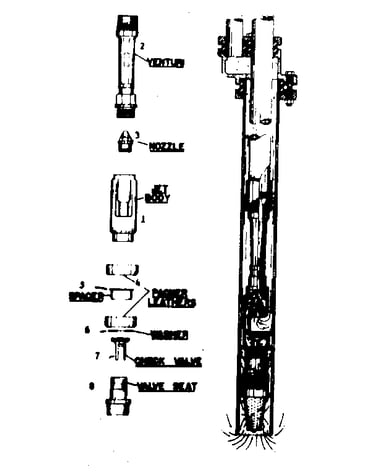

Single pipe jet diagram

Pump jet body leather seal, 2-in

Part #J57-1

$63.99 |
9% OFF Phone Price : $69.99
In Stock
Pump Nozzle N34P-17
#3A

Shallow well jets diagram

Pump nozzle

Part #N34P-17

$28.33
In Stock
Pump Body Gasket N20-35
#4A

'110' jet pumps diagram

Pump body gasket

Part #N20-35

Replaced by #N20-35C

?
Manufacturer substitution
This part replaces N20-35. Substitute parts can look different from the original.
This item is not returnable
$9.44
In Stock
Elbow U11-86
#23

'110' jet pumps diagram

Elbow

Part #U11-86

Replaced by #U111-212T

?
Manufacturer substitution
This part replaces U11-86. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Pump Impeller J105-22PA
#6D

'110' jet pumps diagram

Pump impeller

Part #J105-22PA

$123.89 |
9% OFF Phone Price : $135.89
In Stock
Nozzle N34P-21
#3B

Shallow well jets diagram

Nozzle

Part #N34P-21

$24.36
In Stock
Spacer J43-16
#5C

Single pipe jet diagram

Spacer

Part #J43-16

$59.85
In Stock
Pump Diffuser L1-25P
#7A

'110' jet pumps diagram

Pump diffuser

Part #L1-25P

This item is not returnable
$71.80
In Stock
