Model # 1165019090C Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165019090C powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Washer 722909
#29

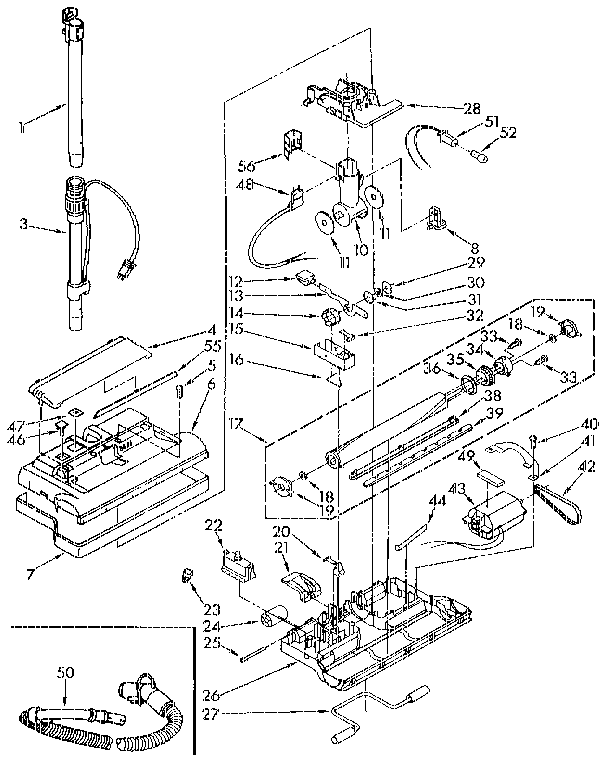

Power mate diagram

Washer

Part #722909

The manufacturer no longer makes this part, and there's no substitute part

Brush 742454
#17

Power mate diagram

Brush

Part #742454

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Flange (black) 742031
#36

Power mate diagram

Flange (black)

Part #742031

The manufacturer no longer makes this part, and there's no substitute part

Release 4148391
#21

Power mate diagram

Release

Part #4148391

The manufacturer no longer makes this part, and there's no substitute part

Lens Bulb 747286
#55

Power mate diagram

Lens bulb

Part #747286

The manufacturer no longer makes this part, and there's no substitute part

Extension Button 4148053
#46

Power mate diagram

Extension button

Part #4148053

The manufacturer no longer makes this part, and there's no substitute part

Wiring Diagram LIT747155

#NI

All parts diagram

Wiring diagram

Part #LIT747155

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Sprocket (black) 742506
#35

Power mate diagram

Sprocket (black)

Part #742506

The manufacturer no longer makes this part, and there's no substitute part
