Whirlpool
Wall Oven/Microwave Combo

Model # RMC275PDQ1 Official Whirlpool 27" electric built-in combo

Here are the diagrams and repair parts for Official Whirlpool RMC275PDQ1 27" electric built-in combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

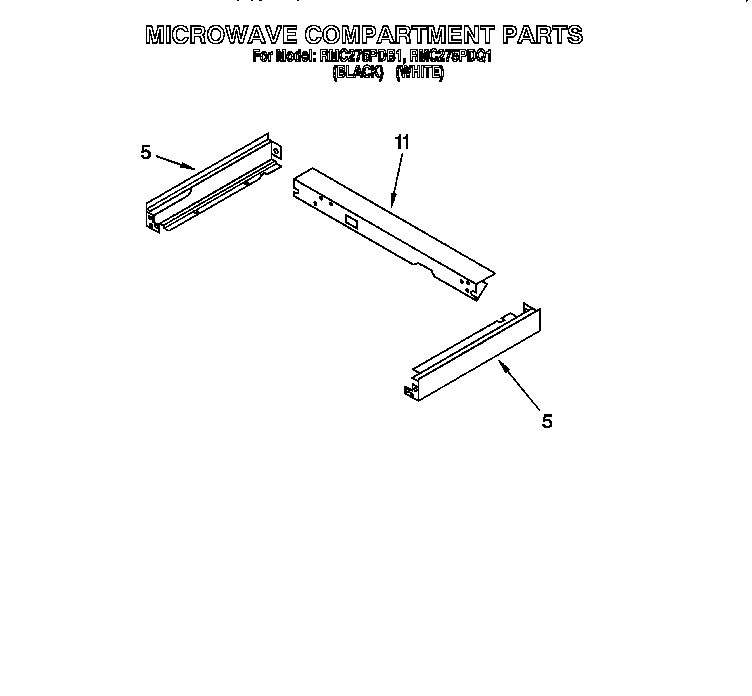

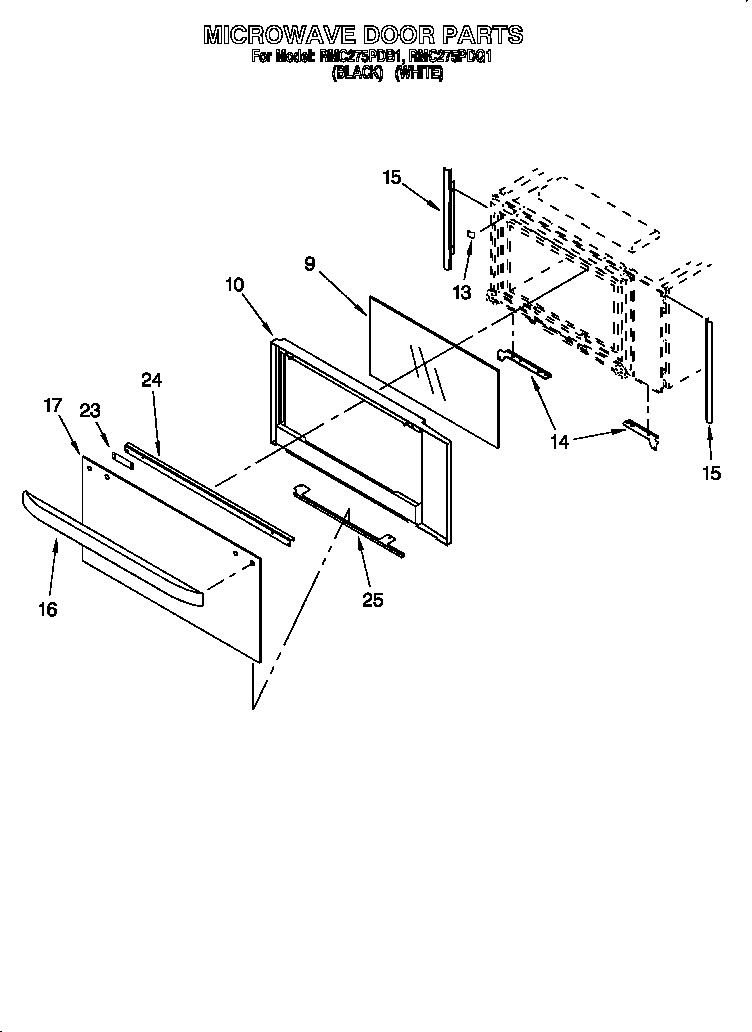

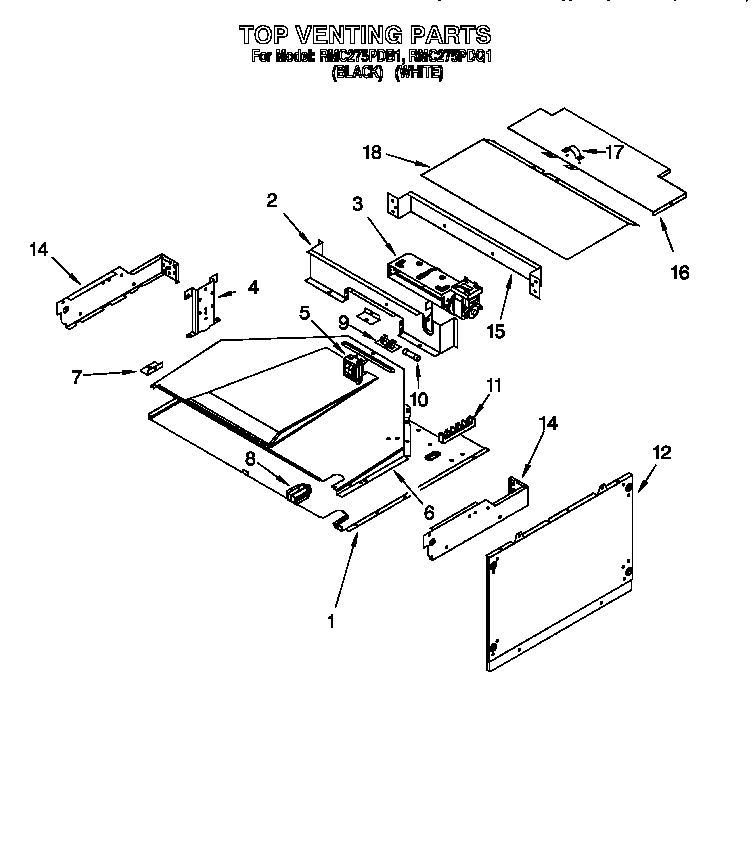

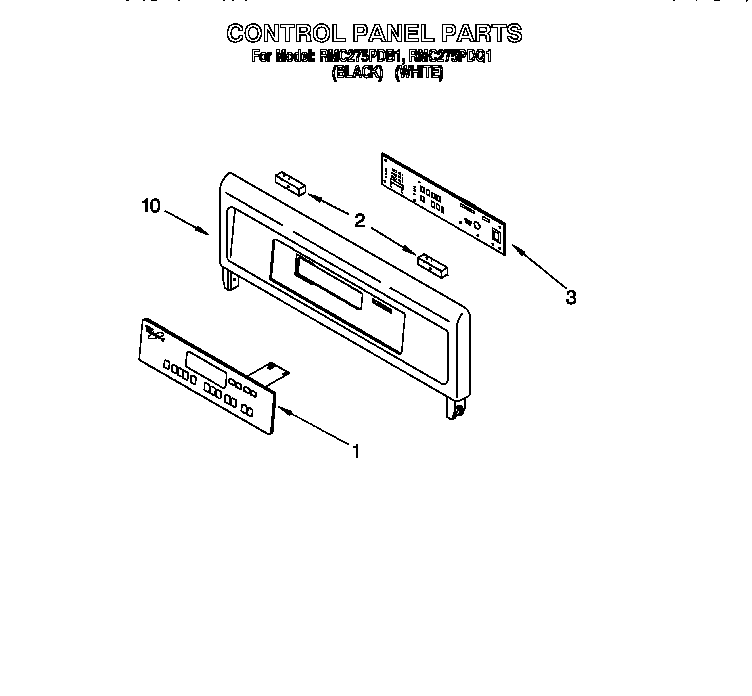

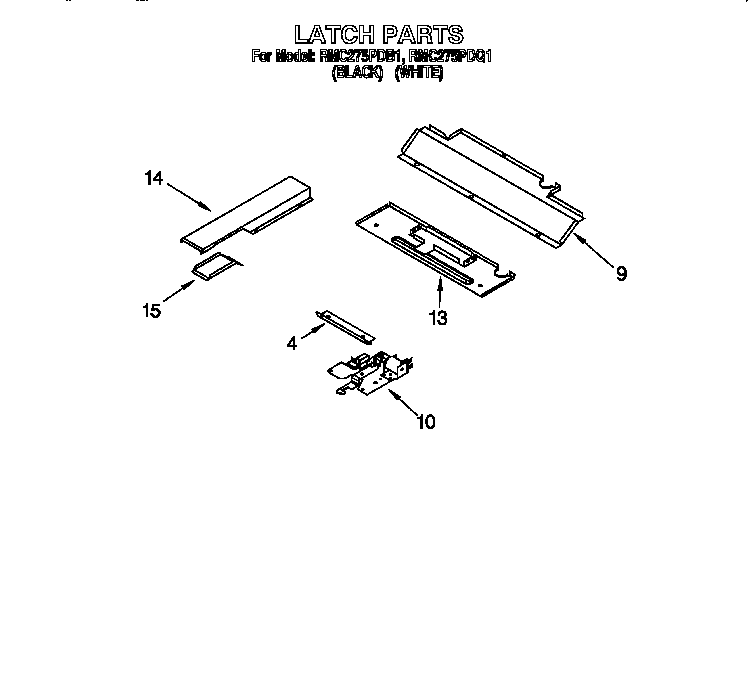

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Bake Element 4448696
#7

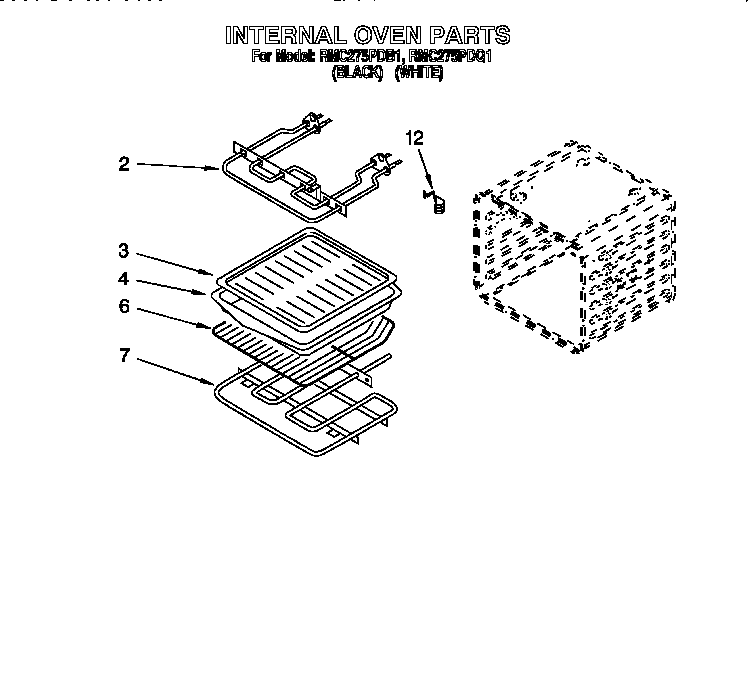

Internal oven diagram

Bake element

Part #4448696

Replaced by #WPW10207397

?
Manufacturer substitution
This part replaces 4448696. Substitute parts can look different from the original.
BEST SELLER
$60.97 |
16% OFF MSRP : $73.00
In Stock
Magnetron 4375072
#26

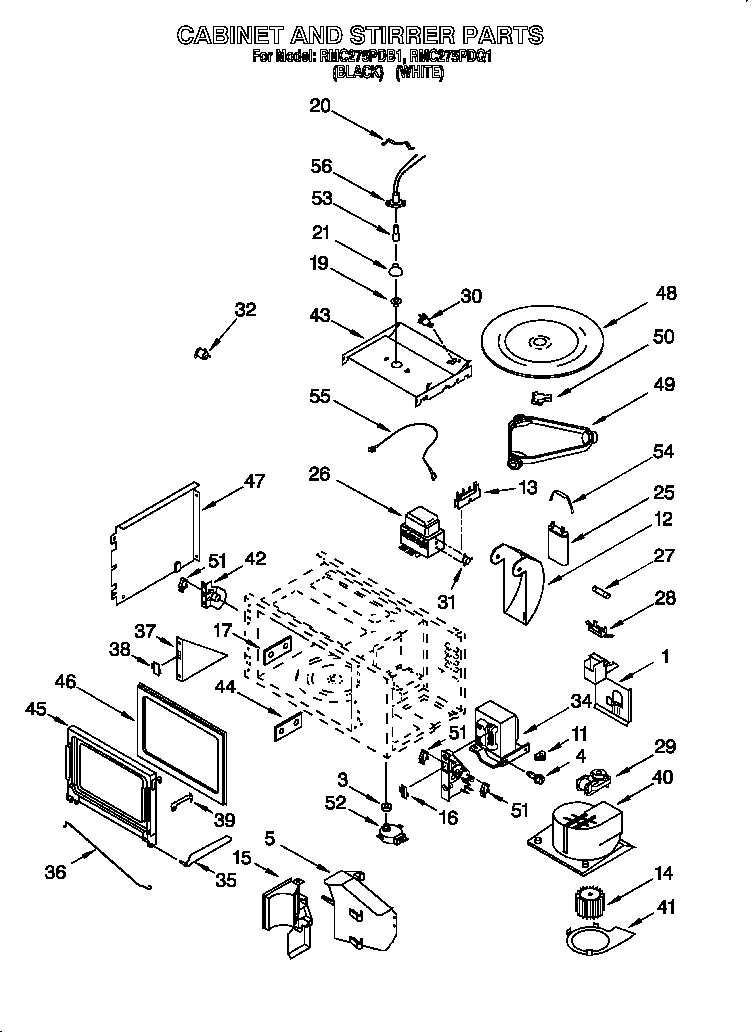

Cabinet and stirrer diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Spray W 350930

#NI

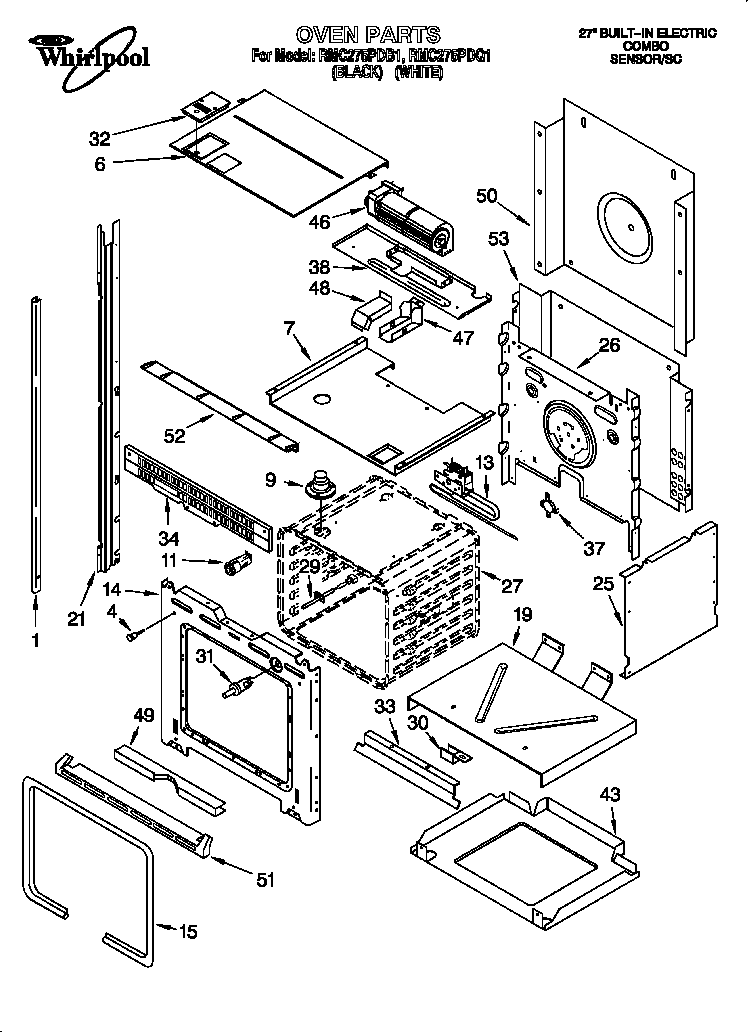

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touch-up Paint (black) 72032

#NI

All parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.18 |
49% OFF MSRP : $12.00
In Stock
Oven Baseless Lamp 4375348
#53

Cabinet and stirrer diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
BEST SELLER
$22.69 |
29% OFF MSRP : $32.00
In Stock
Diode 4375349
#54

Cabinet and stirrer diagram

Diode

Part #4375349

Replaced by #WPW10687786

?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
BEST SELLER
$20.49 |
29% OFF MSRP : $29.00
In Stock
Mounting Bracket 4375336
#42B

Cabinet and stirrer diagram

Mounting bracket

Part #4375336

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375336. Substitute parts can look different from the original.
$93.52 |
28% OFF MSRP : $130.00
In Stock
Oven Mounting Bracket 4375335
#42A

Cabinet and stirrer diagram

Oven mounting bracket

Part #4375335

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375335. Substitute parts can look different from the original.
$93.52 |
28% OFF MSRP : $130.00
In Stock
Wall Oven Door Inner Glass 4449253
#3

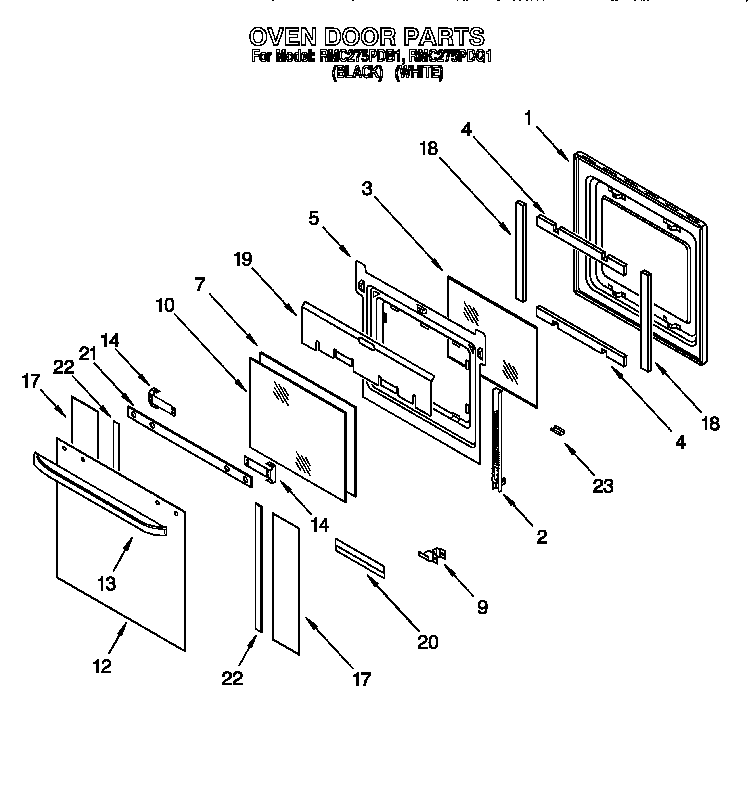

Oven door diagram

Wall oven door inner glass

Part #4449253

Replaced by #WP4449253

?
Manufacturer substitution
This part replaces 4449253. Substitute parts can look different from the original.
$75.73 |
13% OFF MSRP : $87.00
In Stock
Microwave Turntable Motor 4375347
#52

Cabinet and stirrer diagram

Microwave turntable motor

Part #4375347

Replaced by #W10642989

?
Manufacturer substitution
This part replaces 4375347. Substitute parts can look different from the original.
$77.21 |
30% OFF MSRP : $110.00
In Stock
