Model # BCM8450UC/03 Official Bosch coffee maker

Here are the diagrams and repair parts for Official Bosch BCM8450UC-03 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Tube 12011773
#115

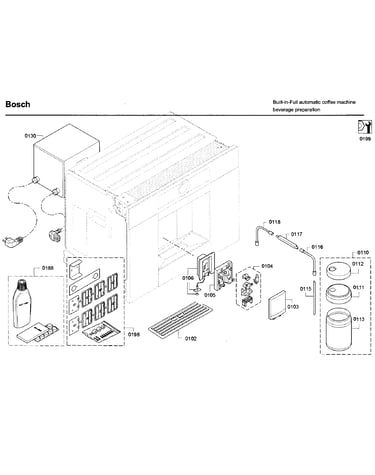

Outer parts diagram

Tube

Part #12011773

This item is not returnable
$20.11
In Stock
Container 12011727
#202

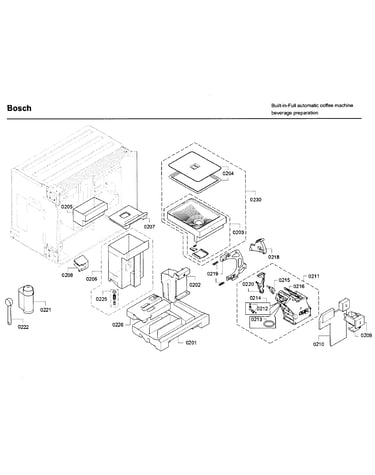

Tank asy diagram

Container

Part #12011727

$30.80
In Stock
Connection 00635961
#655

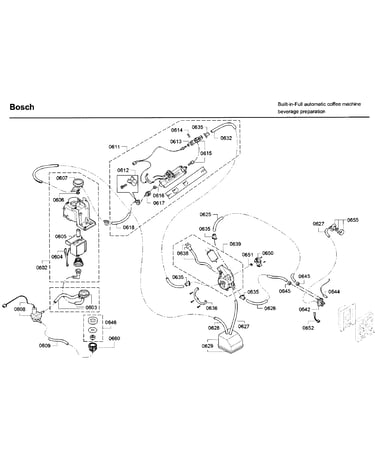

Pump asy diagram

Connection

Part #00635961

$17.89
In Stock
Switch Pow 10001948
#509

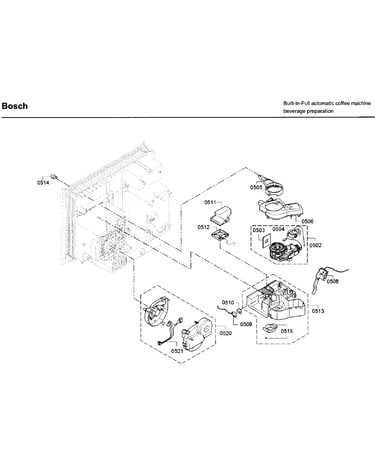

Grinder asy diagram

Switch pow

Part #10001948

This item is not returnable
$6.45
In Stock
Sensor Bea 00634524
#431

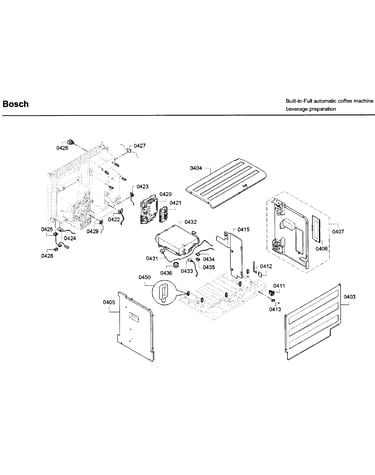

Cover asy diagram

Sensor bea

Part #00634524

$11.44
In Stock
Switch-ele 12014385
#508

Grinder asy diagram

Switch-ele

Part #12014385

$41.47
In Stock
Lid Water 12014371
#207

Tank asy diagram

Lid water

Part #12014371

$10.09
In Stock
Coffer Maker User Interface 12014753
#306A

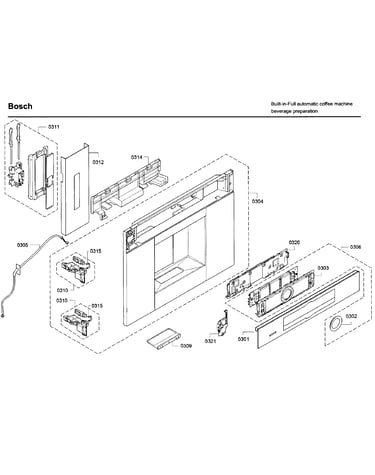

Frame diagram

Coffer maker user interface

Part #12014753

$485.78
In Stock
Support Fr 12006210
#105

Outer parts diagram

Support fr

Part #12006210

$80.20
In Stock
Cable Disp 12006147
#305

Frame diagram

Cable disp

Part #12006147

$37.42
In Stock
