Model # 831159380 Official Weider pro 9645 weight system

Here are the diagrams and repair parts for Official Weider 831159380 pro 9645 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

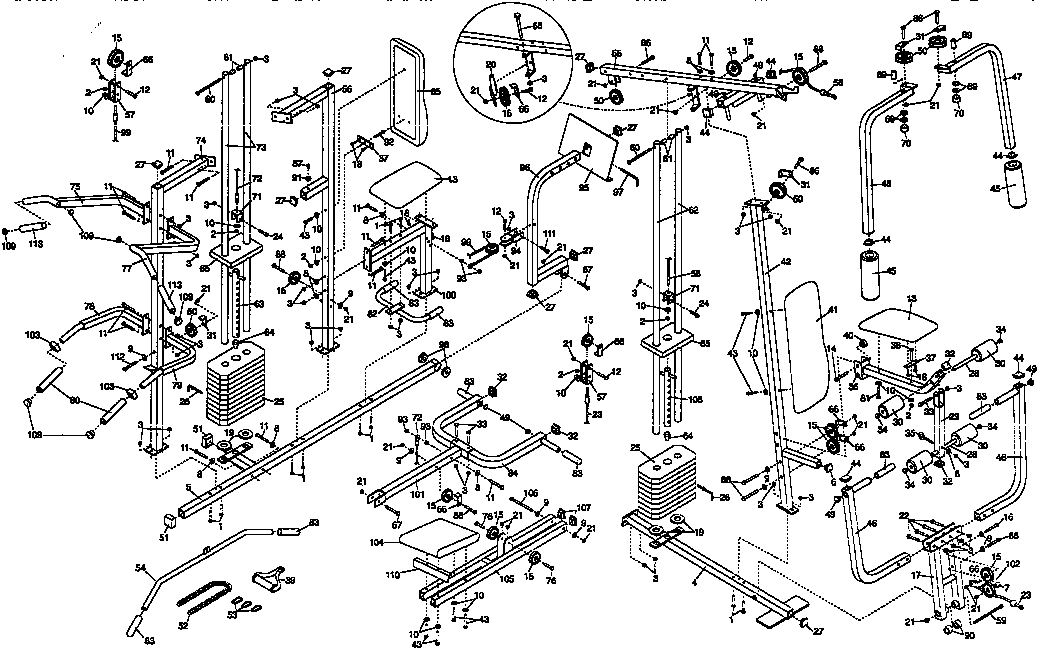

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |

Pin,wt Stack 122693
#26

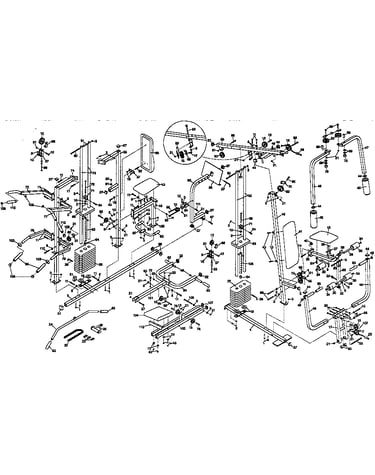

Unit parts diagram

Pin,wt stack

Part #122693

Replaced by #193926

?
Manufacturer substitution
This part replaces 122693. Substitute parts can look different from the original.
BEST SELLER
$15.58
11% OFF Phone Price : $17.58
In Stock
Weight System Weight, 12-1/2-lb (replaces 115312, 127505, 135786, 155872, Bb-0318, Bb-0325) 120294
#25

Unit parts diagram

Weight system weight, 12-1/2-lb (replaces 115312, 127505, 135786, 155872, bb-0318, bb-0325)

Part #120294

BEST SELLER
$9.04
10% OFF Phone Price : $10.04
In Stock
Exercise Equipment Foam Pad 103805
#30

Unit parts diagram

Exercise equipment foam pad

Part #103805

Replaced by #208378

?
Manufacturer substitution
This part replaces 103805. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.39
16% OFF Phone Price : $6.39
In Stock
Exercise Equipment Snap Hook 103087
#53

Unit parts diagram

Exercise equipment snap hook

Part #103087

This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Weight System Ankle Strap 115177
#39

Unit parts diagram

Weight system ankle strap

Part #115177

This item is not returnable
In Stock
Weight System Chain, 11-in 116868
#52

Unit parts diagram

Weight system chain, 11-in

Part #116868

This item is not returnable
In Stock
Exercise Equipment Flat Washer 115644
#19

Unit parts diagram

Exercise equipment flat washer

Part #115644

This item is not returnable
In Stock
Exercise Equipment Hex Nut 012056
#3

Unit parts diagram

Exercise equipment hex nut

Part #012056

This item is not returnable
In Stock
Exercise Equipment Foam Pad 122691
#64

Unit parts diagram

Exercise equipment foam pad

Part #122691

This item is not returnable
In Stock
Top Weight 126866
#65

Unit parts diagram

Top weight

Part #126866

Replaced by #125919

?
Manufacturer substitution
This part replaces 126866. Substitute parts can look different from the original.
This item is not returnable
$12.49
14% OFF Phone Price : $14.49
In Stock
