MTD
Chipper/Shredder

Model # 24A-462G729 Official MTD chipper/shredder

Here are the diagrams and repair parts for Official MTD 24A-462G729 chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |

Blade 742-0571
#24

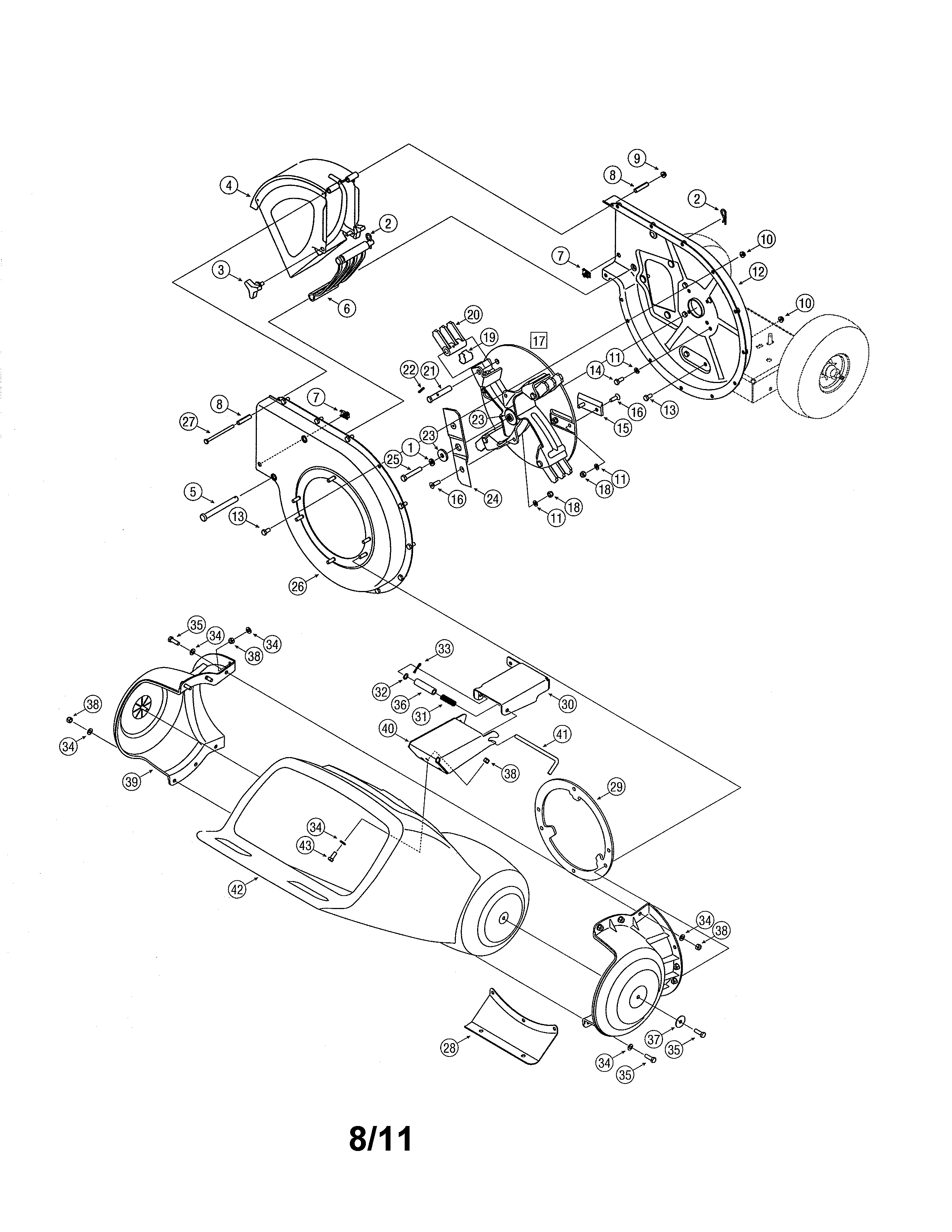

Hopper/impeller diagram

Blade

Part #742-0571

Replaced by #942-0571

?
Manufacturer substitution
This part replaces 742-0571. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.39
23% OFF MSRP : $42.00
In Stock
Blade 781-0490
#15

Hopper/impeller diagram

Blade

Part #781-0490

Replaced by #981-0490

?
Manufacturer substitution
This part replaces 781-0490. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$33.08
13% OFF Phone Price : $38.08
In Stock
Lawn & Garden Equipment Bell Washer (replaces 936-0242) 736-0242
#10

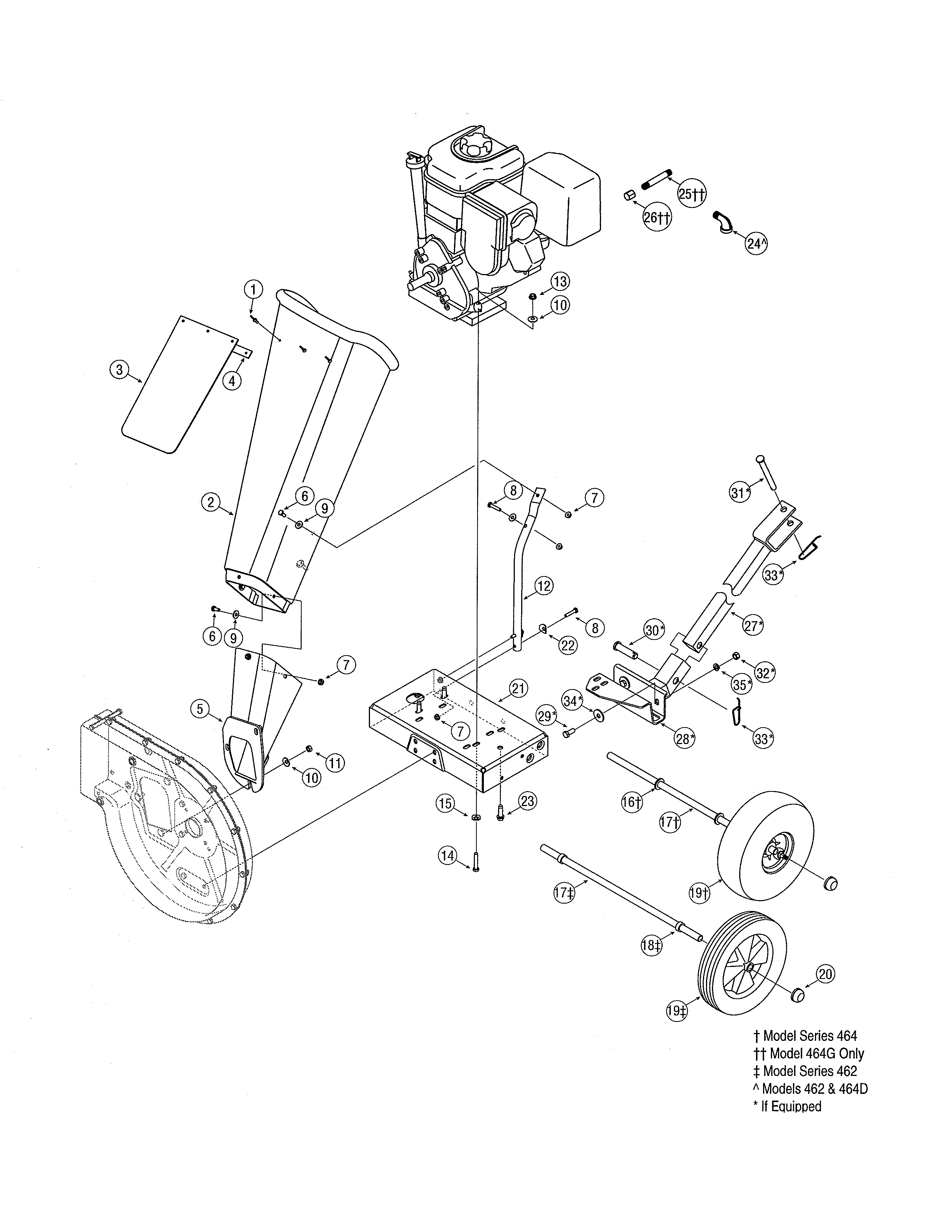

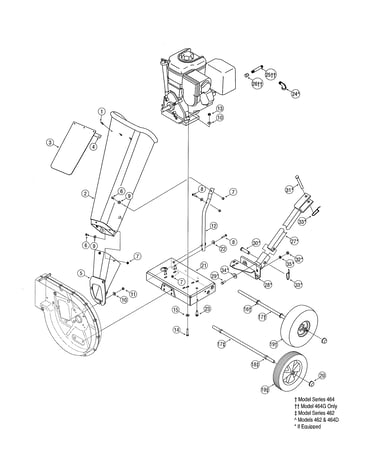

Chute/frame/wheels diagram

Lawn & garden equipment bell washer (replaces 936-0242)

Part #736-0242

BEST SELLER
$6.58
13% OFF Phone Price : $7.58
In Stock
Lawn & Garden Equipment Screw 710-1054
#16

Hopper/impeller diagram

Lawn & garden equipment screw

Part #710-1054

Replaced by #710-1054

?
Manufacturer substitution
This part replaces 710-1054. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Screen 781-0457
#6

Hopper/impeller diagram

Screen

Part #781-0457

Replaced by #781-0457-0637

?
Manufacturer substitution
This part replaces 781-0457. Substitute parts can look different from the original.
BEST SELLER
$52.74
9% OFF Phone Price : $57.74
In Stock
Lawn Vacuum Chipper/shredder Retainer Clip 781-0735
#19

Hopper/impeller diagram

Lawn vacuum chipper/shredder retainer clip

Part #781-0735

This item is not returnable
$6.55
13% OFF Phone Price : $7.55
In Stock
Clevis Pin 711-0833B
#21

Hopper/impeller diagram

Clevis pin

Part #711-0833B

Replaced by #711-0833B

?
Manufacturer substitution
This part replaces 711-0833B. Substitute parts can look different from the original.
This item is not returnable
$2.59
28% OFF Phone Price : $3.59
In Stock
Lawn & Garden Equipment Lock Washer (replaces 936-0169) 736-0169
#35

Chute/frame/wheels diagram

Lawn & garden equipment lock washer (replaces 936-0169)

Part #736-0169

This item is not returnable
In Stock
Lawn Tractor Flat Washer 736-0362
#37

Hopper/impeller diagram

Lawn tractor flat washer

Part #736-0362

This item is not returnable
$6.87
13% OFF Phone Price : $7.87
In Stock
Bag Shredder Assembly 664-04022

#NI02

All parts diagram

Bag shredder assembly

Part #664-04022

Replaced by #664P04022A

?
Manufacturer substitution
This part replaces 664-04022. Substitute parts can look different from the original.
$96.09
9% OFF Phone Price : $106.09
In Stock
