Model # 315273990 Official Craftsman 3/8" professional electric drill

Here are the diagrams and repair parts for Official Craftsman 315273990 3/8" professional electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

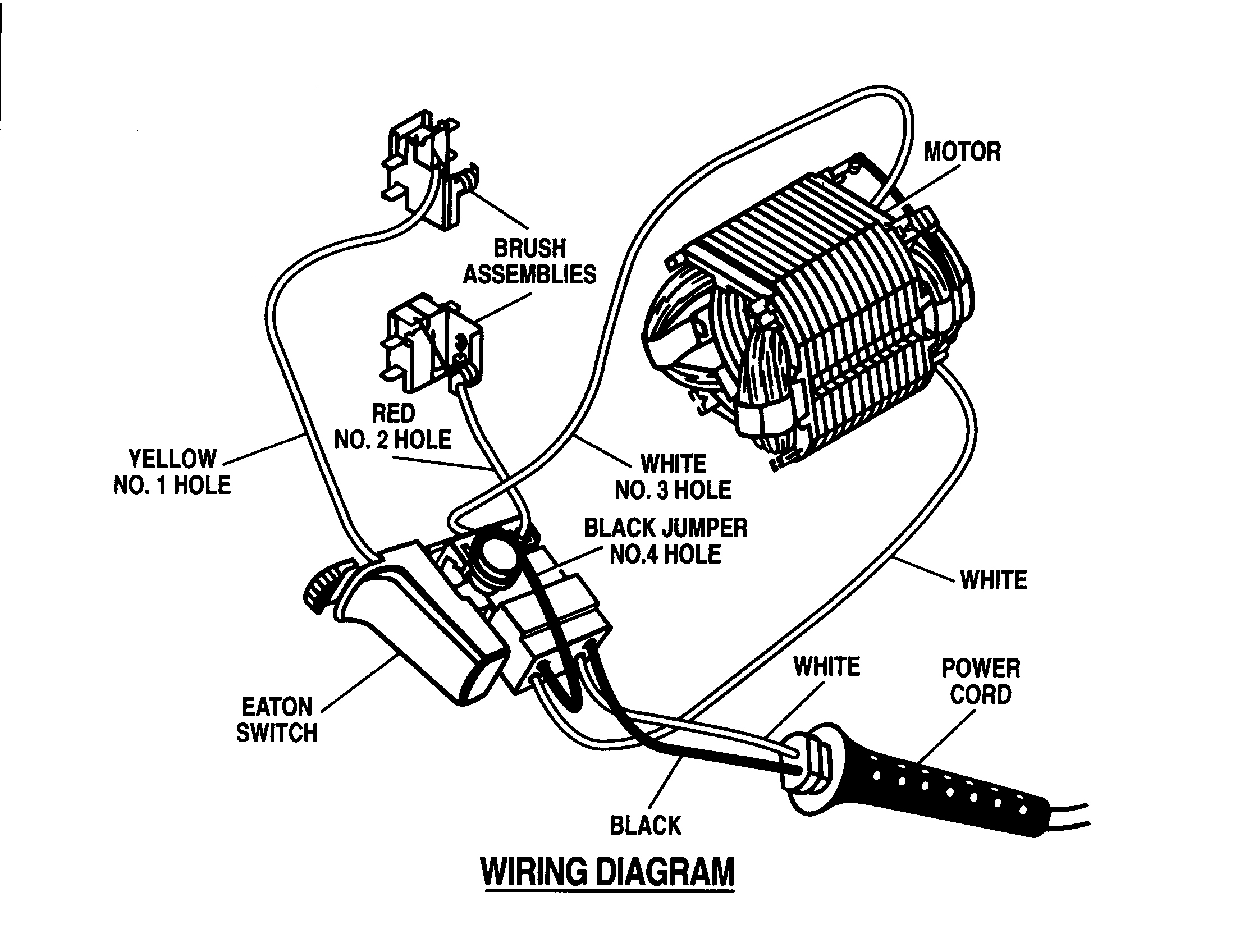

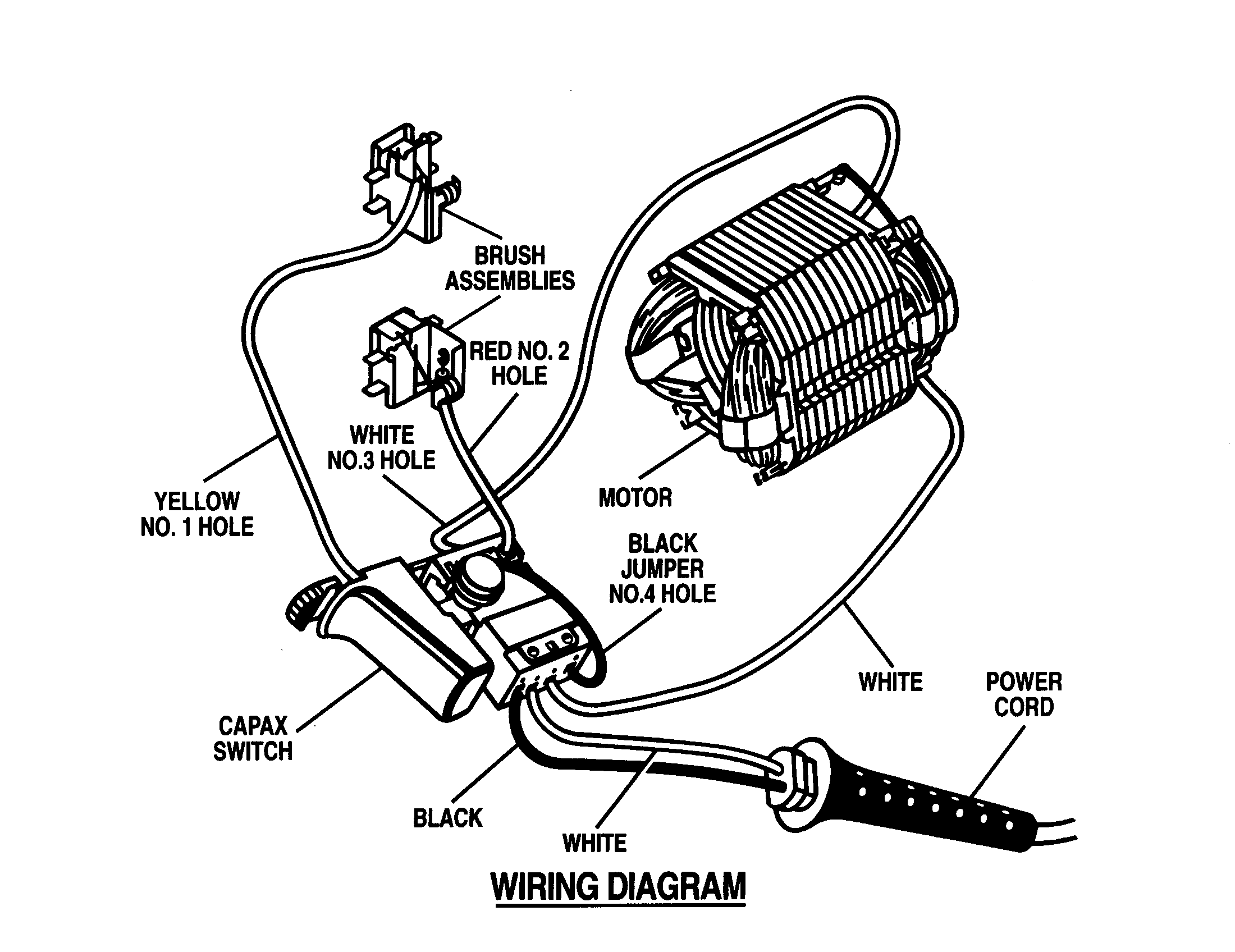

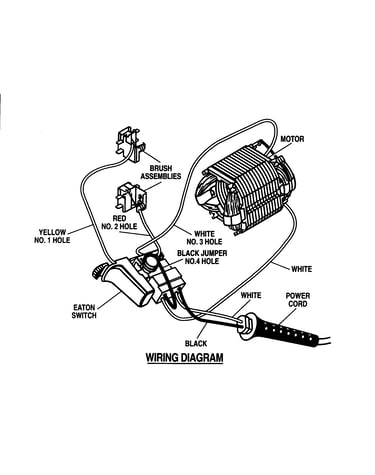

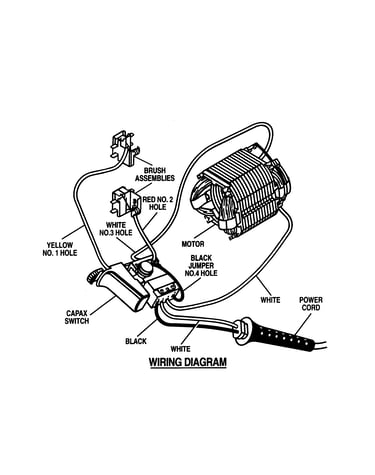

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Brush Assembly 971772-000
#6

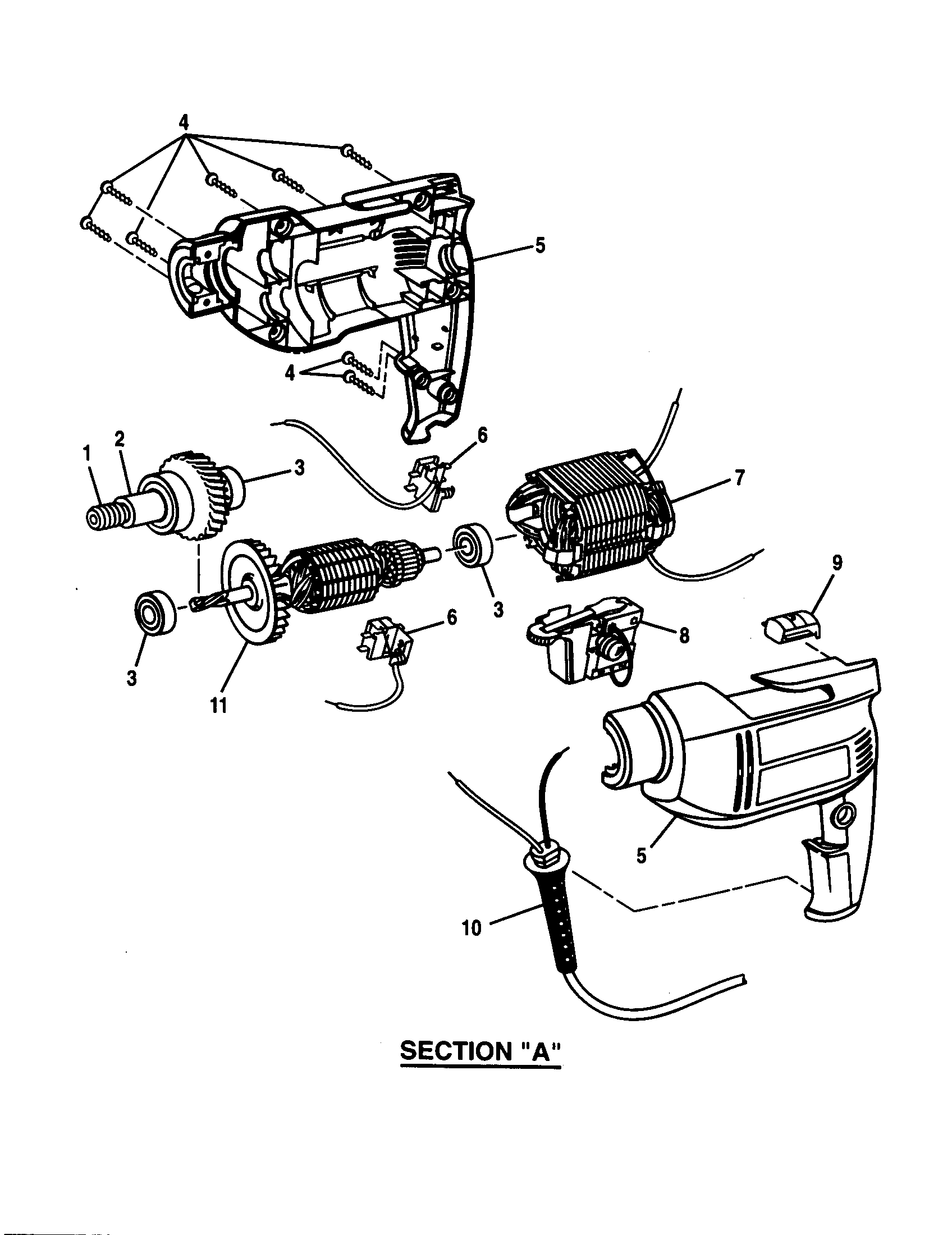

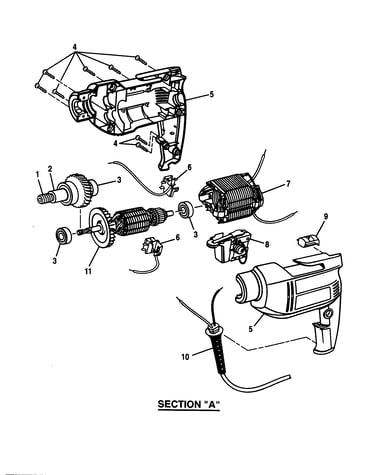

Housing assembly diagram

Brush assembly

Part #971772-000

The manufacturer no longer makes this part, and there's no substitute part

Bearing 980826-001
#3

Housing assembly diagram

Bearing

Part #980826-001

The manufacturer no longer makes this part, and there's no substitute part

Level Asy 971861-001
#9

Housing assembly diagram

Level asy

Part #971861-001

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#2

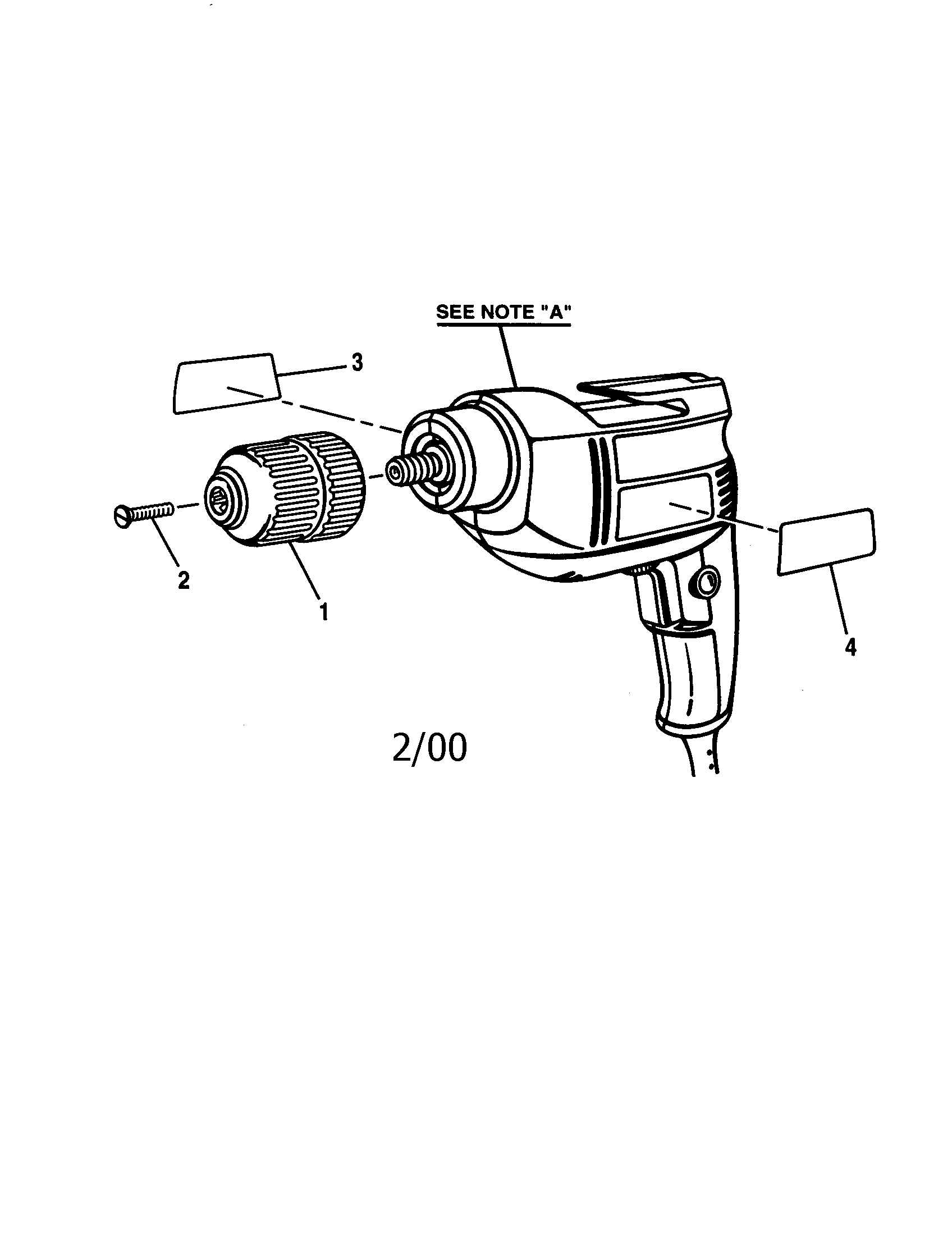

3/8" professional electric drill diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Housing 971770-002
#5

Housing assembly diagram

Housing

Part #971770-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 968702-009
#4

Housing assembly diagram

Screw

Part #968702-009

The manufacturer no longer makes this part, and there's no substitute part

Chuck, 3/8-in 981570-001
#1

3/8" professional electric drill diagram

Chuck, 3/8-in

Part #981570-001

The manufacturer no longer makes this part, and there's no substitute part

Cord 990496-009
#10

Housing assembly diagram

Cord

Part #990496-009

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 981571-001
#3

3/8" professional electric drill diagram

Data plate

Part #981571-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 971765-001
#2

Housing assembly diagram

Ball brg

Part #971765-001

The manufacturer no longer makes this part, and there's no substitute part
