GE
Room Air Conditioner

Model # AEM08LSL1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEM08LSL1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Nut With Was WJ01X10314
#20

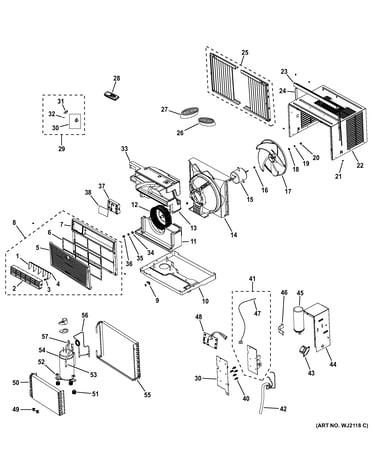

Room air conditioner diagram

Nut with was

Part #WJ01X10314

This item is not returnable
In Stock
Cable Clamp WJ03X20292
#9

Room air conditioner diagram

Cable clamp

Part #WJ03X20292

This item is not returnable
In Stock
Cabinet WJ90X20291
#22

Room air conditioner diagram

Cabinet

Part #WJ90X20291

In Stock
Washer(dia 6 WJ01X10347
#18

Room air conditioner diagram

Washer(dia 6

Part #WJ01X10347

This item is not returnable
In Stock
Hardware WJ01X10349
#29

Room air conditioner diagram

Hardware

Part #WJ01X10349

$7.01
12% OFF Phone Price : $8.01
In Stock
Propeller WJ76X20310
#33

Room air conditioner diagram

Propeller

Part #WJ76X20310

In Stock
Transformer WJ27X20257
#43

Room air conditioner diagram

Transformer

Part #WJ27X20257

In Stock
Capillary Assembly WJ53X20294
#56

Room air conditioner diagram

Capillary assembly

Part #WJ53X20294

In Stock
Suction Tube WJ57X10045
#53

Room air conditioner diagram

Suction tube

Part #WJ57X10045

In Stock
Rail WJ66X20309
#23

Room air conditioner diagram

Rail

Part #WJ66X20309

In Stock
