Weslo
Exercise Cycle

Model # WL650030 Official Weslo pursuit 650 exercise bike

Here are the diagrams and repair parts for Official Weslo WL650030 pursuit 650 exercise bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Pedal,aseed 038023
#28

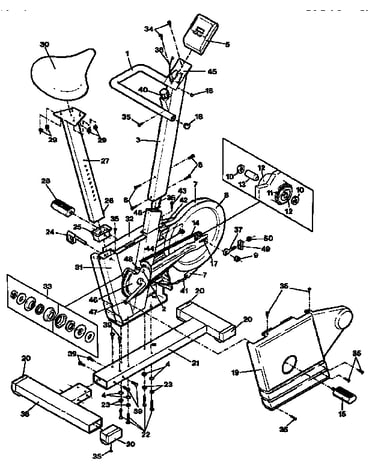

Unit parts diagram

Pedal,aseed

Part #038023

Replaced by #385957

?
Manufacturer substitution
This part replaces 038023. Substitute parts can look different from the original.
This item is not returnable
$18.99
In Stock
Pedal,aseed 038022
#15

Unit parts diagram

Pedal,aseed

Part #038022

Replaced by #385958

?
Manufacturer substitution
This part replaces 038022. Substitute parts can look different from the original.
This item is not returnable
$19.79 |
9% OFF Phone Price : $21.79
In Stock
Screw,sbhs,z 121501
#6

Unit parts diagram

Screw,sbhs,z

Part #121501

This item is not returnable
$2.16
In Stock
Wshr,flat,zp 014017
#4

Unit parts diagram

Wshr,flat,zp

Part #014017

This item is not returnable
$2.16
In Stock
Screw,hhcs,z 013128
#22

Unit parts diagram

Screw,hhcs,z

Part #013128

This item is not returnable
$2.16
In Stock
Nut,hex,zp # 012107
#44

Unit parts diagram

Nut,hex,zp #

Part #012107

This item is not returnable
$2.16
In Stock
Wshr,lock,zp 014066
#23

Unit parts diagram

Wshr,lock,zp

Part #014066

The manufacturer no longer makes this part, and there's no substitute part

Magnet,rnd,m 100498
#2

Unit parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw,tekphr 013300
#34

Unit parts diagram

Screw,tekphr

Part #013300

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Hand Crank Bearing Assembly 110465
#33

Unit parts diagram

Exercise cycle hand crank bearing assembly

Part #110465

Replaced by #176991

?
Manufacturer substitution
This part replaces 110465. Substitute parts can look different from the original.
$22.99
In Stock
