Crosley
Microwave/Hood Combo

Model # CME1645TDA Official Crosley microwave/hood combo

Here are the diagrams and repair parts for Official Crosley CME1645TDA microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

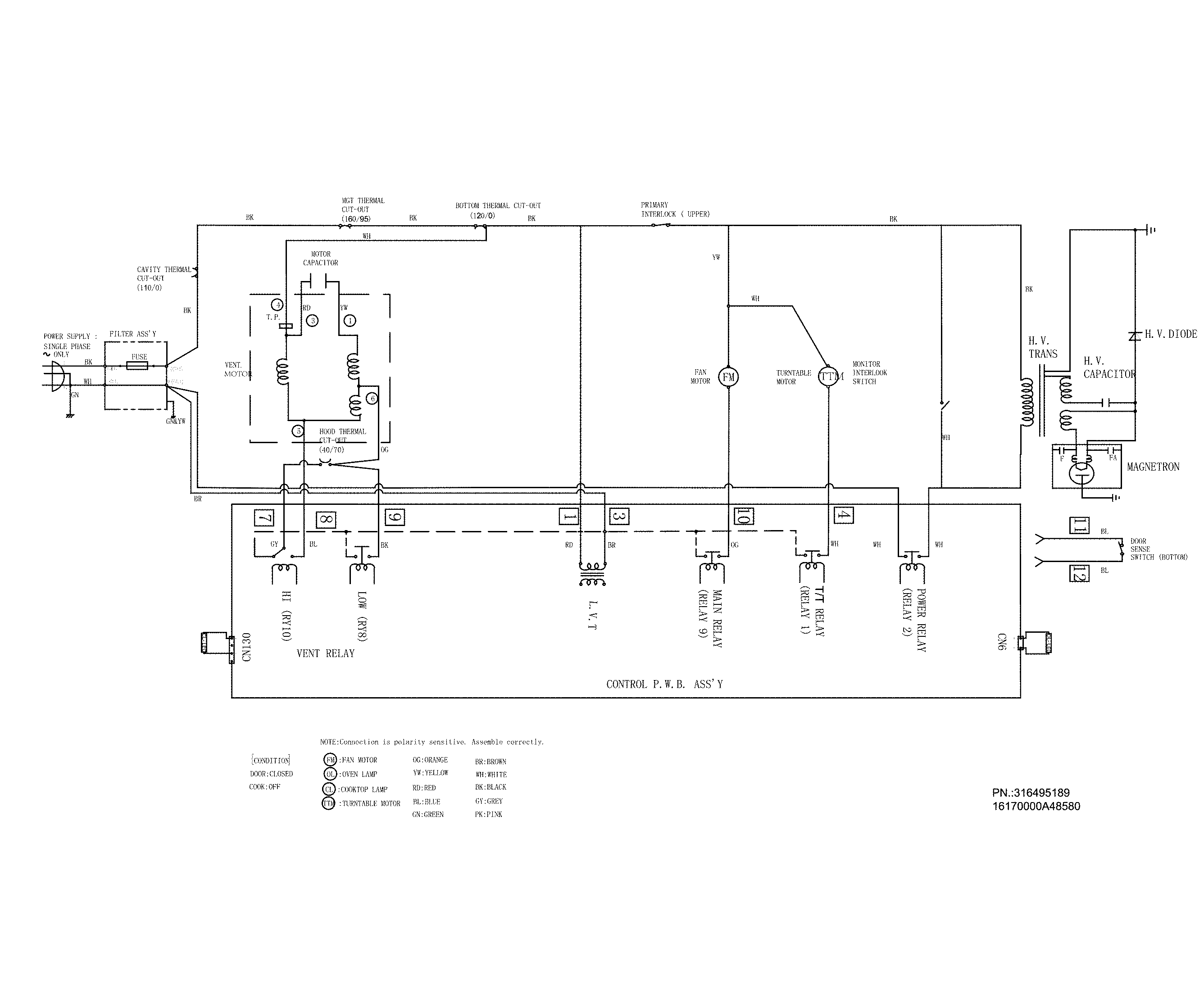

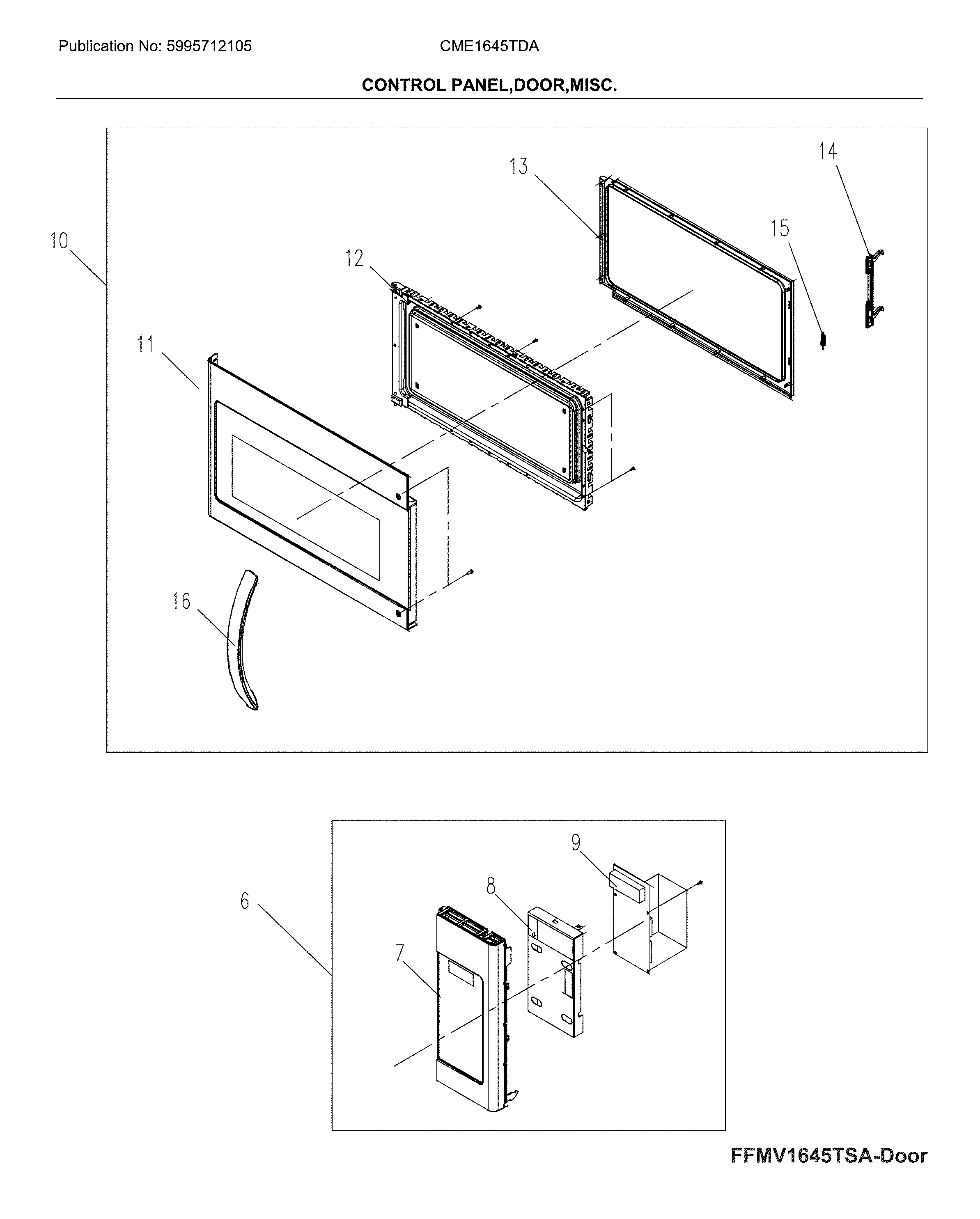

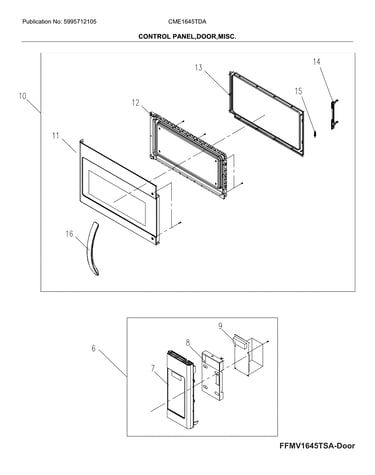

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Microwave Fuse (replaces 5304488359) 5304509451
#34

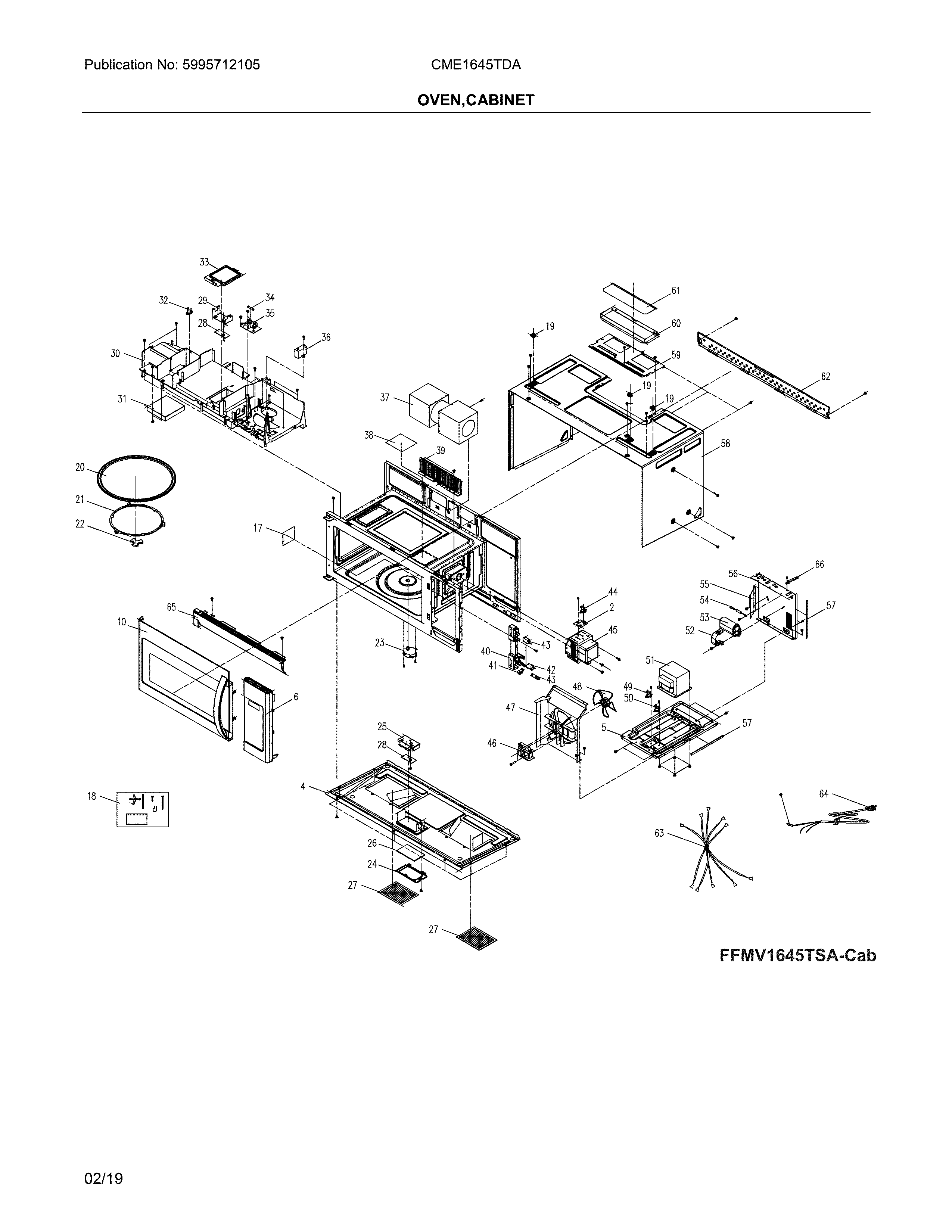

Oven,cabinet diagram

Microwave fuse (replaces 5304488359)

Part #5304509451

BEST SELLER
$11.96
30% OFF MSRP : $17.00
In Stock
Microwave Waveguide Cover (replaces 5304464061) 5304509435
#17

Oven,cabinet diagram

Microwave waveguide cover (replaces 5304464061)

Part #5304509435

BEST SELLER
This item is not returnable
$14.89
12% OFF Phone Price : $16.89
In Stock
Microwave Door Interlock Switch (replaces 5304464098) 5304509459
#42

Oven,cabinet diagram

Microwave door interlock switch (replaces 5304464098)

Part #5304509459

BEST SELLER
$40.14
11% OFF Phone Price : $45.14
In Stock
Microwave Turntable Tray Support (replaces 5304464115) 5304509438
#21

Oven,cabinet diagram

Microwave turntable tray support (replaces 5304464115)

Part #5304509438

BEST SELLER
$42.69
10% OFF Phone Price : $47.69
In Stock
Microwave Vent Damper Door (replaces 5304464119) 5304509486
#61

Oven,cabinet diagram

Microwave vent damper door (replaces 5304464119)

Part #5304509486

BEST SELLER
This item is not returnable
$28.05
15% OFF Phone Price : $33.05
In Stock
Microwave Latch Body (replaces 5304499580) 5304509457
#40

Oven,cabinet diagram

Microwave latch body (replaces 5304499580)

Part #5304509457

BEST SELLER
$48.02
9% OFF MSRP : $53.00
In Stock
Microwave Door Interlock Switch Lever (replaces 5304464097) 5304509458
#41

Oven,cabinet diagram

Microwave door interlock switch lever (replaces 5304464097)

Part #5304509458

This item is not returnable
$6.84
43% OFF MSRP : $12.00
In Stock
Microwave Transformer Thermostat (replaces 5304464093) 5304509474
#49

Oven,cabinet diagram

Microwave transformer thermostat (replaces 5304464093)

Part #5304509474

$19.99
9% OFF Phone Price : $21.99
In Stock
Lamp Assembly 5304509445
#28

Oven,cabinet diagram

Lamp assembly

Part #5304509445

Replaced by #5304499540

?
Manufacturer substitution
This part replaces 5304509445. Substitute parts can look different from the original.
$65.79
7% OFF Phone Price : $70.79
In Stock
Microwave Turntable Tray 5304509437
#20

Oven,cabinet diagram

Microwave turntable tray

Part #5304509437

$86.49
5% OFF Phone Price : $91.49
In Stock
