Magic Chef
Countertop Microwave

Model # M125B2 Official Magic Chef microwave

Here are the diagrams and repair parts for Official Magic Chef M125B2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

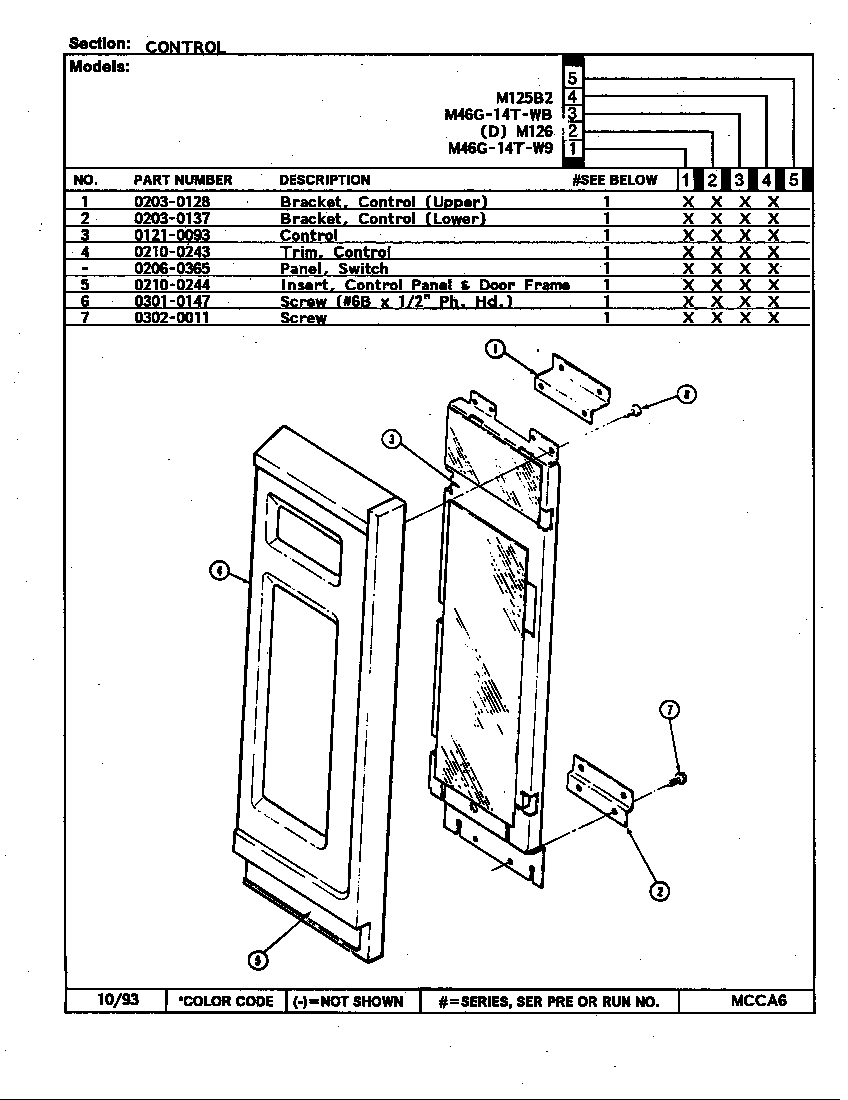

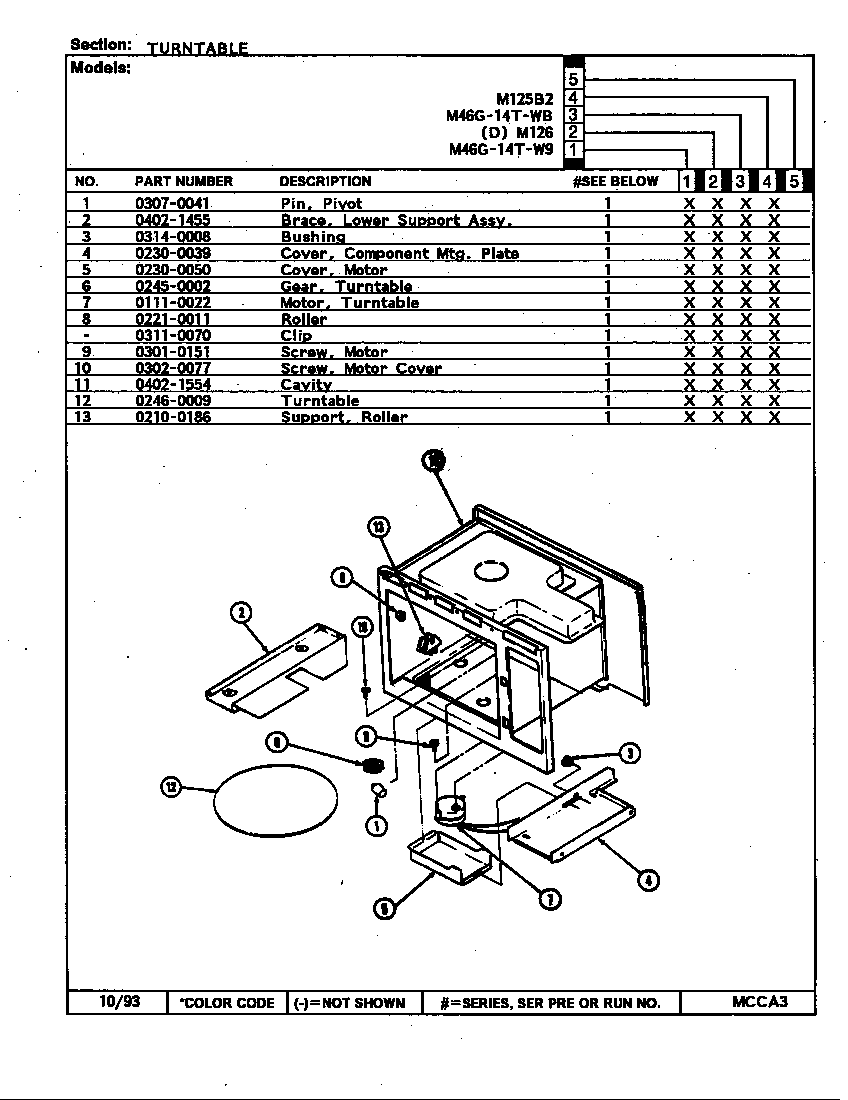

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Light Bulb 01060024
#4

Internal controls (m125b2) (m46g-14t-wb) (m46g-14t-w9) diagram

Light bulb

Part #01060024

Replaced by #WPA3167501

?
Manufacturer substitution
This part replaces 01060024. Substitute parts can look different from the original.
$30.98 |
14% OFF Phone Price : $35.98
In Stock
Rivet Pop 03060002
#6

Internal controls (m125b2) (m46g-14t-wb) (m46g-14t-w9) diagram

Rivet pop

Part #03060002

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 03060002. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03010144
#2

Internal controls (m125b2) (m46g-14t-wb) (m46g-14t-w9) diagram

Screw

Part #03010144

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 03010144. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw 03010135
#14

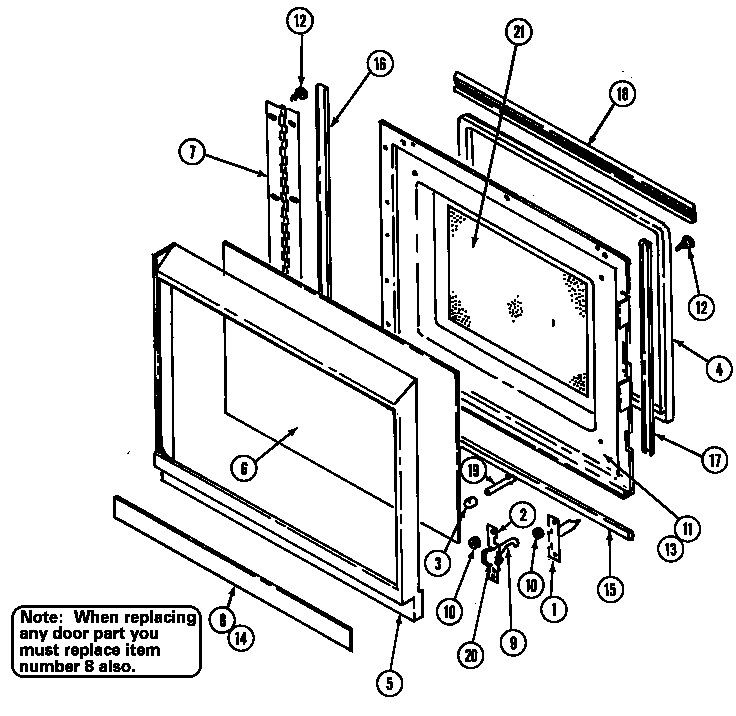

Door diagram

Screw

Part #03010135

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 03010135. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 03020068
#22

Internal controls (m125b2) (m46g-14t-wb) (m46g-14t-w9) diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Lever Pin 03070031
#7

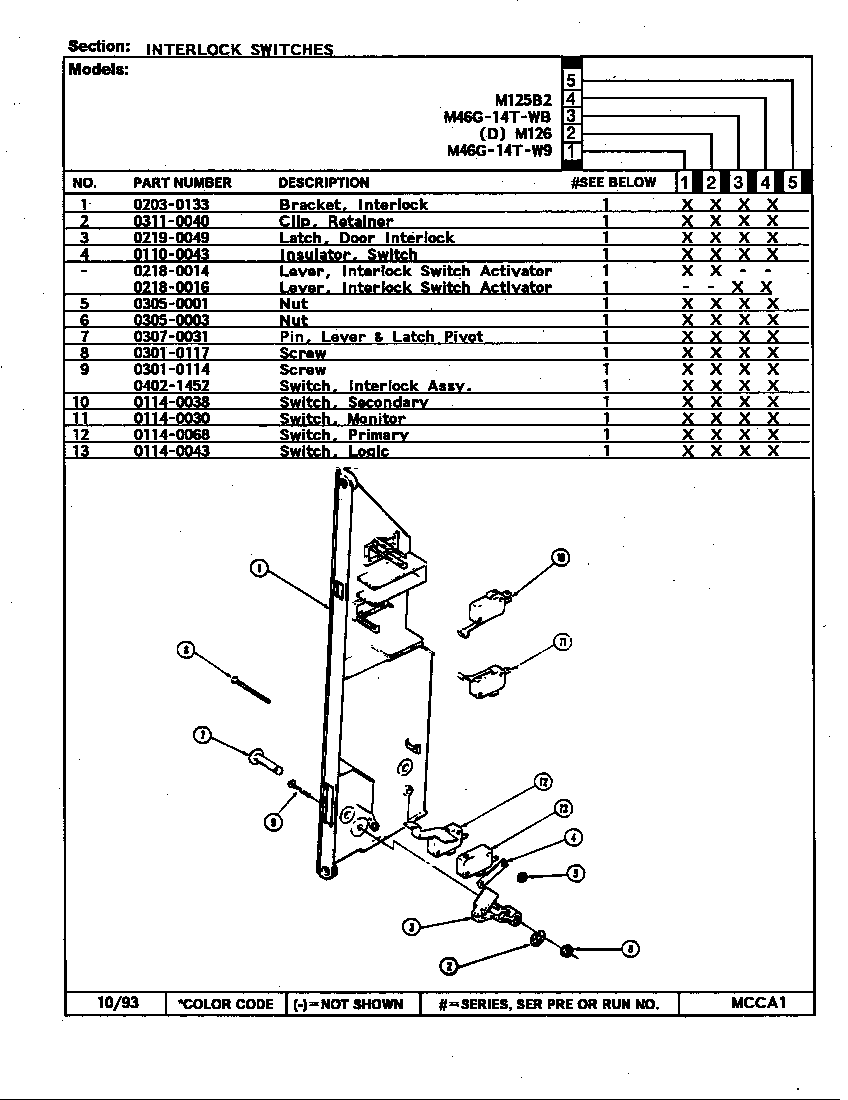

Interlock switches diagram

Lever pin

Part #03070031

The manufacturer no longer makes this part, and there's no substitute part

Choke Filter 02100080
#4

Door diagram

Choke filter

Part #02100080

The manufacturer no longer makes this part, and there's no substitute part

Label, Cooki 02240782
#14A

Base diagram

Label, cooki

Part #02240782

The manufacturer no longer makes this part, and there's no substitute part

"screw, 6-32" 03010157
#12

Door diagram

"screw, 6-32"

Part #03010157

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 01110016
#14

Internal controls (m125b2) (m46g-14t-wb) (m46g-14t-w9) diagram

Blower wheel

Part #01110016

The manufacturer no longer makes this part, and there's no substitute part
