Whirlpool
Countertop Microwave

Model #MW1000XP0 Official Whirlpool microwave

Here are the diagrams and repair parts for Whirlpool MW1000XP0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 79 parts

    Range Drip Pan

    #NI

    All parts Diagram

    Touchup al

    Part #72107
    Replaced by #WB32X106
    ?
    Manufacturer substitution
    This part replaces 72107. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $19.31 |
    7% OFF
    Phone Price: $20.75
    Screw#2A

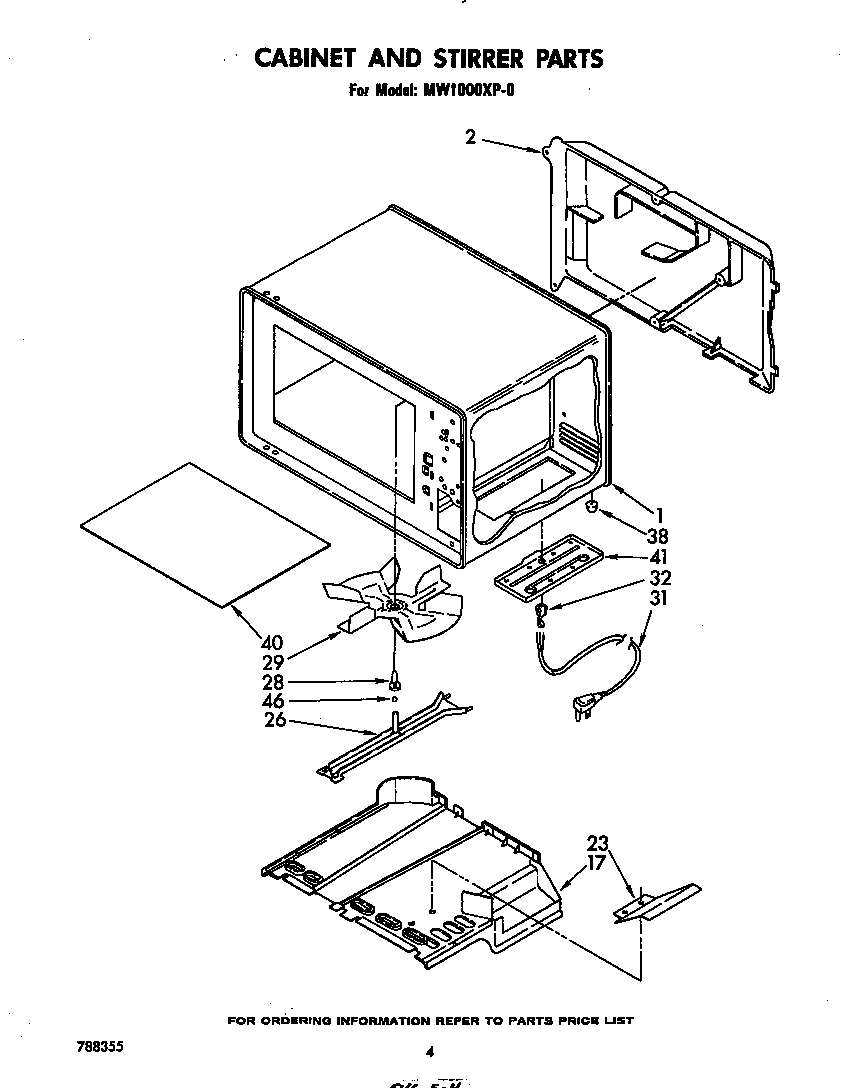

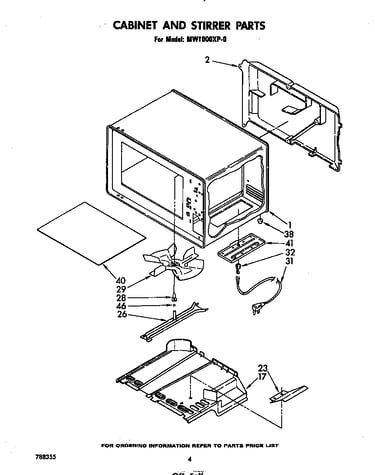

    Cabinet and stirrer Diagram

    Screw

    Part #788164

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    See All Related Diagrams

    Screw

    Part #788110

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Screw#25A

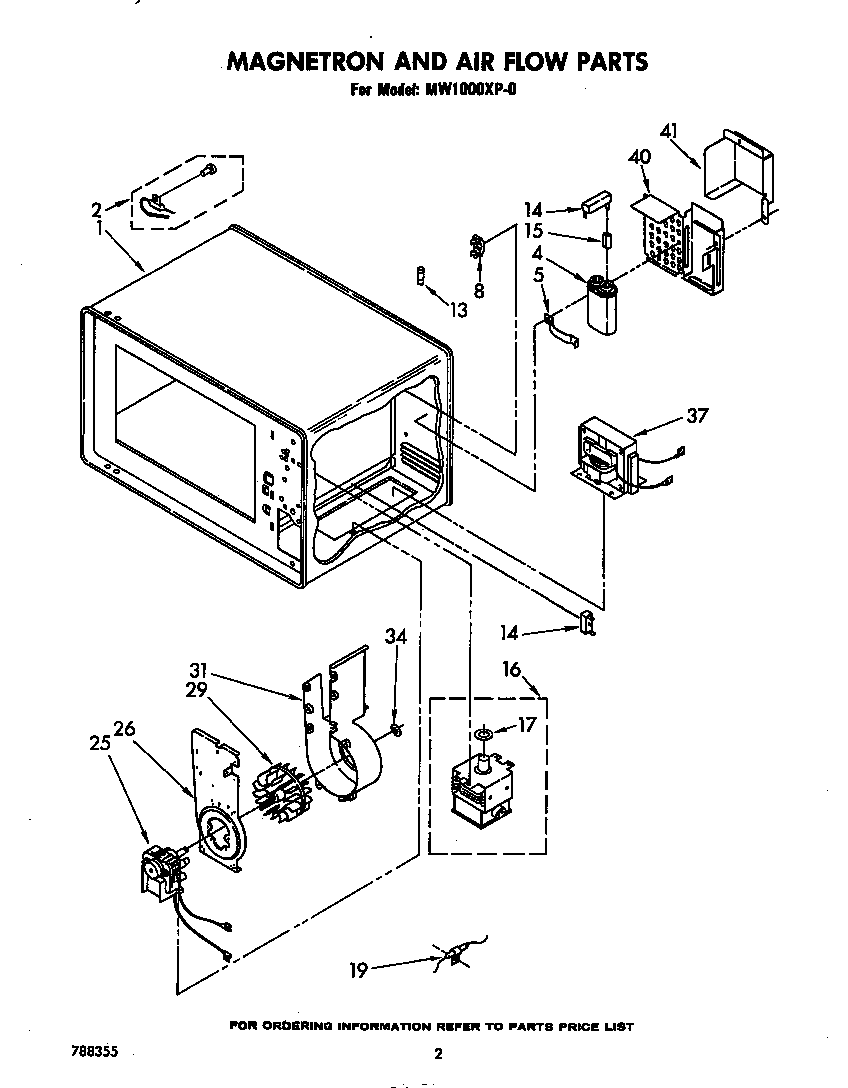

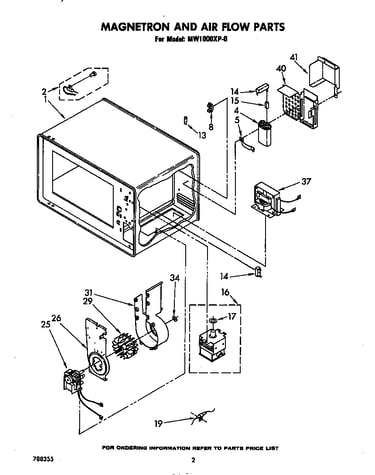

    Magnetron and air flow Diagram

    Screw

    Part #788119
    Replaced by #WP250830
    ?
    Manufacturer substitution
    This part replaces 788119. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.33
    Appliance Spray Paint (Almond)

    #NI

    All parts Diagram

    Spray al

    Part #350956
    Replaced by #350956
    ?
    Manufacturer substitution
    This part replaces 350956. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.89 |
    19% OFF
    Phone Price: $25.89
    Appliance Silicone Sealant

    #NI

    All parts Diagram

    Adhesive

    Part #482338
    Replaced by #WP482338
    ?
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $31.27 |
    20% OFF
    Was: $39.09
    Magnetron#16

    Magnetron and air flow Diagram

    Magnetron

    Part #788312

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Screw#1A

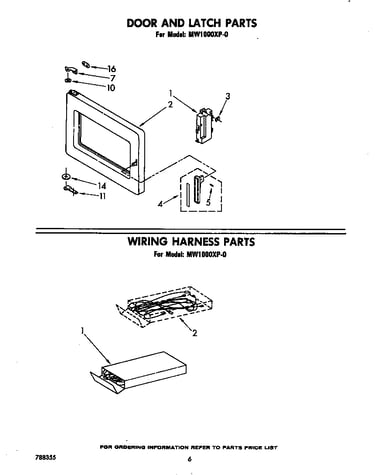

    Door and latch Diagram

    Screw

    Part #788115
    Replaced by #WP250830
    ?
    Manufacturer substitution
    This part replaces 788115. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.33
    NUT, 8-32#25B

    Magnetron and air flow Diagram

    Nut, 8-32

    Part #788101

    The manufacturer no longer makes this part, and there's no substitute part

    Micro Door#2

    Door and latch Diagram

    Micro door

    Part #788313

    The manufacturer no longer makes this part, and there's no substitute part
