Model # MVH220E-P1195204M Official Amana microwave/hood combo

Here are the diagrams and repair parts for Official Amana MVH220E-P1195204M microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Lamp R0712016
#2

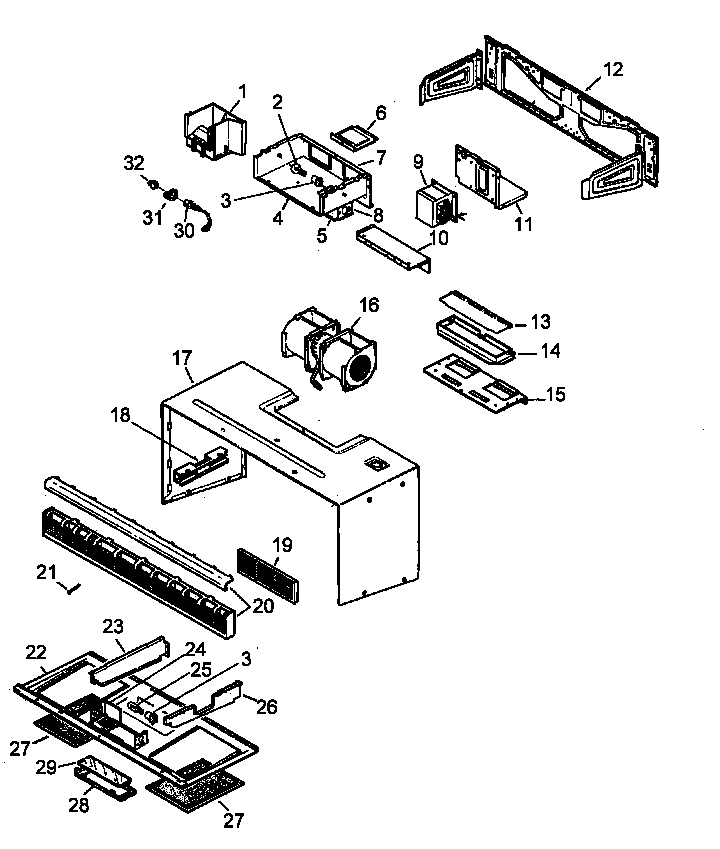

Cabinet assembly diagram

Lamp

Part #R0712016

Replaced by #8206232A

?
Manufacturer substitution
This part replaces R0712016. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Fuse R0713554
#14

Cavity assembly diagram

Fuse

Part #R0713554

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces R0713554. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Micro-switch R0713540
#18

Cavity assembly diagram

Micro-switch

Part #R0713540

Replaced by #WP56001036

?
Manufacturer substitution
This part replaces R0713540. Substitute parts can look different from the original.
$42.20
In Stock
Diode R0713536
#17

Cavity assembly diagram

Diode

Part #R0713536

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces R0713536. Substitute parts can look different from the original.
$25.29 |
17% OFF Phone Price : $30.29
In Stock
Filter R0713524
#27

Cabinet assembly diagram

Filter

Part #R0713524

Replaced by #WP58001087

?
Manufacturer substitution
This part replaces R0713524. Substitute parts can look different from the original.
This item is not returnable
$23.99 |
17% OFF Phone Price : $28.99
In Stock
Stirrer Motor R0707015
#22

Cavity assembly diagram

Stirrer motor

Part #R0707015

Replaced by #56001337

?
Manufacturer substitution
This part replaces R0707015. Substitute parts can look different from the original.
$76.31
In Stock
Wiring Schematic R0713605

#NI

All parts diagram

Wiring schematic

Part #R0713605

The manufacturer no longer makes this part, and there's no substitute part

Thermostat R0711023
#13

Cavity assembly diagram

Thermostat

Part #R0711023

The manufacturer no longer makes this part, and there's no substitute part

Mounting Hardware R0713582

#NI

All parts diagram

Mounting hardware

Part #R0713582

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Cooktop Glass R0713596
#28

Cabinet assembly diagram

Bracket, cooktop glass

Part #R0713596

The manufacturer no longer makes this part, and there's no substitute part
