DeWalt D25603K TYPE 1 hammer drill Parts

Here are the diagrams and repair parts for DeWalt D25603K TYPE 1 hammer drill, as well as links to manuals and error code tables, if available.

DeWalt D25603K TYPE 1 hammer drill
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for D25603K TYPE 1 Power Tools

  • Ram for DeWalt D25603K TYPE 1 - Part N041845

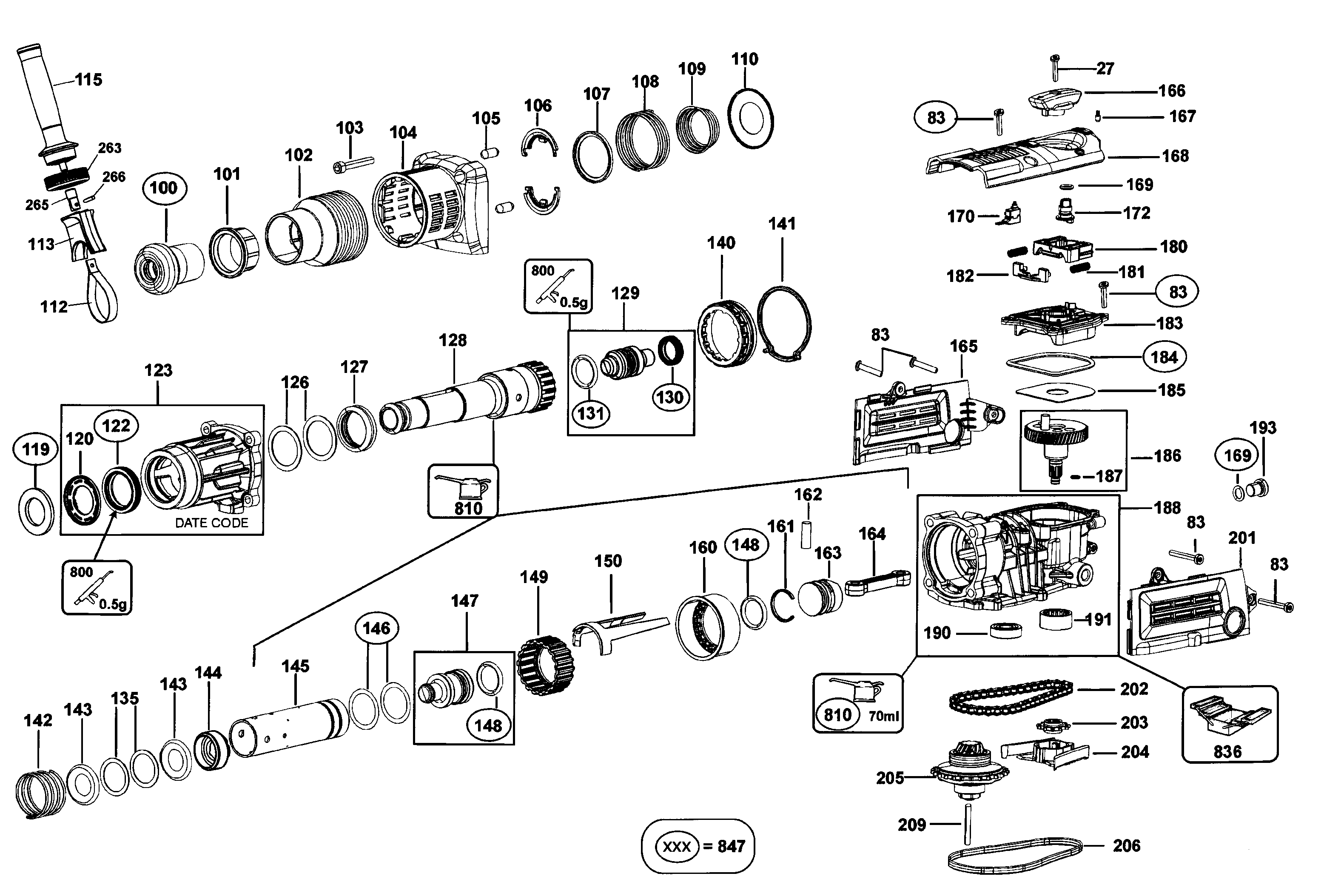

    Drill hammer diagram

    Ram

    Part #N041845

    The manufacturer no longer makes this part, and there's no substitute part

  • Connect for DeWalt D25603K TYPE 1 - Part 1006783-00

    Drill hammer diagram

    Connect

    Part #1006783-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Sleeve for DeWalt D25603K TYPE 1 - Part N041844

    Drill hammer diagram

    Sleeve

    Part #N041844

    The manufacturer no longer makes this part, and there's no substitute part

  • Pin for DeWalt D25603K TYPE 1 - Part 330041-22

    Drill hammer diagram

    Pin

    Part #330041-22

    The manufacturer no longer makes this part, and there's no substitute part

  • Felt Washer for DeWalt D25603K TYPE 1 - Part N038151

    Drill hammer diagram

    Felt Washer

    Part #N038151

    The manufacturer no longer makes this part, and there's no substitute part

  • Brand Labe for DeWalt D25603K TYPE 1 - Part N064908

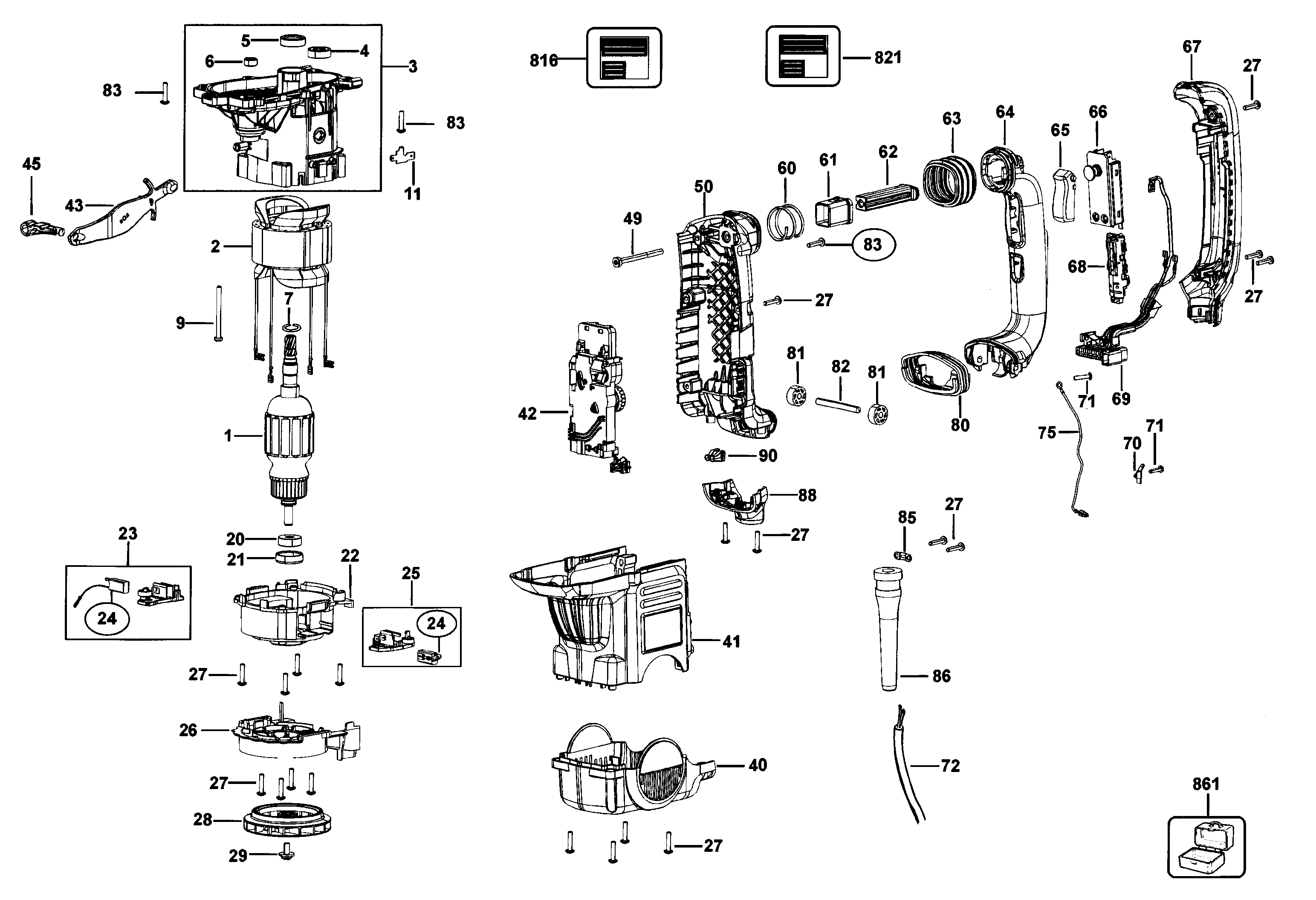

    Handle/motor diagram

    Brand Labe

    Part #N064908

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for DeWalt D25603K TYPE 1 - Part 1005748-00

    Drill hammer diagram

    Spring

    Part #1005748-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Cordset for DeWalt D25603K TYPE 1 - Part 330100-04

    Handle/motor diagram

    Cordset

    Part #330100-04

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Cove for DeWalt D25603K TYPE 1 - Part 1006576-00

    Handle/motor diagram

    Motor Cove

    Part #1006576-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Micro Swit for DeWalt D25603K TYPE 1 - Part N019533

    Drill hammer diagram

    Micro Swit

    Part #N019533

    The manufacturer no longer makes this part, and there's no substitute part
