DeWalt D25603K TYPE 1 hammer drill Parts

Here are the diagrams and repair parts for DeWalt D25603K TYPE 1 hammer drill, as well as links to manuals and error code tables, if available.

DeWalt D25603K TYPE 1 hammer drill
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forD25603K TYPE 1 Power Tools

  • Housing for DeWalt D25603K TYPE 1 - Part N041835

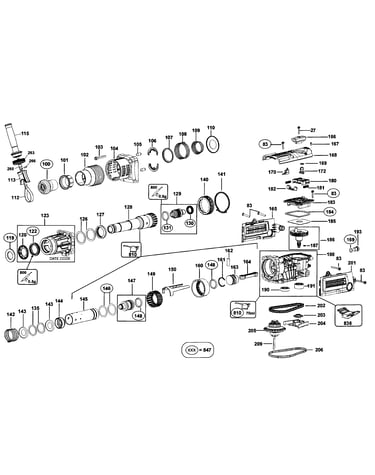

    Drill hammer diagram

    Housing

    Part #N041835

    The manufacturer no longer makes this part, and there's no substitute part

  • Trigger,lo for DeWalt D25603K TYPE 1 - Part N019514

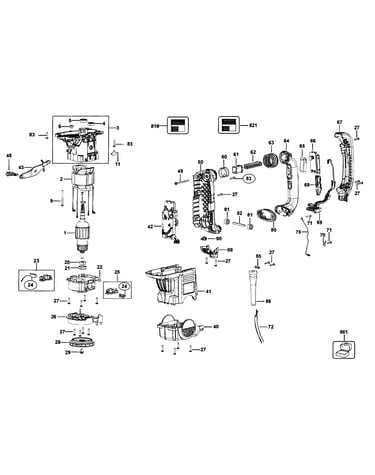

    Handle/motor diagram

    Trigger,lo

    Part #N019514

    The manufacturer no longer makes this part, and there's no substitute part

  • Crankshaft for DeWalt D25603K TYPE 1 - Part N041841

    Drill hammer diagram

    Crankshaft

    Part #N041841

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket for DeWalt D25603K TYPE 1 - Part 1006283-00

    Drill hammer diagram

    Gasket

    Part #1006283-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Ring for DeWalt D25603K TYPE 1 - Part 577746-00

    Handle/motor diagram

    Ring

    Part #577746-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Felt Washer for DeWalt D25603K TYPE 1 - Part N038151

    Drill hammer diagram

    Felt Washer

    Part #N038151

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle Cover for DeWalt D25603K TYPE 1 - Part 1006580-00

    Handle/motor diagram

    Handle Cover

    Part #1006580-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Bellows for DeWalt D25603K TYPE 1 - Part 1008678-00

    Handle/motor diagram

    Bellows

    Part #1008678-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan Baffle for DeWalt D25603K TYPE 1 - Part 1007799-00

    Handle/motor diagram

    Fan Baffle

    Part #1007799-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Gearcase C for DeWalt D25603K TYPE 1 - Part 1006721-00

    Drill hammer diagram

    Gearcase C

    Part #1006721-00

    The manufacturer no longer makes this part, and there's no substitute part
