Model # DC970K-2 TYPE 1 Official DeWalt cordless drill

Here are the diagrams and repair parts for Official DeWalt DC970K-2-TYPE-1 cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Dewalt Battery N143312
#866

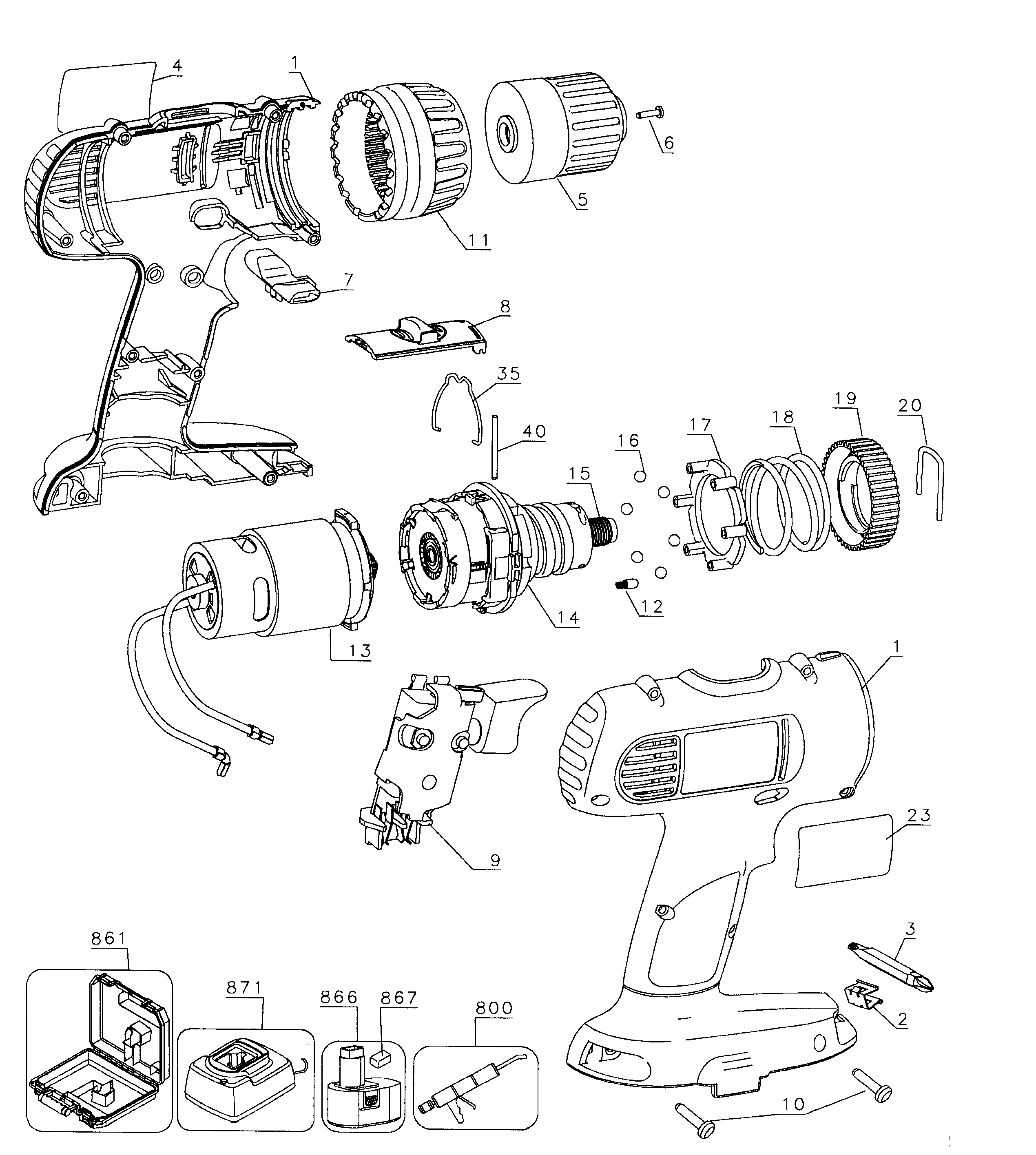

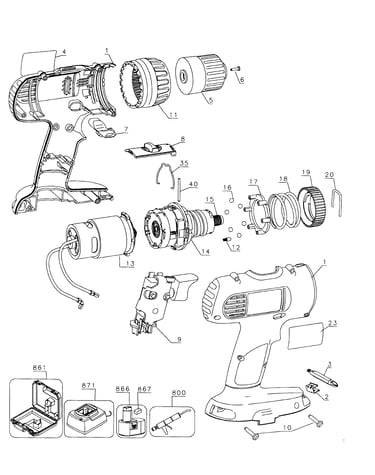

Drill assy diagram

Dewalt battery

Part #N143312

The manufacturer no longer makes this part, and there's no substitute part

Shift Wire 391896-00
#35

Drill assy diagram

Shift wire

Part #391896-00

The manufacturer no longer makes this part, and there's no substitute part

Clip 798959-00
#20

Drill assy diagram

Clip

Part #798959-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Pin 392094-00
#40

Drill assy diagram

Dewalt pin

Part #392094-00

The manufacturer no longer makes this part, and there's no substitute part

Plate 397303-00
#17

Drill assy diagram

Plate

Part #397303-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Battry Cap 645221-00
#867

Drill assy diagram

Black & decker battry cap

Part #645221-00

The manufacturer no longer makes this part, and there's no substitute part

Collar 618335-00
#11

Drill assy diagram

Collar

Part #618335-00

The manufacturer no longer makes this part, and there's no substitute part

Clamshell 620787-02
#1

Drill assy diagram

Clamshell

Part #620787-02

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate N030974
#23

Drill assy diagram

Dewalt nameplate

Part #N030974

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Drill Motor 397156-02SV
#13

Drill assy diagram

Dewalt drill motor

Part #397156-02SV

The manufacturer no longer makes this part, and there's no substitute part
