Kenmore 2538711067 air conditioner

Kenmore 2538711067 air conditioner Parts

Here are the diagrams and repair parts for Kenmore 2538711067 air conditioner, as well as links to manuals and error code tables, if available.

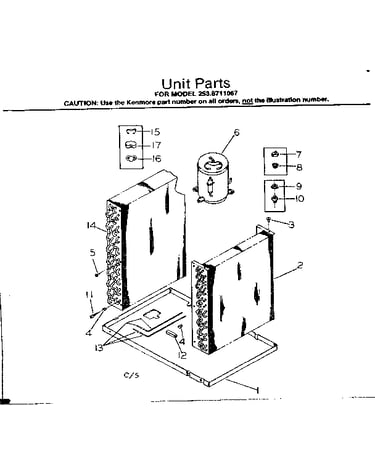

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 2538711067 Air Conditioner

  • Seal for Kenmore 2538711067 - Part 5314930813

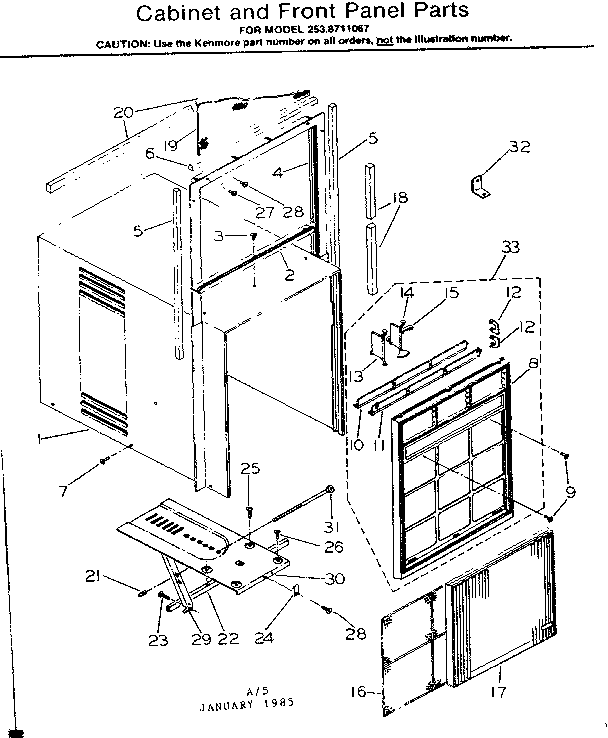

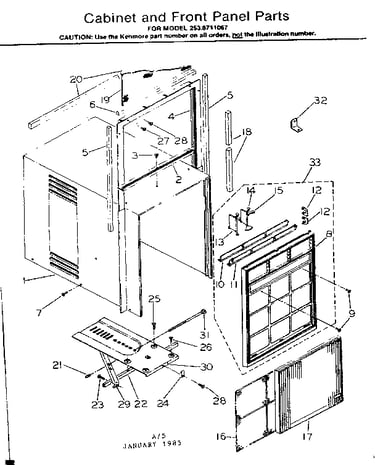

    Cabinet and front panel parts diagram

    Seal

    Part #149308-12

    Replaced by #5314930813

    Info Icon
    Manufacturer substitution
    This part replaces 149308-12. Substitute parts can look different from the original.
    In Stock
    $43.62
    Minus Item
    Qty
    Plus Item
  • Wire for Kenmore 2538711067 - Part 5308047557

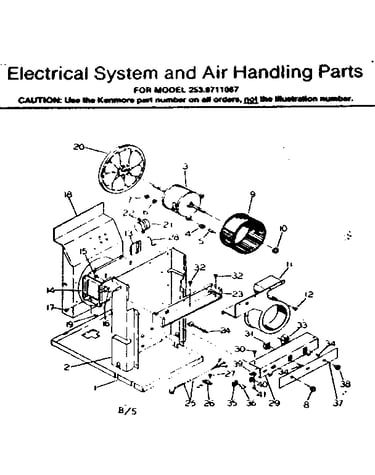

    Electrical system and air handling parts diagram

    Wire

    Part #160179

    Replaced by #5308047557

    Info Icon
    Manufacturer substitution
    This part replaces 160179. Substitute parts can look different from the original.
    In Stock
    $37.32
    Minus Item
    Qty
    Plus Item
  • Control for Kenmore 2538711067 - Part 5308047515

    Electrical system and air handling parts diagram

    Rod

    Part #160176

    Replaced by #5308047515

    Info Icon
    Manufacturer substitution
    This part replaces 160176. Substitute parts can look different from the original.
    In Stock
    $35.45
    Minus Item
    Qty
    Plus Item
  • Plate for Kenmore 2538711067 - Part 5304414857

    Cabinet and front panel parts diagram

    Plate

    Part #506971

    Replaced by #5304414857

    Info Icon
    Manufacturer substitution
    This part replaces 506971. Substitute parts can look different from the original.
    In Stock
    $119.14
    Minus Item
    Qty
    Plus Item
  • Screw for Kenmore 2538711067 - Part 5300516352

    Screw

    Part #516352

    Replaced by #5300516352

    Info Icon
    Manufacturer substitution
    This part replaces 516352. Substitute parts can look different from the original.
    In Stock
    $25.13
    Minus Item
    Qty
    Plus Item
  • Seal for Kenmore 2538711067 - Part 5314930813

    Cabinet and front panel parts diagram

    Seal

    Part #149308-13

    Replaced by #5314930813

    Info Icon
    Manufacturer substitution
    This part replaces 149308-13. Substitute parts can look different from the original.
    In Stock
    $43.62
    Minus Item
    Qty
    Plus Item
  • Instruction Sheet for Kenmore 2538711067 - Part 5300507263

    #NI

    All parts diagram

    Installation Instructions

    Part #507263

    Replaced by #5300507263

    Info Icon
    Manufacturer substitution
    This part replaces 507263. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.36
    Minus Item
    Qty
    Plus Item
  • Housing for Kenmore 2538711067 - Part 5303002502

    Electrical system and air handling parts diagram

    Air Conditioner Blower Housing

    Part #159998

    Replaced by #5303002502

    Info Icon
    Manufacturer substitution
    This part replaces 159998. Substitute parts can look different from the original.
    In Stock
    $58.03
    Minus Item
    Qty
    Plus Item
  • Bracket Support for Kenmore 2538711067 - Part 5303302871

    Cabinet and front panel parts diagram

    Support

    Part #506970

    Replaced by #5303302871

    Info Icon
    Manufacturer substitution
    This part replaces 506970. Substitute parts can look different from the original.
    In Stock
    $96.24
    Minus Item
    Qty
    Plus Item
  • Nut for Kenmore 2538711067 - Part 5303311307

    Electrical system and air handling parts diagram

    Nut

    Part #517211

    Replaced by #5303311307

    Info Icon
    Manufacturer substitution
    This part replaces 517211. Substitute parts can look different from the original.
    In Stock
    $33.88
    Minus Item
    Qty
    Plus Item
