Model # CME8000AAE Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag CME8000AAE microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

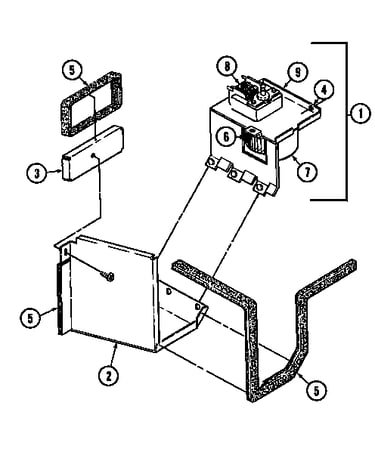

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Screw 03010135
#14

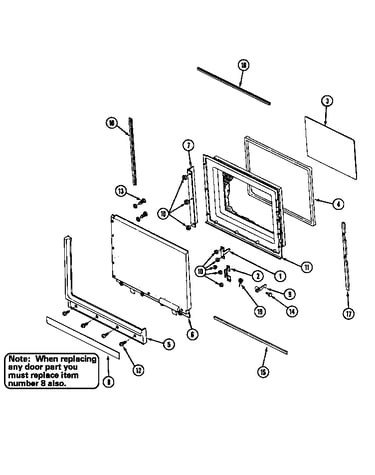

Door diagram

Screw

Part #03010135

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 03010135. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 03010144
#23B

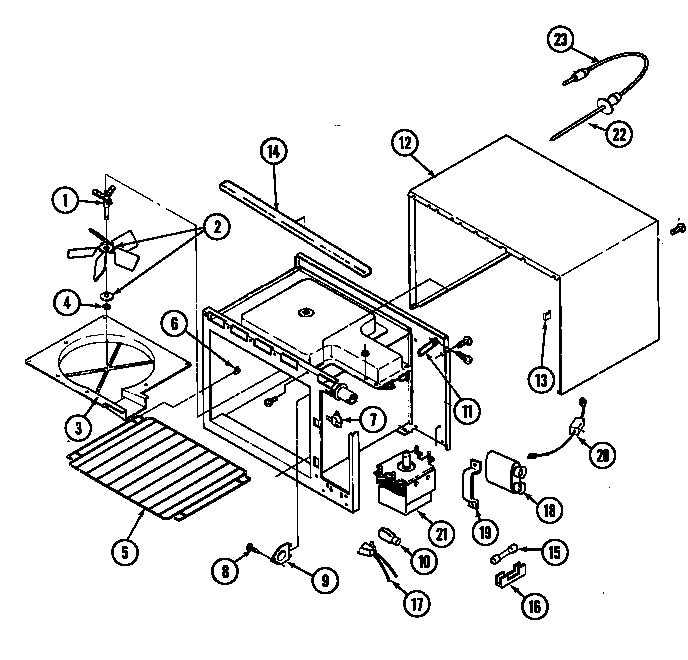

Oven liner-body diagram

Screw

Part #03010144

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 03010144. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw 03020041
#7

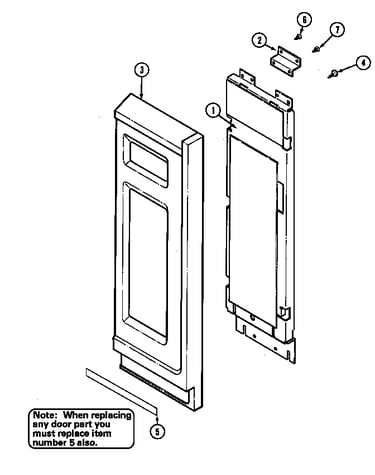

Control panel diagram

Screw

Part #03020041

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 03020041. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 03020068
#19

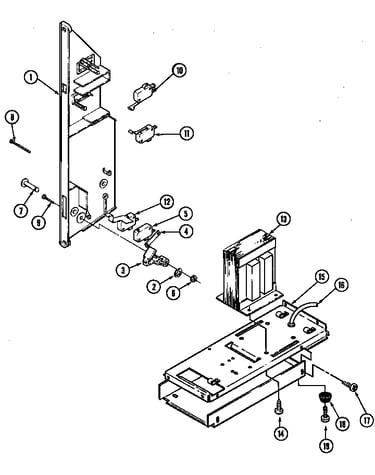

Internal controls diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Diode 04010206
#20

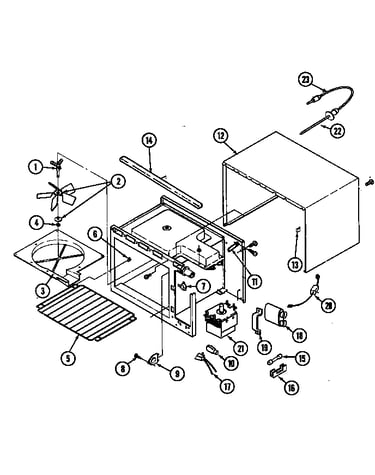

Oven liner-body diagram

Diode

Part #04010206

The manufacturer no longer makes this part, and there's no substitute part

Choke Filter 02100166
#4

Door diagram

Choke filter

Part #02100166

The manufacturer no longer makes this part, and there's no substitute part

Poly Window 02220073
#3

Door diagram

Poly window

Part #02220073

The manufacturer no longer makes this part, and there's no substitute part

Screw 03020076
#19A

Oven liner-body diagram

Screw

Part #03020076

The manufacturer no longer makes this part, and there's no substitute part

Door Glass 02220115
#6A

Door diagram

Door glass

Part #02220115

The manufacturer no longer makes this part, and there's no substitute part

"nut, Shaft S" 03050007
#1A

Oven liner-body diagram

"nut, shaft s"

Part #03050007

The manufacturer no longer makes this part, and there's no substitute part
