KitchenAid KGCS105GSS10 gas counter unit Parts

Name: KitchenAid KGCS105GSS10 Parts | Diagrams, Manuals | Sears PartsDirect
Brand: KitchenAid
SKU: KGCS105GSS10
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KGCS105GSS10 gas counter unit, as well as links to manuals and error code tables, if available.

Owner’s manual

Error Codes

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for KGCS105GSS10 Cooktops

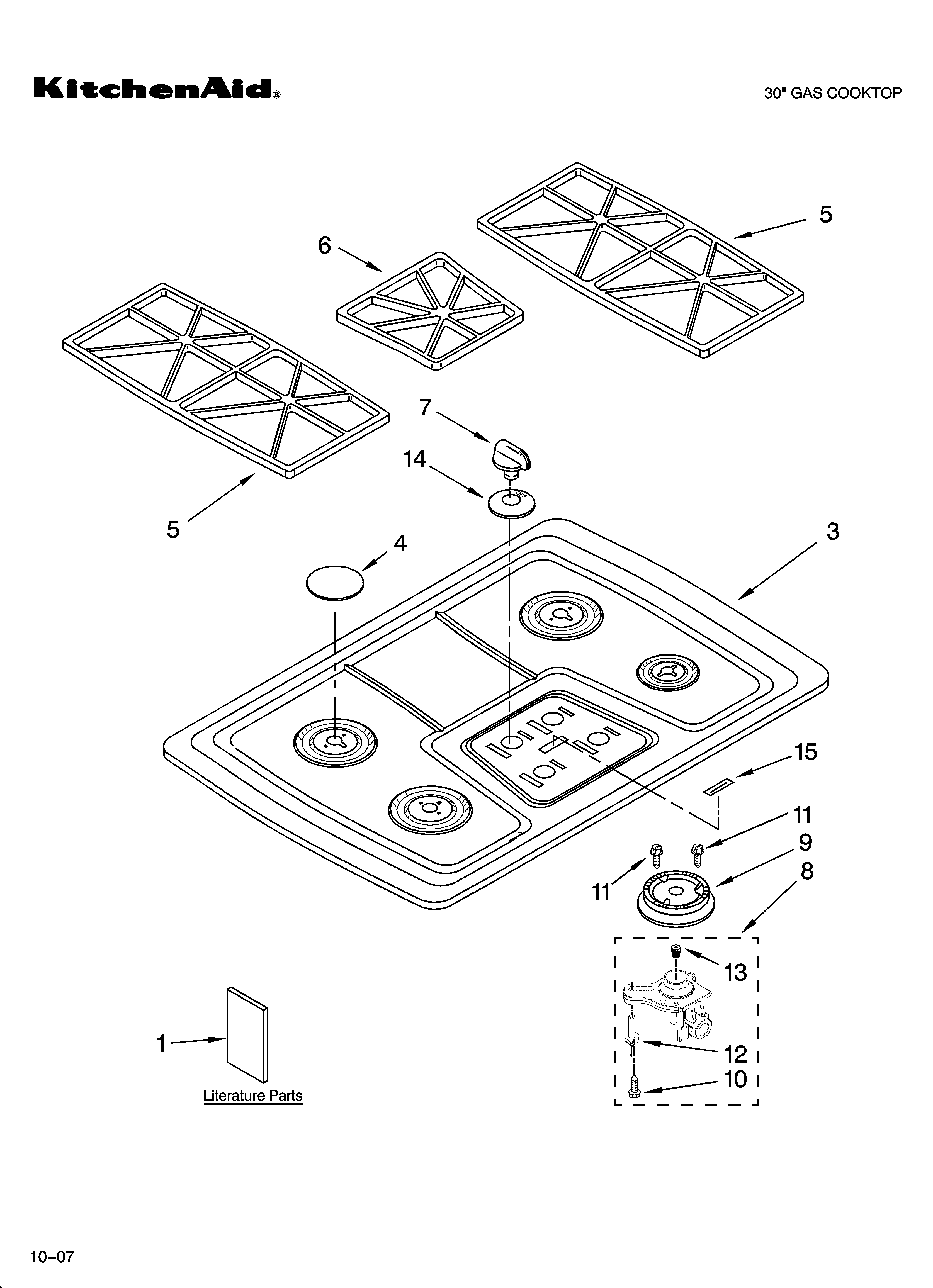

Cooktop, burner and grate parts diagram
Range Screw
Part #3368921
Replaced by #WP3368921
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.10
24% OFF Phone Price : $4.10
Qty

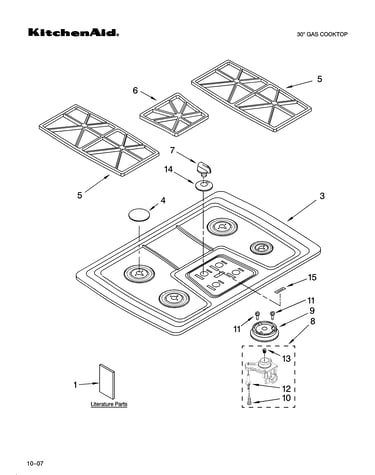

Cooktop, burner and grate parts diagram
Range Screw
Part #8273062
Replaced by #WP8273062
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.94
20% OFF Phone Price : $4.94
Qty

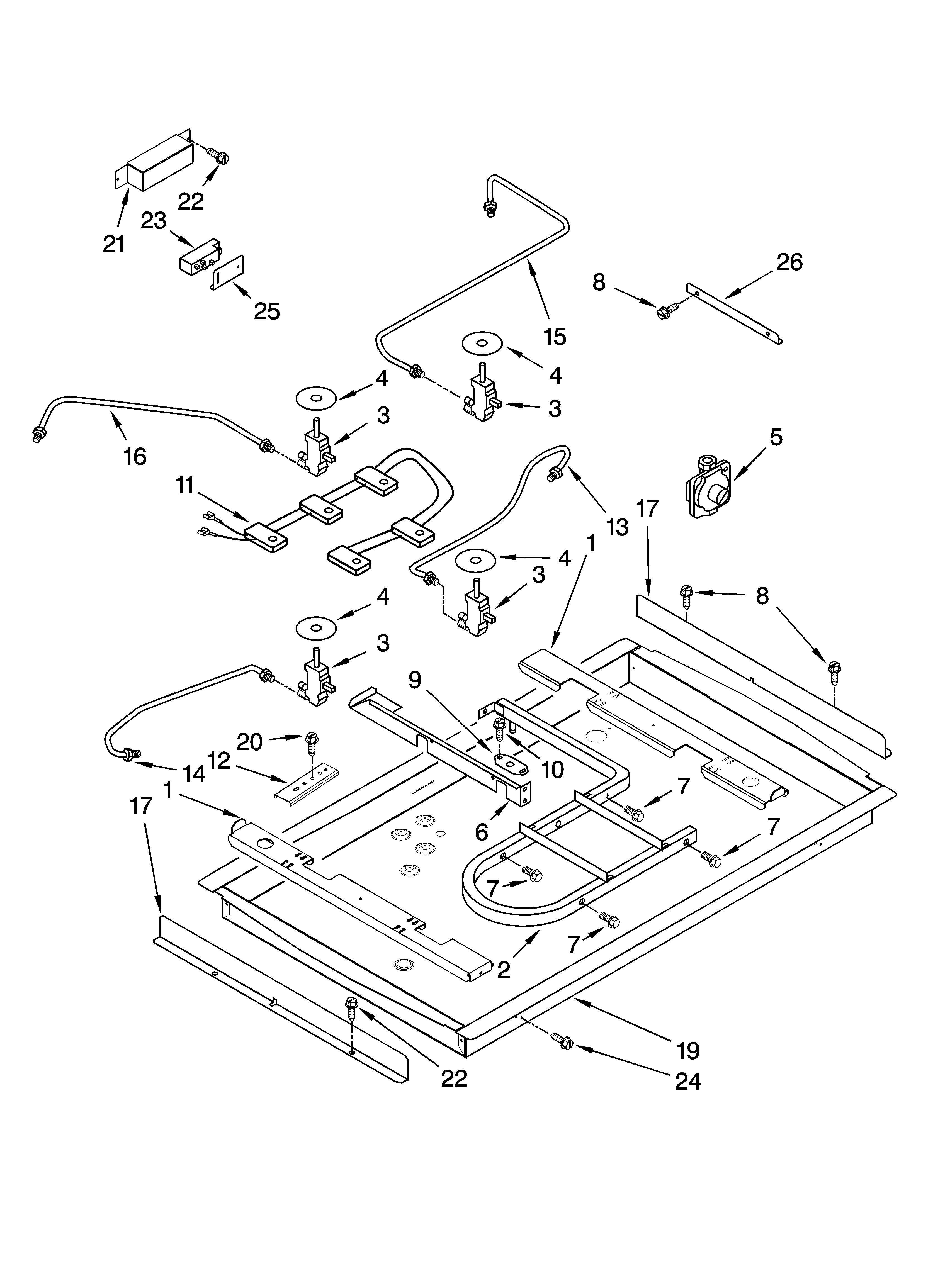

Burner box, gas valves, and switches, optional parts ( diagram
Range Screw
Part #3196160
Replaced by #W10491985
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91
17% OFF Phone Price : $5.91
Qty

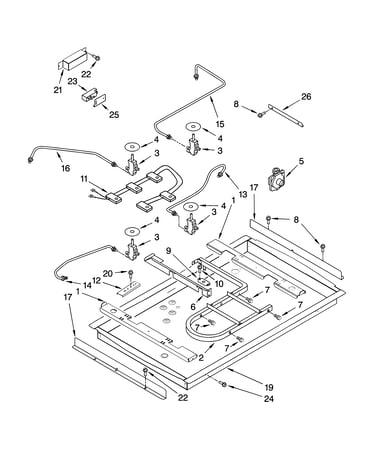

Burner box, gas valves, and switches, optional parts ( diagram
Cooktop Igniter Switch And Harness Assembly
Part #4456905
Replaced by #WP4456905
Manufacturer substitution
This part replaces 4456905. Substitute parts can look different from the original.
In Stock
$141.76
8% OFF Phone Price : $153.76
Qty
Cooktop, burner and grate parts diagram
Cooktop Holder Orifice
Part #W10128448
Replaced by #WPW10128448
Manufacturer substitution
This part replaces W10128448. Substitute parts can look different from the original.
In Stock
$86.91
6% OFF Phone Price : $92.91
Qty
Cooktop, burner and grate parts diagram
Cooktop Holder Orifice
Part #W10128450
Replaced by #WPW10128450
Manufacturer substitution
This part replaces W10128450. Substitute parts can look different from the original.
In Stock
$61.92
9% OFF Phone Price : $67.92
Qty
Cooktop, burner and grate parts diagram
Burner Head
Part #8286184
Replaced by #WPW10406283
Manufacturer substitution
This part replaces 8286184. Substitute parts can look different from the original.
In Stock
$63.56
9% OFF Phone Price : $69.56
Qty
Burner box, gas valves, and switches, optional parts ( diagram
Cooktop Igniter Wire Harness, 15-in
Part #4456626
In Stock
$43.99
12% OFF Phone Price : $49.99
Qty
Range Screw
Part #3177991
Replaced by #WP3177991
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Burner box, gas valves, and switches, optional parts ( diagram
Range Wire Harness
Part #4456627
In Stock
$118.21
Qty
