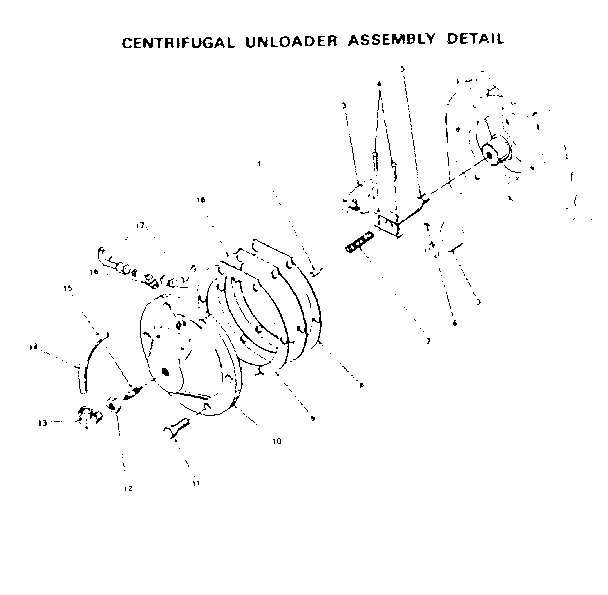

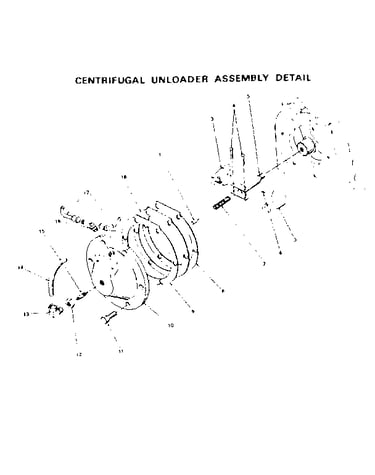

Model #10217319 Craftsman 2-stage 3-cylinder tank-type air compressor

Here are the diagrams and repair parts for Craftsman 10217319 2-stage 3-cylinder tank-type air compressor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 160 parts

    Cage

    #24

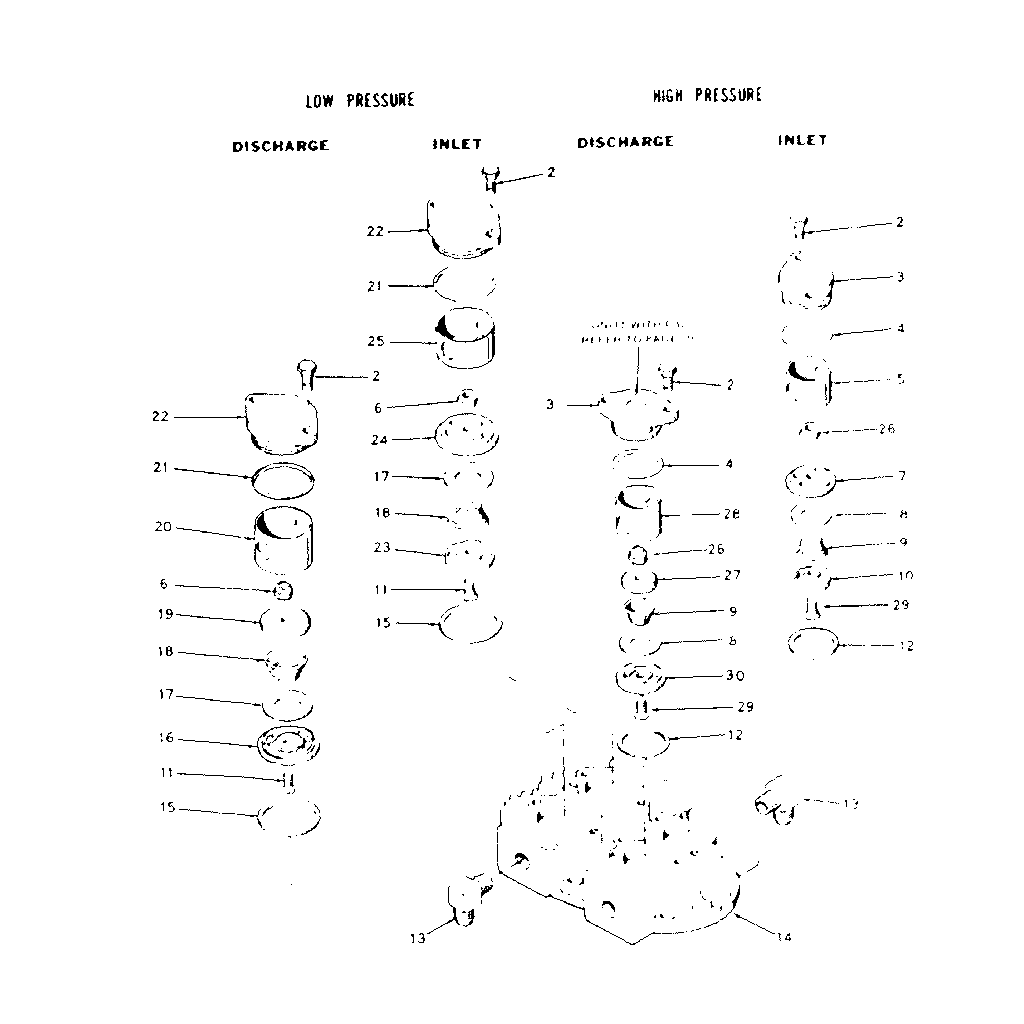

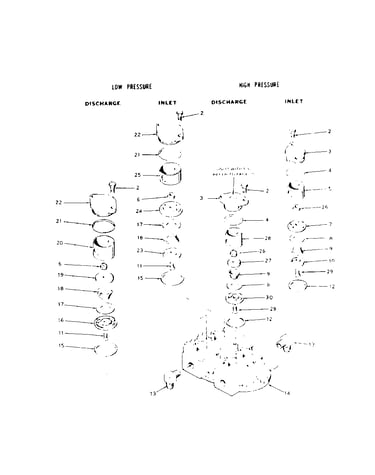

    Cylinder head assembly Diagram

    Cage

    Part #47930

    The manufacturer no longer makes this part, and there's no substitute part

    Valve Gasket

    #12

    Cylinder head assembly Diagram

    Valve gasket

    Part #47937
    ?
    Manufacturer substitution
    This part replaces 47937. Substitute parts can look different from the original.
    This part replaces 47937
    This item is not returnable
    $7.49

    In Stock

    Lock Washer

    #2

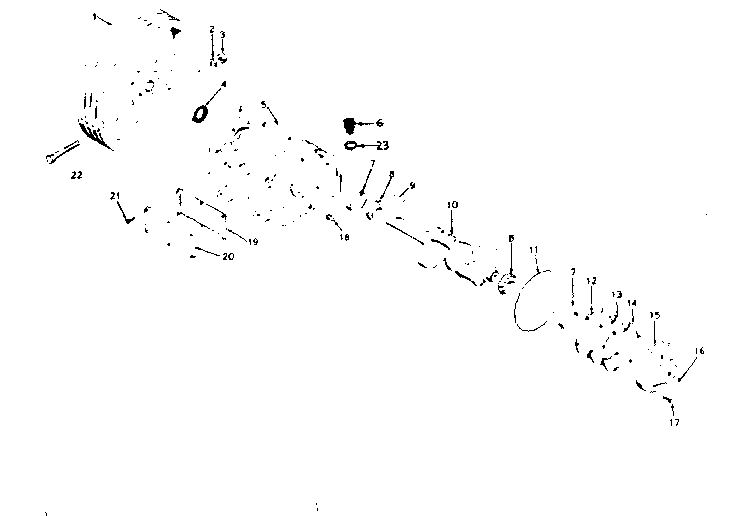

    Crankcase assembly Diagram

    Lock washer

    Part #9526

    The manufacturer no longer makes this part, and there's no substitute part

    Body

    #1

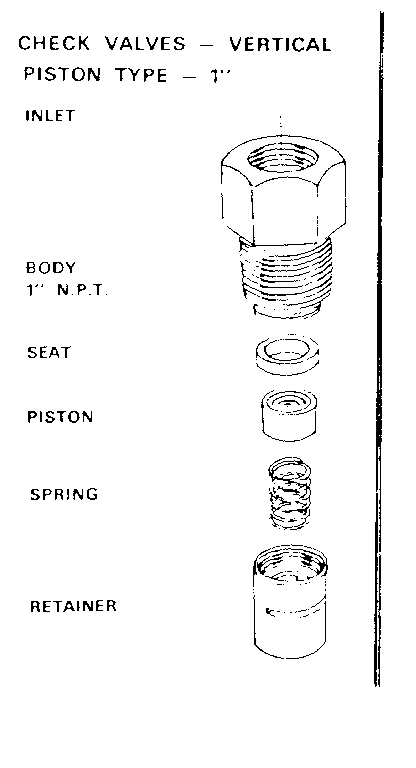

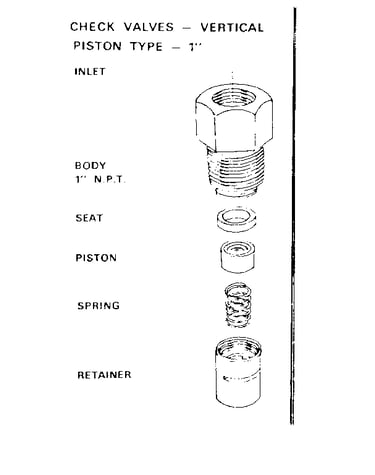

    Check valves - vertical piston type - 1" Diagram

    Body

    Part #38854

    The manufacturer no longer makes this part, and there's no substitute part

    Piston

    #14

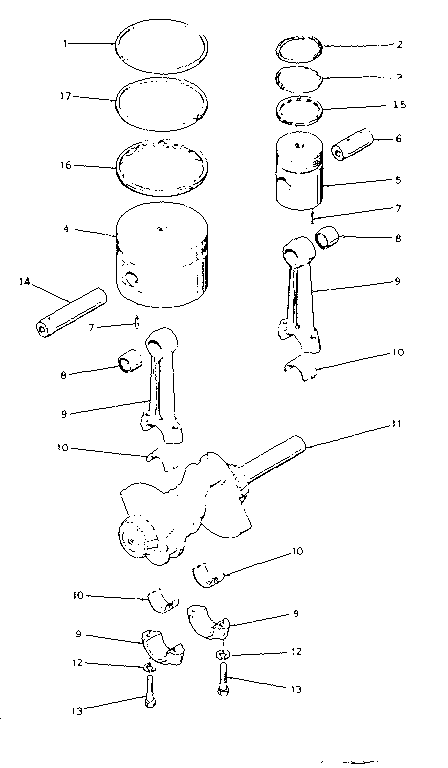

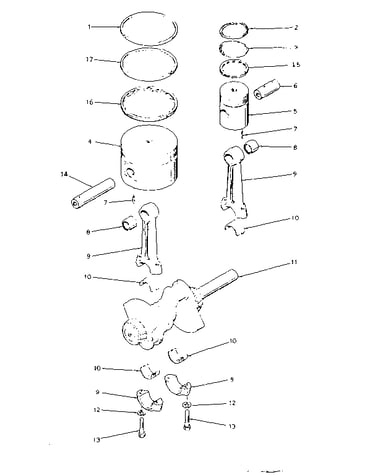

    Connecting rod, piston and crankshaft assembly Diagram

    Piston

    Part #47944

    The manufacturer no longer makes this part, and there's no substitute part

    Wrist Pin

    #13

    Connecting rod, piston and crankshaft assembly Diagram

    Wrist pin

    Part #47945

    The manufacturer no longer makes this part, and there's no substitute part

    Stud

    #15

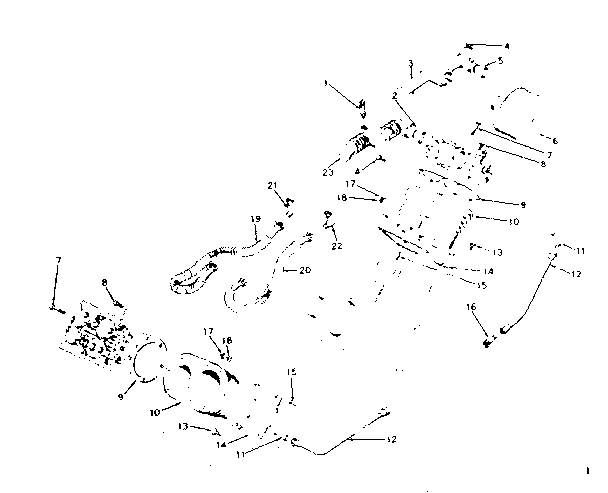

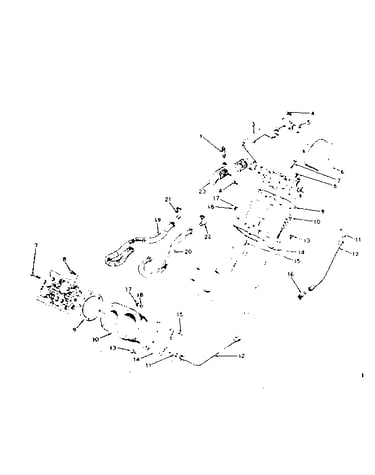

    Inlet filter silencer, cylinder and intercooler assembly Diagram

    Stud

    Part #48334

    The manufacturer no longer makes this part, and there's no substitute part

    Gasket

    #5

    Inlet filter silencer, cylinder and intercooler assembly Diagram

    Gasket

    Part #48336

    The manufacturer no longer makes this part, and there's no substitute part

    Elbow

    #21

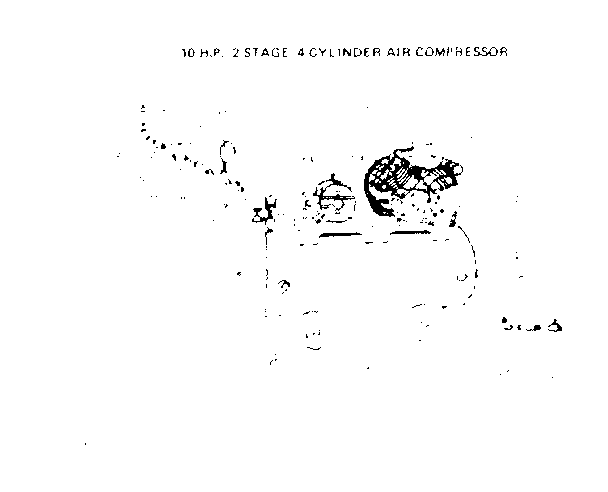

    10 h.p. 2 stage 4 cylinder air compressor Diagram

    Elbow

    Part #48349

    The manufacturer no longer makes this part, and there's no substitute part

    Safety Valve

    #1

    Inlet filter silencer, cylinder and intercooler assembly Diagram

    Safety valve

    Part #48633

    The manufacturer no longer makes this part, and there's no substitute part
