Craftsman 917377110 gas walk-behind lawn mower

Craftsman 917377110 gas walk-behind lawn mower Parts

Here are the diagrams and repair parts for Craftsman 917377110 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 917377110 Walk-Behind Mowers

  • Husqvarna Lawn Mower Lock Nut, 3/8-in for Craftsman 917377110 - Part 532409149

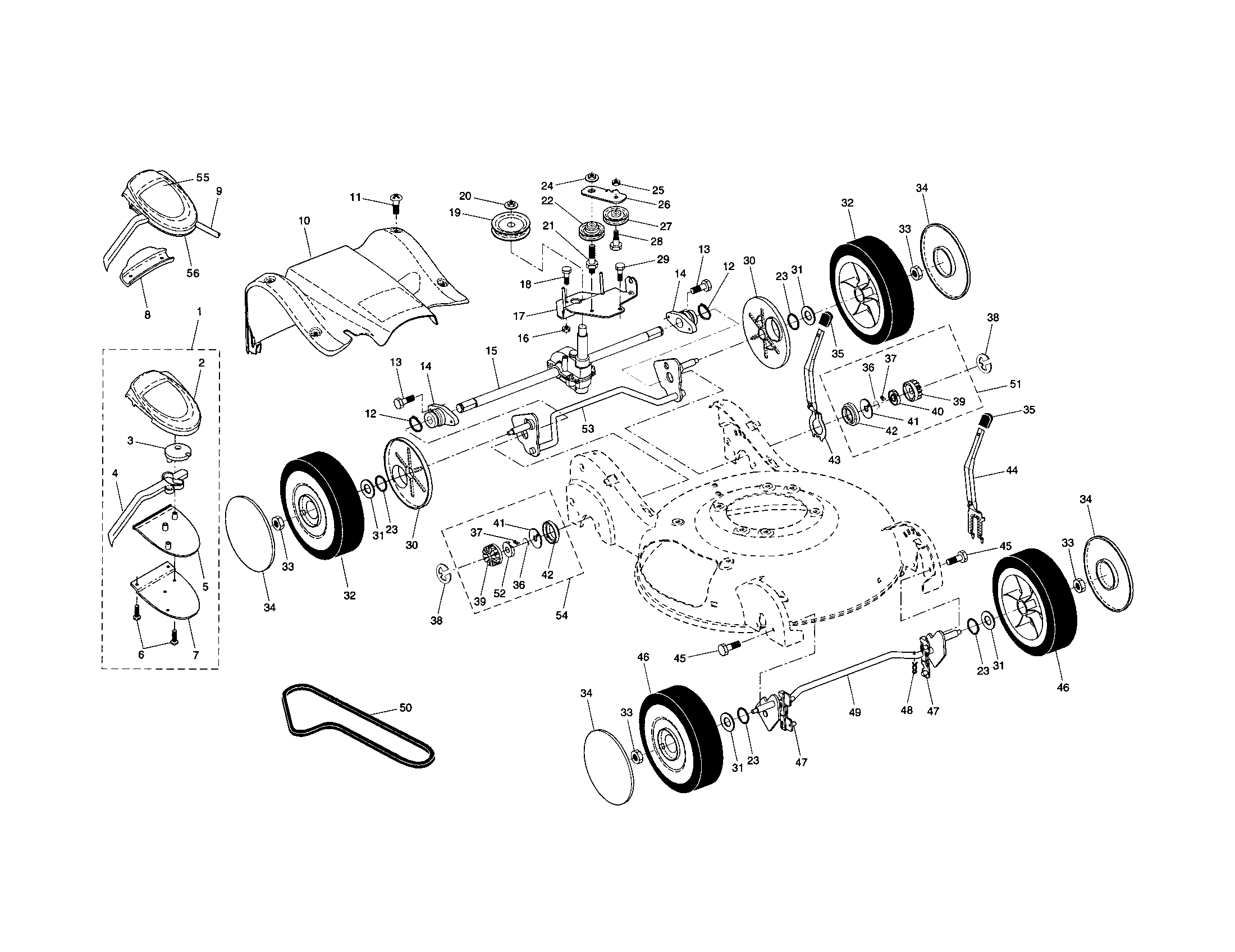

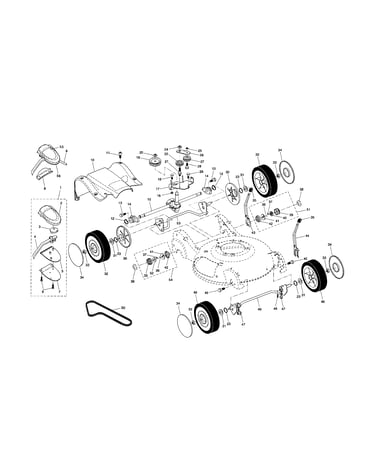

    Wheels/tires/drive/cover diagram

    Pipe Fitting

    Part #132010

    Replaced by #532409149

    Info Icon
    Manufacturer substitution
    This part replaces 132010. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.08
    25% OFF Phone Price : $4.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Lock Nut, 3/8-in for Craftsman 917377110 - Part 532409149

    Wheels/tires/drive/cover diagram

    Lock Nut

    Part #83923

    Replaced by #532409149

    Info Icon
    Manufacturer substitution
    This part replaces 83923. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.08
    25% OFF Phone Price : $4.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Lock Nut, 3/8-in for Craftsman 917377110 - Part 532409149

    Wheels/tires/drive/cover diagram

    Hex Flange Lock Nut

    Part #145212

    Replaced by #532409149

    Info Icon
    Manufacturer substitution
    This part replaces 145212. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.08
    25% OFF Phone Price : $4.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Washer for Craftsman 917377110 - Part 532851074

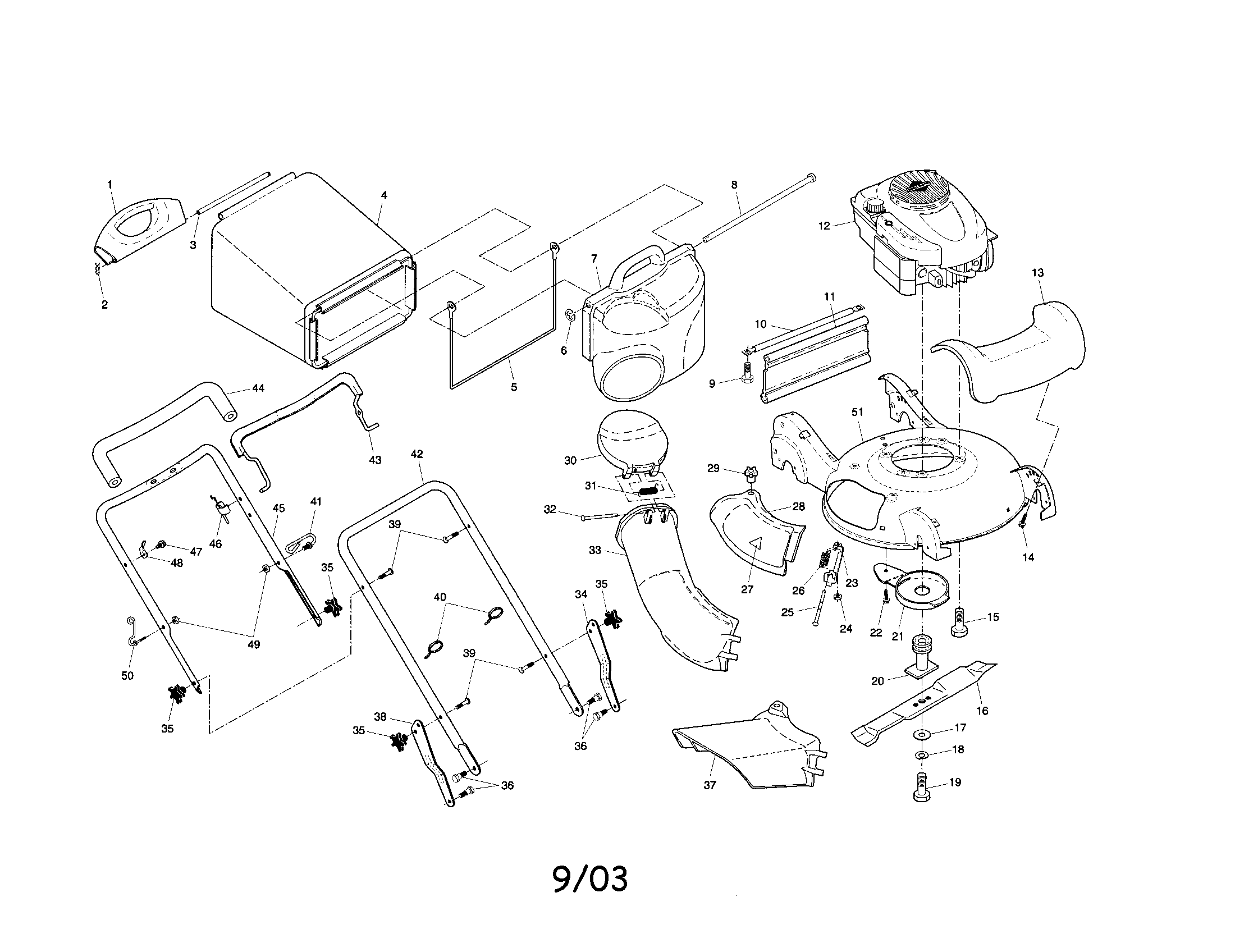

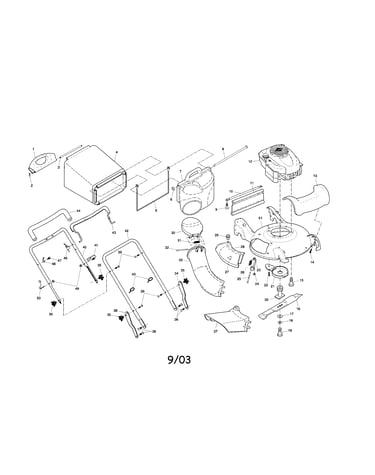

    Engine/housing/bag/handle diagram

    Husqvarna Lawn & Garden Equipment Washer

    Part #851074

    Replaced by #532851074

    Info Icon
    Manufacturer substitution
    This part replaces 851074. Substitute parts can look different from the original.
    In Stock
    $8.63
    10% OFF Phone Price : $9.63Info Icon
    Minus Item
    Qty
    Plus Item
  • American Yard Products Lawn & Garden Equipment Washer for Craftsman 917377110 - Part 532088348

    Wheels/tires/drive/cover diagram

    American Yard Products Lawn & Garden Equipment Washer

    Part #88348

    Replaced by #532088348

    Info Icon
    Manufacturer substitution
    This part replaces 88348. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.09
    14% OFF Phone Price : $7.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Mower Wheel for Craftsman 917377110 - Part 532192622

    Wheels/tires/drive/cover diagram

    Wheel.9x2.25

    Part #184371

    Replaced by #532192622

    Info Icon
    Manufacturer substitution
    This part replaces 184371. Substitute parts can look different from the original.
    In Stock
    $110.25
    10% OFF Phone Price : $122.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Mower Drive Pinion Torsion Spring for Craftsman 917377110 - Part 532188291

    Wheels/tires/drive/cover diagram

    Spring

    Part #188291

    Replaced by #532188291

    Info Icon
    Manufacturer substitution
    This part replaces 188291. Substitute parts can look different from the original.
    In Stock
    $6.52
    13% OFF Phone Price : $7.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Tractor Screw (screw.ta) for Craftsman 917377110 - Part 817060410

    Wheels/tires/drive/cover diagram

    Weed Eater Lawn & Garden Equipment Screw, 14-20 X 5/8-in

    Part #17060410

    Replaced by #817060410

    Info Icon
    Manufacturer substitution
    This part replaces 17060410. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.28
    14% OFF Phone Price : $7.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Handle Knob for Craftsman 917377110 - Part 583106401

    Engine/housing/bag/handle diagram

    Lawn Mower Handle Knob

    Part #180833

    Replaced by #583106401

    Info Icon
    Manufacturer substitution
    This part replaces 180833. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn & Garden Equipment Lock Nut for Craftsman 917377110 - Part 873930500

    Wheels/tires/drive/cover diagram

    Husqvarna Lawn & Garden Equipment Lock Nut

    Part #73930500

    Replaced by #873930500

    Info Icon
    Manufacturer substitution
    This part replaces 73930500. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.28
    14% OFF Phone Price : $7.28Info Icon
    Minus Item
    Qty
    Plus Item

Craftsman Gas Walk-Behind Lawn Mower 917377110 FAQs

For the Craftsman 917377110 gas walk-behind lawn mower, we recommend using regular unleaded 87-octane gasoline for normal mowing. Higher octane (like 91) does not add power or improve reliability in small mower engines; using fresh fuel and the right storage practices matters far more. See the fuel guidance and safety notes in the Craftsman 917377110 owner's manual.

What to use (and what to avoid)
  • Use fresh, regular unleaded 87 octane.
  • Buy fuel in small quantities so it gets used within 30 days.
  • Use a fuel stabilizer if the mower will sit more than a couple of weeks.
  • Avoid old gas; stale fuel is a top cause of hard starting and rough running.
  • Avoid overfilling the tank; leave room for expansion.
87 vs 91: quick comparison
Fuel choice Best for What you should expect
87 octane (regular) Everyday mowing Normal starting, power, and engine life
91 octane (premium) Not needed unless the engine specifically calls for it Typically no performance benefit
Why it matters

Octane is mainly about knock resistance, not “cleaner burning” or “more power.” Most walk-behind mower engines are designed to run correctly on regular fuel; the bigger risk is stale gas causing carburetor varnish, hard starts, surging, and poor acceleration.

If your mower runs poorly after fueling

Try these checks before replacing parts:

  • Drain old fuel and refill with fresh 87 octane.
  • Inspect the air filter and spark plug condition.
  • Check for fuel leaks and make sure the fuel cap vents properly.
  • If the mower sat with fuel in it, clean the carburetor bowl and jets (common fix).

For off-season storage steps, follow how to winterize a lawn mower.

Last updated: January 2026

Most gas walk-behind lawn mowers like the Craftsman 917377110 last 8 to 15 years with normal homeowner use; 10 years is a solid average when you keep up with oil changes, clean the deck, and keep the blade sharp. For model-specific maintenance intervals, use the Craftsman 917377110 owner's manual.

Typical lifespan by mower type

Lifespan depends heavily on engine hours, storage, and maintenance.

  • Gas walk-behind mower: 8 to 15 years
  • Electric walk-behind mower: 5 to 10 years (battery life is the limiter)
  • Riding mower: 10 to 15 years
  • Commercial-grade equipment: 15+ years with frequent service
What you do What it affects Typical result
Change oil on schedule Engine wear Longer engine life, easier starting
Sharpen or replace blade Cut quality, engine load Cleaner cut, less bogging
Clean grass buildup under deck Airflow, corrosion Better discharge, less rust
Store with stabilized fuel Carburetor/fuel system Fewer no-start issues after storage
Signs your mower is near end-of-life

If you see several of these at once, repairs can start to outweigh the value.

  • Hard starting even after a tune-up (spark plug, fresh fuel, clean air filter)
  • Excessive vibration (often from a bent blade or worn blade mount)
  • Self-propel drive slipping or not pulling consistently
  • Oil consumption, smoking, or loss of compression
  • Rust-through or cracking around the deck and mounting points
Maintenance that adds years (and saves parts)

These habits reduce strain on the engine, blade adapter, wheels, and drive system.

  • Mow when grass is dry and not overgrown
  • Keep the blade sharp; a dull blade forces the engine to work harder
  • Clean the underside of the deck after mowing (with the spark plug wire disconnected)
  • Use fresh gas and add fuel stabilizer before storage
  • Inspect fasteners and wear items; replace damaged hardware promptly
Helpful DIY guidance
Why it matters

A mower that is maintained typically lasts years longer, cuts cleaner, and avoids common failures like carburetor clogging, drive wear, and premature engine damage. That means fewer breakdowns mid-season and lower total cost of ownership.

Last updated: January 2026

On a Craftsman gas walk-behind lawn mower like model 917377110, the model number is printed on the mower’s identification label (not on the engine label). Once you find it, match that exact number when ordering parts and using the Craftsman 917377110 owner's manual.

Where to look on the mower

Check these common label locations on walk-behind mowers:

  • On the rear of the deck near the discharge opening
  • On top of the deck near the engine mounting area
  • On the back flap area behind the engine (rear discharge models)
  • On the handle bracket or height-adjuster area
  • Under the grass bag door area (bagging models)
What number you actually need (mower vs. engine)

Many mowers have two different ID labels. For Sears PartsDirect parts lookup, use the mower model number.

Label you find What it identifies When to use it
Mower model label (example: 917377110) The mower chassis and drive system Use for wheels, drive parts, deck parts, handle parts
Engine label (often on the blower housing) The engine manufacturer and engine model/type Use for engine-specific items like carburetor, ignition, air filter, starter
Tips if the label is dirty or hard to read
  • Wipe the area with a damp rag first; then dry it
  • Use a flashlight at an angle to make faint printing easier to see
  • Take a close-up photo and zoom in
  • Write down the full model number exactly as shown (all digits)
Why it matters

The correct model number ensures you get parts that fit your exact Craftsman deck and drive configuration, such as the lawn mower drive control lever 532425662 or the correct wheel and chute components.

Last updated: January 2026

Most common symptoms to help you fix your walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…

Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…

Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…

Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…

Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…

Repair guides for gas walk-behind mowers

These step-by-step repair guides will help you safely fix what’s broken on your walk-behind lawn mower.

How to replace a lawn mower front deck tray

How to replace a lawn mower front deck tray

Learn how to replace the front deck tray on your lawn mower if it's cracked or damaged.…

Repair time and Difficulty

 60 minutes or less
How to replace a lawn mower transmission

How to replace a lawn mower transmission

Learn how to replace the transmission on your lawn mower if it's locked up or won't drive the wheels.…

Repair time and Difficulty

 60 minutes or less
How to replace a lawn mower flywheel key on a flathead engine

How to replace a lawn mower flywheel key on a flathead engine

When you hit a hard object with your mower, the flywheel can shear to protect more expensive components. Learn how to re…

Repair time and Difficulty

 45 minutes or less

Effective articles & videos to help repair your walk-behind mowers

Use the advice and tips in these articles and videos to get the most out of your walk-behind lawn mower.

The best time of day to mow grass (and when you should absolutely not)

The best time of day to mow grass (and when you should absolutely not)

Wondering when to mow your lawn for the best results? Timing matters more than you might think. Discover the best time o…

Top 10 electric lawn and garden tools

Top 10 electric lawn and garden tools

Learn about the top 10 must-have electric lawn & garden tools for 2023…

Types of walk-behind mower blades video

Types of walk-behind mower blades video

Learn about the different kinds of mower blades and how to maintain them.…
