Model # T4A460GKA100 Official ICP air conditioner unit

Here are the diagrams and repair parts for Official ICP T4A460GKA100 air conditioner unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Pcb Assembly 1173907
#25

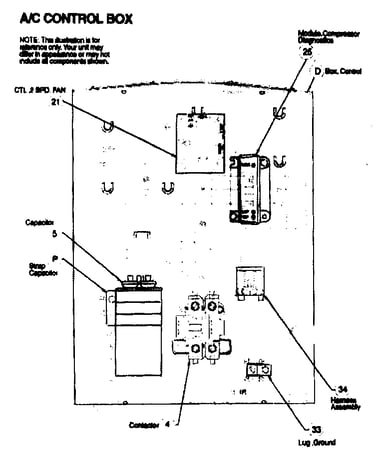

Control box diagram

Pcb assembly

Part #1173907

The manufacturer no longer makes this part, and there's no substitute part

Motor 1173779
#2

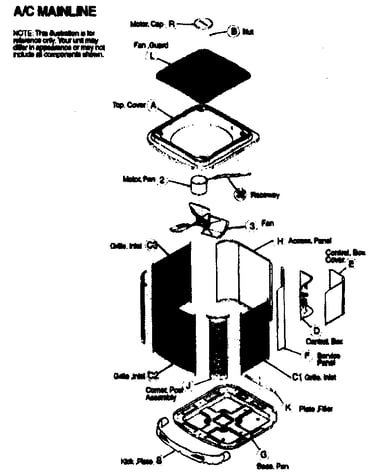

Cabinet assy diagram

Motor

Part #1173779

$443.52 |
$10.00 OFF Phone Price : $453.52
In Stock
Central Air Conditioner Condenser Electronic Control Board (replaces 1086071) 1088977
#21

Control box diagram

Central air conditioner condenser electronic control board (replaces 1086071)

Part #1088977

$85.61 |
6% OFF Phone Price : $90.61
In Stock
Central Air Conditioner Condenser Fan Blade 1172716
#3

Cabinet assy diagram

Central air conditioner condenser fan blade

Part #1172716

$197.11
In Stock
Contactor 1172786
#4

Control box diagram

Contactor

Part #1172786

$113.00
In Stock
Filter Drier 1173980
#NI

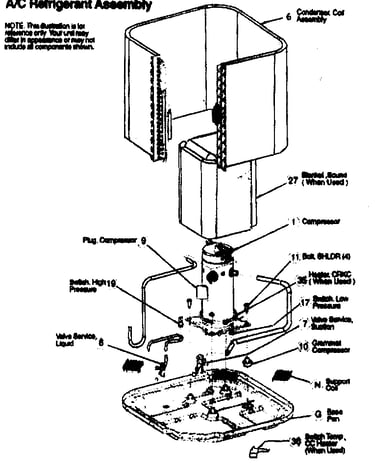

A/c assembly diagram

Filter drier

Part #1173980

Replaced by #1172733

?
Manufacturer substitution
This part replaces 1173980. Substitute parts can look different from the original.
$35.75
In Stock
Service Valve 1172727
#7

A/c assembly diagram

Service valve

Part #1172727

Replaced by #1185863

?
Manufacturer substitution
This part replaces 1172727. Substitute parts can look different from the original.
$93.09
In Stock
Valve Svc 1172728
#8

A/c assembly diagram

Valve svc

Part #1172728

Replaced by #1186248

?
Manufacturer substitution
This part replaces 1172728. Substitute parts can look different from the original.
$47.73
In Stock
Nut 1172217
#B

Cabinet assy diagram

Nut

Part #1172217

The manufacturer no longer makes this part, and there's no substitute part

Lug Ground 1172300
#33

Control box diagram

Lug ground

Part #1172300

The manufacturer no longer makes this part, and there's no substitute part
