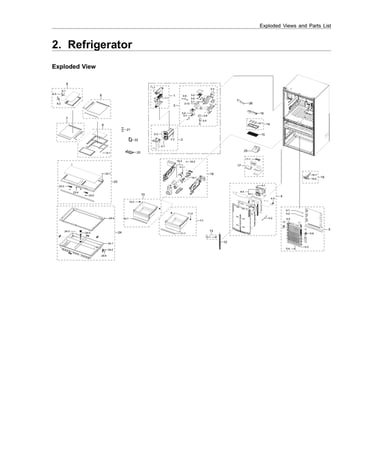

Samsung RF28R7201SR/AA-00 bottom mount refrigerator Parts

For the Samsung RF28R7201SR bottom-mount refrigerator, the factory dimensions are 35 3/4 in. W x 70 in. H x 36 1/2 in. D (with hinges, handles, and doors). Without hinges and doors, it measures 35 3/4 in. W x 68 7/8 in. H x 29 3/8 in. D; see the RF28R7201SR owner's manual for the full measurement diagram.

Dimension breakdown (common measurement points)

Use these when planning a delivery path, cabinet opening, or door swing clearance:

• Width: 35 3/4 in. (35 6/8 in. in the installation table)
• Overall height: 70 in. (to the top with hinges)
• Cabinet height (case): 68 7/8 in.
• Depth, full: 36 1/2 in. (with doors and handles)
• Depth, case only: 29 3/8 in. (without hinges and doors)
• Wall clearance for door swing: plan for at least 3 3/4 in. from a fixed wall

Quick reference table

Measurement style	Width	Height	Depth
With hinges, handles, and doors	35 3/4 in.	70 in.	36 1/2 in.
Without hinges and doors	35 3/4 in.	68 7/8 in.	29 3/8 in.
With hinge and door, no handle	35 3/4 in.	70 in.	34 in.

Why it matters

Getting the right dimensions up front prevents delivery-day surprises (doorways, stair turns, and cabinet depth) and helps avoid installation issues like doors that cannot swing fully when the refrigerator sits next to a fixed wall.

Last updated: February 2026

The most common problem we see with Samsung refrigerators like model RF28R7201SR is a cooling issue caused by airflow restriction from frost or ice buildup, which can make the fresh food section warm even when the freezer still seems cold. Ice maker and water dispenser problems are also frequent; check the RF28R7201SR owner's manual for model-specific operating and safety guidance.

Most common symptoms customers notice

• Fridge section warms up or temperatures swing
• Freezer cools but airflow into the refrigerator feels weak
• Frost or ice buildup on the back wall or around vents
• Ice maker slows down, stops, or produces clumped ice
• Water dispenser flow is slow or tastes off

What usually causes these problems

Many “not cooling” complaints come down to airflow and temperature control. In a bottom-mount or French door design, that often points to the defrost system, fans, sensors, or an air damper.

Symptom	Common cause	Example part that can be involved on RF28R7201SR
Warm fridge, freezer OK	Frost blocking airflow, damper not opening	Refrigerator air damper assembly DA97-08430A
Temps inconsistent	Sensor reading wrong temperature	Refrigerator temperature sensor (examples: DA32-10104N, DA32-00033C, DA32-00011D)
Poor cooling, noisy or hot cabinet	Condenser fan not moving air	Refrigerator condenser fan motor assembly DA97-15765C
Ice issues	Ice path jam, auger not turning, clumped ice	Refrigerator auger motor assembly DA97-12540G; refrigerator ice container assembly DA97-20156A

Quick checks we recommend before replacing parts

• Confirm settings: fridge about 37°F, freezer about 0°F
• Make sure interior air vents are not blocked by food packages (blocked vents can cause overcooling and water leakage)
• Check door closure and gaskets; warm air leaks create frost and temperature swings
• Listen for fan operation; a failed fan often changes the sound profile
• If you recently unplugged the refrigerator, wait at least 5 minutes before plugging it back in

Why it matters

Cooling and ice maker complaints often share the same root cause: restricted airflow or incorrect temperature feedback. Fixing the underlying airflow, fan, or sensor issue helps protect food quality and reduces repeat icing and dispenser problems.

Last updated: February 2026

A bottom freezer (bottom-mount) refrigerator typically lasts 15 to 20 years with normal household use. For your Samsung RF28R7201SR, lifespan depends most on airflow, temperature settings, and keeping the cooling system clean and unobstructed (details in the RF28R7201SR owner's manual).

Typical lifespan and what affects it

Most bottom-mount and French door refrigerators land in the same general range, but real-world life varies based on usage and maintenance.

• Door openings and warm food loads: frequent openings and large warm loads make the compressor run longer.
• Airflow inside the cabinet: blocking vents can cause poor cooling and longer run times.
• Clearance around the refrigerator: tight installs restrict heat removal.
• Power quality and outages: repeated interruptions can stress electronics.
• Ice maker and water system use: heavy ice production and water leaks can shorten component life.

Settings and habits that help your RF28R7201SR last longer

Samsung recommends temperature targets that balance food safety and efficient run time.

• Set freezer to 0°F (-18°C) and fridge to 37°F (3°C).
• Keep food from touching or blocking rear vents.
• Avoid overloading shelves so air can circulate.
• Maintain at least 2.5 inches (5 cm) of clearance at the back and sides.
• If you unplug the refrigerator, wait before restarting (see timing guidance in the manual).

Quick reference: lifespan expectations

Refrigerator style	Typical lifespan	Notes
Bottom freezer / bottom-mount	15 to 20 years	Efficient layout; repairs often involve fans, sensors, or ice system
Side-by-side	15 to 20 years	More door use can increase run time
French door (like many bottom-mount designs)	15 to 20 years	Ice maker and door seals are common wear points

Why it matters

Knowing the 15 to 20 year lifespan range helps us decide whether to repair or replace. If your RF28R7201SR is under about 10 years old, replacing a failed component (fan motor, temperature sensor, control board) is often the most cost-effective path.

Last updated: February 2026
