Craftsman
Drill/Driver

Model # 973274660 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 973274660 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

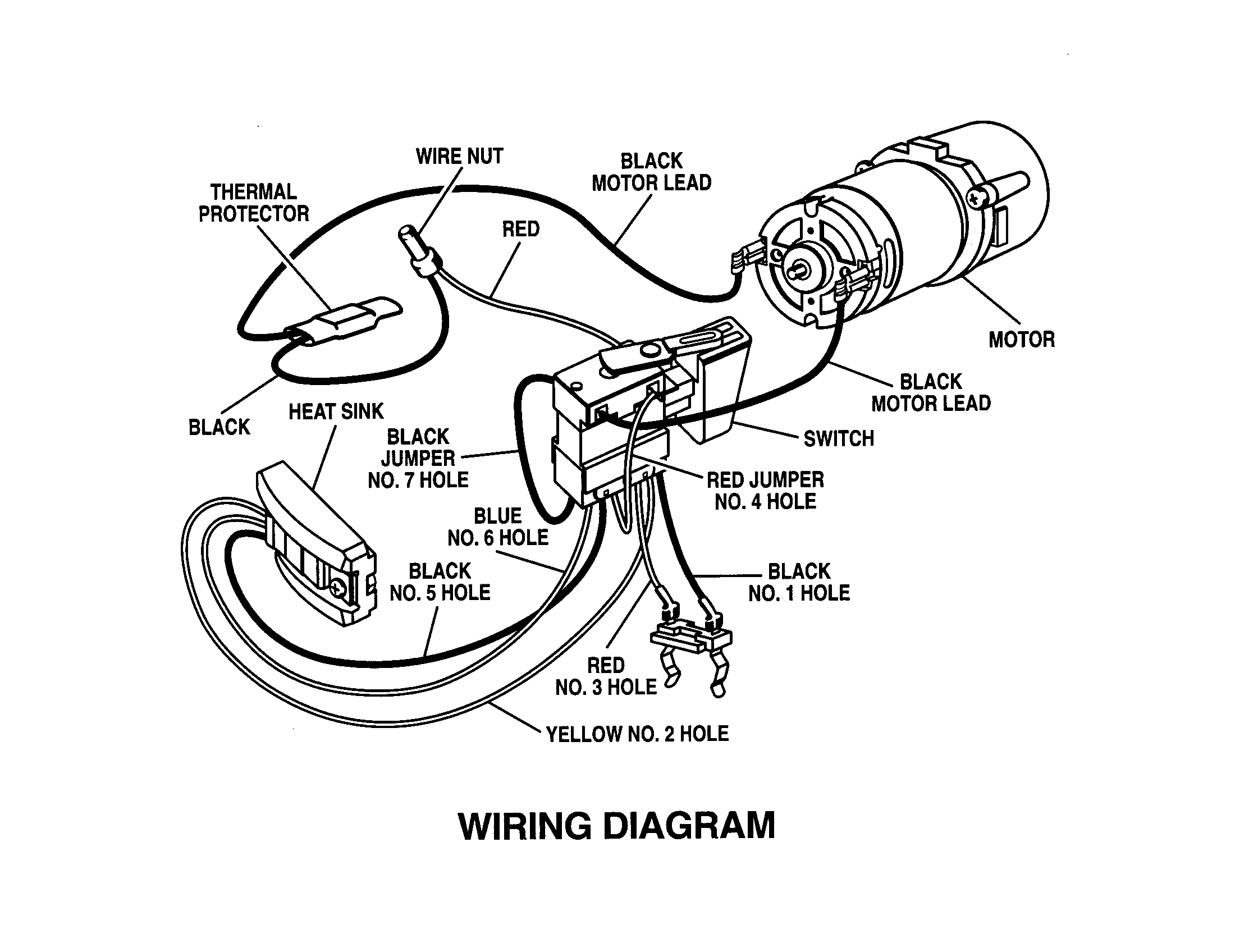

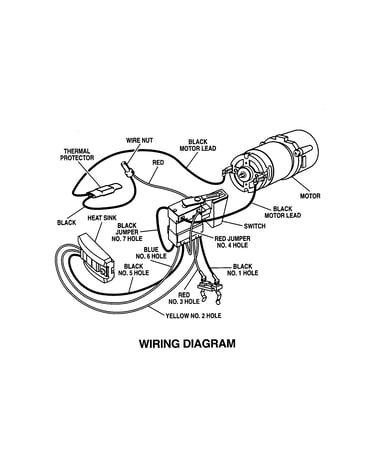

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Battery Pack 9-11067
#4

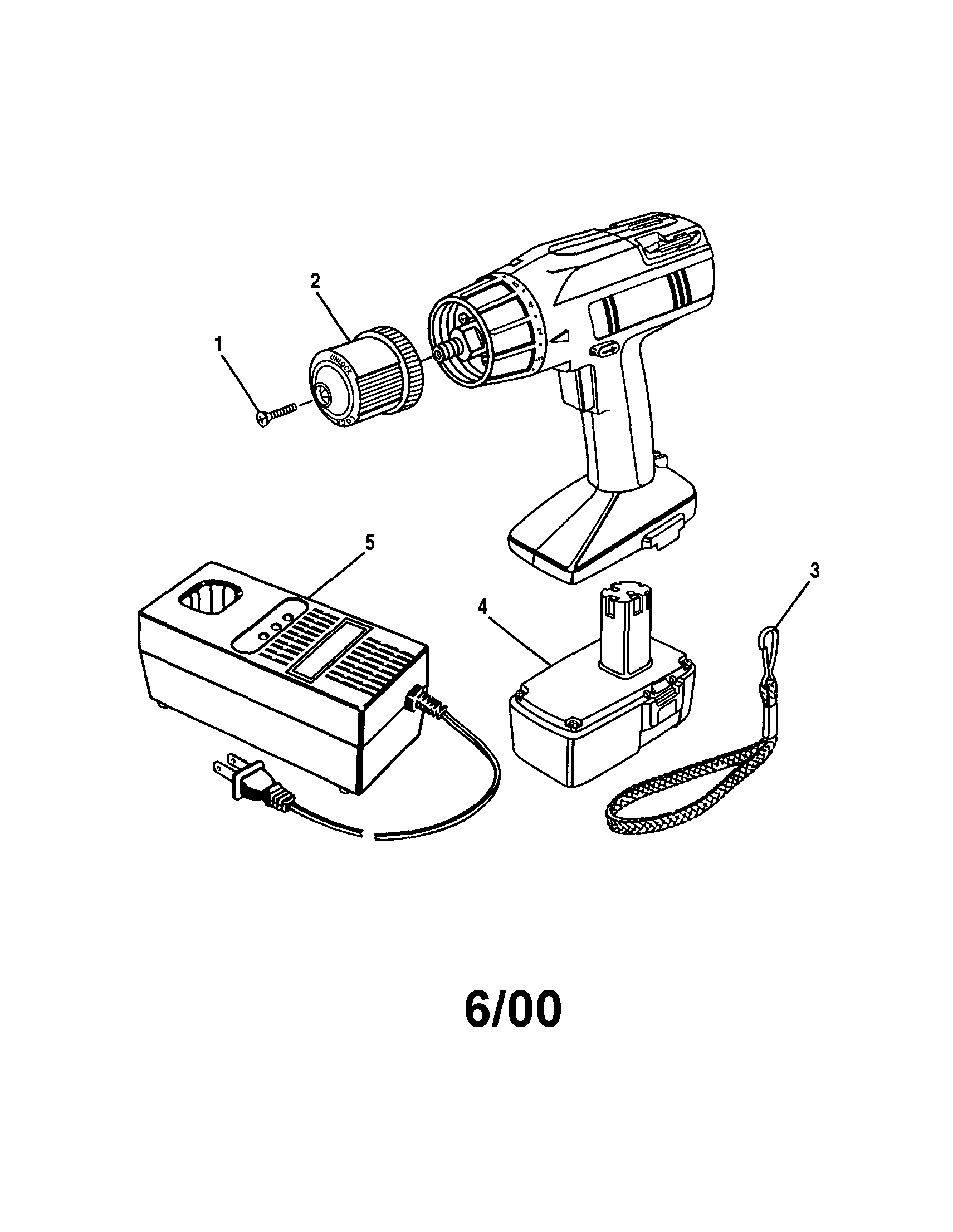

Battery pack diagram

Battery pack

Part #9-11067

The manufacturer no longer makes this part, and there's no substitute part

Ring 974360-000
#13

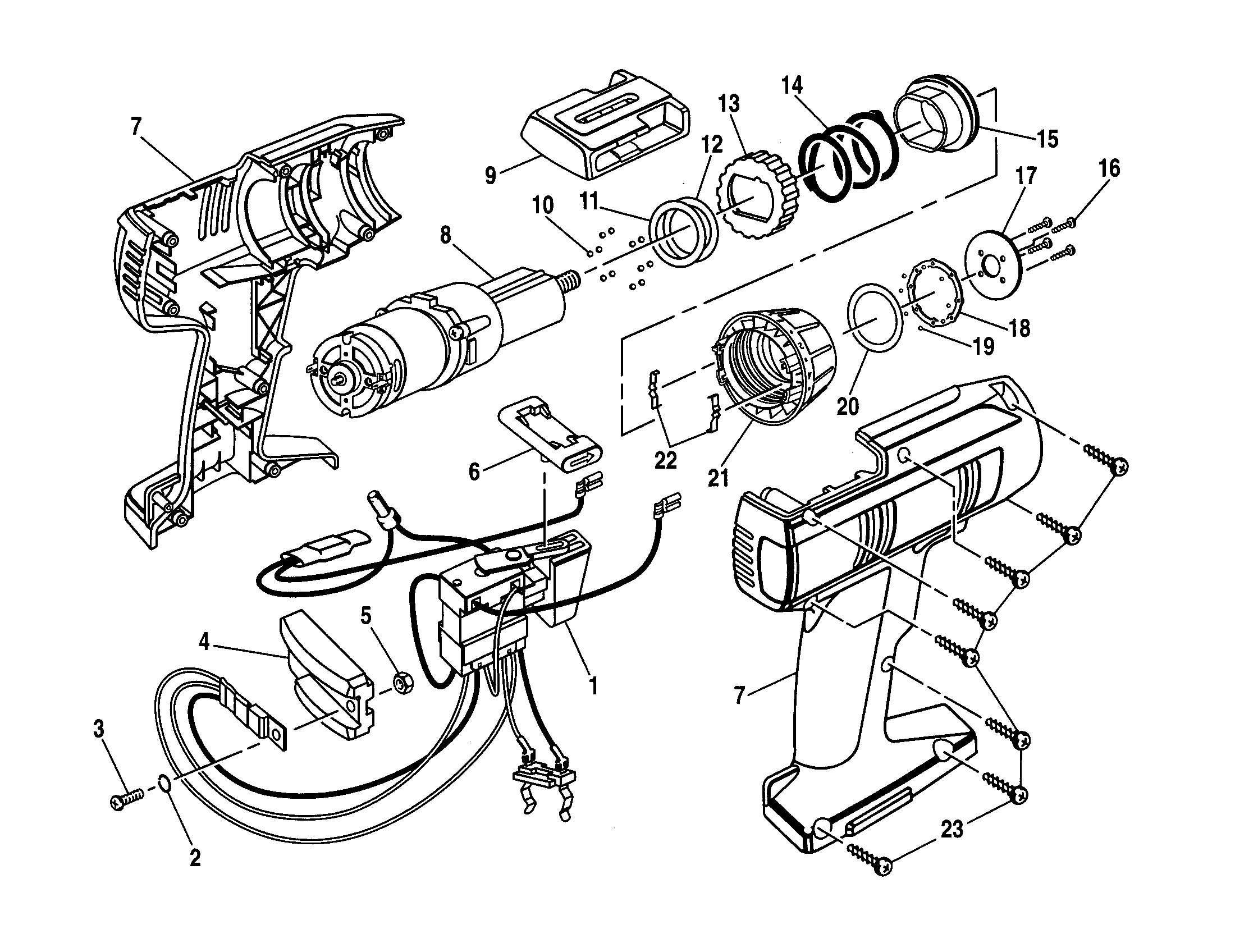

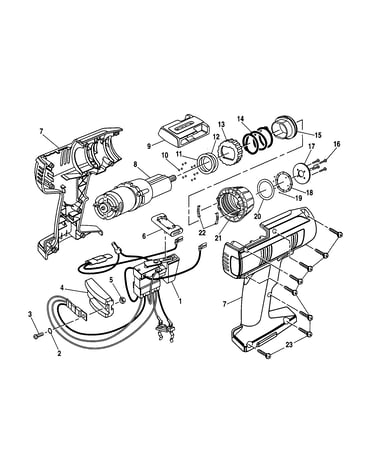

Housing/motor assembly diagram

Ring

Part #974360-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 974368-000
#20

Housing/motor assembly diagram

Washer

Part #974368-000

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 981716-000
#5

Housing/motor assembly diagram

Lock nut

Part #981716-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer 974401-000
#17

Housing/motor assembly diagram

Retainer

Part #974401-000

The manufacturer no longer makes this part, and there's no substitute part

Housing 981614-000
#7

Housing/motor assembly diagram

Housing

Part #981614-000

The manufacturer no longer makes this part, and there's no substitute part

Charger 9-11066
#5

Battery pack diagram

Charger

Part #9-11066

The manufacturer no longer makes this part, and there's no substitute part

Case 974371-000
#6

Battery pack diagram

Case

Part #974371-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 981724-000
#11

Housing/motor assembly diagram

Washer

Part #981724-000

The manufacturer no longer makes this part, and there's no substitute part

Hub 974358-000
#15

Housing/motor assembly diagram

Hub

Part #974358-000

The manufacturer no longer makes this part, and there's no substitute part
