Model # ICF-CD555TV Official Sony tv cd

Here are the diagrams and repair parts for Official Sony ICF-CD555TV tv cd, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Link,ic 153359131
#NI

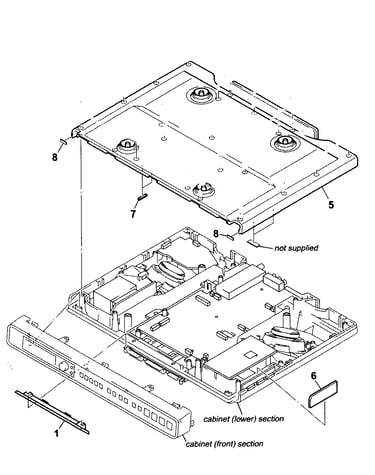

Cabinet upper diagram

Link,ic

Part #153359131

The manufacturer no longer makes this part, and there's no substitute part

Dc Motor 176318312
#NI

Cabinet upper diagram

Dc motor

Part #176318312

Replaced by #176318312

?
Manufacturer substitution
This part replaces 176318312. Substitute parts can look different from the original.
$29.76
In Stock
Ac Cord 182810411
#108

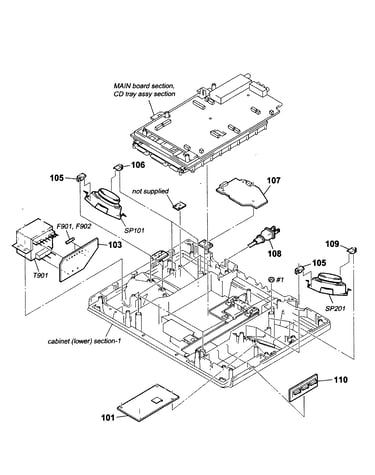

Cabinet lower 1 diagram

Ac cord

Part #182810411

The manufacturer no longer makes this part, and there's no substitute part

Amp Pcb A4547274A
#107

Cabinet lower 1 diagram

Amp pcb

Part #A4547274A

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel 180555911
#NI

Cabinet upper diagram

Lcd panel

Part #180555911

Replaced by #180555911

?
Manufacturer substitution
This part replaces 180555911. Substitute parts can look different from the original.
$23.31
In Stock
Case (fron X20211851
#201

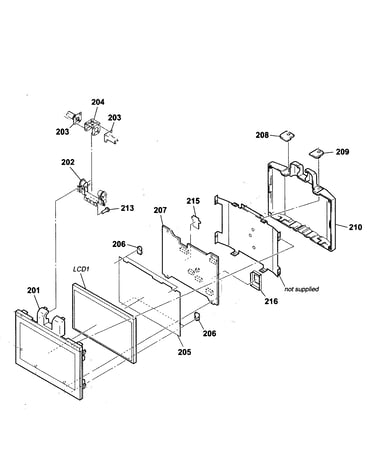

Tv assy diagram

Case (fron

Part #X20211851

Replaced by #X20211851

?
Manufacturer substitution
This part replaces X20211851. Substitute parts can look different from the original.
$36.49
In Stock
Cd Pcb A4542926A
#NI

Cabinet upper diagram

Cd pcb

Part #A4542926A

The manufacturer no longer makes this part, and there's no substitute part

Relay Button 326418601
#151

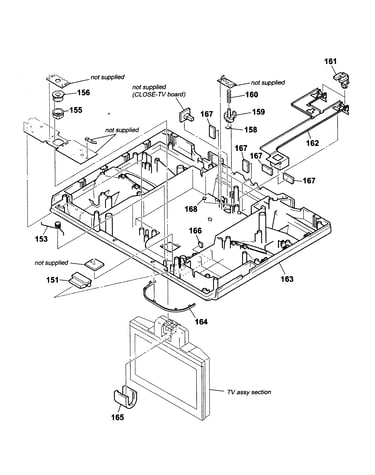

Cabinet lower 2 diagram

Relay button

Part #326418601

Replaced by #326418601

?
Manufacturer substitution
This part replaces 326418601. Substitute parts can look different from the original.
This item is not returnable
$3.51
In Stock
Button,clk 326417701
#110

Cabinet lower 1 diagram

Button,clk

Part #326417701

Replaced by #326417701

?
Manufacturer substitution
This part replaces 326417701. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Lcd Pcb A4547295A
#51

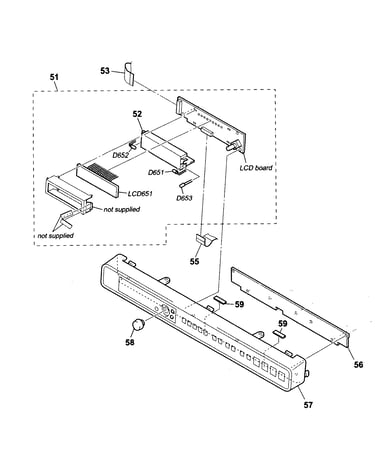

Cabinet front diagram

Lcd pcb

Part #A4547295A

The manufacturer no longer makes this part, and there's no substitute part
