GE AVN24DAR1 room air conditioner Parts

Here are the diagrams and repair parts for GE AVN24DAR1 room air conditioner, as well as links to manuals and error code tables, if available.

GE AVN24DAR1 room air conditioner
By Schematic

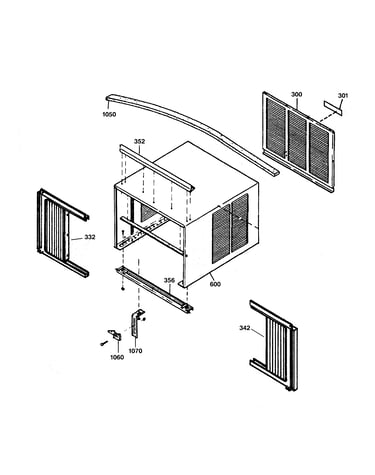

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AVN24DAR1 Room Air Conditioner

  • Fan Motor for GE AVN24DAR1 - Part WJ94X634

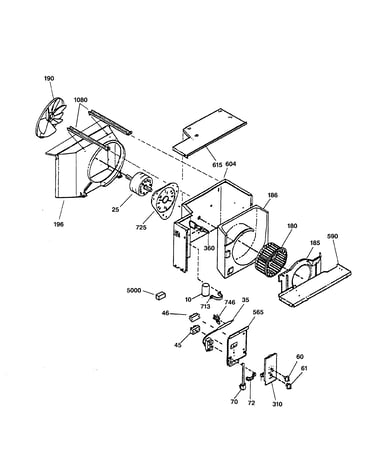

    Chassis assembly diagram

    Fan Motor

    Part #WJ94X10057

    Replaced by #WJ94X634

    Info Icon
    Manufacturer substitution
    This part replaces WJ94X10057. Substitute parts can look different from the original.
    In Stock
    $471.62
    Minus Item
    Qty
    Plus Item
  • Tie Bracket for GE AVN24DAR1 - Part WJ1X968

    Chassis assembly diagram

    Tie Bracket

    Part #WJ01X0968

    Replaced by #WJ1X968

    Info Icon
    Manufacturer substitution
    This part replaces WJ01X0968. Substitute parts can look different from the original.
    In Stock
    $33.19
    Minus Item
    Qty
    Plus Item
  • Terminal Nut for GE AVN24DAR1 - Part WJ1X933

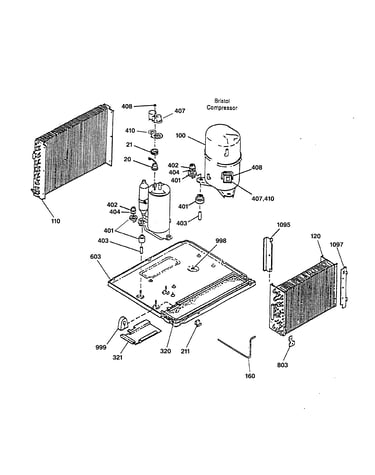

    Refrigerant assembly diagram

    Terminal Cover Nut

    Part #WJ01X0933

    Replaced by #WJ1X933

    Info Icon
    Manufacturer substitution
    This part replaces WJ01X0933. Substitute parts can look different from the original.
    In Stock
    $59.72
    Minus Item
    Qty
    Plus Item
  • Terminal Cover Gasket for GE AVN24DAR1 - Part WJ43X468

    Refrigerant assembly diagram

    Terminal Cover Gasket

    Part #WJ43X0468

    Replaced by #WJ43X468

    Info Icon
    Manufacturer substitution
    This part replaces WJ43X0468. Substitute parts can look different from the original.
    In Stock
    $50.37
    Minus Item
    Qty
    Plus Item
  • Strainer for GE AVN24DAR1 - Part WJ56X102

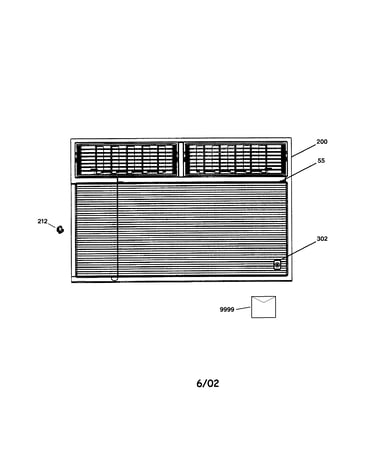

    Front panel diagram

    Strainer

    Part #WJ56X0102

    Replaced by #WJ56X102

    Info Icon
    Manufacturer substitution
    This part replaces WJ56X0102. Substitute parts can look different from the original.
    In Stock
    $41.00
    Minus Item
    Qty
    Plus Item
  • Nameplate for GE AVN24DAR1 - Part WJ7X986

    Front panel diagram

    Nameplate,ge

    Part #WJ07X0986

    Replaced by #WJ7X986

    Info Icon
    Manufacturer substitution
    This part replaces WJ07X0986. Substitute parts can look different from the original.
    In Stock
    $39.60
    Minus Item
    Qty
    Plus Item
  • Power Clamp for GE AVN24DAR1 - Part WJ2X592

    Chassis assembly diagram

    Power Cd Clamp

    Part #WJ02X0592

    Replaced by #WJ2X592

    Info Icon
    Manufacturer substitution
    This part replaces WJ02X0592. Substitute parts can look different from the original.
    In Stock
    $56.92
    Minus Item
    Qty
    Plus Item
  • Plate Mtr Mt for GE AVN24DAR1 - Part WJ65X413

    Chassis assembly diagram

    Plate Mtr Mt

    Part #WJ65X0413

    Replaced by #WJ65X413

    Info Icon
    Manufacturer substitution
    This part replaces WJ65X0413. Substitute parts can look different from the original.
    In Stock
    $65.29
    Minus Item
    Qty
    Plus Item
  • Retainer Clip for GE AVN24DAR1 - Part WJ1X971

    Refrigerant assembly diagram

    Retainer Clip

    Part #WJ01X0971

    Replaced by #WJ1X971

    Info Icon
    Manufacturer substitution
    This part replaces WJ01X0971. Substitute parts can look different from the original.
    In Stock
    $34.85
    Minus Item
    Qty
    Plus Item
  • Capacitor for GE AVN24DAR1 - Part WJ20X731

    Chassis assembly diagram

    Capacitor

    Part #WJ20X0731

    Replaced by #WJ20X731

    Info Icon
    Manufacturer substitution
    This part replaces WJ20X0731. Substitute parts can look different from the original.
    In Stock
    $199.67
    Minus Item
    Qty
    Plus Item
