Craftsman 315101130 electric drill

Craftsman 315101130 electric drill Parts

Here are the diagrams and repair parts for Craftsman 315101130 electric drill, as well as links to manuals and error code tables, if available.

By Schematic

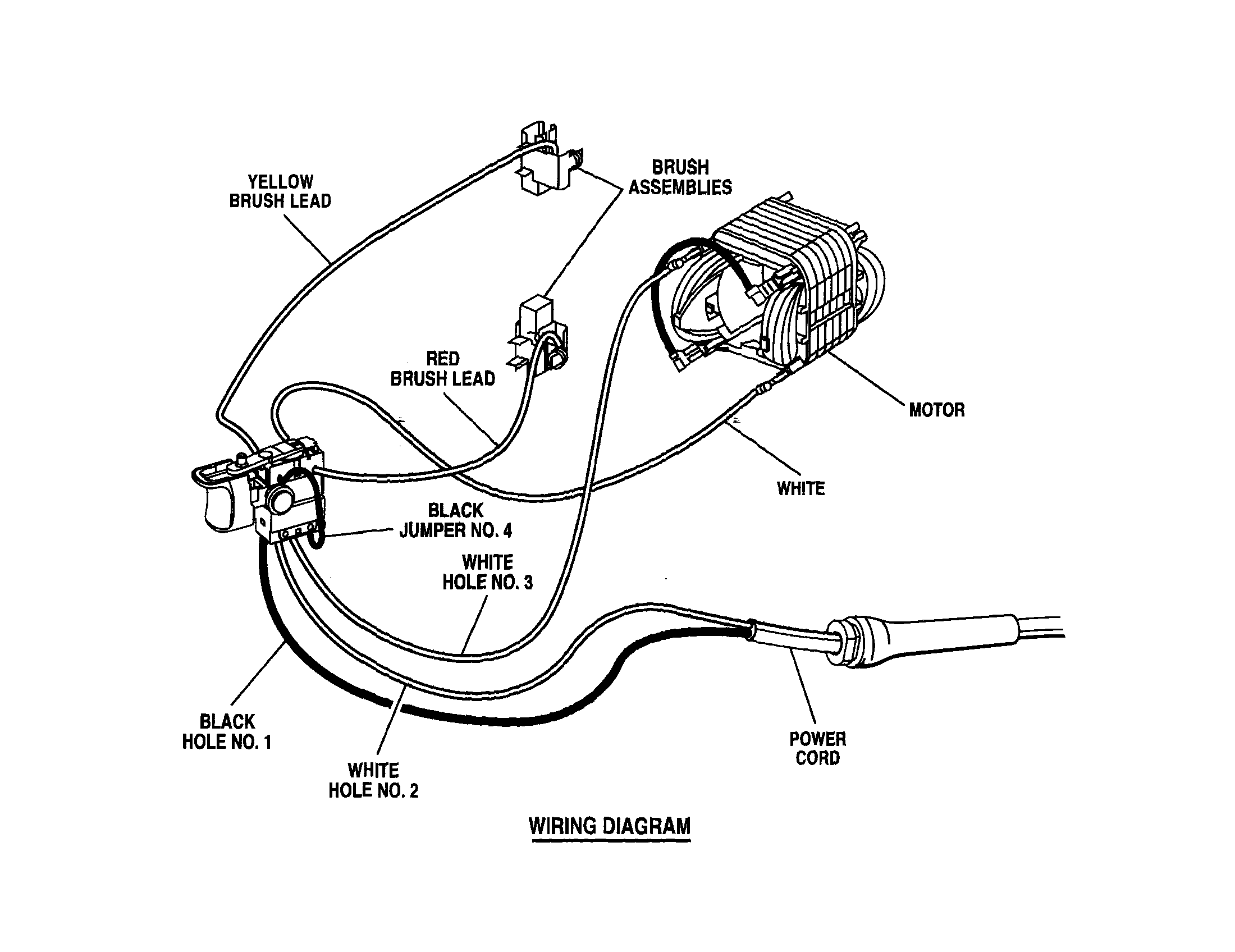

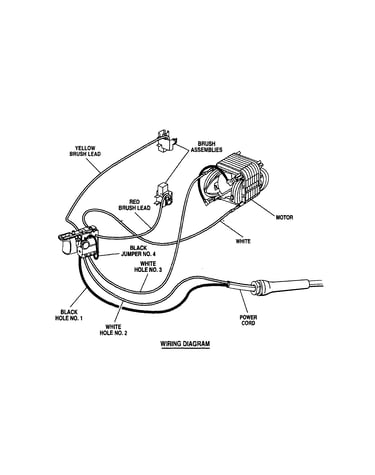

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 315101130 Power Tools

  • Cord Clamp for Craftsman 315101130 - Part 6935501

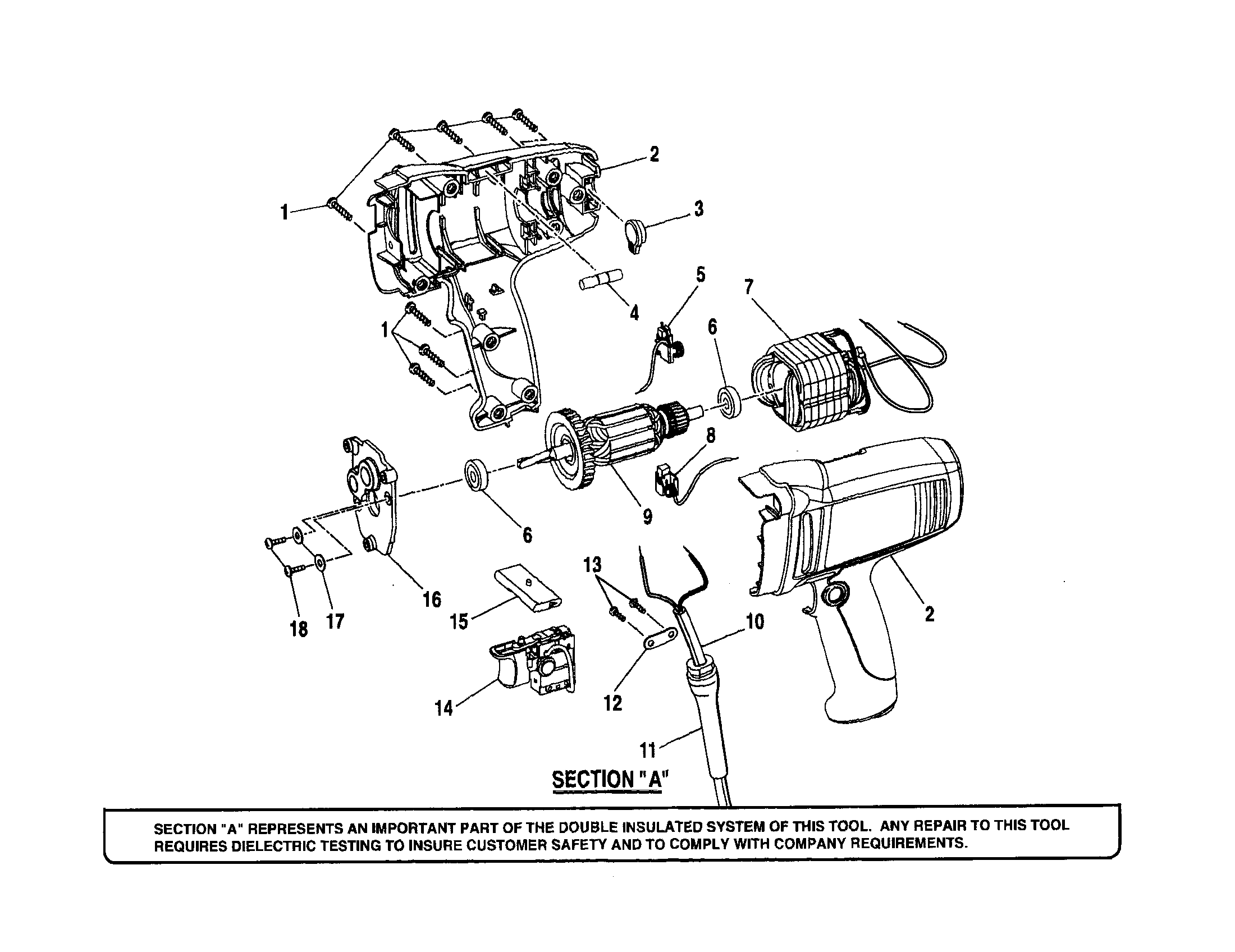

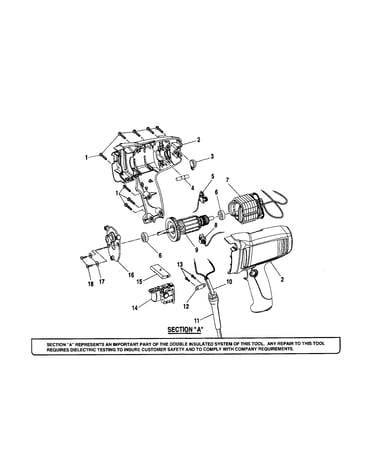

    Housing/armature diagram

    Cord Clamp

    Part #6935501

    The manufacturer no longer makes this part, and there's no substitute part

  • Hammer Drill Chuck Key for Craftsman 315101130 - Part 6917601

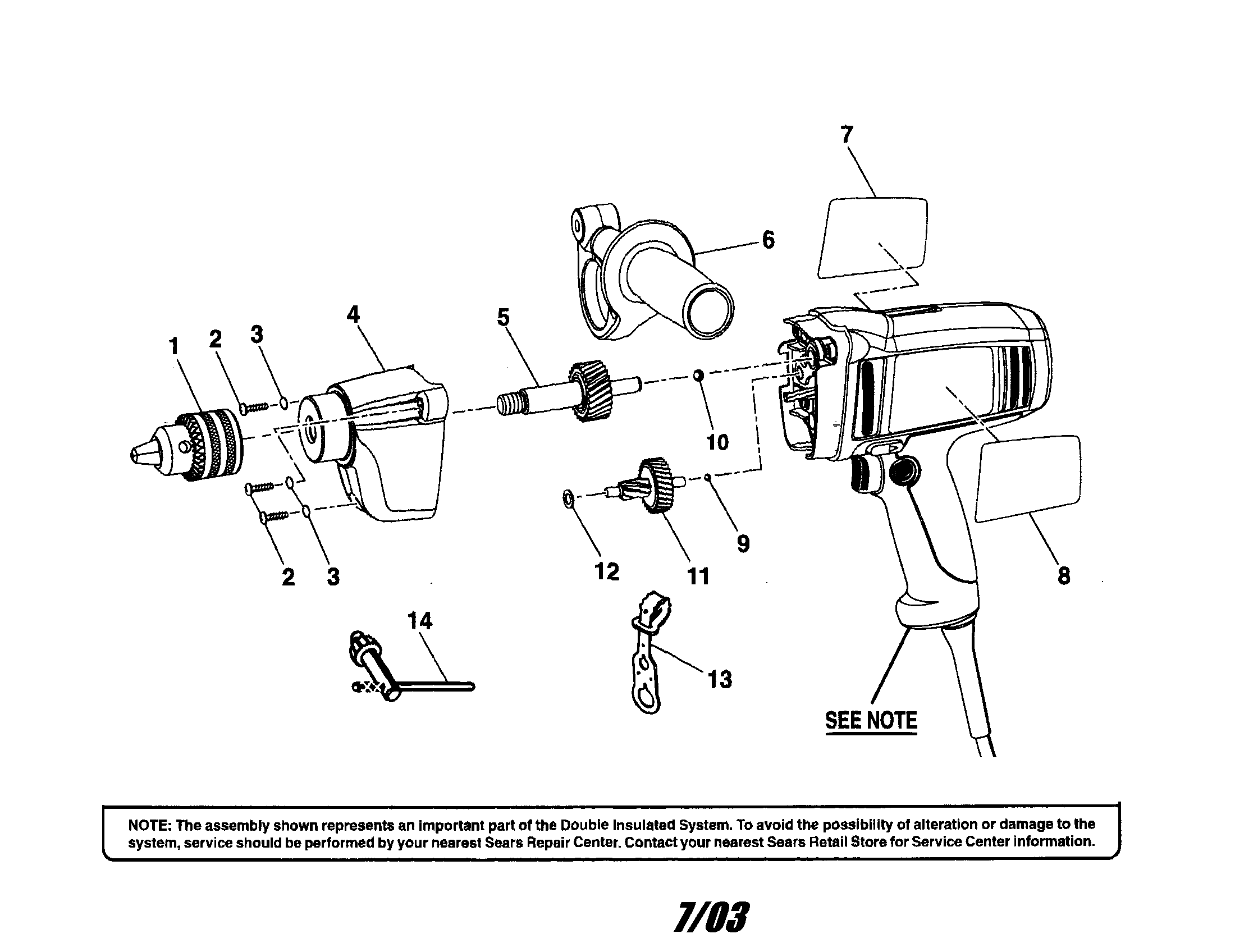

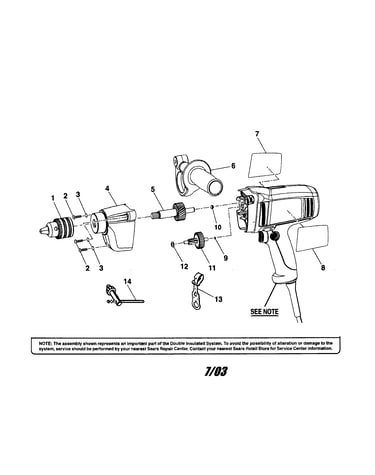

    Gear housing/handle/chuck diagram

    Hammer Drill Chuck Key

    Part #6917601

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer for Craftsman 315101130 - Part 6796001

    Gear housing/handle/chuck diagram

    Washer

    Part #6796001

    The manufacturer no longer makes this part, and there's no substitute part

  • Ac Cord for Craftsman 315101130 - Part 7334501

    Housing/armature diagram

    Ac Cord

    Part #7334501

    The manufacturer no longer makes this part, and there's no substitute part

  • Hammer Drill Armature Assembly for Craftsman 315101130 - Part 200213001

    Housing/armature diagram

    Hammer Drill Armature Assembly

    Part #200213001

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Level for Craftsman 315101130 - Part 3000901

    Housing/armature diagram

    Drill Level

    Part #3000901

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Craftsman 315101130 - Part 6631303

    Housing/armature diagram

    Screw

    Part #6631303

    The manufacturer no longer makes this part, and there's no substitute part

  • Logo Plate for Craftsman 315101130 - Part 9421330

    Gear housing/handle/chuck diagram

    Logo Plate

    Part #9421330

    The manufacturer no longer makes this part, and there's no substitute part

  • Armature for Craftsman 315101130 - Part 200214001

    Housing/armature diagram

    Armature

    Part #200214001

    The manufacturer no longer makes this part, and there's no substitute part

  • Brush Tube for Craftsman 315101130 - Part 2906806

    Housing/armature diagram

    Brush Tube

    Part #2906806

    The manufacturer no longer makes this part, and there's no substitute part
