Kenmore
Central Air Conditioner

Model #2537792311 Official Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 2537792311 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 89 parts

    Refrigerator Wire Harness Clamp#12

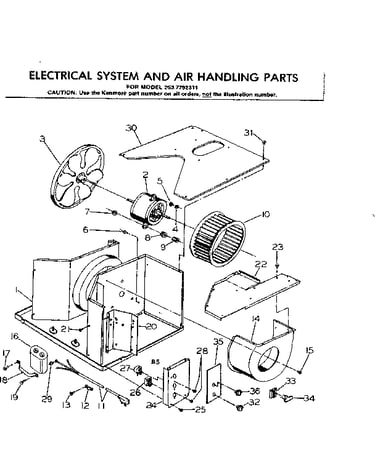

    Electrical system and air handling parts Diagram

    Clamp

    Part #96777
    Replaced by #5303001199
    ?
    Manufacturer substitution
    This part replaces 96777. Substitute parts can look different from the original.
    In Stock
    $51.00
    Motor#2

    Electrical system and air handling parts Diagram

    Fan motor

    Part #502391
    Replaced by #5300517106
    ?
    Manufacturer substitution
    This part replaces 502391. Substitute parts can look different from the original.
    In Stock
    $190.89 |
    5% OFF
    Phone Price: $200.89
    Washer

    #NI

    All parts Diagram

    Washer

    Part #100033
    Replaced by #3005891
    ?
    Manufacturer substitution
    This part replaces 100033. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.16
    Cord#11

    Electrical system and air handling parts Diagram

    Cord

    Part #506345-23
    Replaced by #5303302611
    ?
    Manufacturer substitution
    This part replaces 506345-23. Substitute parts can look different from the original.
    In Stock
    $56.24
    Air Filter#9

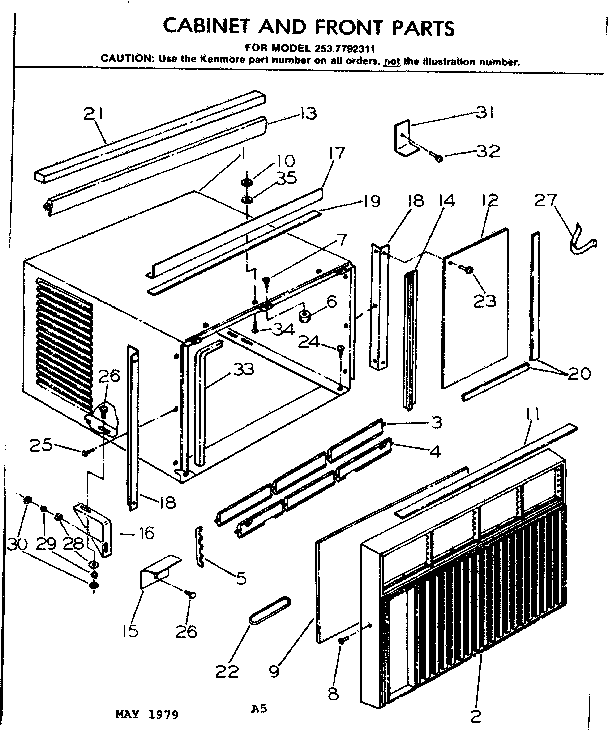

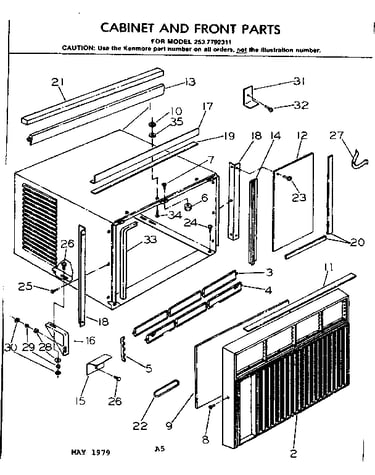

    Cabinet and front parts Diagram

    Air filter

    Part #47-9186

    The manufacturer no longer makes this part, and there's no substitute part

    Dehumidifier Screw#28

    Electrical system and air handling parts Diagram

    Screw

    Part #500739
    Replaced by #5303007620
    ?
    Manufacturer substitution
    This part replaces 500739. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.72
    Capacitor#16

    Electrical system and air handling parts Diagram

    Capacitor

    Part #508412-02

    The manufacturer no longer makes this part, and there's no substitute part

    Air Conditioner Blower Wheel#10

    Electrical system and air handling parts Diagram

    Air conditioner blower wheel

    Part #125102

    The manufacturer no longer makes this part, and there's no substitute part

    Seal#11

    Cabinet and front parts Diagram

    Seal

    Part #149188-07

    The manufacturer no longer makes this part, and there's no substitute part

    Gasket#16

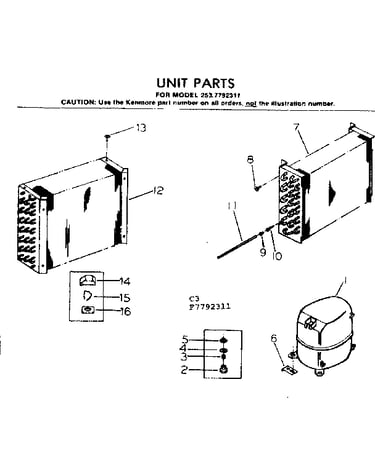

    Unit parts Diagram

    Gasket

    Part #511867

    The manufacturer no longer makes this part, and there's no substitute part
