Whirlpool
Room Air Conditioner

Model # ACM062PK0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACM062PK0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Rotary Switch 4380707
#6

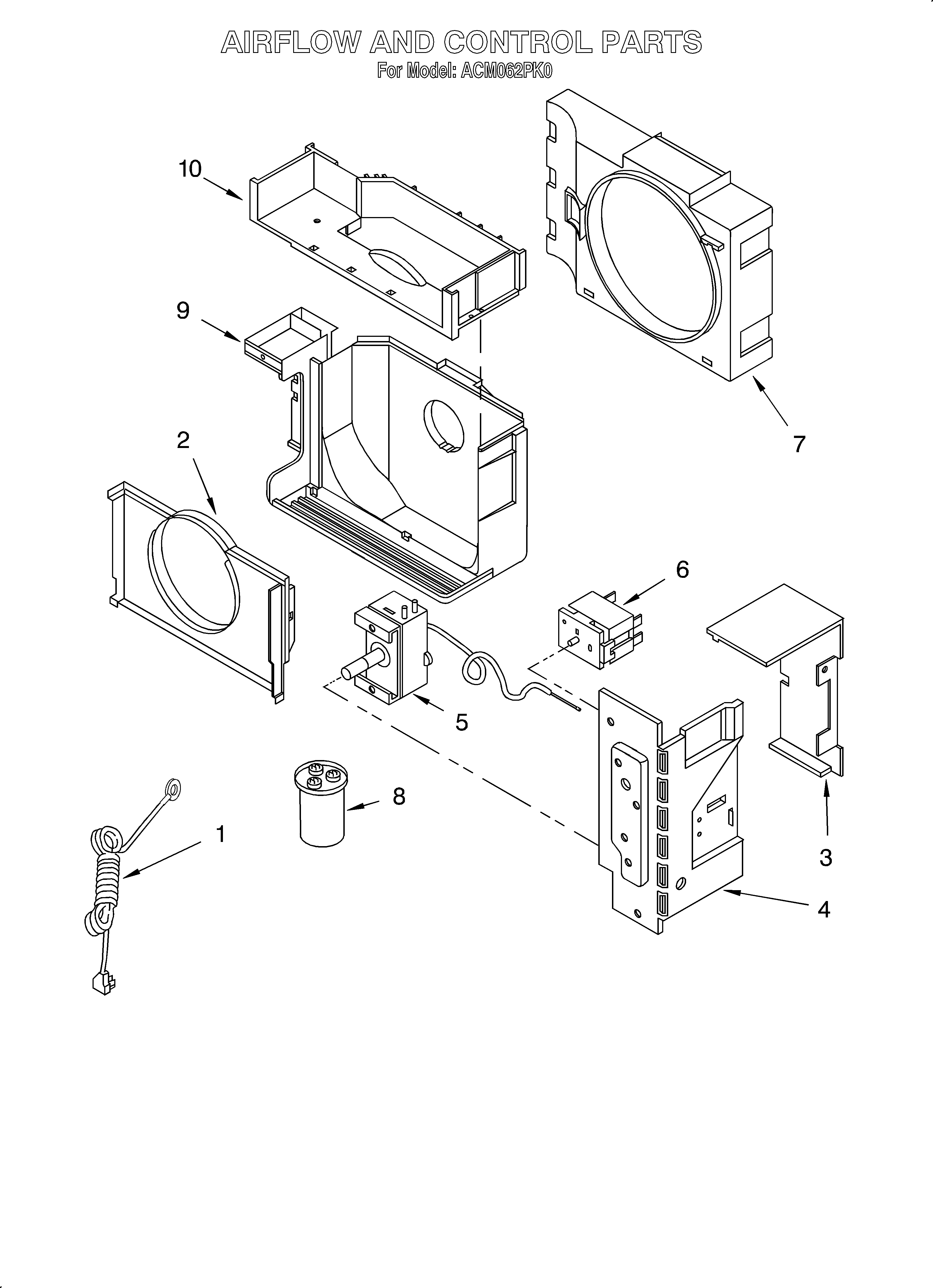

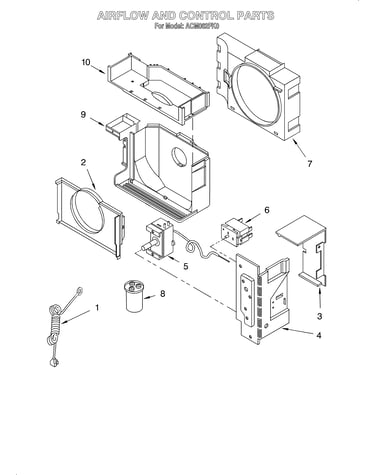

Airflow and control diagram

Rotary switch

Part #4380707

The manufacturer no longer makes this part, and there's no substitute part

Housing-bl 4380740
#9

Airflow and control diagram

Housing-bl

Part #4380740

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4380705
#5

Airflow and control diagram

Thermostat

Part #4380705

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 4380770
#10

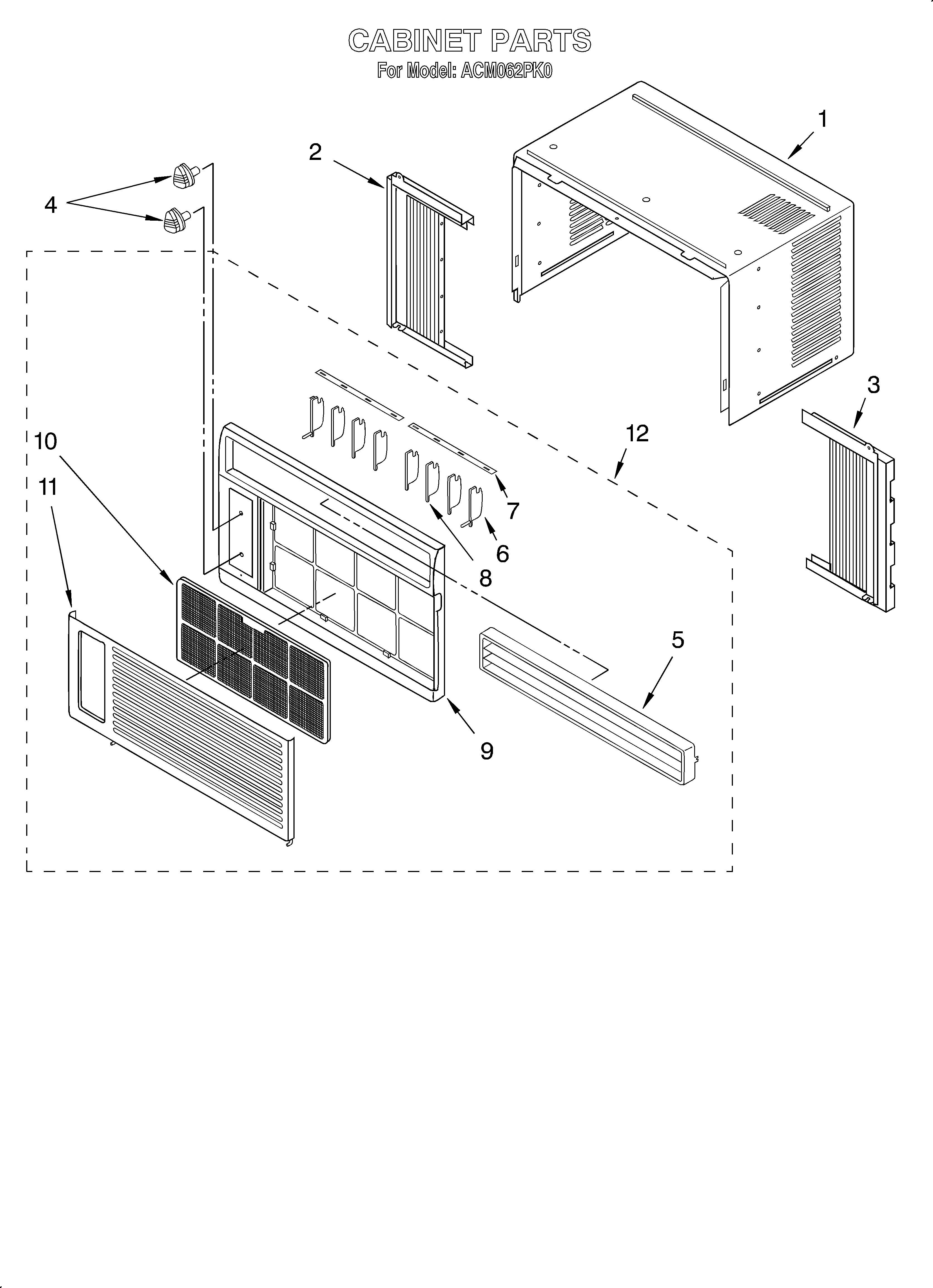

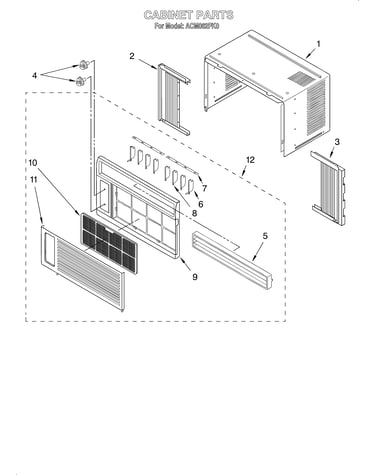

Cabinet diagram

Air filter

Part #4380770

The manufacturer no longer makes this part, and there's no substitute part

Compressor 4380724
#3

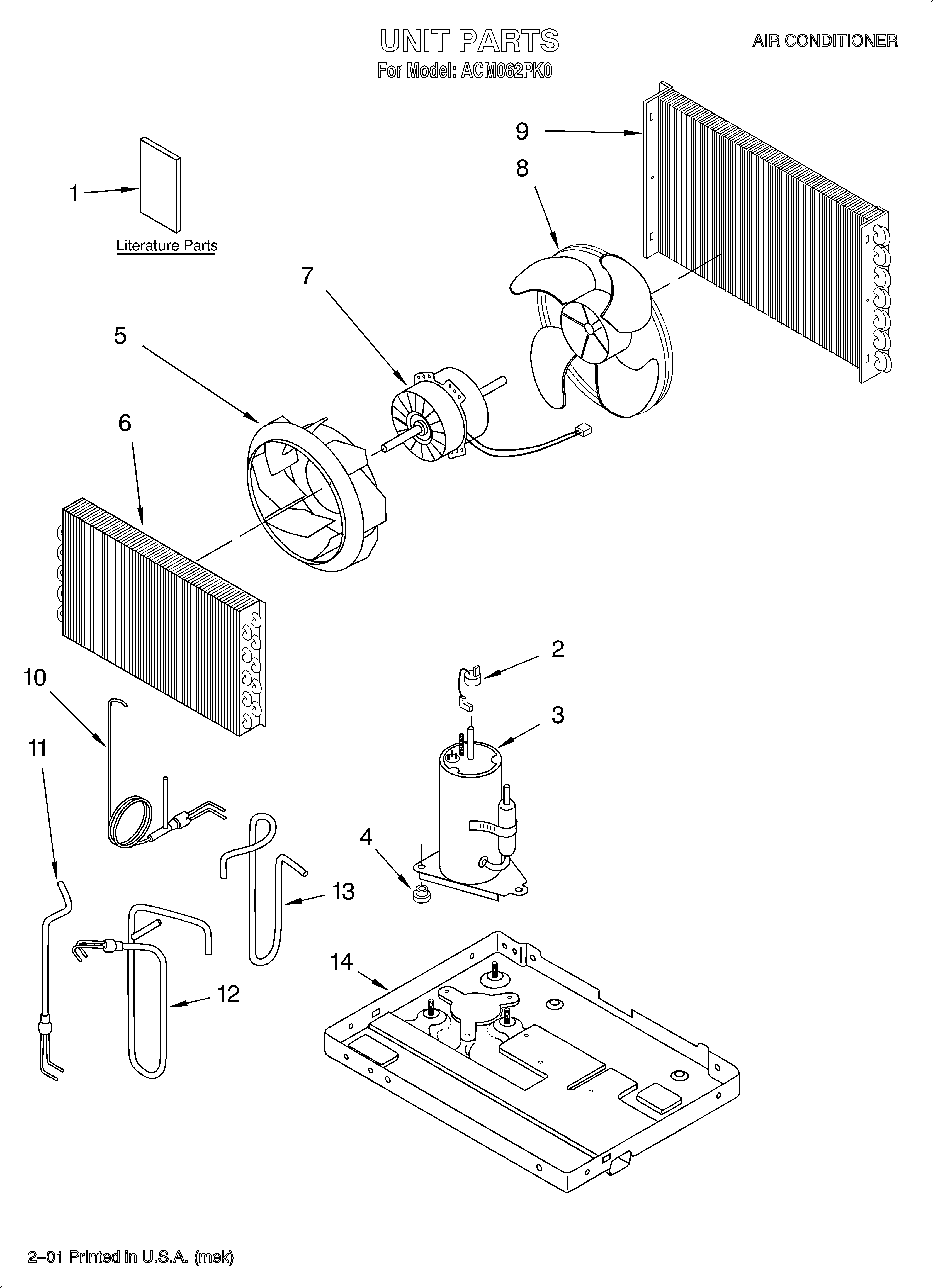

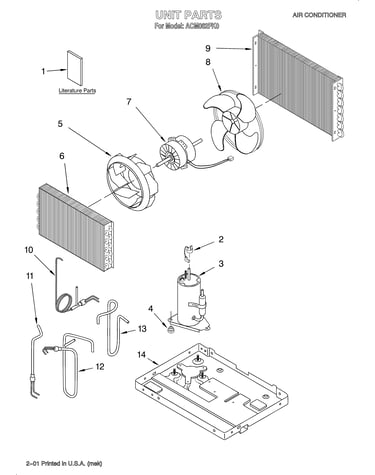

Unit/literature diagram

Compressor

Part #4380724

The manufacturer no longer makes this part, and there's no substitute part

Curtain 4380757
#3

Cabinet diagram

Curtain

Part #4380757

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 4380775
#4

Cabinet diagram

Control knob

Part #4380775

The manufacturer no longer makes this part, and there's no substitute part

Frame 4380766
#9

Cabinet diagram

Frame

Part #4380766

The manufacturer no longer makes this part, and there's no substitute part

Louver Link 4380774
#7

Cabinet diagram

Louver link

Part #4380774

The manufacturer no longer makes this part, and there's no substitute part

Restrictor Tube 4380730
#10

Unit/literature diagram

Restrictor tube

Part #4380730

The manufacturer no longer makes this part, and there's no substitute part
