Kenmore
Central Air Conditioner

Model #1067770551 Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 1067770551 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 102 parts

    Appliance Silicone Sealant

    #NI

    All parts Diagram

    Cement

    Part #797403
    Replaced by #WP279368
    ?
    Manufacturer substitution
    This part replaces 797403. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $41.59
    Appliance Screw

    See All Related Diagrams

    Screw, 8 x 1

    Part #488480
    Replaced by #WP489069
    ?
    Manufacturer substitution
    This part replaces 488480. Substitute parts can look different from the original.
    This item is not returnable
    Back Order
    $4.39
    Motor Run Capacitor#6

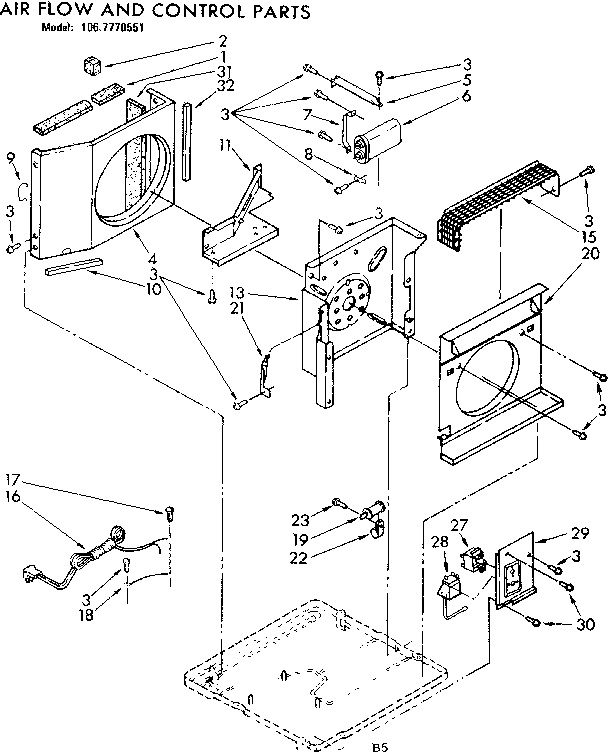

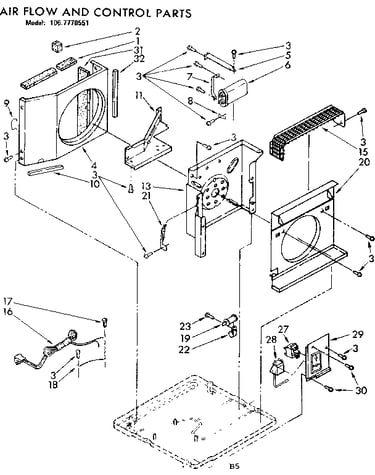

    Air flow and control parts Diagram

    Capacitor

    Part #995577
    Replaced by #12910
    ?
    Manufacturer substitution
    This part replaces 995577. Substitute parts can look different from the original.
    In Stock
    $8.39 |
    11% OFF
    Phone Price: $9.39
    Curtain#7B

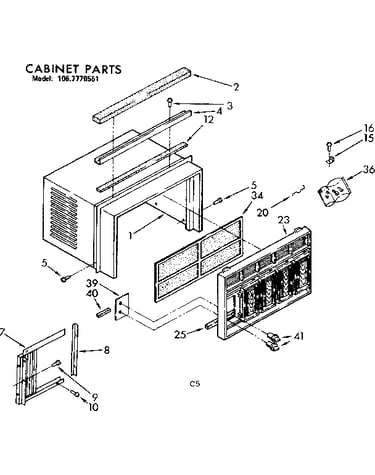

    Cabinet parts Diagram

    Housing

    Part #646158
    Replaced by #8011311
    ?
    Manufacturer substitution
    This part replaces 646158. Substitute parts can look different from the original.
    In Stock
    $17.39
    Refrigerator Service Valve

    #NI

    All parts Diagram

    Valve kit

    Part #978025
    Replaced by #WP978025
    ?
    Manufacturer substitution
    This part replaces 978025. Substitute parts can look different from the original.
    In Stock
    $23.59 |
    21% OFF
    MSRP: $30.00
    Screw#8

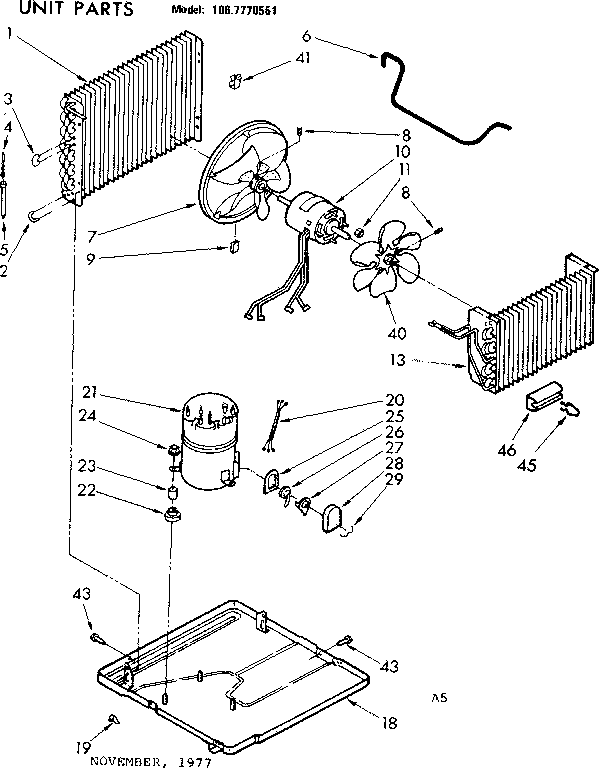

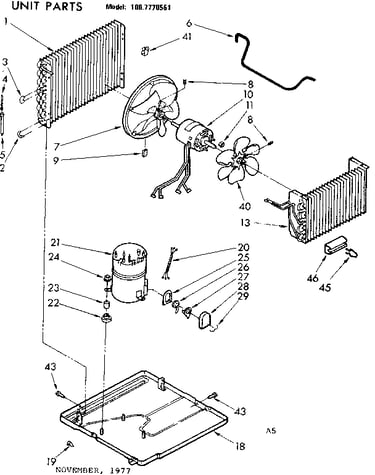

    Unit parts Diagram

    Screw

    Part #595085

    The manufacturer no longer makes this part, and there's no substitute part

    Cover

    #NI

    All parts Diagram

    Cover

    Part #484067

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Service Valve

    #NI

    All parts Diagram

    Valve kit

    Part #978026
    Replaced by #978026
    ?
    Manufacturer substitution
    This part replaces 978026. Substitute parts can look different from the original.
    In Stock
    $27.39 |
    20% OFF
    Was: $34.19
    Filter#34

    Cabinet parts Diagram

    Filter

    Part #47-9152

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Service Valve

    #NI

    All parts Diagram

    Refrigerant access valve, 5/8-in

    Part #978029
    Replaced by #978029
    ?
    Manufacturer substitution
    This part replaces 978029. Substitute parts can look different from the original.
    In Stock
    $41.18
