Model # SB-ST1PP Official Panasonic speaker system

Here are the diagrams and repair parts for Official Panasonic SB-ST1PP speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Res ERX5SJ1R0P
#NI

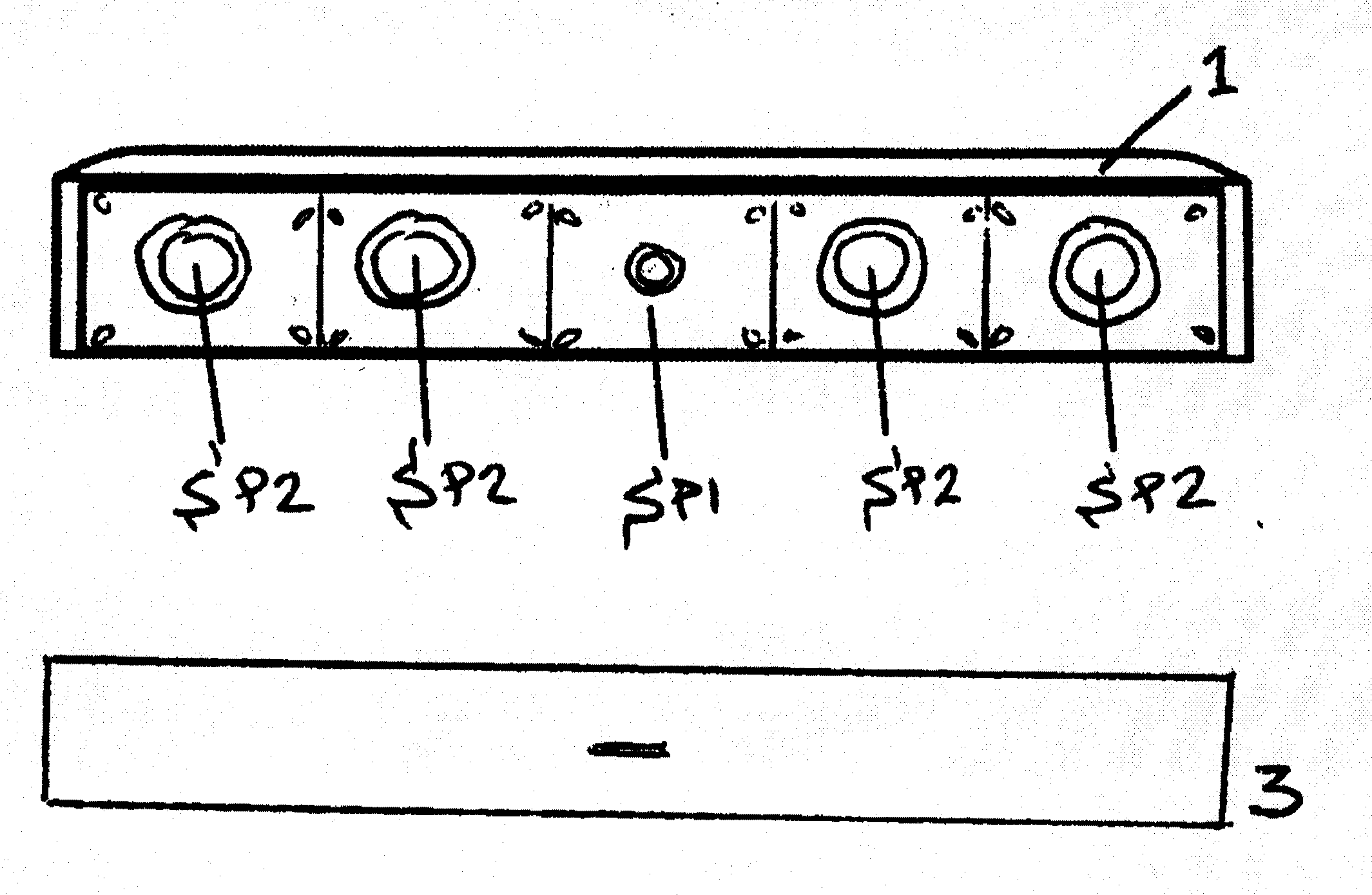

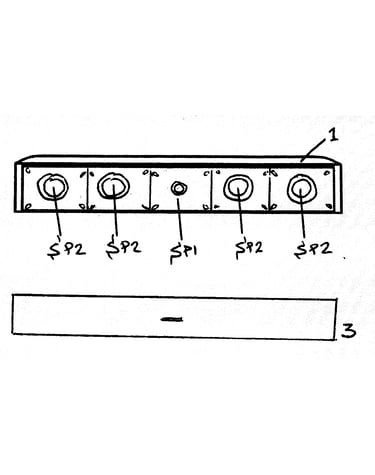

Sbpc52e diagram

Res

Part #ERX5SJ1R0P

$11.34
In Stock
Leg RKA0147-K
#17

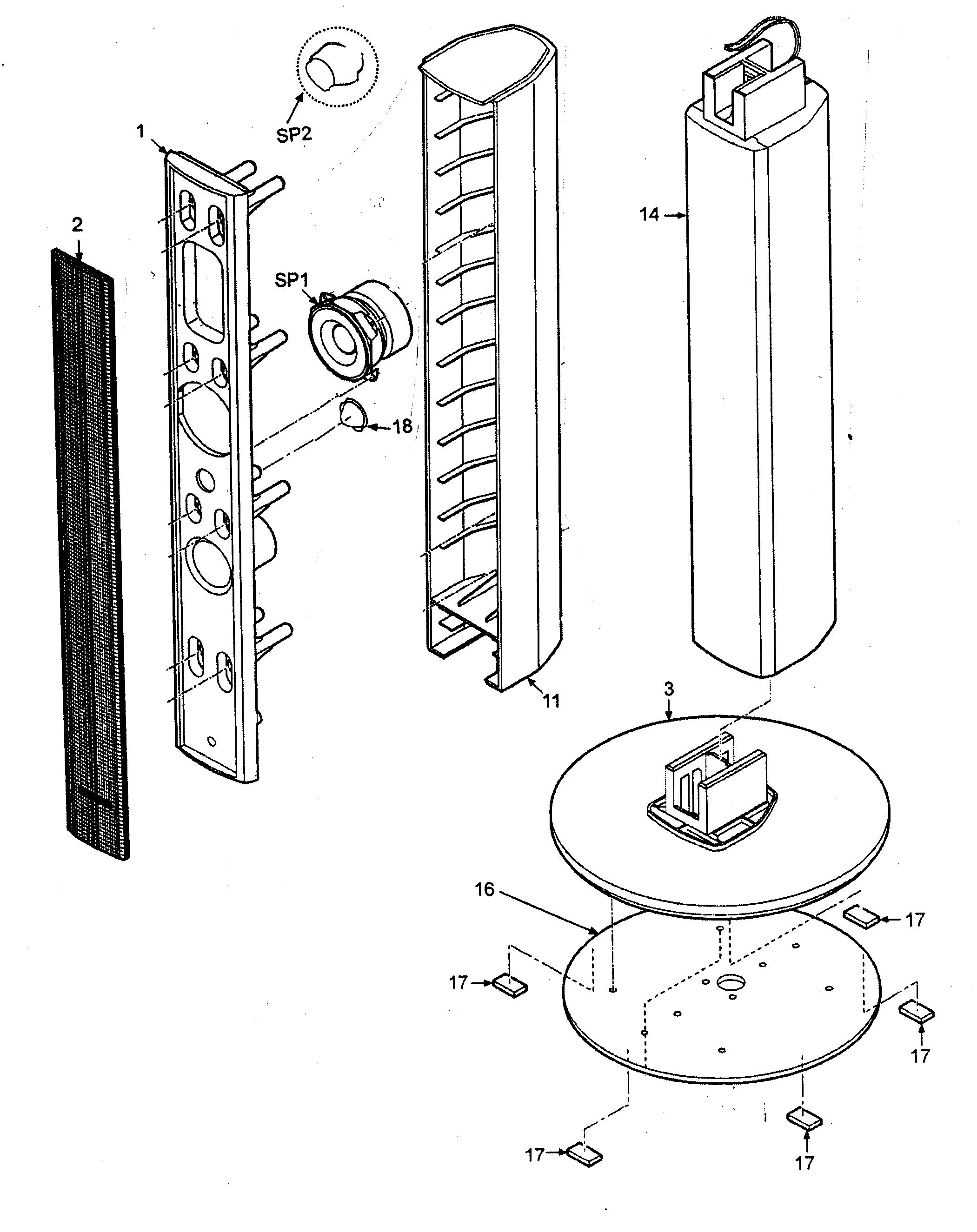

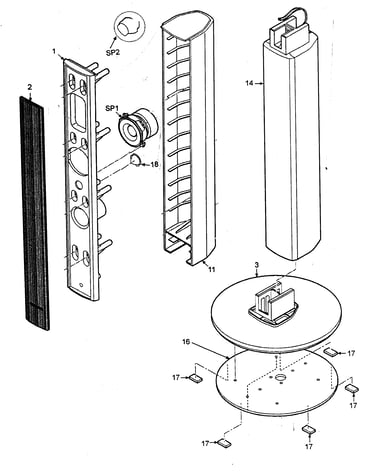

Sbfs901pp diagram

Leg

Part #RKA0147-K

The manufacturer no longer makes this part, and there's no substitute part

Speaker EAST65P08A6
#SP1

Sbfs901pp diagram

Speaker

Part #EAST65P08A6

The manufacturer no longer makes this part, and there's no substitute part

Base Stand RGK1617-S
#3

Sbfs901pp diagram

Base stand

Part #RGK1617-S

The manufacturer no longer makes this part, and there's no substitute part

2.2m 50 Np ECEA1HAY2R2
#NI

Sbpc52e diagram

2.2m 50 np

Part #ECEA1HAY2R2

The manufacturer no longer makes this part, and there's no substitute part

Service Manual MD0306224C2
#NI

Sbpc52e diagram

Service manual

Part #MD0306224C2

Replaced by #SM-SBPC52E

?
Manufacturer substitution
This part replaces MD0306224C2. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Net Frame Asy RYB0302
#2

Sbfs901pp diagram

Net frame asy

Part #RYB0302

The manufacturer no longer makes this part, and there's no substitute part

Tweeter EFBS55C41A6
#SP2

Sbfs901pp diagram

Tweeter

Part #EFBS55C41A6

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker EAST5P15A6
#SP2

Sbpc52e diagram

Audio speaker

Part #EAST5P15A6

The manufacturer no longer makes this part, and there's no substitute part

Dust Capacitor RGK0500-K
#18

Sbfs901pp diagram

Dust capacitor

Part #RGK0500-K

The manufacturer no longer makes this part, and there's no substitute part
