Model # 25370123001 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 25370123001 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

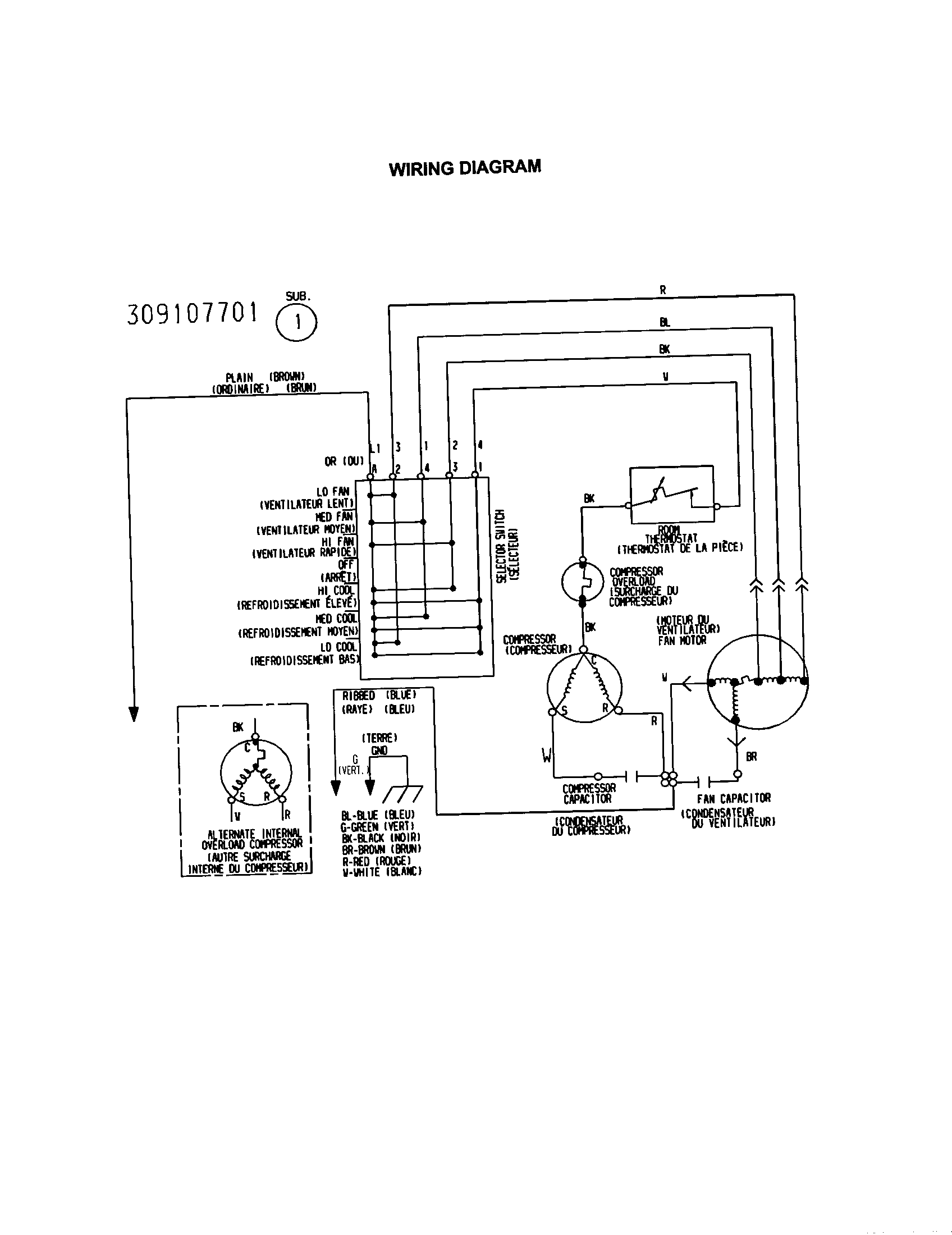

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Screw 3202975
#2

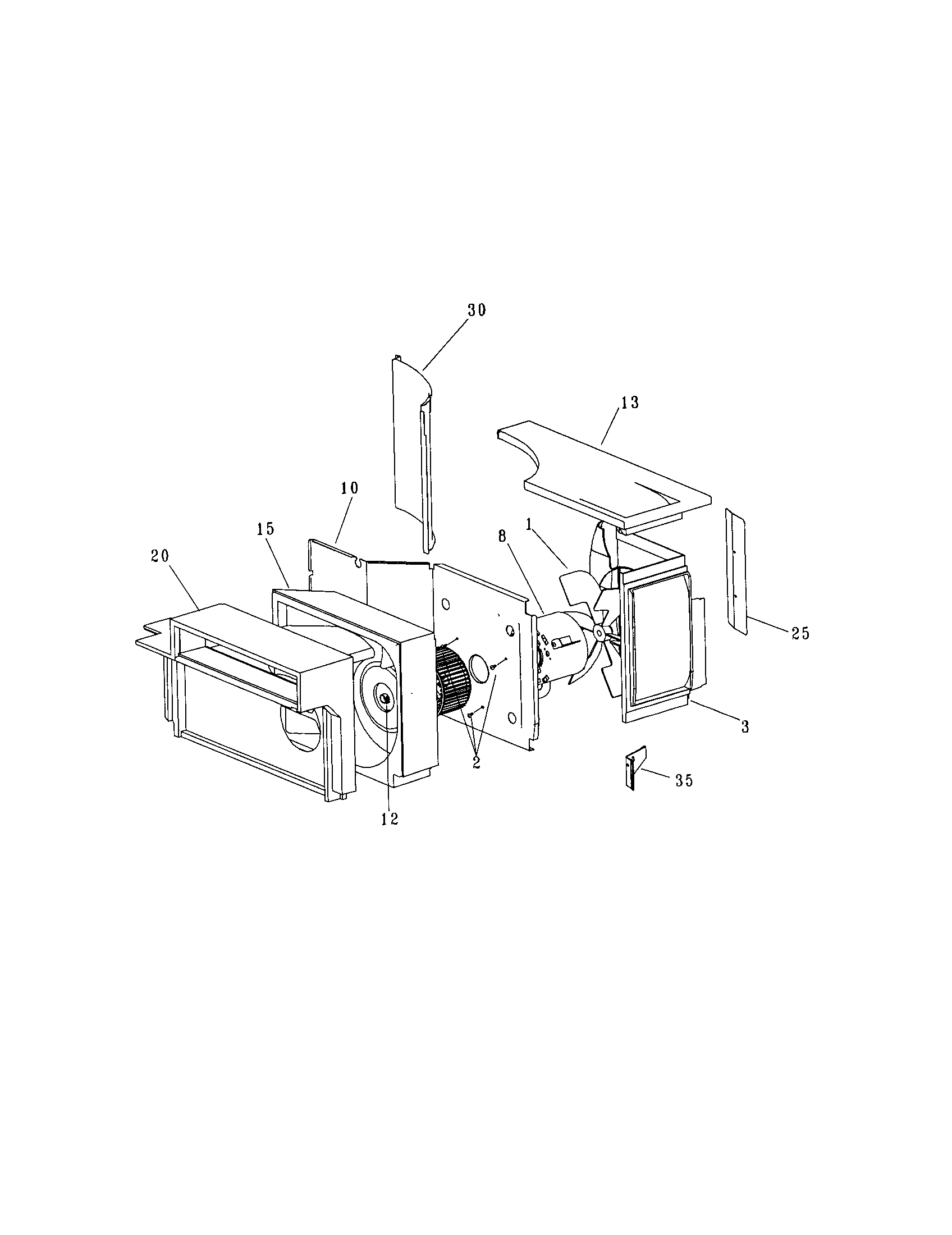

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Strap 5303303077
#15

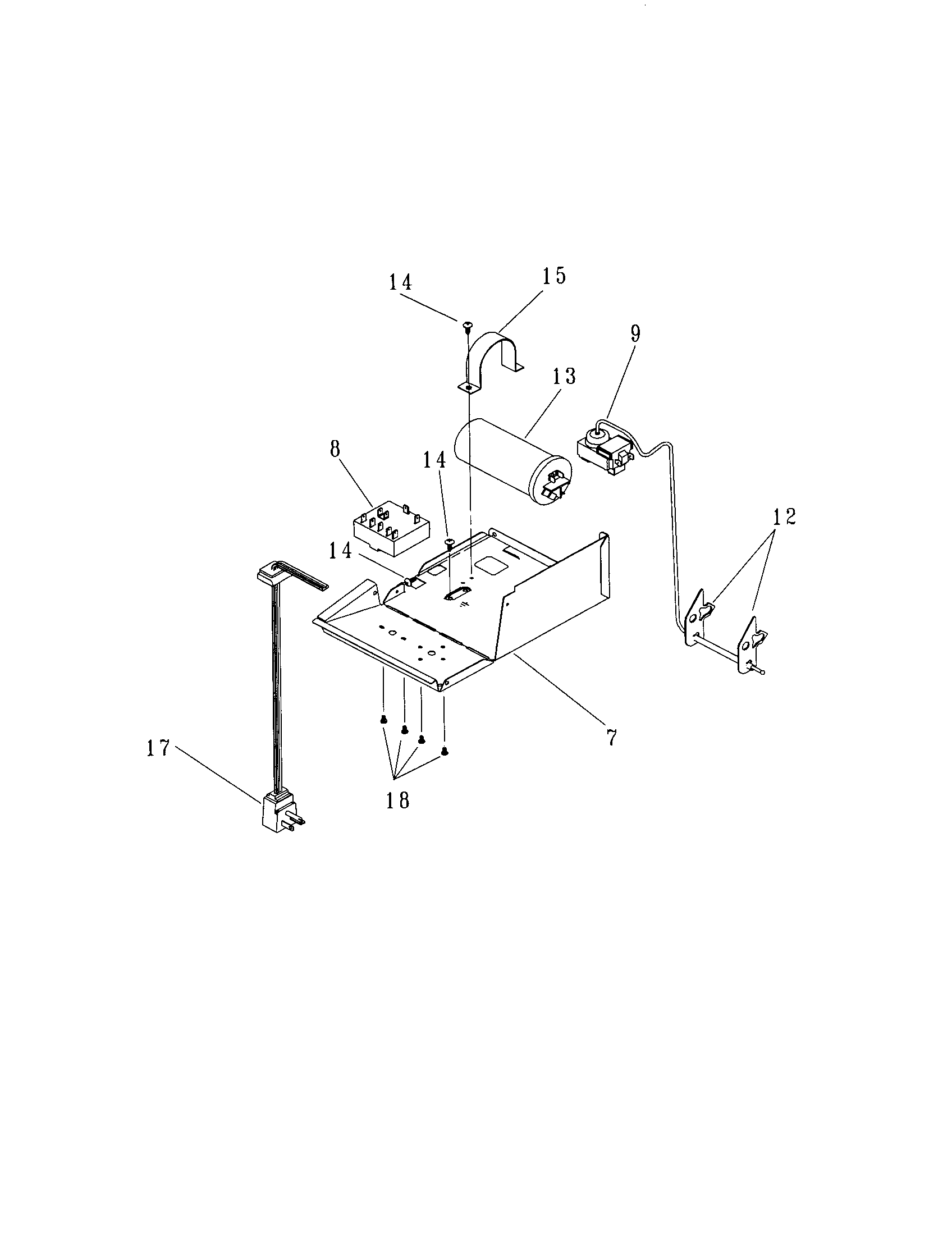

Control diagram

Strap

Part #5303303077

The manufacturer no longer makes this part, and there's no substitute part

Trim Frme/tb 309628604
#2

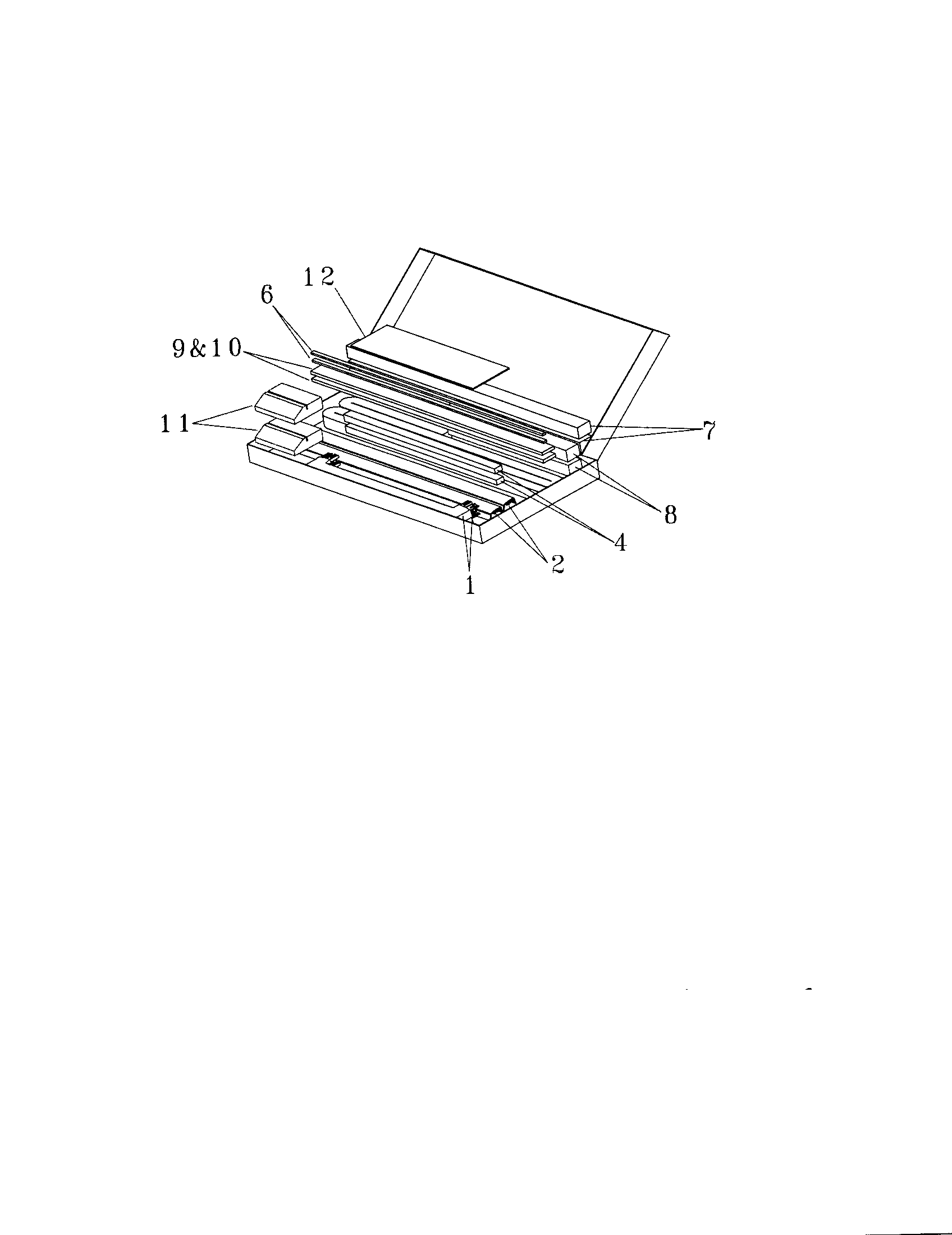

Window mounting diagram

Trim frme/tb

Part #309628604

The manufacturer no longer makes this part, and there's no substitute part

Tray,evap Ba 309628705
#13

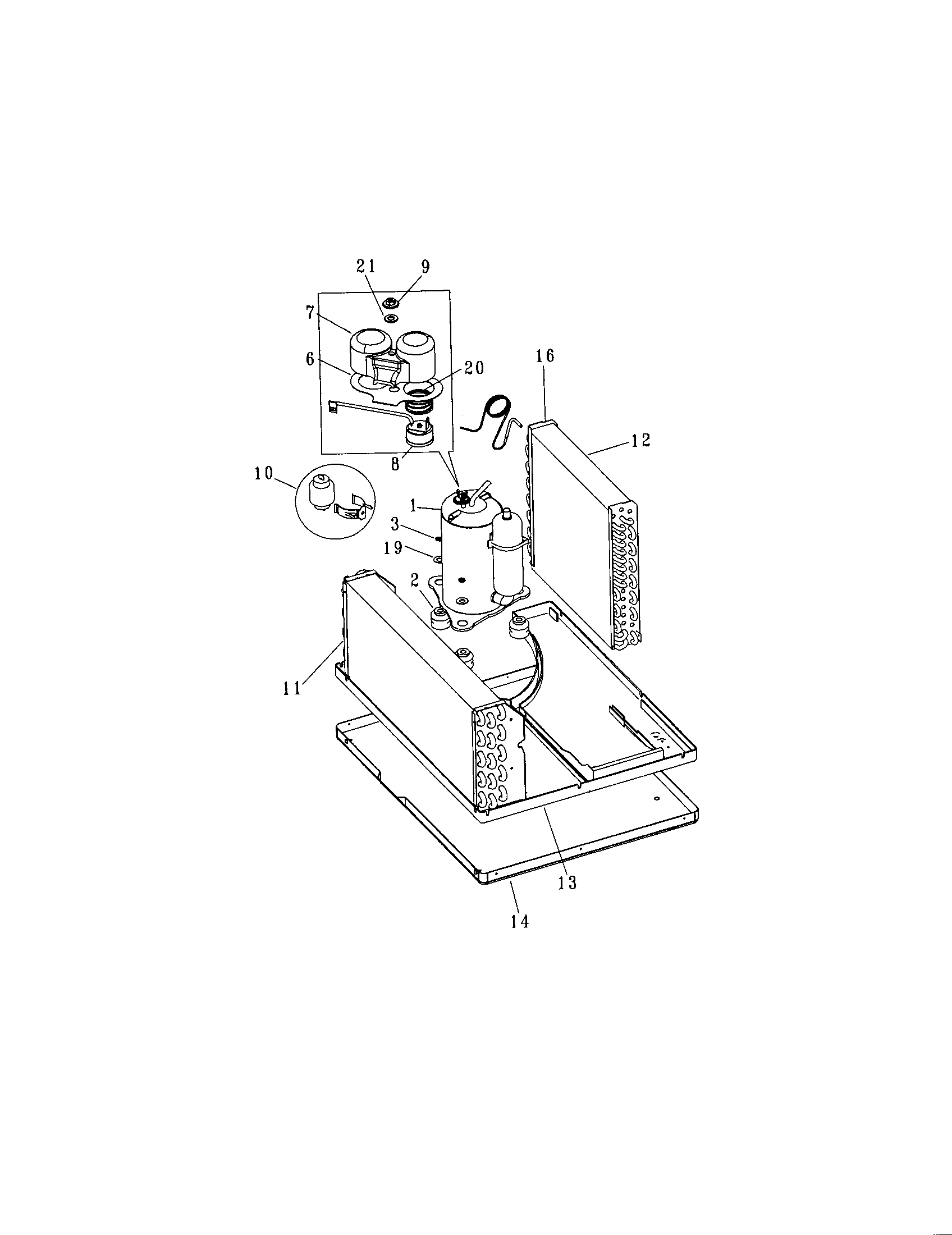

Compressor diagram

Tray,evap ba

Part #309628705

The manufacturer no longer makes this part, and there's no substitute part

Gasket 5303291330
#6

Compressor diagram

Gasket

Part #5303291330

The manufacturer no longer makes this part, and there's no substitute part

Filter 309628205
#12

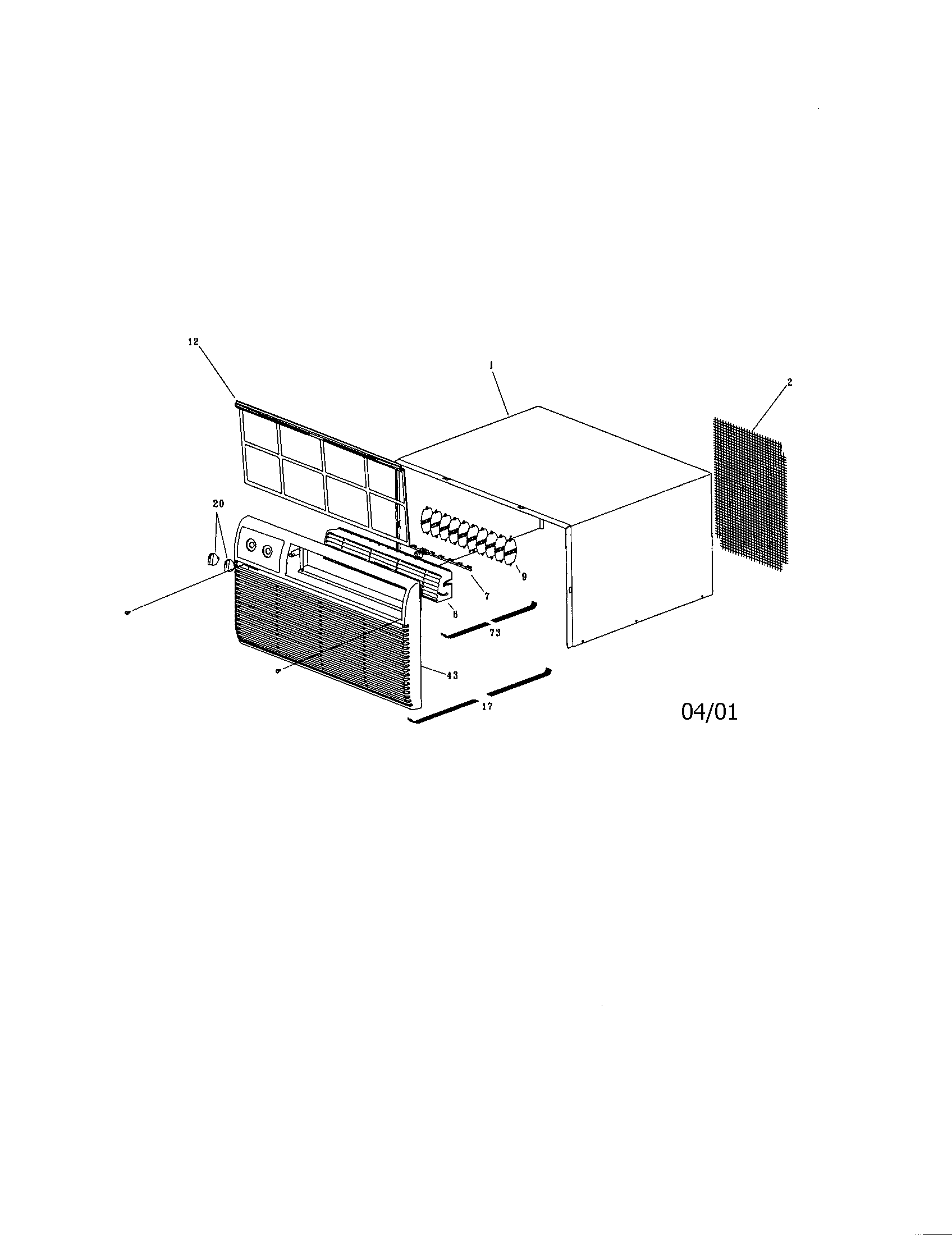

Cabinet front and wrapper diagram

Filter

Part #309628205

The manufacturer no longer makes this part, and there's no substitute part

#bulkhead-18 309627401
#10

Air handling diagram

#bulkhead-18

Part #309627401

The manufacturer no longer makes this part, and there's no substitute part

Washer 5303293809
#21

Compressor diagram

Washer

Part #5303293809

The manufacturer no longer makes this part, and there's no substitute part

Fan Housing 309628901
#3

Air handling diagram

Fan housing

Part #309628901

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 309629102
#1

Air handling diagram

Fan blade

Part #309629102

The manufacturer no longer makes this part, and there's no substitute part
