Kenmore
Floor Scrubber

Model # 10050860 Official Kenmore floor polisher

Here are the diagrams and repair parts for Official Kenmore 10050860 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Scrub Pad 622
#102

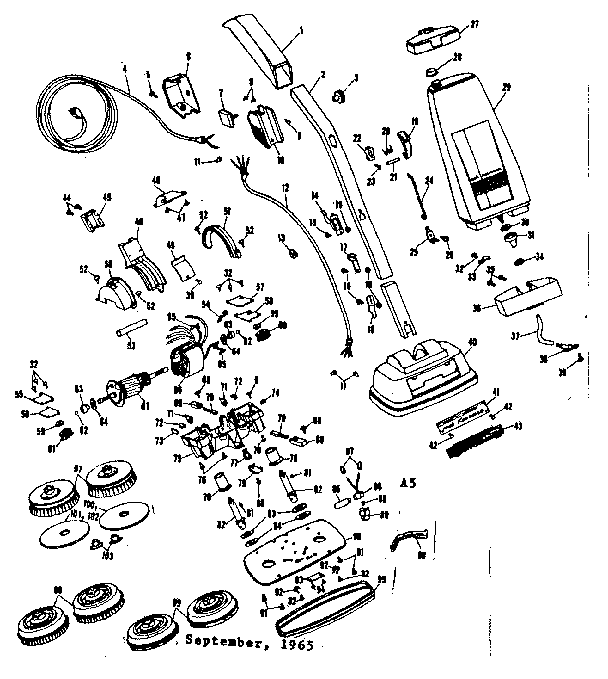

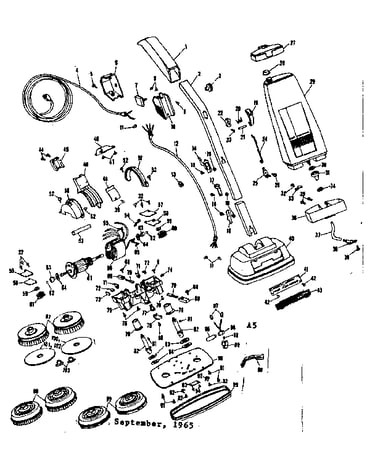

Unit parts diagram

Scrub pad

Part #622

The manufacturer no longer makes this part, and there's no substitute part

Screw 456395
#91

Unit parts diagram

Screw

Part #456395

The manufacturer no longer makes this part, and there's no substitute part

Button 934164
#103

Unit parts diagram

Button

Part #934164

The manufacturer no longer makes this part, and there's no substitute part

Polish Brush 634
#97

Unit parts diagram

Polish brush

Part #634

The manufacturer no longer makes this part, and there's no substitute part

Shampoo Brush 687
#99

Unit parts diagram

Shampoo brush

Part #687

The manufacturer no longer makes this part, and there's no substitute part

Spring 32817
#20

Unit parts diagram

Spring

Part #32817

The manufacturer no longer makes this part, and there's no substitute part

Pin 455105
#21

Unit parts diagram

Pin

Part #455105

The manufacturer no longer makes this part, and there's no substitute part

Armature 930501
#67

Unit parts diagram

Armature

Part #930501

The manufacturer no longer makes this part, and there's no substitute part

Screw 457543
#15

Unit parts diagram

Screw

Part #457543

The manufacturer no longer makes this part, and there's no substitute part

Plate 31947
#73

Unit parts diagram

Plate

Part #31947

The manufacturer no longer makes this part, and there's no substitute part
