GE PT970DR1WW electric oven Parts

Here are the diagrams and repair parts for GE PT970DR1WW electric oven, as well as links to manuals and error code tables, if available.

GE PT970DR1WW electric oven
By Schematic
By Part

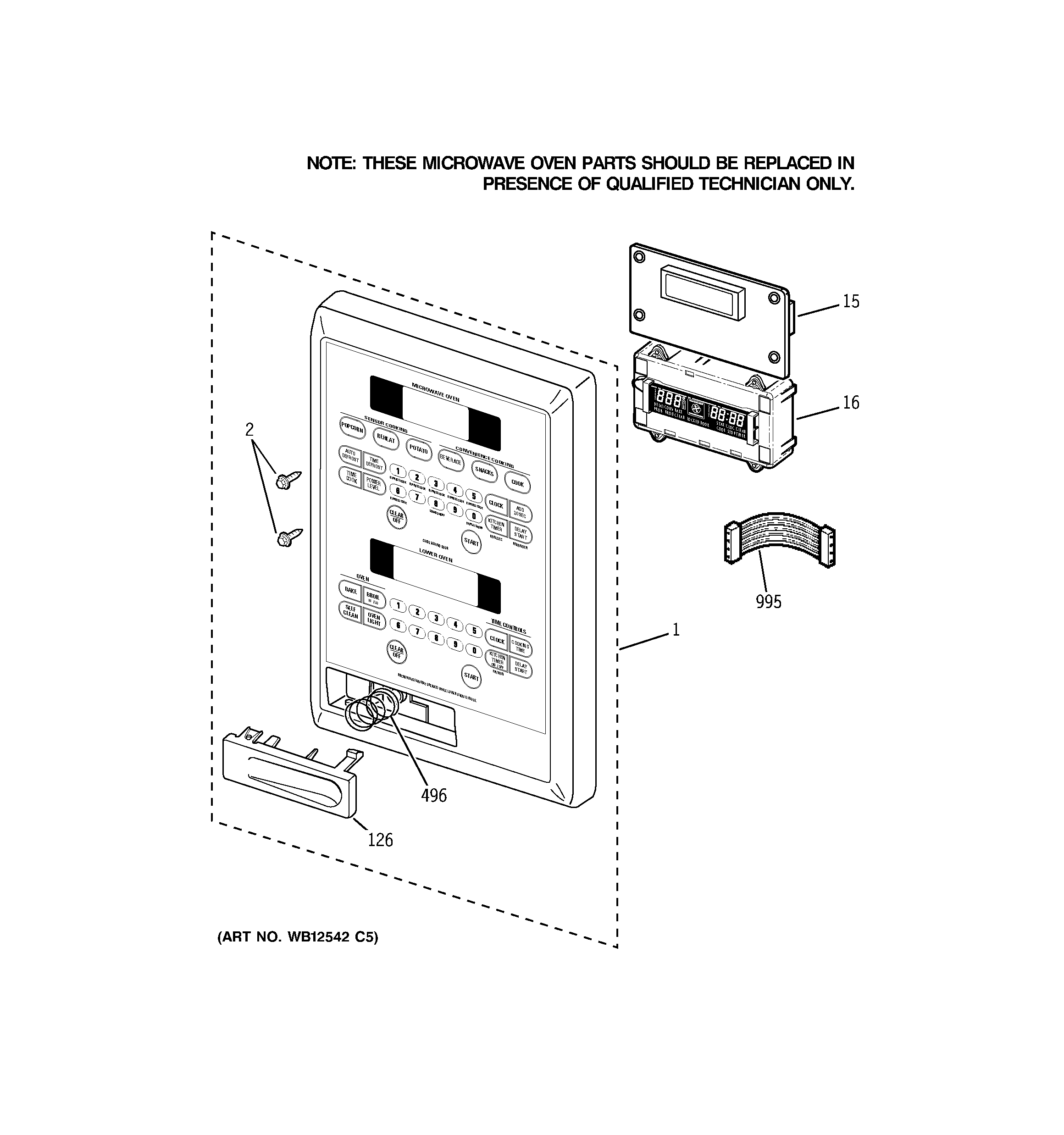

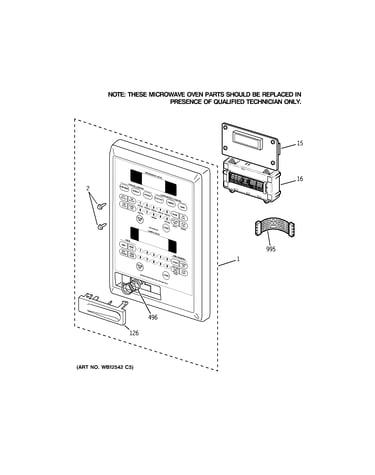

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PT970DR1WW Electric Oven

  • Microwave High-voltage Diode for GE PT970DR1WW - Part WB27X10597

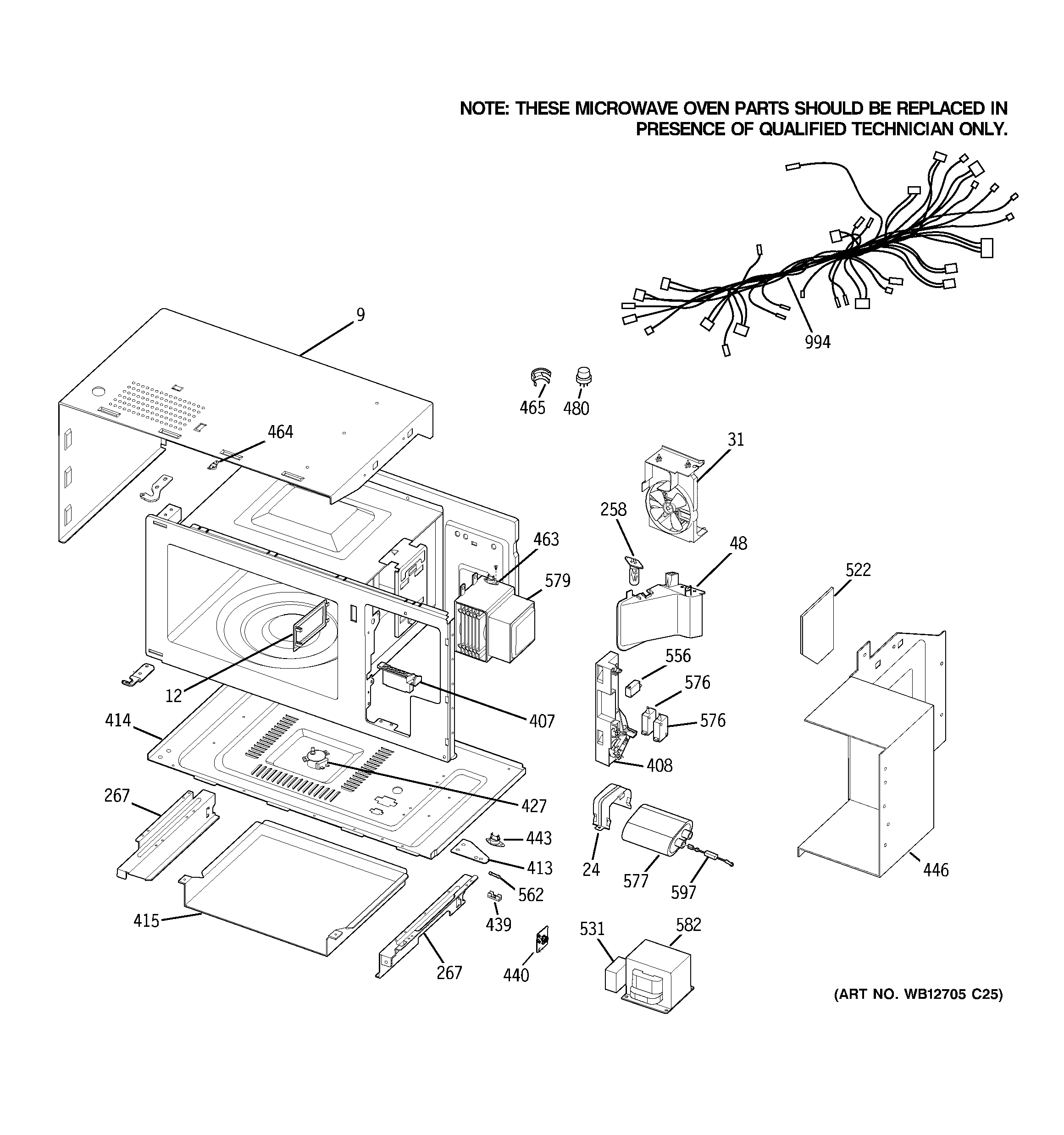

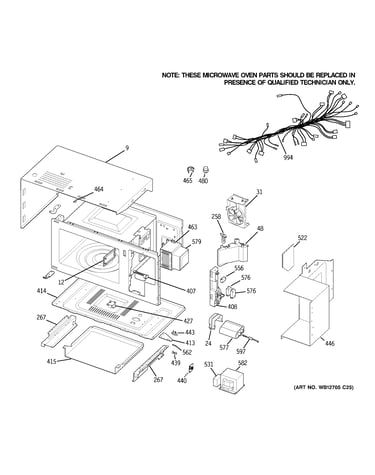

    Microwave body parts diagram

    High-voltage Diode

    Part #WB27X10169

    Replaced by #WB27X10597

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10169. Substitute parts can look different from the original.
    In Stock
    $55.83
    10% OFF Phone Price : $61.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Safety Thermostat for GE PT970DR1WW - Part WB24T10060

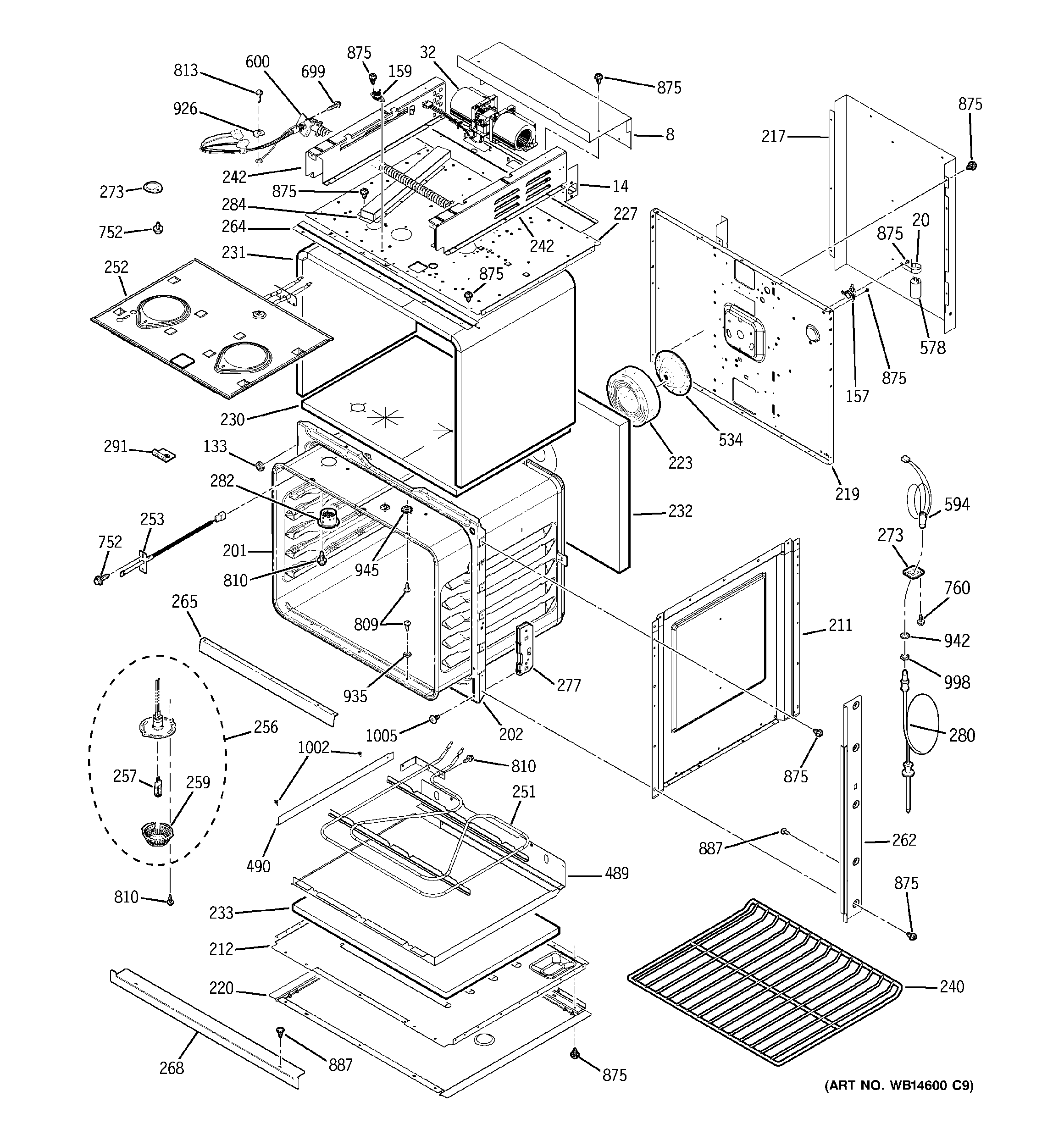

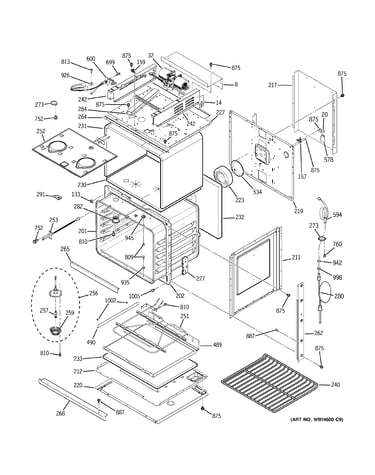

    Body with microwave support diagram

    Wall Oven Safety Thermostat

    Part #WB24T10060
    This item is not returnable
    In Stock
    $14.61
    12% OFF Phone Price : $16.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Cooling Fan Assembly for GE PT970DR1WW - Part WB26X10264

    Body with microwave support diagram

    Blower Fan

    Part #WB26T10048

    Replaced by #WB26X10264

    Info Icon
    Manufacturer substitution
    This part replaces WB26T10048. Substitute parts can look different from the original.
    In Stock
    $135.54
    8% OFF Phone Price : $147.54Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Oven Door Middle Glass for GE PT970DR1WW - Part WB56T10105

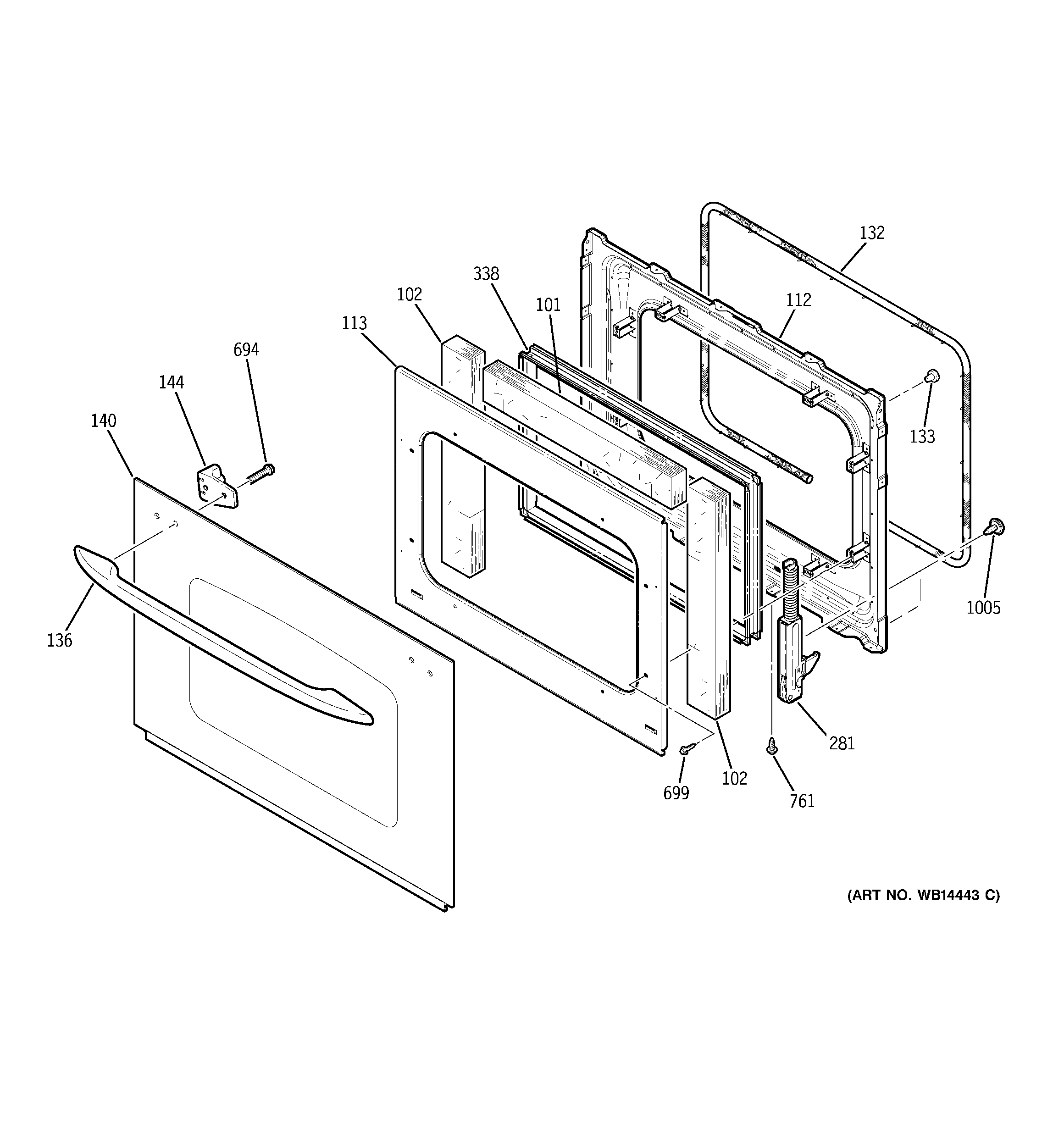

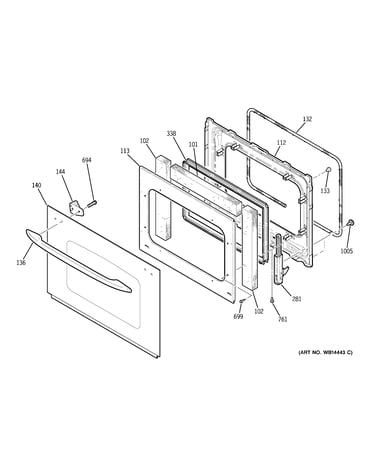

    Door diagram

    G.e. Range Oven Door Middle Glass

    Part #WB56T10105
    In Stock
    $136.26
    8% OFF Phone Price : $148.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Convection Fan Blade for GE PT970DR1WW - Part WB02T10289

    Convection fan diagram

    Range Convection Fan Blade

    Part #WB02T10289
    This item is not returnable
    In Stock
    $28.42
    17% OFF Phone Price : $34.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Assembly for GE PT970DR1WW - Part WB08T10002

    Body with microwave support diagram

    Oven Lamp Holder

    Part #WB08T10002

    Replaced by #WB08T10002

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10002. Substitute parts can look different from the original.
    In Stock
    $35.01
    15% OFF Phone Price : $41.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE PT970DR1WW - Part WB1M1

    Screw

    Part #WB01K5150

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5150. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE PT970DR1WW - Part WB1M1

    Convection fan diagram

    Screw

    Part #WB01M0001

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces WB01M0001. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Convection Fan Motor for GE PT970DR1WW - Part WB26T10043

    Convection fan diagram

    Wall Oven Convection Fan Motor

    Part #WB26T10043
    In Stock
    $213.39
    5% OFF Phone Price : $225.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Holder-se for GE PT970DR1WW - Part WB6X549

    Microwave body parts diagram

    Holder Sensor

    Part #WB06X0549

    Replaced by #WB6X549

    Info Icon
    Manufacturer substitution
    This part replaces WB06X0549. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
