Samsung MW7695GS/XAA countertop microwave

Samsung MW7695GS/XAA countertop microwave Parts

Here are the diagrams and repair parts for Samsung MW7695GS/XAA countertop microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MW7695GS/XAA Microwaves

  • Microwave High-voltage Diode for Samsung MW7695GS/XAA - Part DE91-70063D

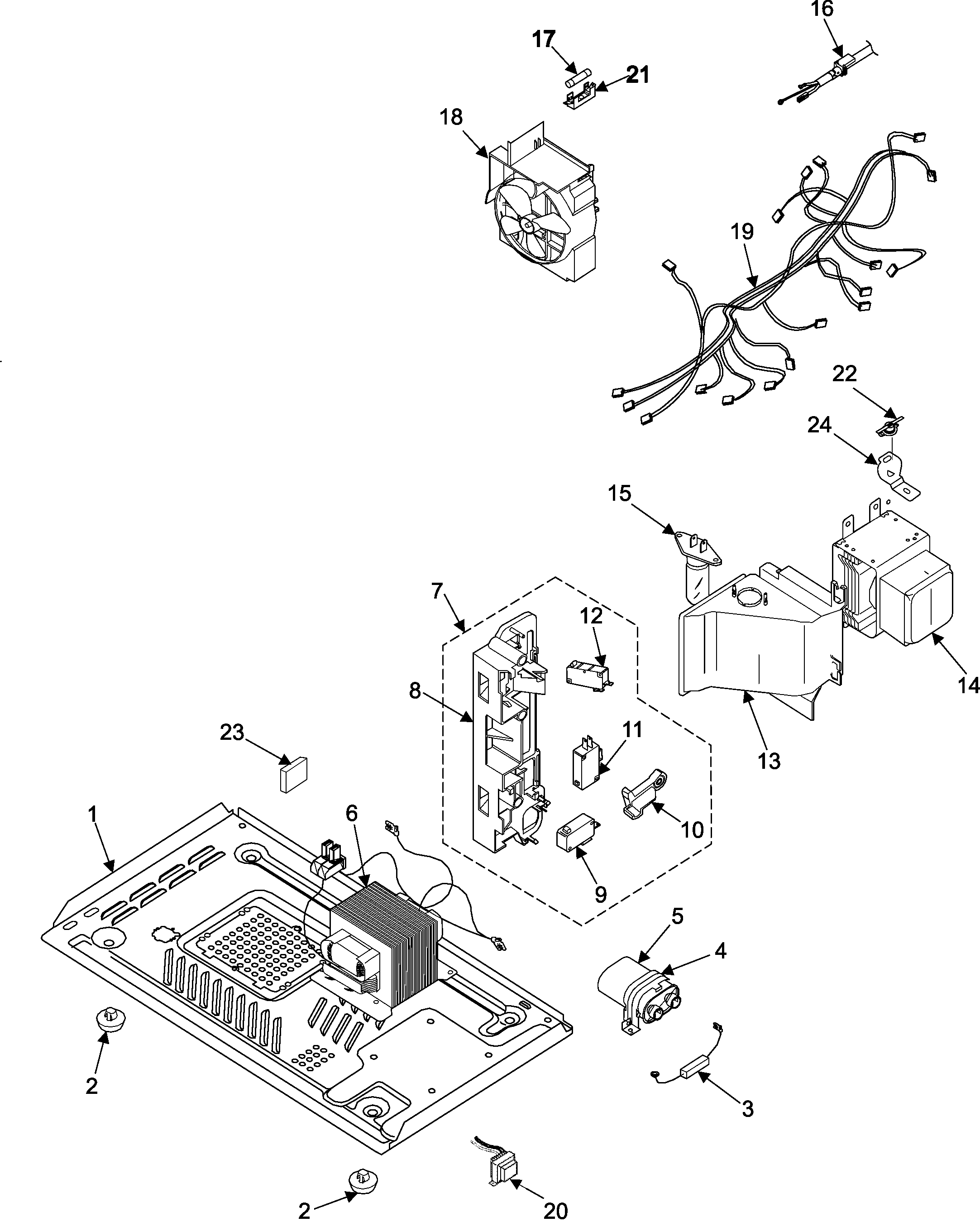

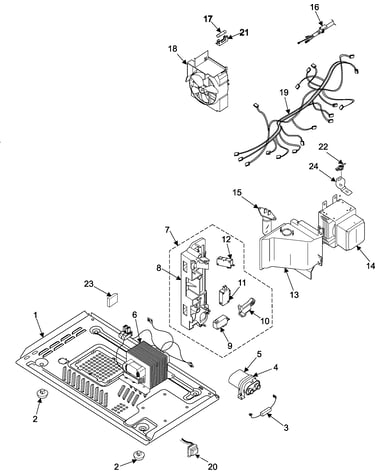

    Internal control/latch assy/base diagram

    Diode

    Part #DE59-40001A

    Replaced by #DE91-70063D

    Info Icon
    Manufacturer substitution
    This part replaces DE59-40001A. Substitute parts can look different from the original.
    In Stock
    $25.10
    19% OFF Phone Price : $31.10Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for Samsung MW7695GS/XAA - Part 3405-001034

    Internal control/latch assy/base diagram

    Microwave Door Interlock Switch

    Part #3405-001034
    In Stock
    $54.67
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for Samsung MW7695GS/XAA - Part 2501-001016

    Internal control/latch assy/base diagram

    Microwave High-voltage Capacitor

    Part #2501-001016
    In Stock
    $74.60
    10% OFF Was : $82.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Micro-switch for Samsung MW7695GS/XAA - Part 3405-001032

    Internal control/latch assy/base diagram

    Micro-switch

    Part #3405-001032
    In Stock
    $30.57
    16% OFF Phone Price : $36.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Glass Turntable Tray for Samsung MW7695GS/XAA - Part DE74-00023A

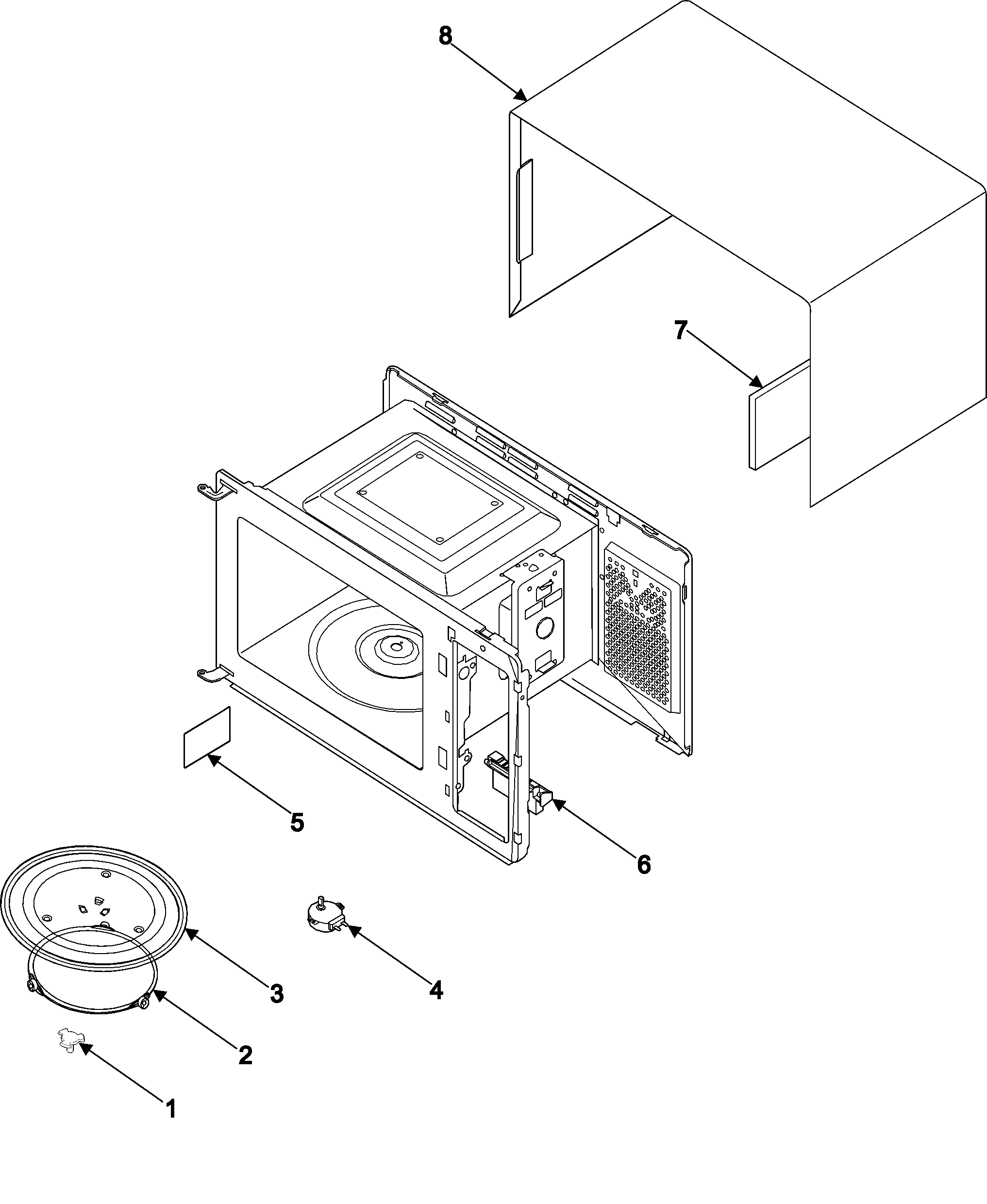

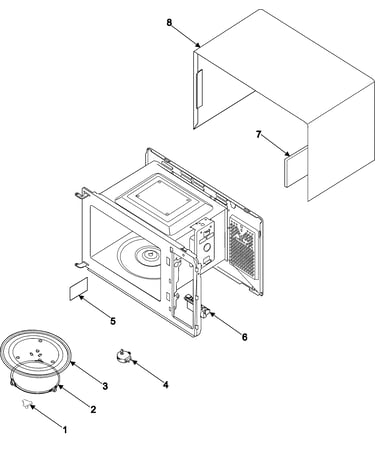

    Body/cavity/elements diagram

    Microwave Glass Turntable Tray

    Part #DE74-20002A

    Replaced by #DE74-00023A

    Info Icon
    Manufacturer substitution
    This part replaces DE74-20002A. Substitute parts can look different from the original.
    In Stock
    $91.16
    9% OFF Phone Price : $99.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Switch- Mi for Samsung MW7695GS/XAA - Part WP3405-001034

    Internal control/latch assy/base diagram

    Switch

    Part #3405-001042

    Replaced by #WP3405-001034

    Info Icon
    Manufacturer substitution
    This part replaces 3405-001042. Substitute parts can look different from the original.
    In Stock
    $64.92
    Minus Item
    Qty
    Plus Item
  • Microwave Light Bulb for Samsung MW7695GS/XAA - Part 4713-001102

    Internal control/latch assy/base diagram

    Incandescent Lamp

    Part #4713-001012

    Replaced by #4713-001102

    Info Icon
    Manufacturer substitution
    This part replaces 4713-001012. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.40
    19% OFF Phone Price : $31.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Control Panel for Samsung MW7695GS/XAA - Part DE72-00022B

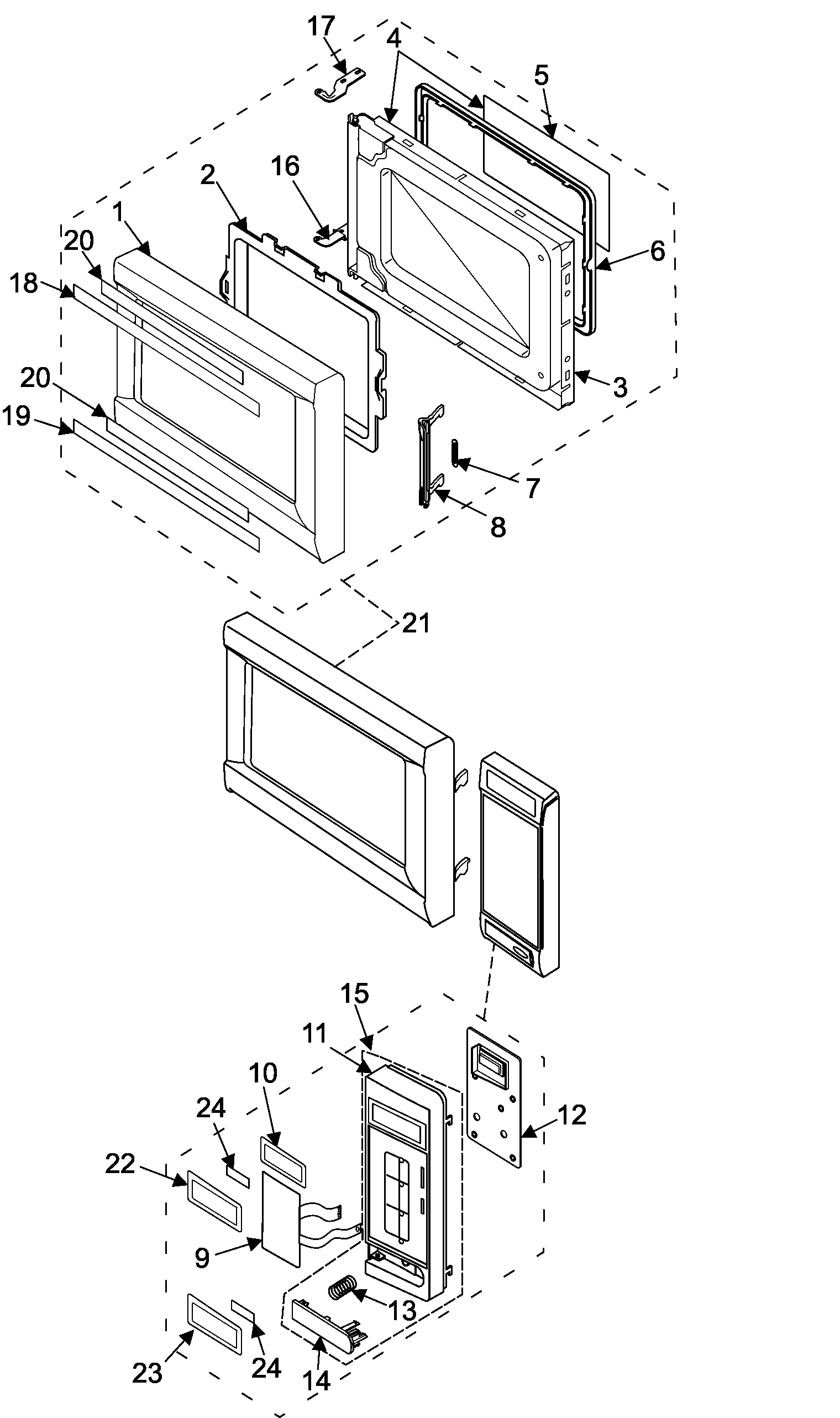

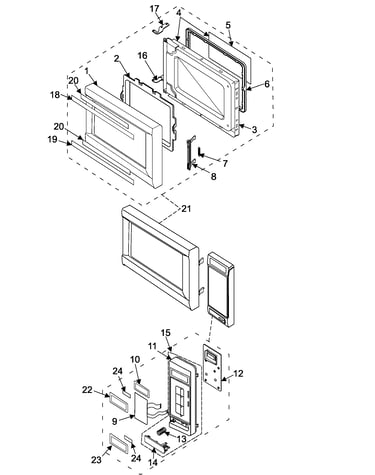

    Control panel/door assembly diagram

    Control Panel

    Part #DE72-00022B
    In Stock
    $65.80
    Minus Item
    Qty
    Plus Item
  • Microwave Thermostat for Samsung MW7695GS/XAA - Part DE47-20173A

    Internal control/latch assy/base diagram

    Microwave Thermostat

    Part #DE47-20173A
    This item is not returnable
    In Stock
    $23.09
    21% OFF Phone Price : $29.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Complete Door for Samsung MW7695GS/XAA - Part DE64-40010B

    Control panel/door assembly diagram

    Complete Door

    Part #DE64-40010B
    In Stock
    $47.60
    Minus Item
    Qty
    Plus Item
