Model # UN32D4000NDXZA-H302 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN32D4000NDXZA-H302 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Television Power Cord 3903-000598
#12

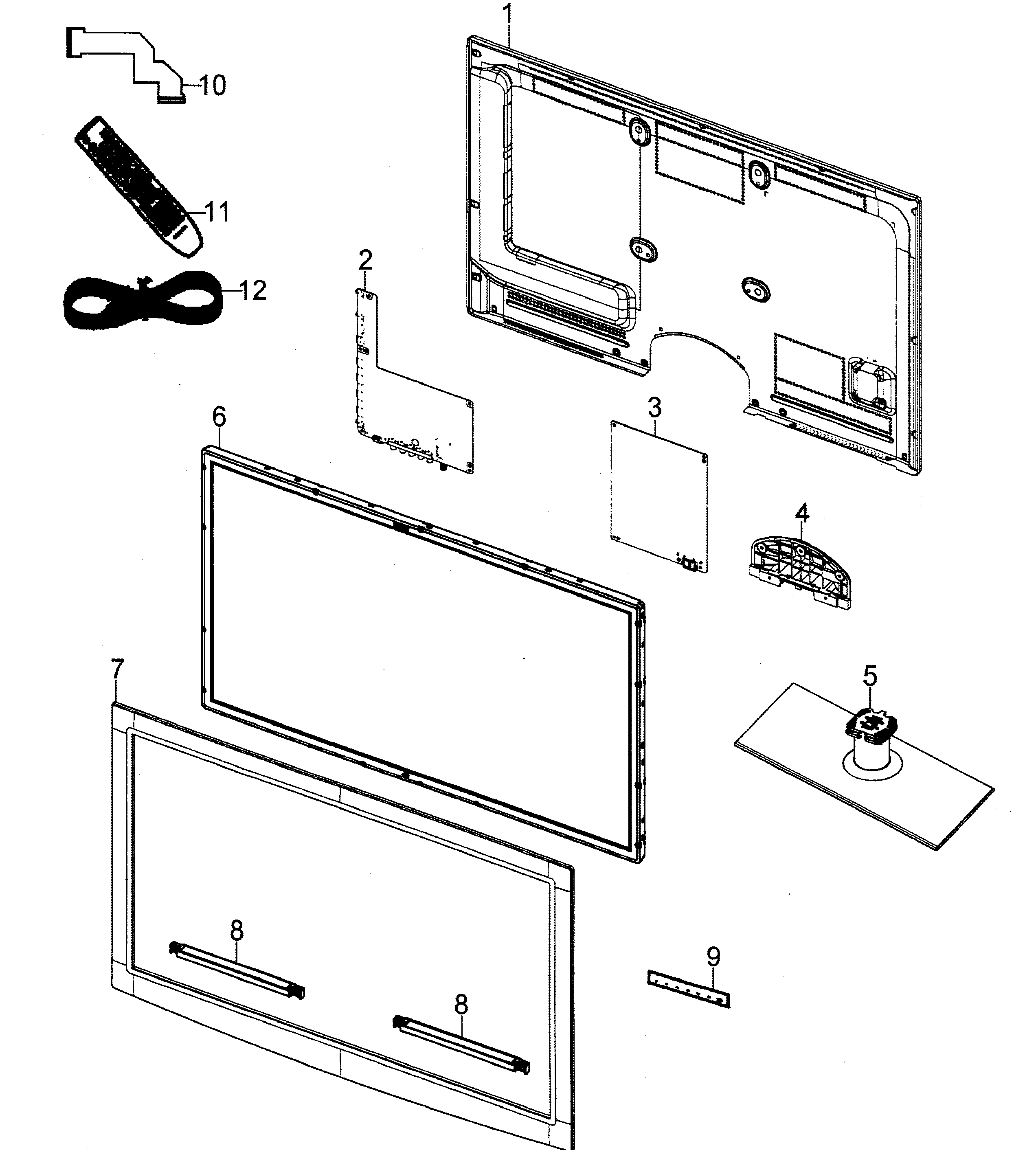

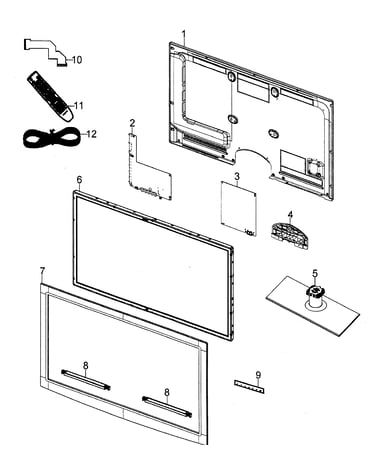

Cabinet parts diagram

Television power cord

Part #3903-000598

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-16746A
#7

Cabinet parts diagram

Cover

Part #BN96-16746A

The manufacturer no longer makes this part, and there's no substitute part

Func/ir Pc BN96-17614J
#9

Cabinet parts diagram

Func/ir pc

Part #BN96-17614J

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly BN96-13227P
#10

Cabinet parts diagram

Cable assembly

Part #BN96-13227P

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-16750A
#1

Cabinet parts diagram

Cover

Part #BN96-16750A

The manufacturer no longer makes this part, and there's no substitute part

Base Stand BN96-16757A
#5

Cabinet parts diagram

Base stand

Part #BN96-16757A

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb BN96-19560A
#2

Cabinet parts diagram

Main pcb

Part #BN96-19560A

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker BN96-16799A
#8

Cabinet parts diagram

Television speaker

Part #BN96-16799A

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel BN95-00437A
#6

Cabinet parts diagram

Lcd panel

Part #BN95-00437A

The manufacturer no longer makes this part, and there's no substitute part

Remote Control AA59-00463A
#11

Cabinet parts diagram

Remote control

Part #AA59-00463A

The manufacturer no longer makes this part, and there's no substitute part
