Mitsubishi MUY-A24NA-1 split-system air conditioner heat pump

Mitsubishi MUY-A24NA-1 split-system air conditioner heat pump Parts

Here are the diagrams and repair parts for Mitsubishi MUY-A24NA-1 split-system air conditioner heat pump, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MUY-A24NA-1 Split-System Air Conditioner Heat Pump

  • Propeller for Mitsubishi MUY-A24NA-1 - Part E12851501

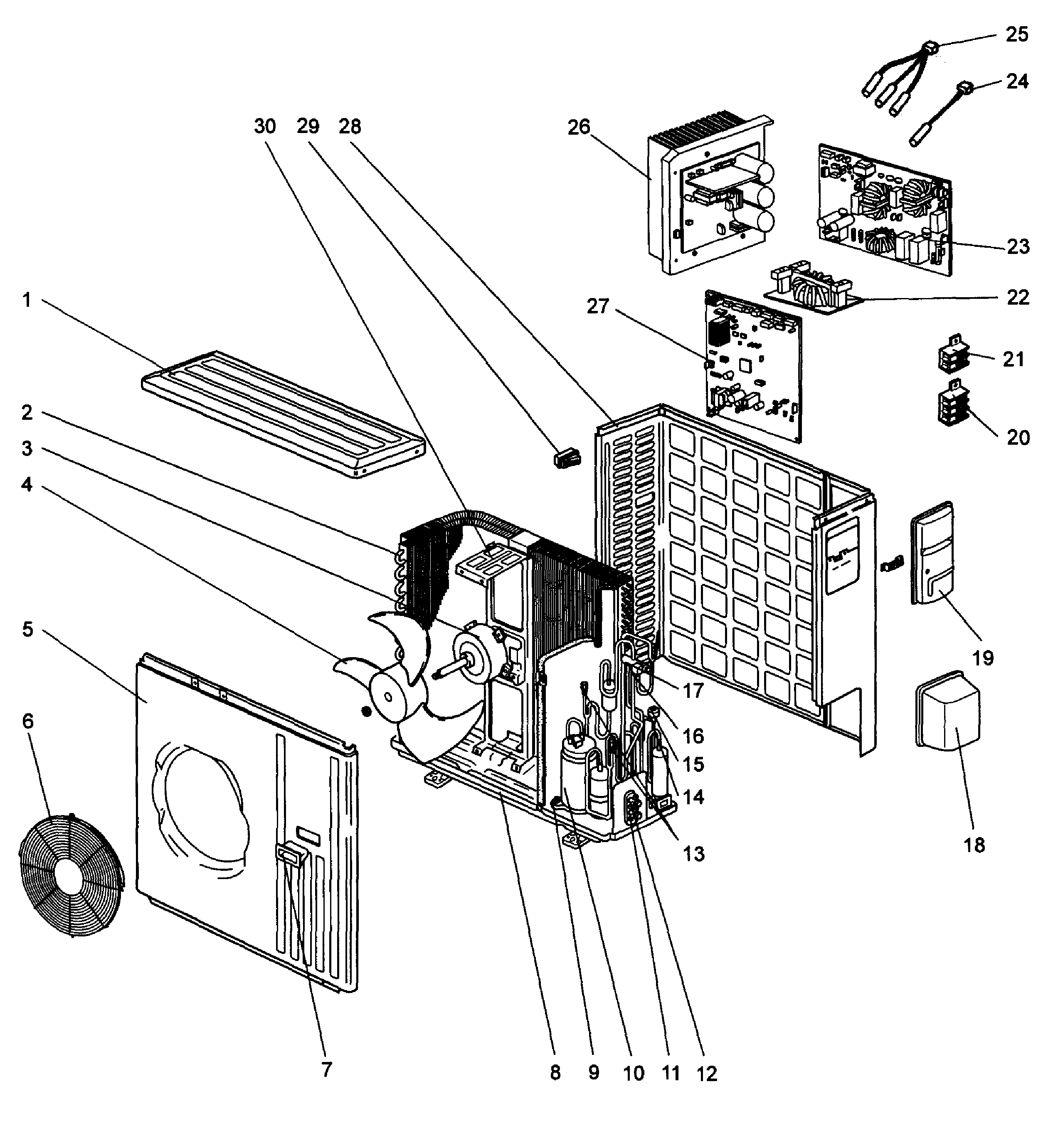

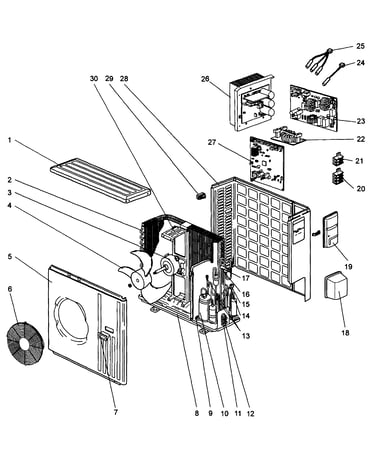

    Cabinet assy diagram

    Propeller

    Part #E12851501

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermistor for Mitsubishi MUY-A24NA-1 - Part E12A53308

    Cabinet assy diagram

    Thermistor

    Part #E12A53308

    The manufacturer no longer makes this part, and there's no substitute part

  • Service Po for Mitsubishi MUY-A24NA-1 - Part E12A49641

    Cabinet assy diagram

    Service Po

    Part #E12A49641

    The manufacturer no longer makes this part, and there's no substitute part

  • Base for Mitsubishi MUY-A24NA-1 - Part E12851290

    Cabinet assy diagram

    Base

    Part #E12851290

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Support for Mitsubishi MUY-A24NA-1 - Part E12851515

    Cabinet assy diagram

    Motor Support

    Part #E12851515

    The manufacturer no longer makes this part, and there's no substitute part

  • Gas Valve for Mitsubishi MUY-A24NA-1 - Part E12A58661

    Cabinet assy diagram

    Gas Valve

    Part #E12A58661

    The manufacturer no longer makes this part, and there's no substitute part

  • Stop Valve for Mitsubishi MUY-A24NA-1 - Part E12821662

    Cabinet assy diagram

    Stop Valve

    Part #E12821662

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan Guard for Mitsubishi MUY-A24NA-1 - Part E12819521

    Cabinet assy diagram

    Fan Guard

    Part #E12819521

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor for Mitsubishi MUY-A24NA-1 - Part E12A56900

    Cabinet assy diagram

    Compressor

    Part #E12A56900

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle for Mitsubishi MUY-A24NA-1 - Part E12819009

    Cabinet assy diagram

    Handle

    Part #E12819009

    The manufacturer no longer makes this part, and there's no substitute part
