GE JVM1420WB02 microwave Parts
Here are the diagrams and repair parts for GE JVM1420WB02 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for JVM1420WB02 Microwave

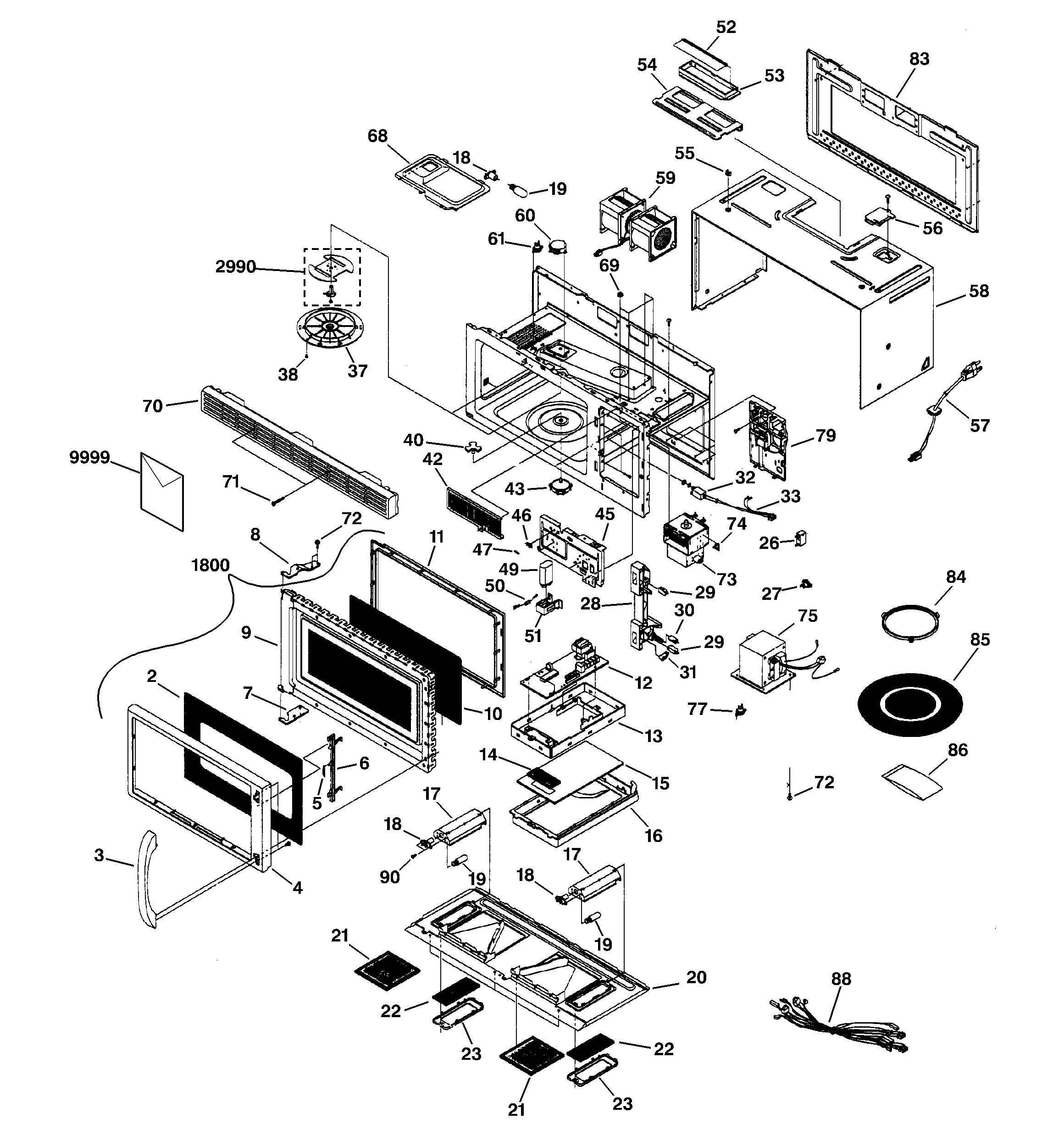

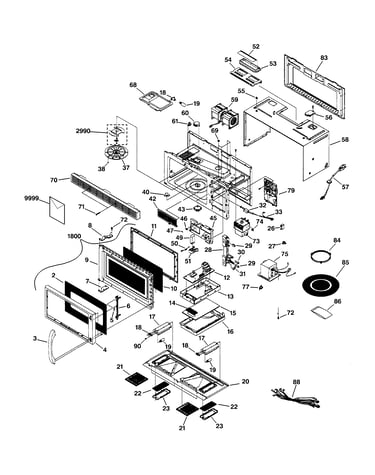

Microwave diagram
Switch-micro
Part #WB24X0829Replaced by #WB24X829
Manufacturer substitutionThis part replaces WB24X0829. Substitute parts can look different from the original.In Stock$30.2817% OFF Phone Price : $36.28
Qty
Microwave diagram
Fuse
Part #WB27X1159Replaced by #WB27X10928
Manufacturer substitutionThis part replaces WB27X1159. Substitute parts can look different from the original.In Stock$12.9213% OFF Phone Price : $14.92QtyMicrowave diagram
Monitor Switch
Part #WB24X0830Replaced by #WB24X830
Manufacturer substitutionThis part replaces WB24X0830. Substitute parts can look different from the original.In Stock$36.0514% OFF Phone Price : $42.05QtyMicrowave diagram
High-voltage Diode
Part #WB27X10169Replaced by #WB27X10597
Manufacturer substitutionThis part replaces WB27X10169. Substitute parts can look different from the original.In Stock$55.8310% OFF Phone Price : $61.83QtyMicrowave diagram
Microwave Door Interlock Switch Lever
In Stock$12.0914% OFF Phone Price : $14.09QtyMicrowave diagram
Microwave Light Bulb
Part #WB36X10003This item is not returnableIn Stock$15.6111% OFF Phone Price : $17.61QtyMicrowave diagram
Therm-hood
Part #WB21X0535Replaced by #WB27X1127
Manufacturer substitutionThis part replaces WB21X0535. Substitute parts can look different from the original.In Stock$40.7113% OFF Phone Price : $46.71QtyMicrowave diagram
Microwave Door Handle
Part #WB15X10023This item is not returnableIn Stock$65.9920% OFF Was : $82.93QtyMicrowave diagram
Microwave Vent Motor Capacitor
In Stock$16.3443% OFF Was : $28.80QtyMicrowave diagram
Cooking Tray
Part #WB39X10002Replaced by #WB39X10003
Manufacturer substitutionThis part replaces WB39X10002. Substitute parts can look different from the original.In Stock$94.596% OFF Phone Price : $100.59Qty
