Frigidaire
Room Air Conditioner

Model # FAM187Q2A2 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAM187Q2A2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

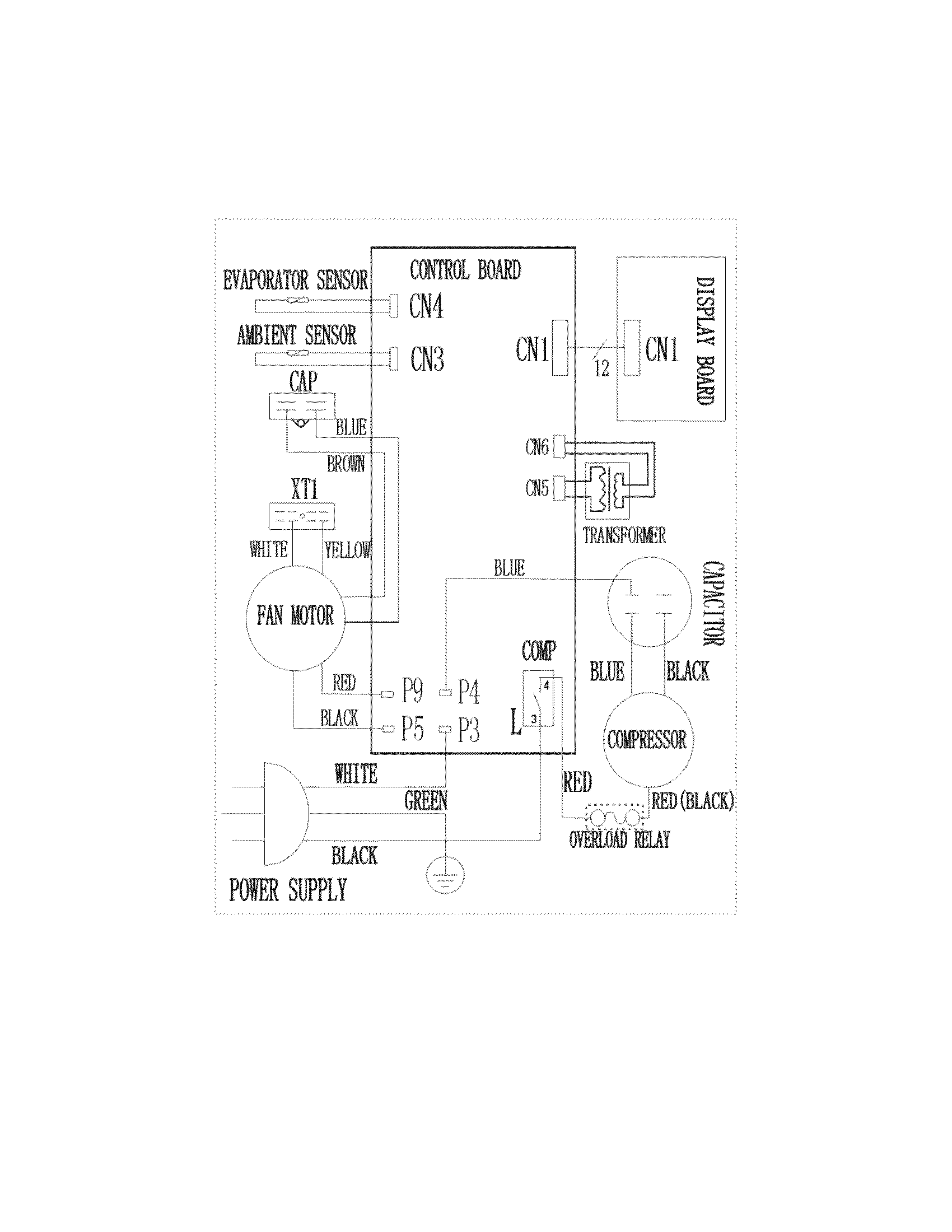

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Fan Blade 5304455480
#10

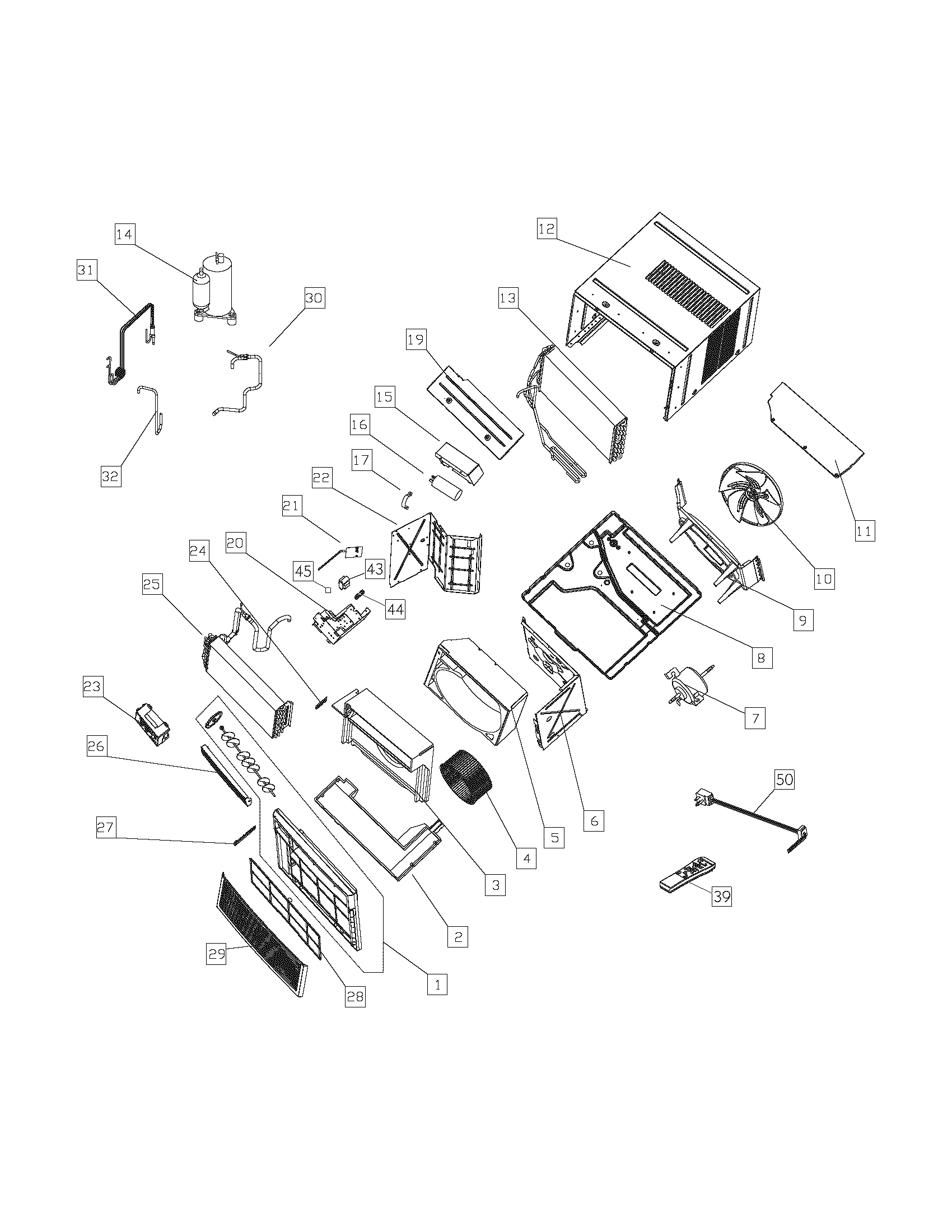

Recommended spare parts diagram

Fan blade

Part #5304455480

Replaced by #5304472356

?
Manufacturer substitution
This part replaces 5304455480. Substitute parts can look different from the original.
$104.39
9% OFF Phone Price : $114.39
In Stock
Capacitor 5304455583
#45

Recommended spare parts diagram

Capacitor

Part #5304455583

Replaced by #5304472609

?
Manufacturer substitution
This part replaces 5304455583. Substitute parts can look different from the original.
$77.89
6% OFF Phone Price : $82.89
In Stock
Base 5304455587
#8

Recommended spare parts diagram

Base

Part #5304455587

The manufacturer no longer makes this part, and there's no substitute part

Terminal 5304455486
#44

Recommended spare parts diagram

Terminal

Part #5304455486

The manufacturer no longer makes this part, and there's no substitute part

Overlay 5304455580
#NI

Recommended spare parts diagram

Overlay

Part #5304455580

The manufacturer no longer makes this part, and there's no substitute part

Shroud 5304455544
#9

Recommended spare parts diagram

Shroud

Part #5304455544

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304455567
#19

Recommended spare parts diagram

Cover

Part #5304455567

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304455539
#3

Recommended spare parts diagram

Scroll

Part #5304455539

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 5304436530
#17

Recommended spare parts diagram

Capacitor

Part #5304436530

The manufacturer no longer makes this part, and there's no substitute part

Motor 5304455586
#7

Recommended spare parts diagram

Motor

Part #5304455586

The manufacturer no longer makes this part, and there's no substitute part
